mounting bracket.

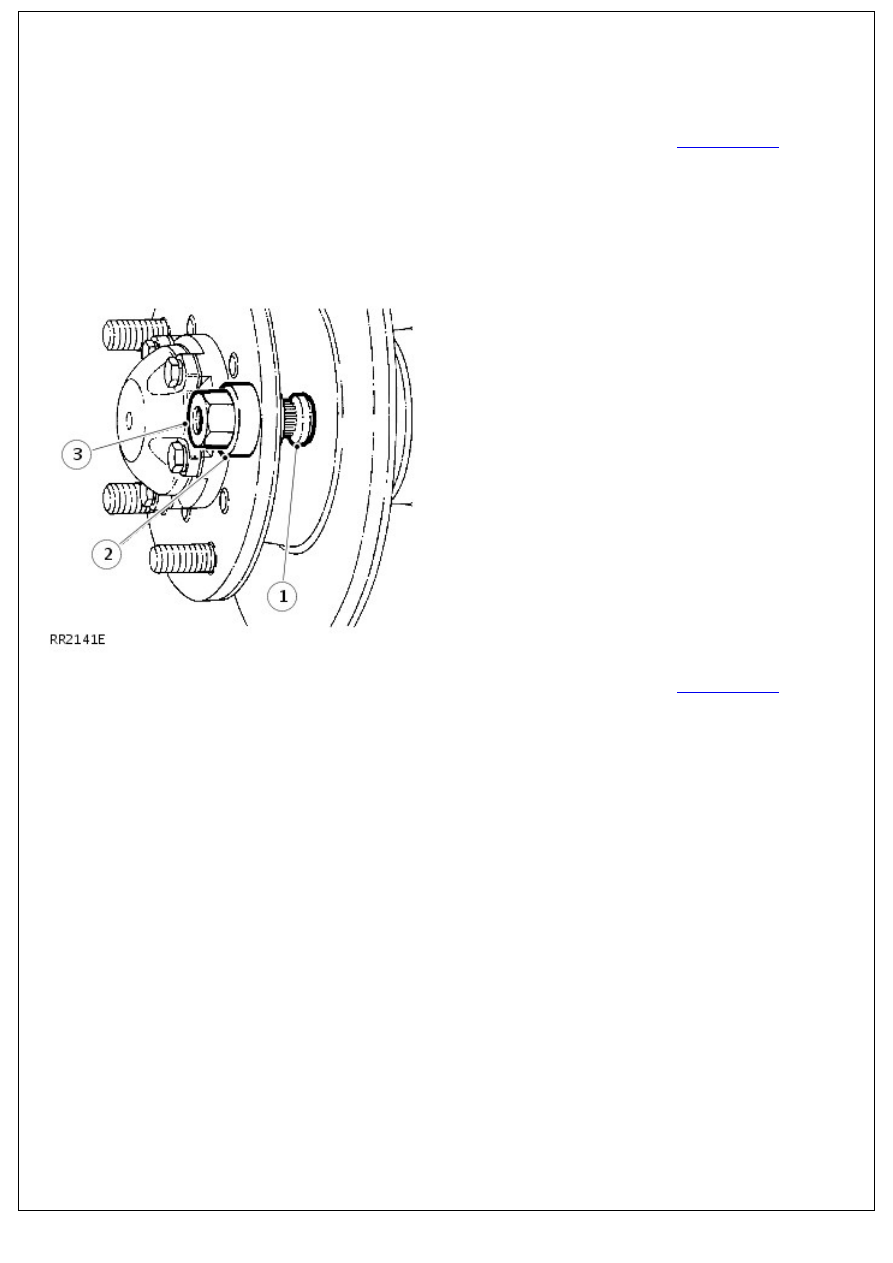

16. Stake the hub nut.
17. Clean hub and axle shaft faces.
18. Instal new driving member gasket.
19. Position driving member to hub and tighten new bolts to 65

Nm (48 lbf.ft).

20. Instal original shim(s) to drive shaft and secure with circlip.
21. Position brake caliper to hub, align fixings, instal bolts and

tighten to 82 Nm (60 lbf.ft).

22. Remove plugs from brake pipe connections.
23. Connect brake pipe union to jump hose and tighten union.

CAUTION: Use 2 spanners when tightening or loosening unions.

24. Remove brake hose clamp from jump hose.
25. Bleed brake system.

For additional information, refer to:

Brake System Bleeding

(206-00 Brake System - General Information, General

Procedures).

26. Instal road wheel, remove axle stand and tighten wheel

nuts to 130 Nm (95 lbf.ft).

27. Operate foot brake to locate brake pads before taking

vehicle on road.

Front Suspension - Wheel Studs

Removal and Installation

Removal

1. Remove wheel.

For additional information, refer to:

Wheel and Tire

 (204-04

Wheels and Tires, Removal and Installation).

2. Drive stud out of driveshaft flange.

Installation

1. Position stud in flange.
2. Install a suitable spacer over stud.

3. Using a M16 x 1.5 nut, a slave wheel nut is suitable, pull

stud into flange until shoulder of stud abuts flange.

4. Refit wheel.

For additional information, refer to:

Wheel and Tire

 (204-04

Wheels and Tires, Removal and Installation).

Front Suspension - Front Shock Absorber

Removal and Installation

Removal

1. Loosen road wheel retaining nuts.
2. Support chassis on stands and remove road wheel.
3. Support axle weight with jack.
4. Remove shock absorber lower fixing and withdraw

cupwasher, rubber bush and seating washer.

5. Remove four shock absorber bracket fixings.
6. Withdraw shock absorber and bracket assembly.

7. Withdraw lower seating washer, rubber bush and

cupwasher.

8. Remove fixings, shock absorber to mounting bracket.
9. Withdraw mounting bracket.

10. Lift off top seating washer, rubber bush and cupwasher.

Installation

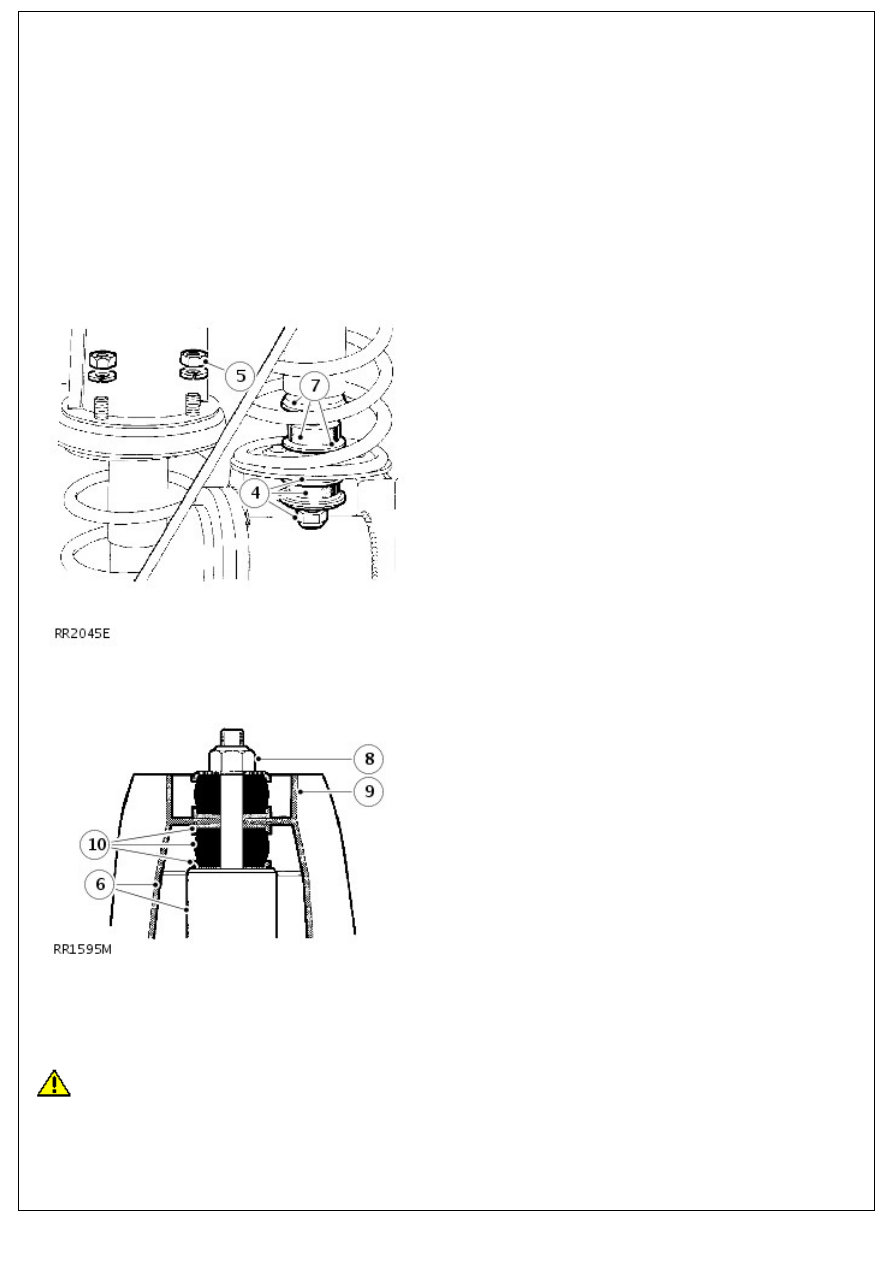

1. Assemble shock absorber components.
2. Position shock absorber, complete with bracket and secure

with 4 fixings.

CAUTION: When tightening the nuts on both the upper and lower fixings, ensure that at least two threads are

visible on the section of the bolt that extends beyond the nut.

3. Secure shock absorber lower fixing.
4. Install road wheel, remove chassis stands and jack. Tighten

wheel nuts to correct torque:

1. Alloy wheels - 130 Nm (96 lbf.ft)

2. Steel wheels - 100 Nm (80 lbf.ft)

3. Heavy duty wheels - 170 Nm (125 lbf.ft)
