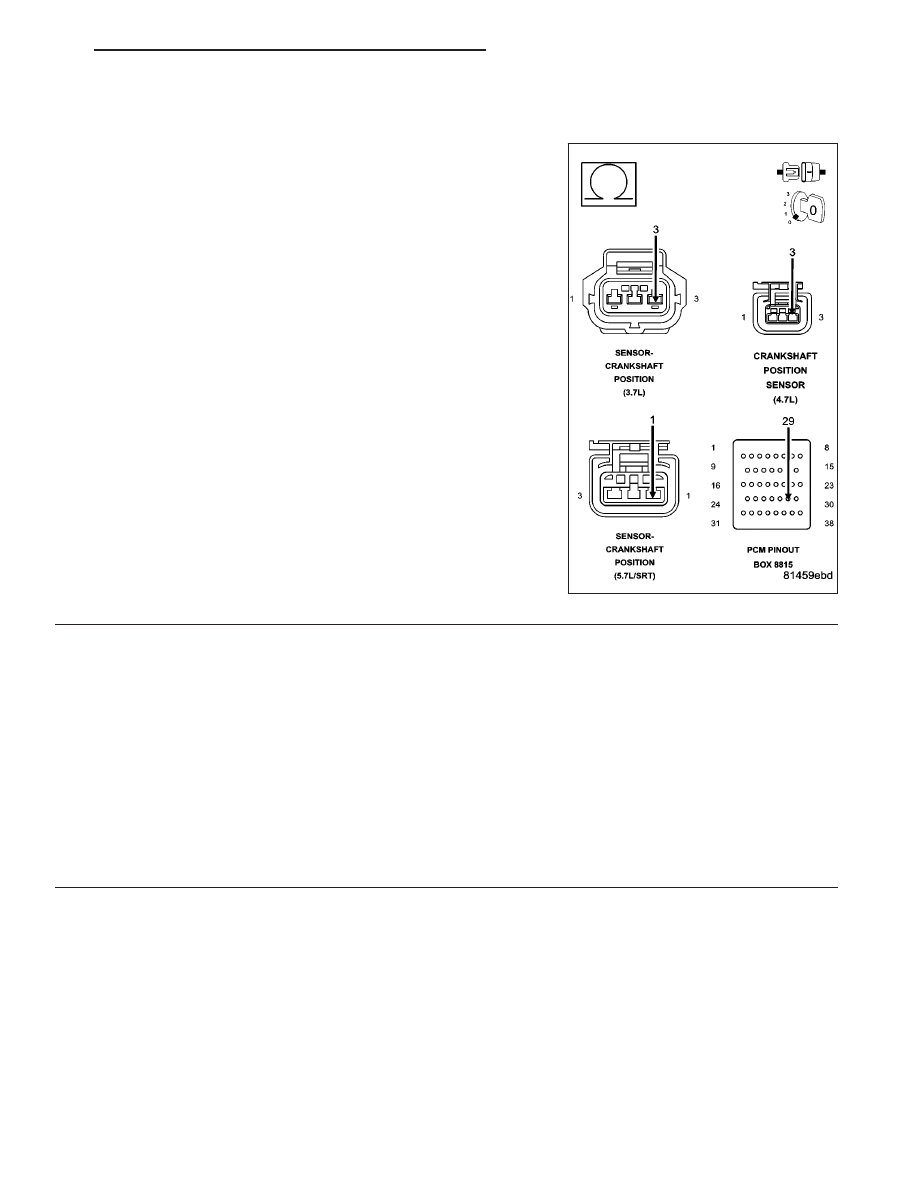

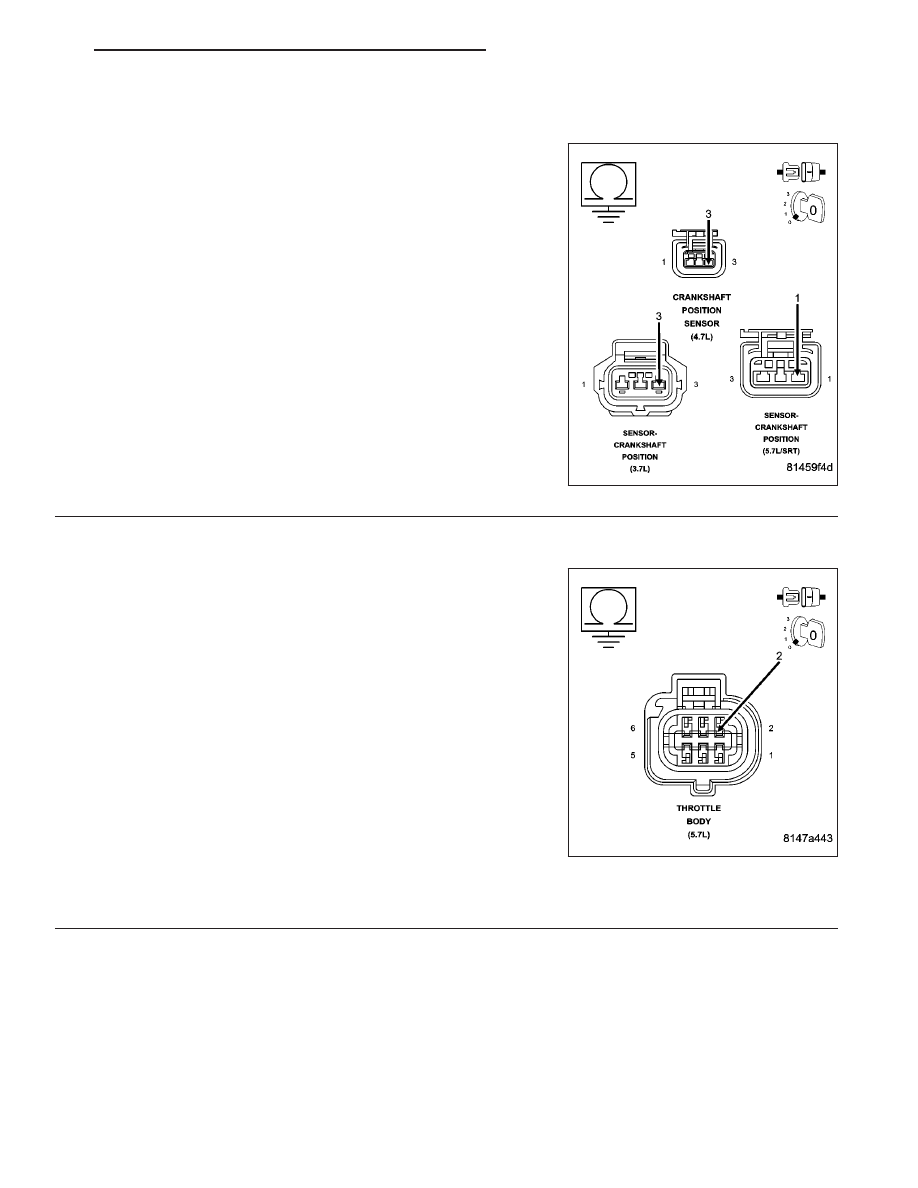

P1618-SENSOR REFERENCE VOLTAGE 1 CIRCUIT ERRATIC (CONTINUED) For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (F855) PRIMARY 5-VOLT SUPPLY SHORTED TO GROUND (F855) PRIMARY 5-VOLT SUPPLY SHORTED TO BATTERY VOLTAGE (F855) PRIMARY 5-VOLT SUPPLY CIRCUIT OPEN 5-VOLT SENSOR PCM Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - Diagnostic Test 1. ACTIVE DTC Ignition on, engine not running. With a scan tool, read DTCs. Is the DTC active at this time? Yes >> Go To 2 No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 9 - 824 ENGINE ELECTRICAL DIAGNOSTICS WK |
