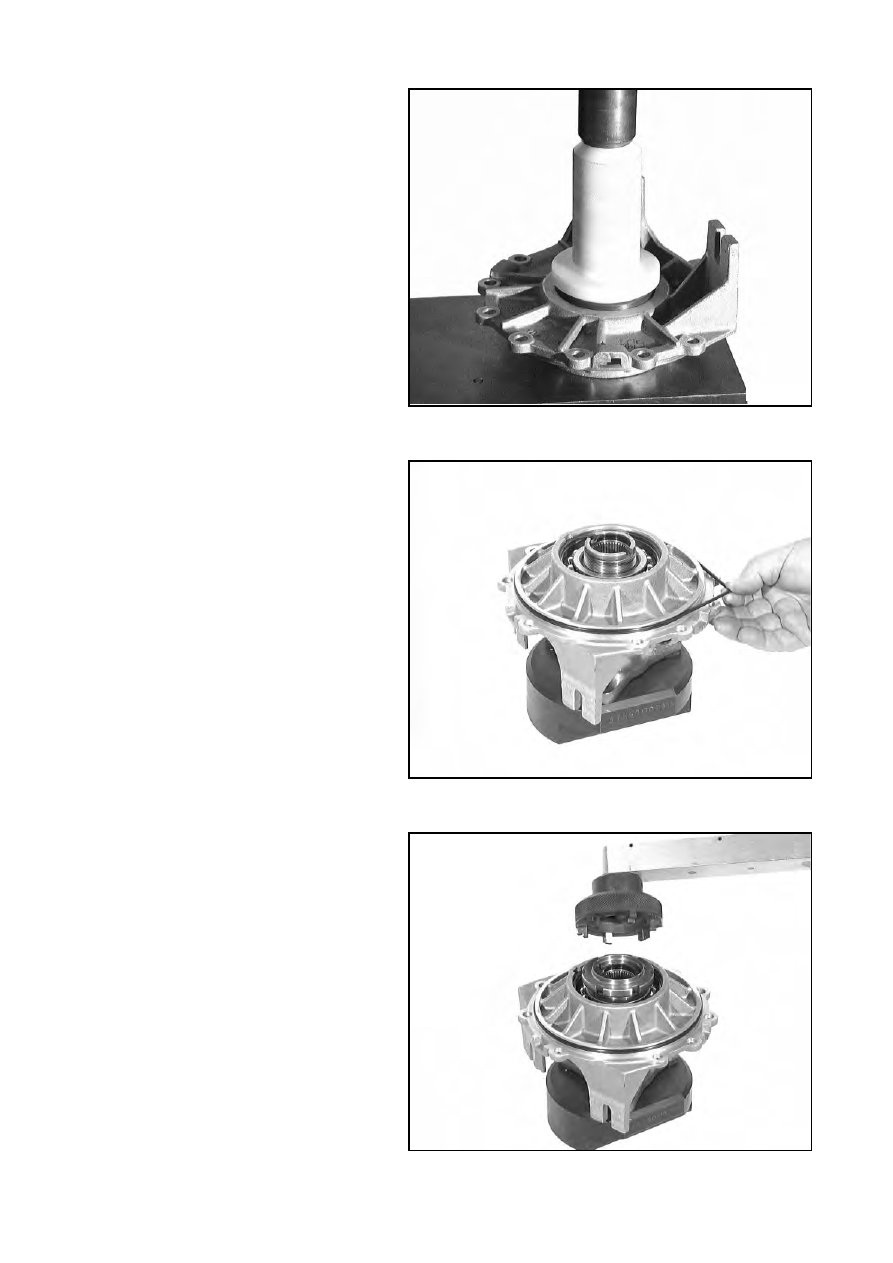

Turn over the extension, making sure that
the bearing outer rings do not fall out.
Using assembly drift 5x46 001 949,
mount shaft seal 14.010/140 in the
mandrel press.

Put output flange 14.020 on counter
support 5x46 000 946. Put the extension
on the output flange. Place O-ring 14.060
on the extension.

Screw slotted nut 14.030 on to the output
flange, tighten it with slotted nut wrench
5x46 000 787 and secure it.

(See Chapter 1.5 for tightening torque)

Working with a vice

3.4/2

97243

97140

97141

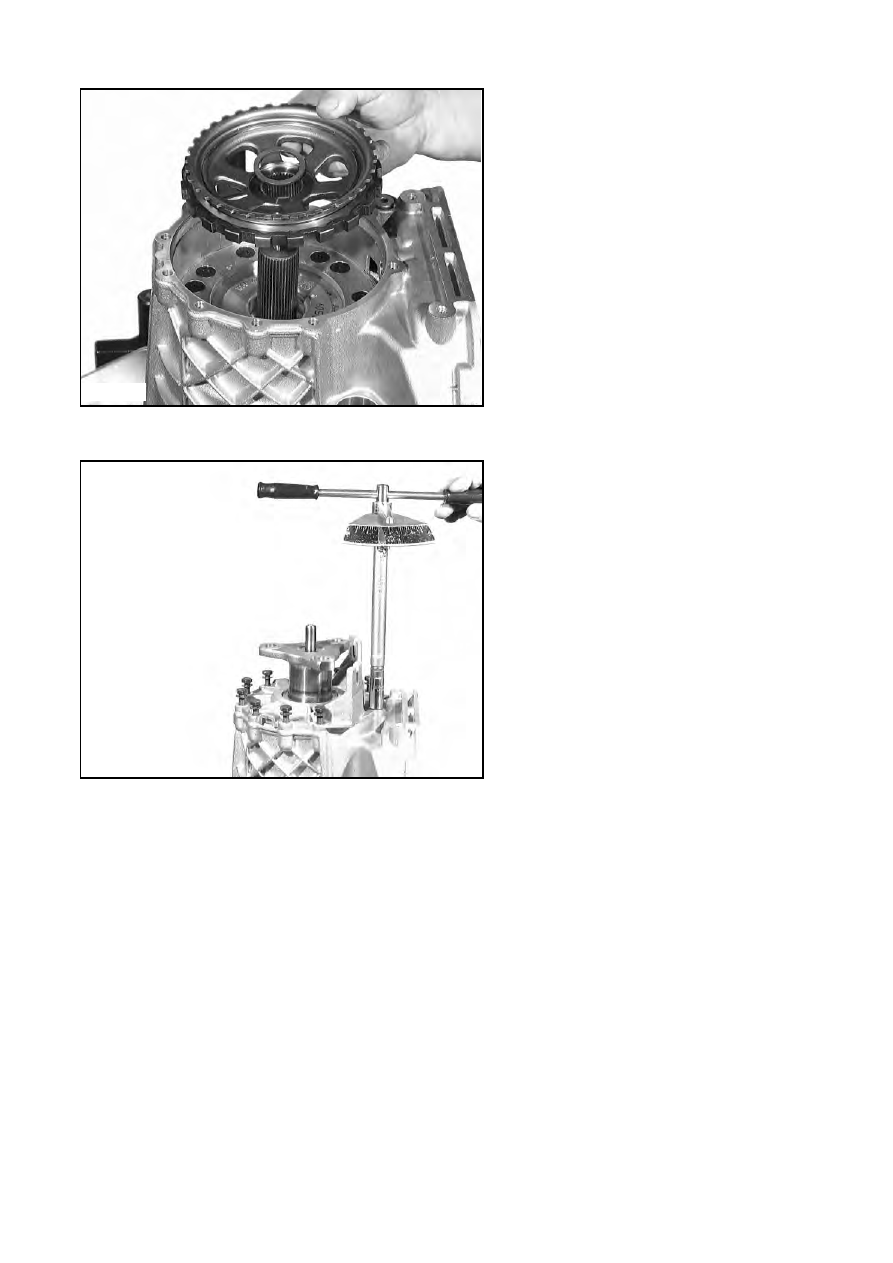

Turn the transmission 180°. Put in
parking lock wheel 24.040, and place
shim 14.080 on top of it.

Important!
Making adjustments, Chapter 1.4.5

Put on the output assembly and fasten it
with 10 hexagonal screws 14.070.
Turn the housing 180°.
Remove assembly fixture 5x46 001 077.

(See Chapter 1.5 for tightening torque)

3.4/3

97244

97145

3.5

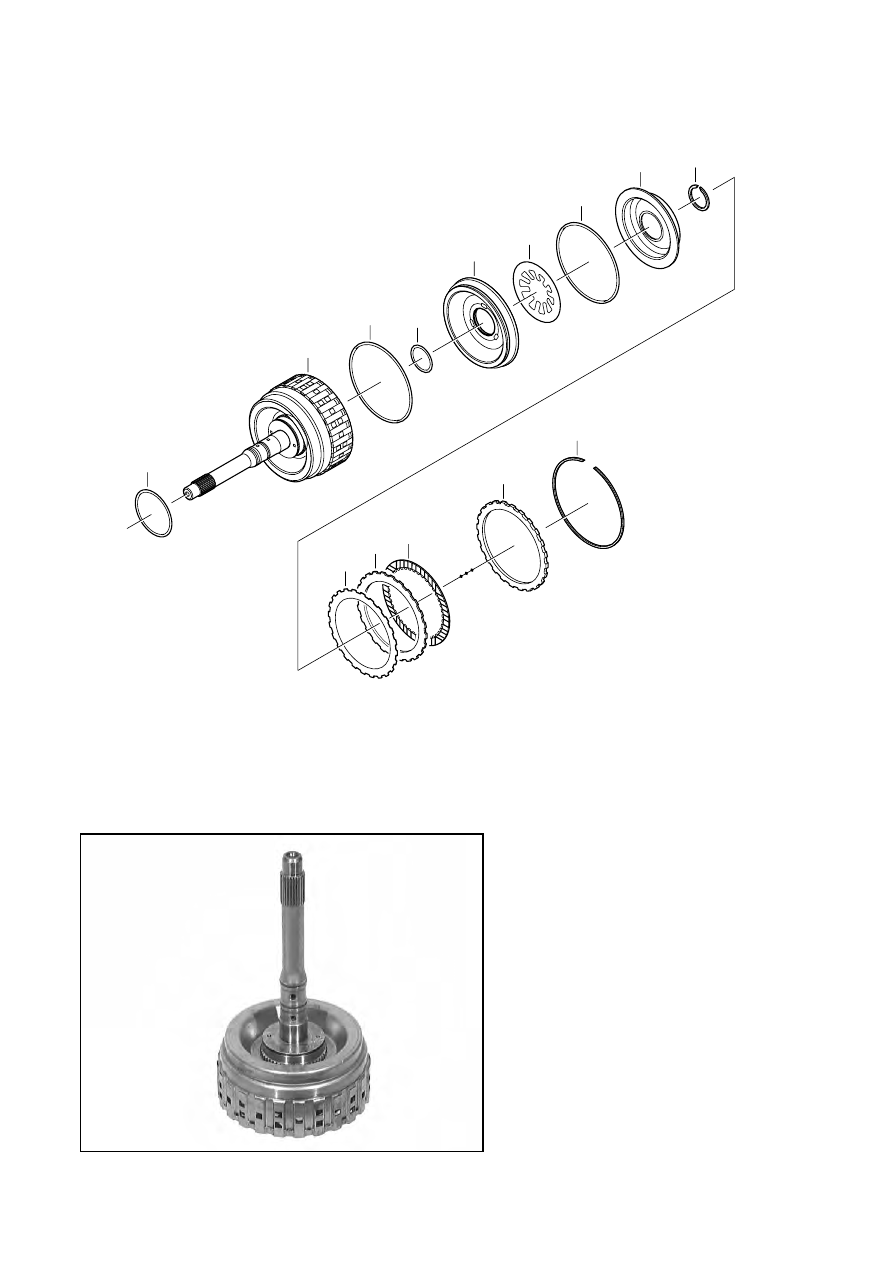

Tower II (input with clutches A and B)

3.5.1

Clutch A (input)

Place a new O-ring 70.014 and two
rectangular-section rings 72.140 on cylin-
der A 70.010 with the input shaft.

3.5/1

97146

70.014

70.010

70.040 70.030

70.020

70.090

70.100

70.110

70.120

70.050

70.060

70.070

70.080

70.140
