Jaguar 5HP24 transmission. Manual - part 19

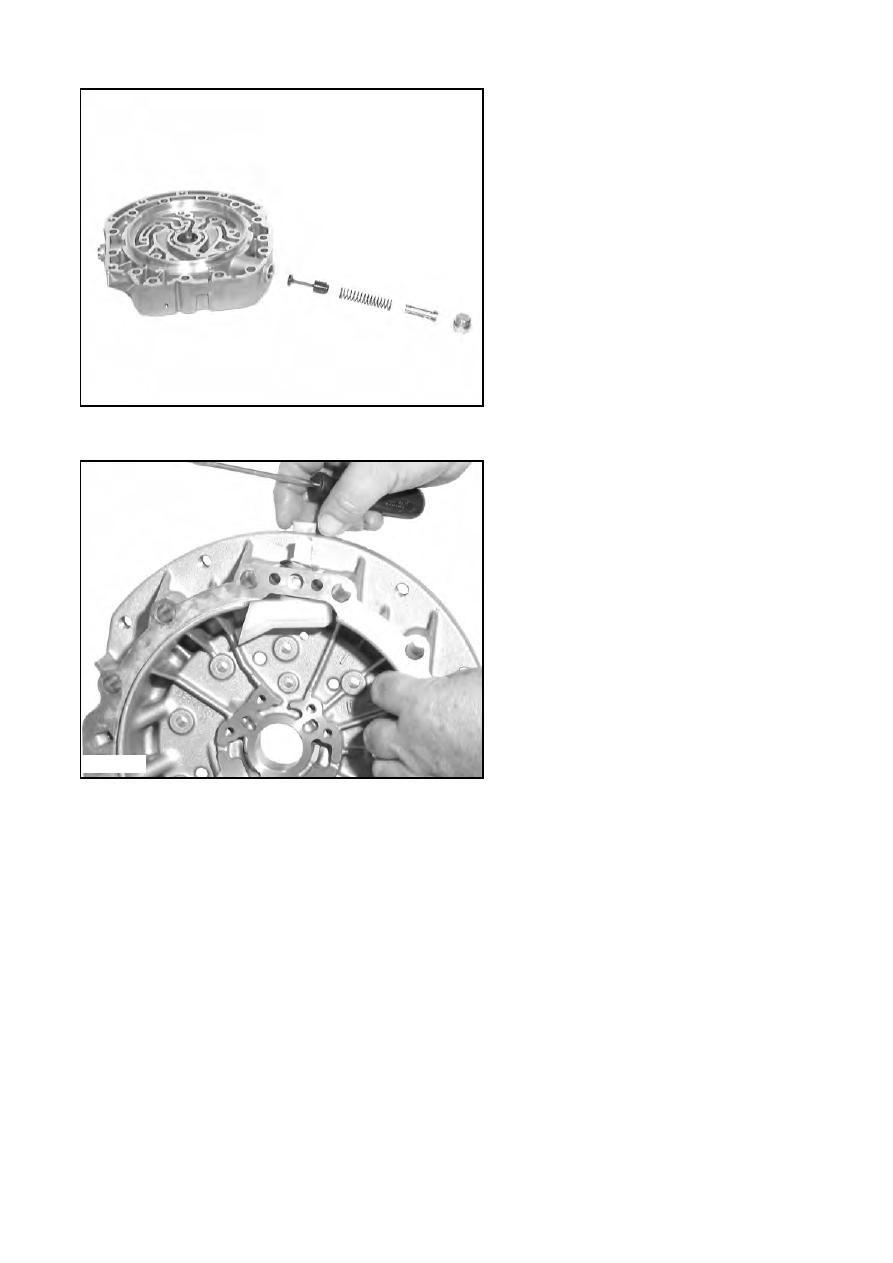

2.7 Housing with flow control valve

and breather

Unscrew and remove the two fastening
screws. Take out the piston, pressure
spring and sleeve.

(Wrench size = hex. socket, 6 mm)
(Wrench size = hexagonal, 19 mm)

Take off the cover from the breather.
Remove the breather’s locking disc and
push out the breather and the O-ring.

2.7/1

97062

97063

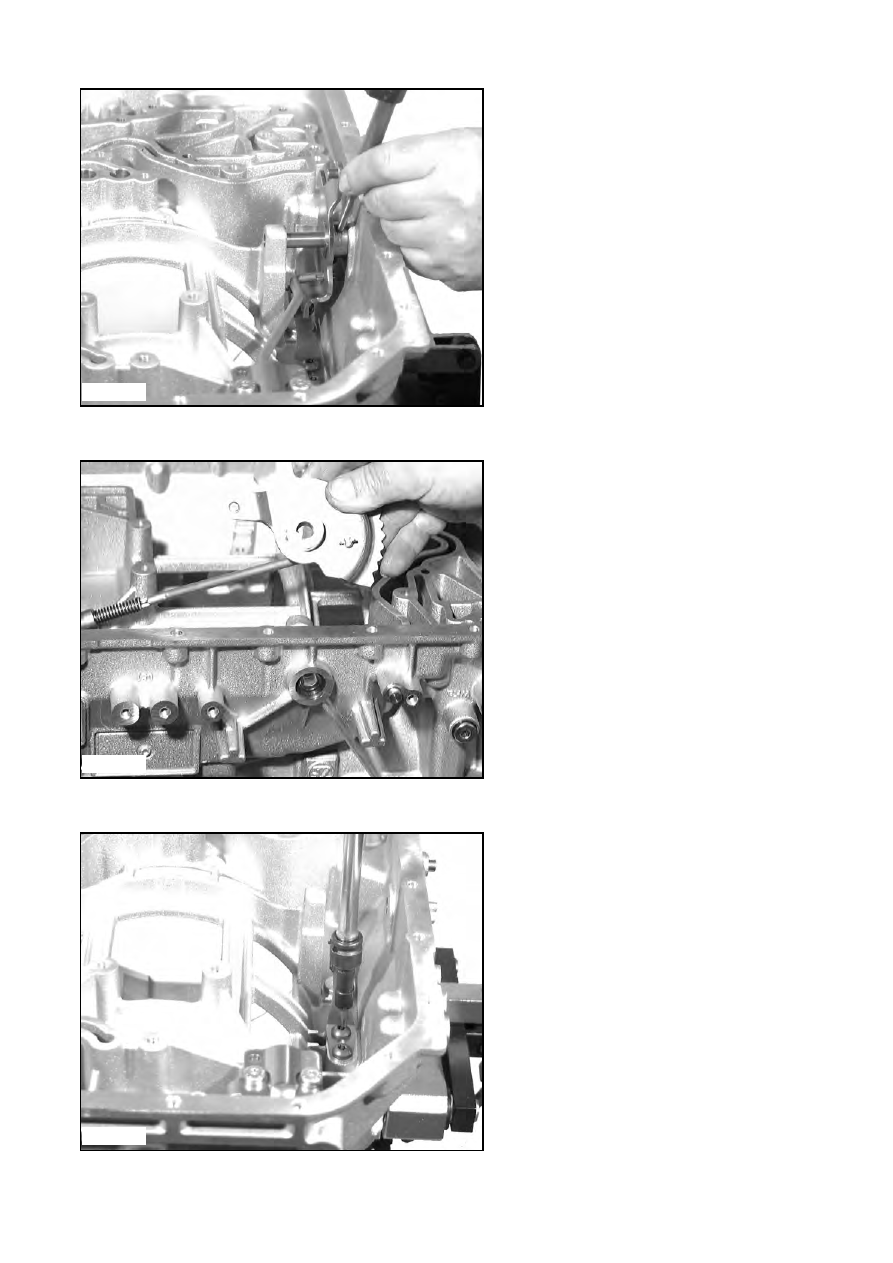

2.8 Housing with selector mechanism

and parking lock

Using a suitable drift, drive the clamping
sleeve out of the detent spring and pull
out the selector shaft.

Now the detent disc and the connecting
rod can be taken out. Lift off the shaft
seal using a screwdriver.

The detent spring normally remains in
the transmission housing.
If it is to be removed, unscrew the two
Torx screws.

(Wrench size = Torx - TX 27 H)

2.8/1

97065

97223

97068
