Jaguar 5HP24 transmission. Manual - part 6

F

= 1.48 mm (base thickness)

W

B

= 36.64 mm

M

B

= 32.86 mm

E

B

= 36.64 + 1.48
= 38.12 mm

P

B

= 38.12  - 32.86
= 5.26 mm

S

B

= 3.2 mm

L

B

= 5.26 mm - 3.2 mm

➮ L

B

= 2.06 mm

Example (for 1.4.6):

1.4/14

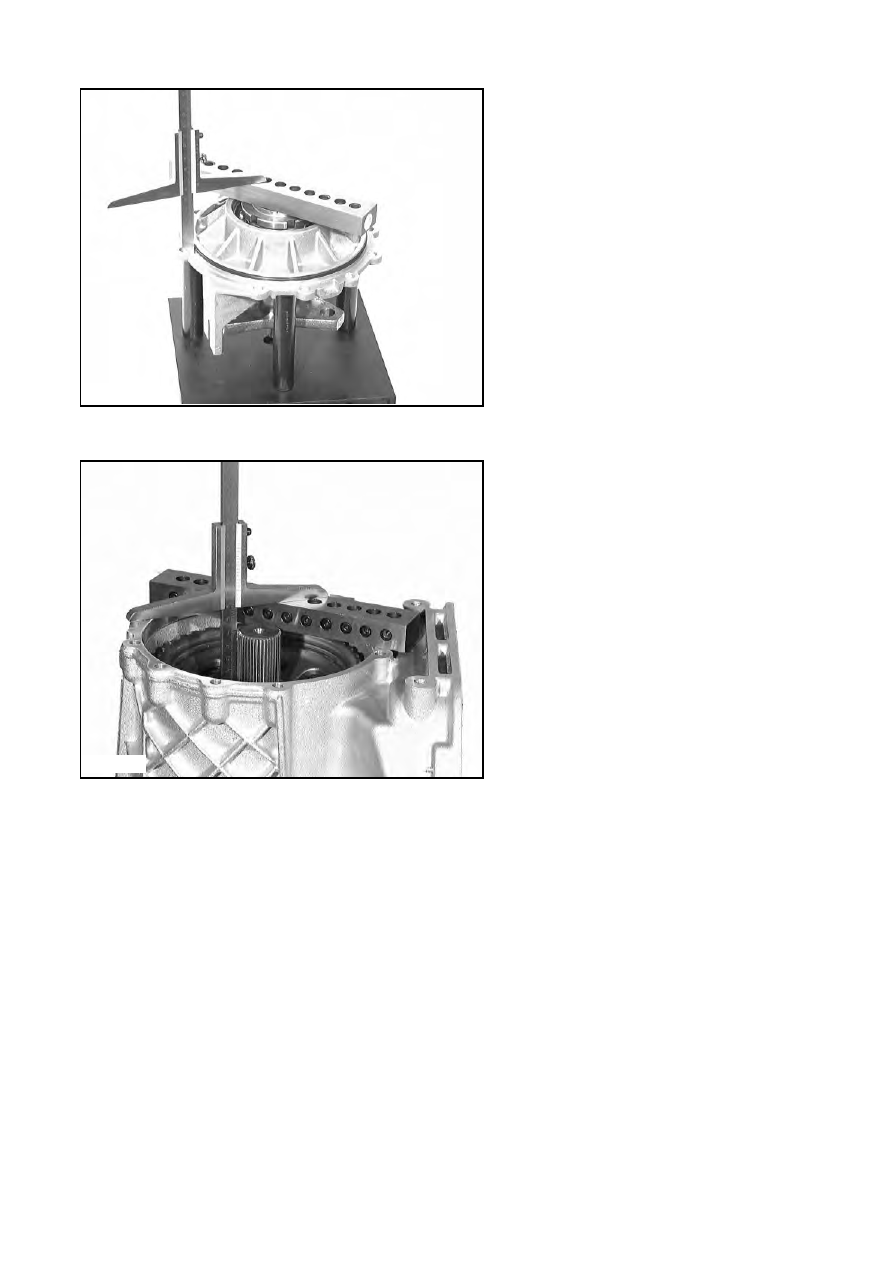

1.4.7 Output play (shim)

Example: (for 1.4.7)

Determine distance A between the
machined face on the extension and the
output flange hub using a depth gauge
and measuring bar.

Important!
To prevent falsification of the measure-
ment, press down the hub and do not
place the gearbox extension on the output
flange during measuring.

Using a depth gauge and a measuring bar,
determine distance B between the machined
face of the transmission housing and the
machined face of the parking lock wheel.

Nominal axial play C = 0.25 to 0.45 mm
(acc. to Setting specification 1058 700 122).

Thickness of washer S is now equal to B
minus A minus C.

Calculation:
S = B - A - C

A

= 42.7 mm

B

= 44.9 mm

C

= 0.25 to 0.45 mm

S

= 44.9 - 42.7 - (0.25 to 0.45)
= 2.2 mm - (0.25 to 0.45)

➮ S = 1.75 to 1.95 mm

Note!
The dimensions A and B are indicated
without the thickness of measuring bar.

1.4/15

97143

97245

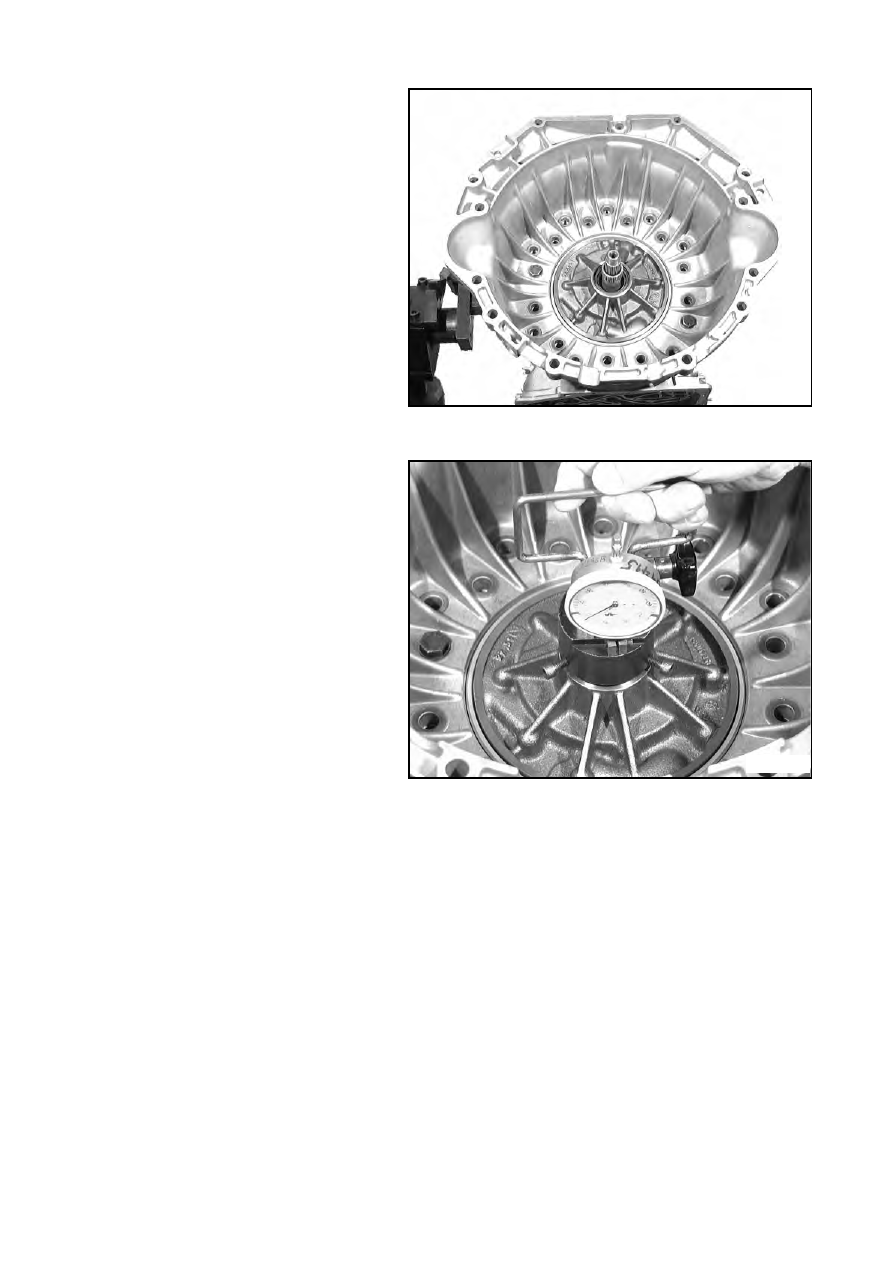

Fasten the converter bell in the inner ring
using two long, machine screws 22.100
on opposite sides.

(See Chapter 1.5 for tightening torque)

Requirement:
Axial needle roller bearing 02.250 and
spacer 02.260 (thickness = 1.4 mm,
thinnest acc. to optional technical kit),
the gasket, intermediate plate, and con-
verter bell housing must be in place.

Clamp the measuring sleeve for device
5p01 001 415 on to the stator shaft using
the three fastening screws, no play
allowed.
Push measuring device 5p01 001 415
over the splines of the input shaft and
secure with set screw about 2 mm above
the meausurement sleeve in such a way
that it can not tilt.

Set dial gauge to “0”.

Determine axial play by pressing and
pulling on the handle (repeat measure-
ment several times)

Nominal axial play = 0.2 - 0.4 mm at a
force of 200 N (dry in acc.with
Setting specification 1058 700 119)

If a deviation arises, compensate with a
washer 02.260 with the appropriate thick-
ness. Pre-check the axial play.

1.4.8 Input play (shim)

1.4/16

97179

97180

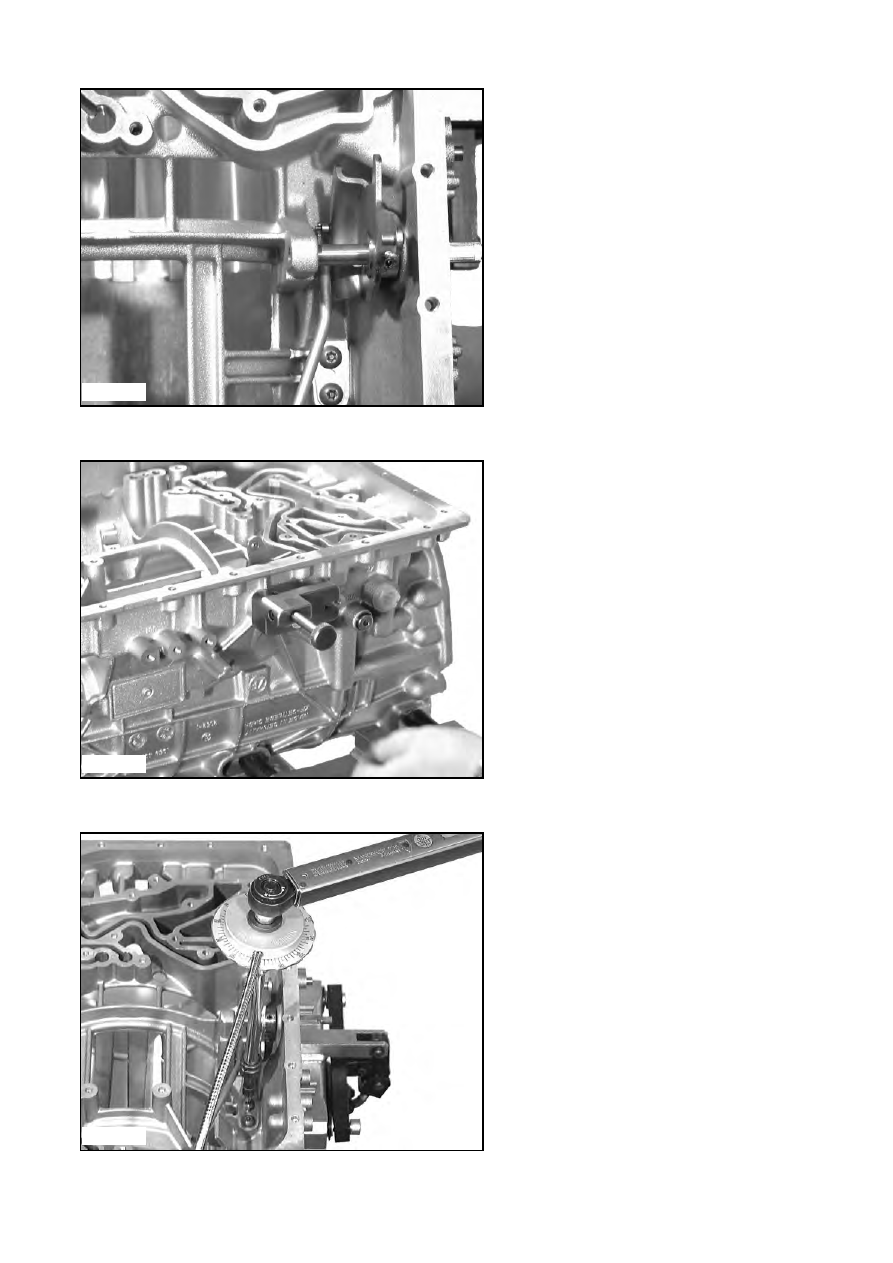

1.4.9 Adjusting the switch

(detent spring)

Move the detent disc to the N (neutral)
position with a suitable tool or by hand.

Place position gauge 5p01 002 839 on
the selector shaft, turn the position gauge
so that the locating pin in the transmis-
sion housing enters the cutout in the
position gauge and eliminate any play by
turning the knurled screw.

Important!
For JAGUAR and older BMW transmis-
sion housings 1058 301 077, use position
gauge 5p01 002 567 (follow the ELCAT
instructions).

Align the detent spring’s roller on the
center of the detent disc, and screw it
tight with helping tool 5w04 000 583 in
this position.

(See Chapter 1.5 for tightening torque)

Release the position gauge and move the
selector shaft from position N to P and
then back to position N.
If the installation has been performed
correctly, the position gauge can easily be
placed on the selector shaft until it comes
into contact with the transmission hous-
ing.

1.4/17

97083

97084

98004
