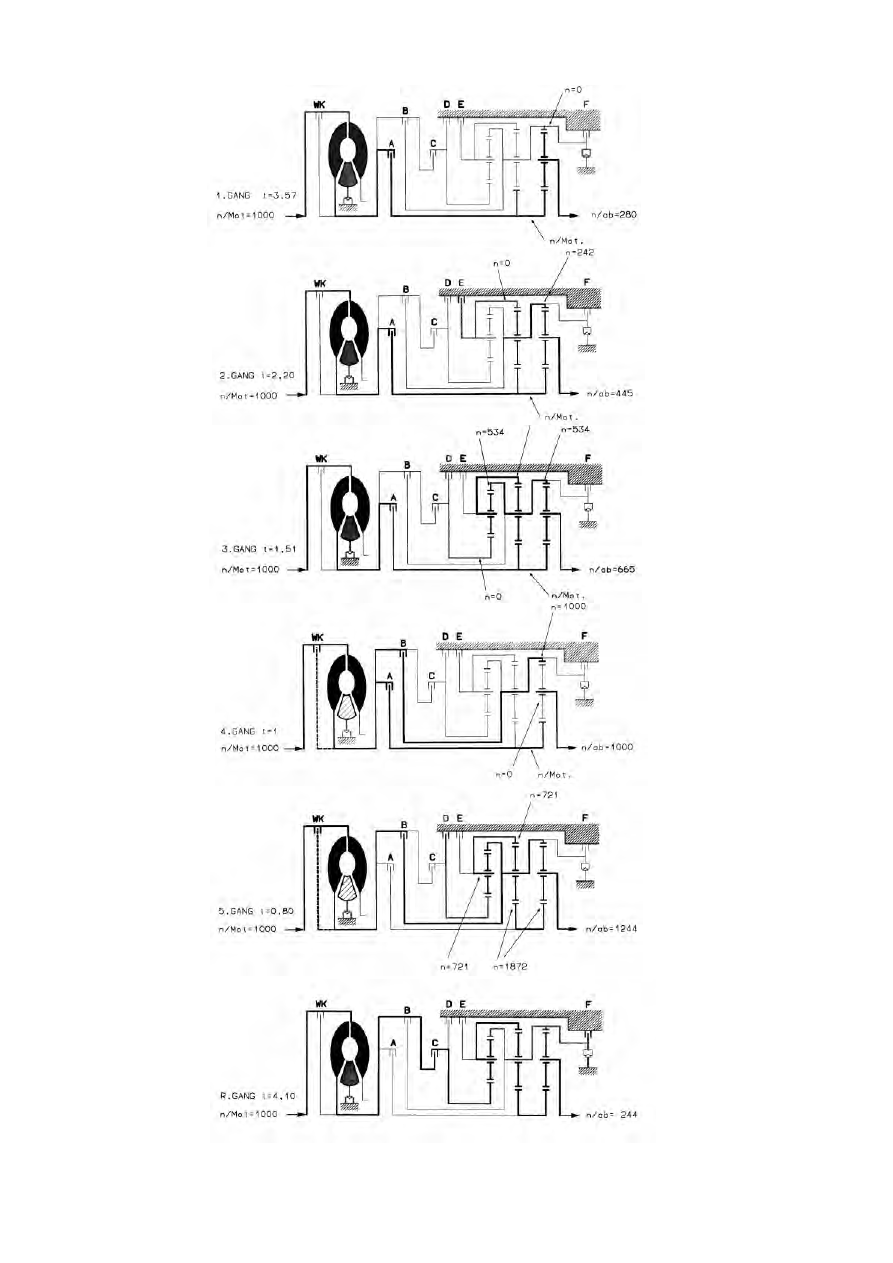

1.2 Power flow diagram

Gang = Gear ratio

1.4

Making adjustments

1.4.0 Measuring the clutch pack

(procedure)

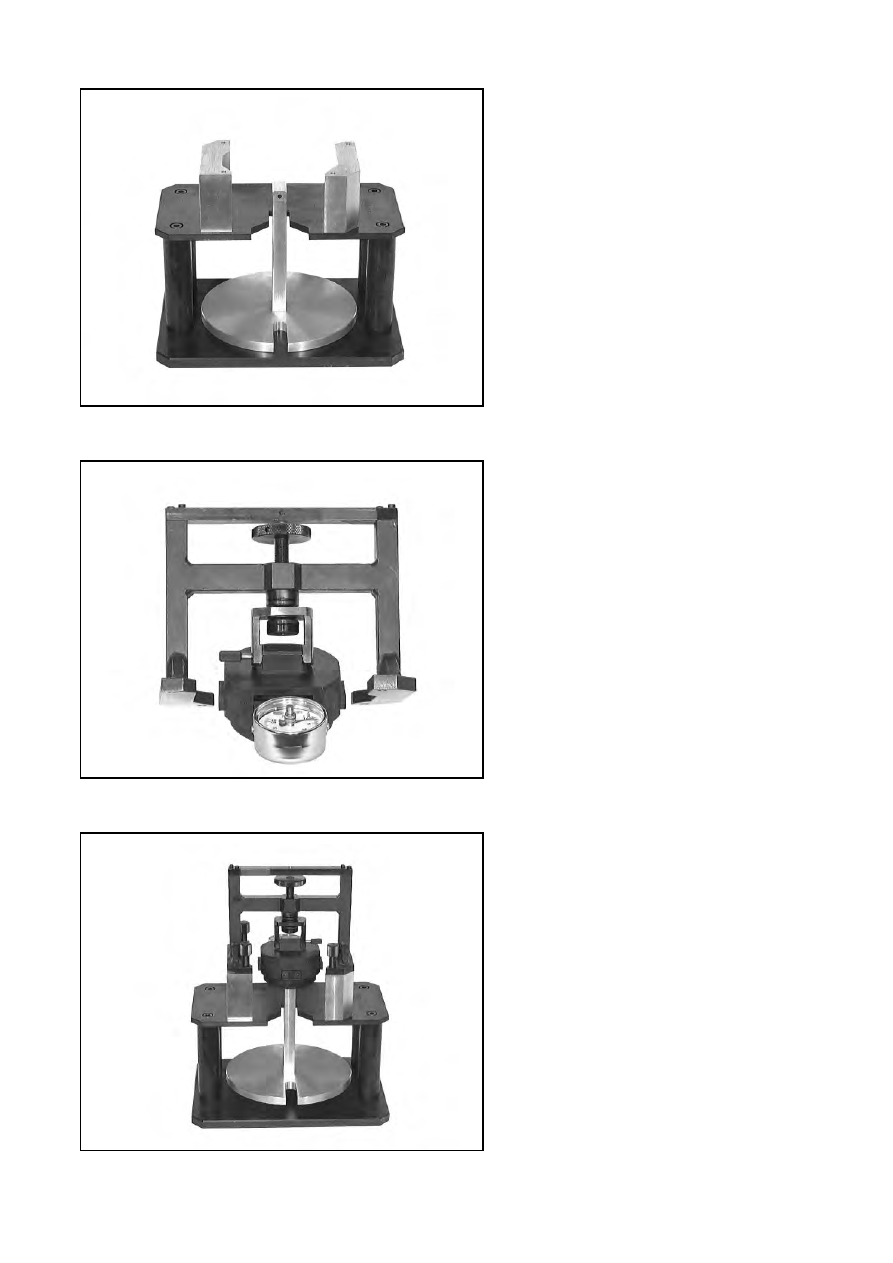

Place the two intermediate pieces
5p01 000 329 on the marked positions on
measuring fixture 5p01 000 330.

Use knurled screw to turn adjusting de-
vice 5p01 001 458 to upper limit posi-
tion.
Attach force-measuring unit 5p01 000
329 to adjusting device 5p01 001 458.

Fasten adjusting device with 4 knurled
screws to the measuring fixture using the
intermediate pieces.
Connect measuring plate 5p01 040 330
to force-measuring unit using fixing pin.

Use knurled screw to clamp the clutch
pack to be measured (with corrugated
steel clutch plate – if present – at the bot-
tom) in device at 200 N.
