Jaguar X-Type Sedan and Estate (Wagon). Manual - part 664

Published: 11-May-2011

Roof Opening Panel - Roof Opening Panel Glass

Removal and Installation

Removal

• NOTE: Make sure the roof opening panel glass is in the closed position.

1. Remove the roof opening panel glass screws.

2. Remove the roof opening panel glass.

Installation

1. To install, reverse the removal procedure.

Tighten to 3 Nm.

2. Check, and if necessary, adjust the roof opening panel alignment. For

additional information, refer to

Roof Opening Panel Alignment

.

Published: 11-May-2011

Roof Opening Panel - Roof Opening Panel Motor

Removal and Installation

Removal

1. Remove the overhead console. For additional information, refer to

Section

 501-12 Instrument Panel and Console

.

2. Detach the roof opening panel motor.

3. Remove the roof opening panel motor.

Disconnect the electrical connector.

Installation

1.

CAUTION: If motor oscillation is detected, loosen the motor

screws, operate the roof opening panel, then retighten the motor screws.
If necessary repeat this procedure.

Syncronize the roof opening panel motor. Refer to

Motor Synchronization

—Calibration

.

2. To install, reverse the removal procedure.

Tighten to 3 Nm.

Published: 11-May-2011

Roof Opening Panel - Roof Opening Panel Shield

Removal and Installation

Removal

1. Partially open the roof opening panel.

2. Detach the front of the roof opening panel shield.

1. Position the center of the roof opening panel shield

downwards.

2. Position the roof opening panel shield forwards.

3. Fully open the roof opening panel.

4. Detach the roof opening panel shield.

1. Position the center of the roof opening panel shield upwards.

2. Detach the roof opening panel shield guide pads.

5. Remove the roof opening panel shield.

Rotate the roof opening panel shield.

Installation

1.

CAUTION: To prevent damage to the roof opening panel shield use

a steel rule to compress the guide pads.

To install reverse the removal procedure.

Published: 11-May-2011

Roof Opening Panel - Roof Opening Panel Weatherstrip

Removal and Installation

Removal

1. Remove the roof opening panel glass. For additional information, refer

to

Roof Opening Panel Glass

.

2. Remove the roof opening panel glass seal.

Installation

1.

CAUTION: Make sure the roof opening panel glass seal is fully

seated in the glass channel.

To install, reverse the removal procedure.

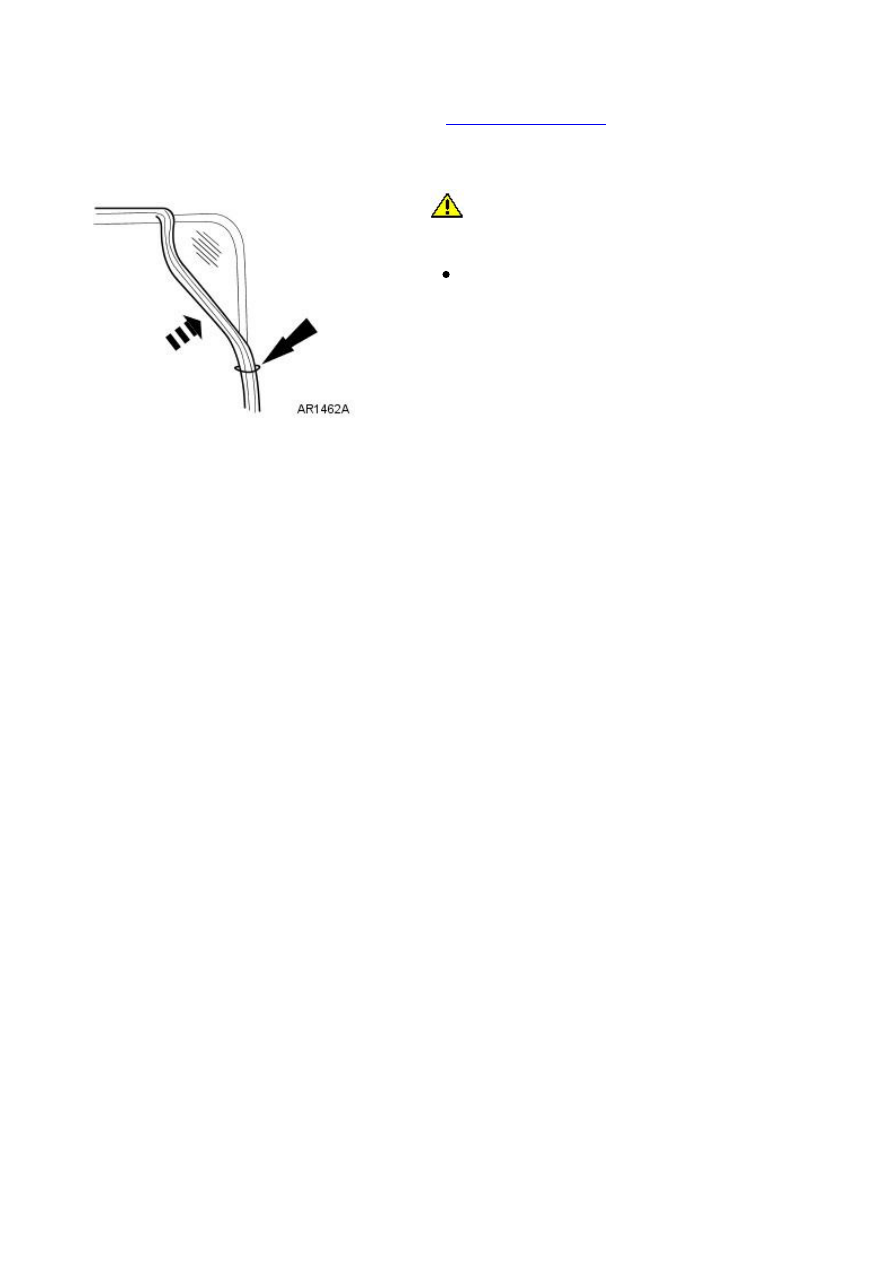

Position the roof opening panel seal seam in the center of the rear
facing side of the roof opening glass.
