Jaguar X-Type Sedan and Estate (Wagon). Manual - part 548

Published: 11-May-2011

Exterior Lighting - Headlamp Switch

Removal and Installation

Removal

1. Detach the headlamp switch.

1. Release the retaining tang.

2. Detach the headlamp switch.

2. Remove the headlamp switch.

1. Disconnect the headlamp switch electrical connectors.

2. Remove the headlamp switch.

Installation

1. To install, reverse the removal procedure.

Published: 11-May-2011

Exterior Lighting - High Mounted Stoplamp4-Door

Removal and Installation

Removal

1. Remove the headliner, for additional information, refer toSection

 501-05

Interior Trim and Ornamentation

.

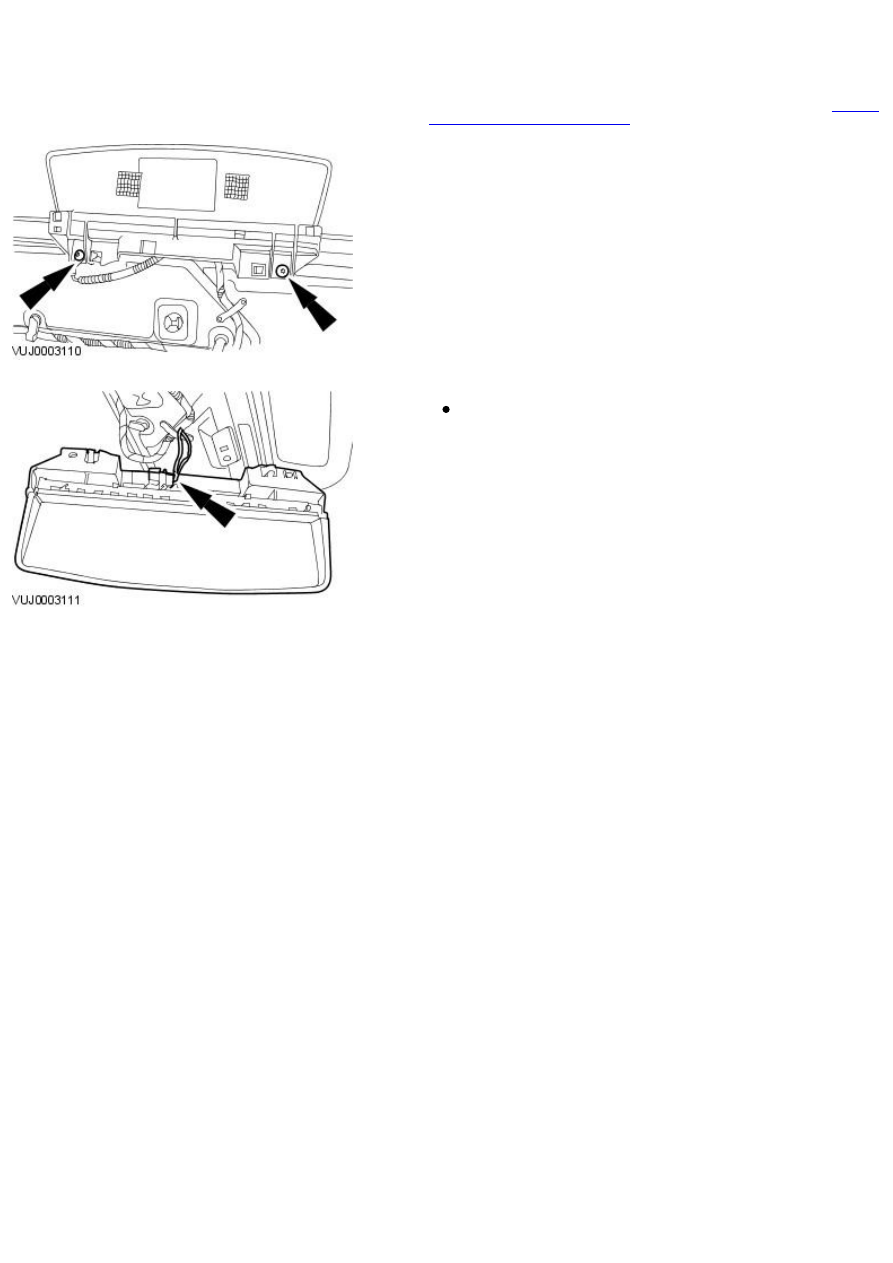

2. Remove the high mounted stoplamp retaining screws.

3. Remove the high mounted stoplamp.

Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.

Published: 11-May-2011

Exterior Lighting - High Mounted StoplampWagon

Removal and Installation

Removal

1. Remove the rear spoiler

For additional information, refer to:

Rear Spoiler - Wagon

 (501-08

Exterior Trim and Ornamentation, Removal and Installation).

2. Remove the high mounted stoplamp.

Installation

1. To install, reverse the removal procedure.

Published: 11-May-2011

Exterior Lighting - Rear Lamp Assembly4-Door

Removal and Installation

Removal

1. Detach and reposition the rear quarter trim panel.

2. Disconnect the rear lamp assembly electrical connector.

3. Remove the rear lamp assembly retaining nuts.

4. Remove the rear lamp assembly.

Installation

1. To install, reverse the removal procedure.
