Jaguar X-Type Sedan and Estate (Wagon). Manual - part 459
Published: 11-May-2011
Fuel System - General Information - Quick Release Coupling - Push Connect
General Procedures
Disconnect
1. WARNINGS:
Place the vehicle in a quarantined area and arrange "No
Smoking/Fuel Vapors" signs about the vehicle.
Before any work is carried out on the fuel system, ground the vehicle
to earth and maintain the ground connection until the work is complete.
Do not smoke or carry lighted tobacco or open flame of any type
when working on or near any fuel related components. Highly flammable
vapors are always present and may ignite. Failure to follow these
instructions may result in personal injury.
Do not carry or operate cellular phones when working on or near any
fuel related components. Highly flammable vapors are always present and
may ignite. Failure to follow these instructions may result in personal
injury.
The fuel system remains pressurized for a long time after the
ignition is switched off. The fuel pressure must be relieved before
attempting any repairs. Failure to follow these instructions may result in
personal injury.
After carrying out repairs, the fuel system must be checked visually
for leaks. Failure to follow these instructions may result in personal injury.
This procedure involves fuel handling. Be prepared for fuel spillage
at all times and always observe fuel handling precautions. Failure to follow
these instructions may result in personal injury.
Disconnect the battery ground cable.
For additional information, refer to:
Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables, General Procedures).
2. Relieve the fuel pressure.
For additional information, refer to: Fuel System Pressure Release.

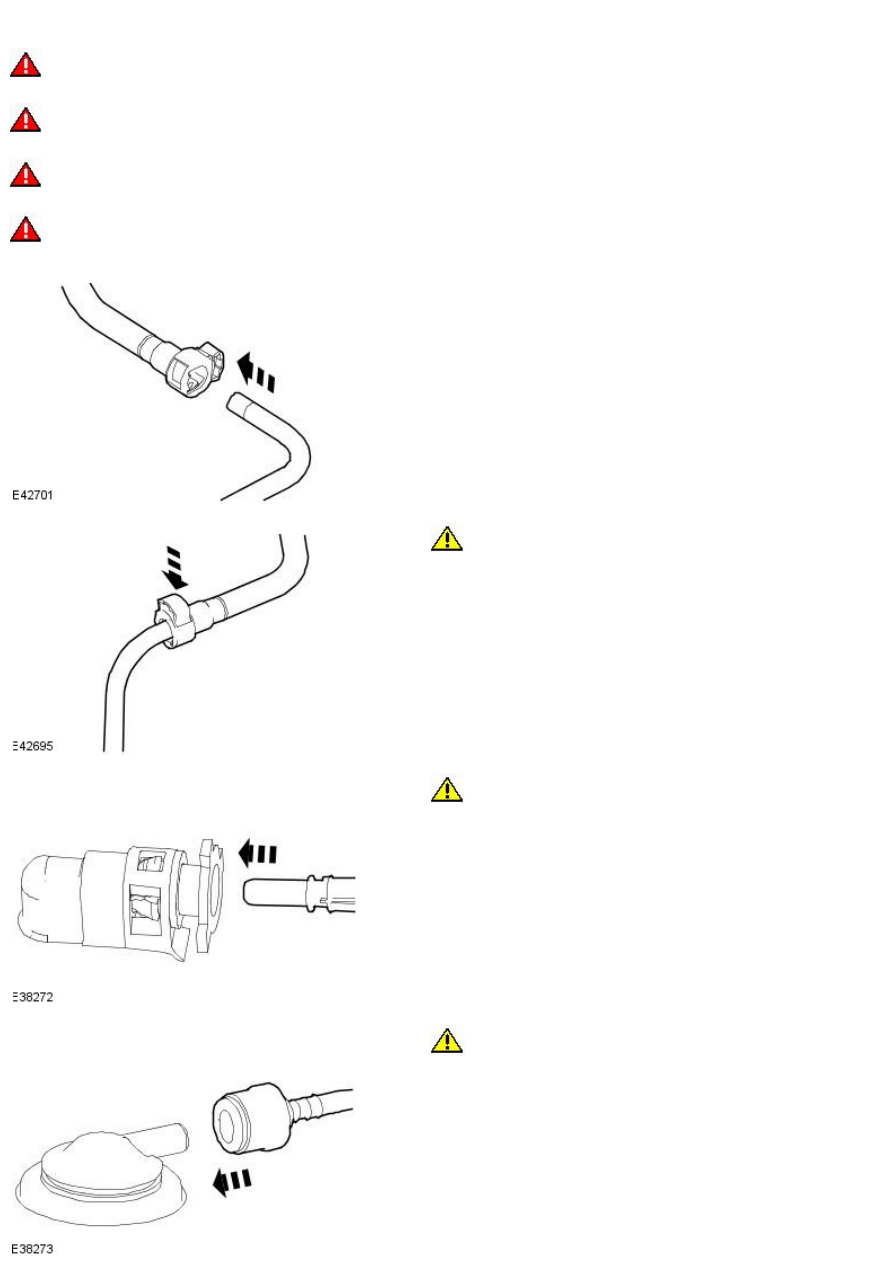

3. Disconnect the fuel line quick release coupling.
1. Press the fuel line quick release coupling locking tangs.
2. Disconnect the fuel line quick release coupling.
4. Disconnect the fuel line quick release coupling.
1. Pull the fuel line quick release coupling locking tang.
2. Push the clip through the fuel line quick release coupling to
release the fuel line.
