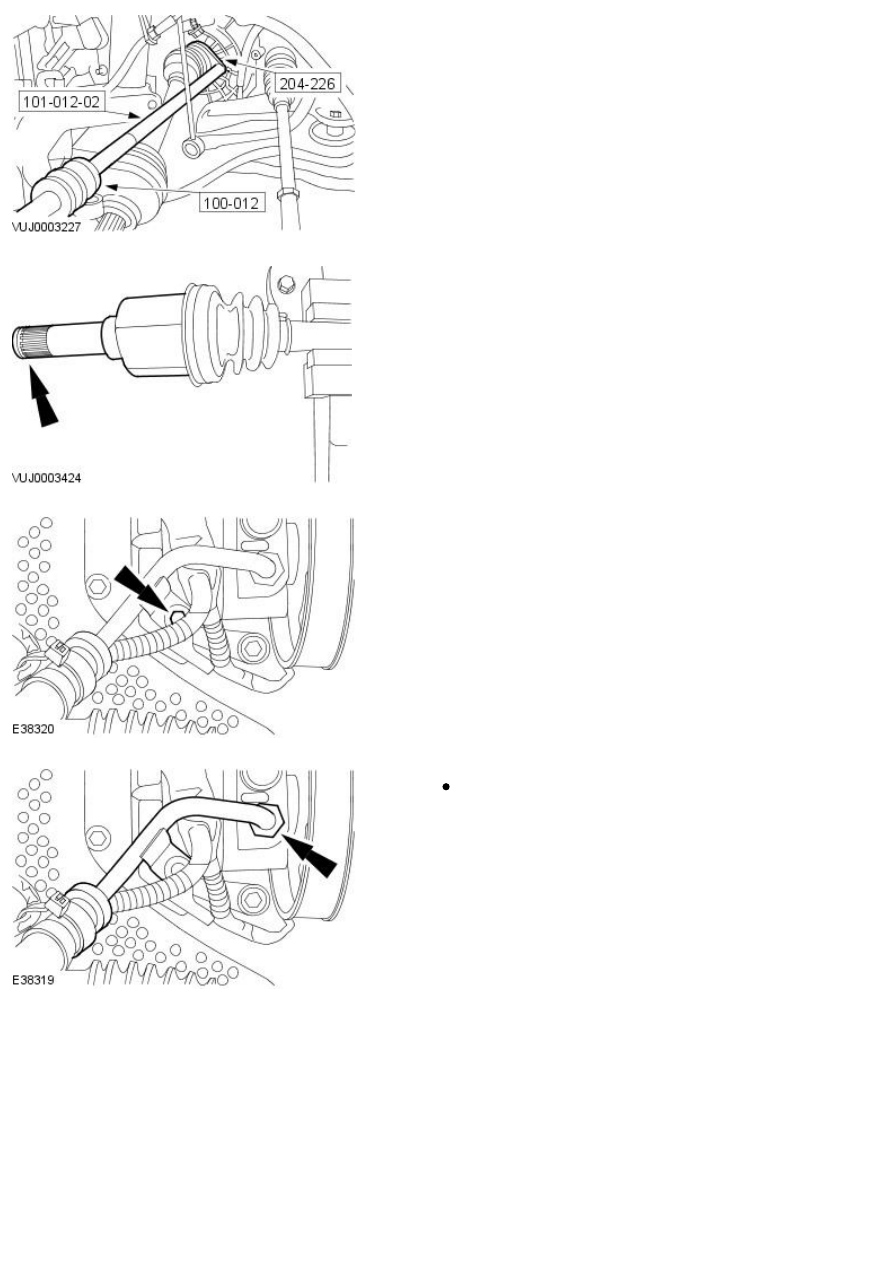

66. NOTE: Left-hand shown, right-hand similar. Using the special tools, detach the halfshafts. 67. NOTE: Left-hand shown, right-hand similar. Remove the tie rod end retaining nuts. 68. NOTE: Right-hand shown, left-hand similar. Using the special tool, detach the tie rod ends. 69. NOTE: Right-hand shown, left-hand similar. Detach the stabilizer bar link arms. 70. NOTE: Left-hand shown, right-hand similar. Detach the wheel knuckles. 1. Remove the lower arm ball joint retaining bolt. 2. Reposition the lower arm. 3. Detach the wheel knuckles. |
