297

Radio

Digital Signal Processing (DSP)

DSP (premium audio system only)
facilitates optimisation of sound for
specific seating positions and is accessed
via the DSP button shown on the
touch-screen (audio screens only). The
chosen setting can then be selected by
touching the appropriate zone.

Options available are:
• Front left.
• Front right.
• Front centre.
• Rear seats.
• All seats.
Change audio system source

Press the desired audio system source
button.

BAND mode

In BAND mode, touch-screen buttons
provide for radio station selection and
retuning. In addition, the upper panel
displays waveband, TA and PTY as
selected using the buttons on the radio
panel.

BAND button

Pressing BAND repeatedly will cycle the
radio through FM and Medium
wavebands. When a CD is being played,
pressing the band switch will select radio
operation.

Presetting memorised radio stations

WARNING:

In the interests of road safety, do not
attempt to preset a radio station while
driving.

On each waveband, nine stations can be
stored in the bank of nine buttons
displayed on the touch-screen. To store a
radio station as a preset, touch the
selected button until a beep sounds to
acknowledge the station has been stored.

A station can be recalled from the preset
memory by momentarily pressing any of
the preset buttons. The selected preset is
highlighted by a red halo around the
appropriate button.

Pressing the steering wheel preset
selector button will cycle through the
preset stations.

Seek and manual tuning

In BAND mode, touch and
release

activate the radio in seek

mode, tuning through the frequency
range to the next available station.
Pressing either button for more than
two seconds will enter manual tuning
mode.

Radio

298

Auto Memory (A MEM)

The automatic memory function
programmes the nine strongest
stations on a selected waveband
to presets 1 to 9.

Note: These are additional to the preset
stations described earlier.

To activate this function, press and hold
A MEM button for at least two seconds.

The radio will be briefly muted while it
searches the waveband for the nine
strongest stations. When programming is
complete the radio will default to preset
number 1 and audio volume is restored.

If stations cannot be located for all preset
positions, those that are found will be
allocated positions commencing with
number 1, leaving the remainder not
programmed. The display will show
NO FM or NO AM as appropriate.

To switch between the A MEM preset
stations and your own presets, press and
immediately release the A MEM button.

A MEM with Radio Data System (RBDS)
selected

If the A MEM function is operated while in
RBDS mode, the radio will be muted
briefly, while a search is made for the nine
strongest RBDS stations.

299

Satellite Radio (SDARS)

Satellite Radio (SDARS)

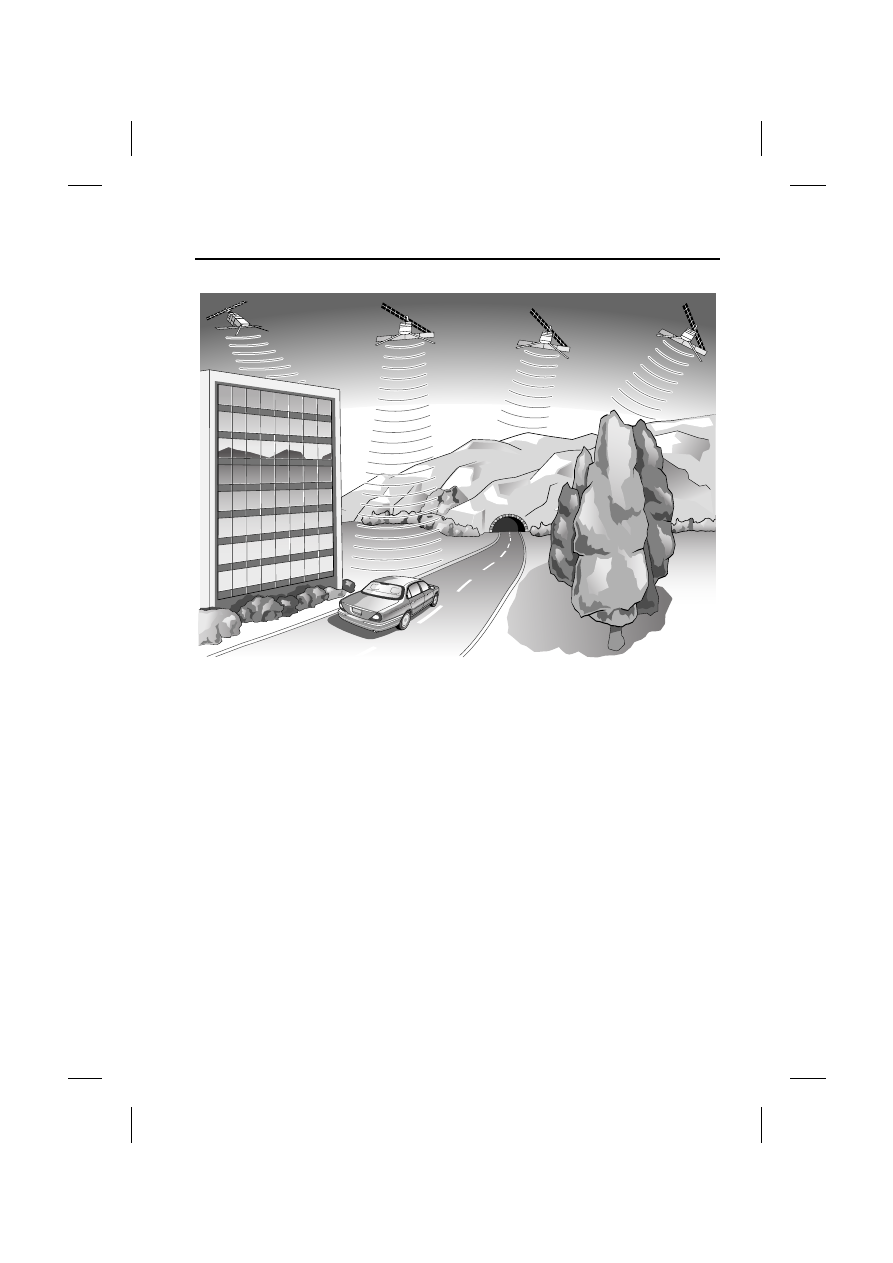

SATELLITE RADIO SERVICE

Satellite radio is a direct broadcast radio
service, which provides digitally encoded
audio signals. The signals can be received
directly by a suitable receiver or relayed to
a receiver via a repeater station, when the
receiver is shielded from the satellites
signal (e.g. when driving under large road
intersections or when surrounded by
many tall buildings).

As a digital signal is used, the system is
able to provide audio output of radio
broadcasts, with the sound quality and
clarity of CD playback.

Note: As the signals are encoded, a
subscription to the Broadcast operator
(SIRIUS) is required to receive Satellite
radio broadcasts.

JAG0796

Satellite Radio (SDARS)

300

Receiving Satellite Broadcasts

To access satellite broadcasts, select
radio; either by pressing the Audio
button.

Once radio has been selected as the
audio source, the satellite broadcasts are
available from the selection of
wavebands. To access, press the BAND
button repeatedly until SAT1 or SAT2 has
been selected.

Once the SAT band has been selected,
SAT1 or SAT2 is displayed along with the
current playing channel.

Note: If the Satellite band has been
selected, but a subscription to the
provider has not been made, a message
will appear on one of the alternative
screens, showing the telephone number
for the provider.

Satellite radio display screen

The information panel displays the
satellite preset group, the channel
number, the station name, and the
channel category.

When satellite broadcasts are being
received, an additional information panel
is displayed. Where the information is
available, the second information panel
will display the artists name and the song/
program name. Touch the icon indicated
to cycle between the two.

Selecting a station by channel number

To select a channel by entering the
channel number, touch the Options icon.

JAG0771

JAG0772

Sir Love

60's Vibs

Pulse

Starlite

Sir Gold

Big 80's

Sirius 1

Movin

Tot 70's

1 SAT1

SIRIUS 1

DSP

Options

JAG0774
