Jaguar XJ (2008 year). Manual - part 70

281

Touch-screen Display

R

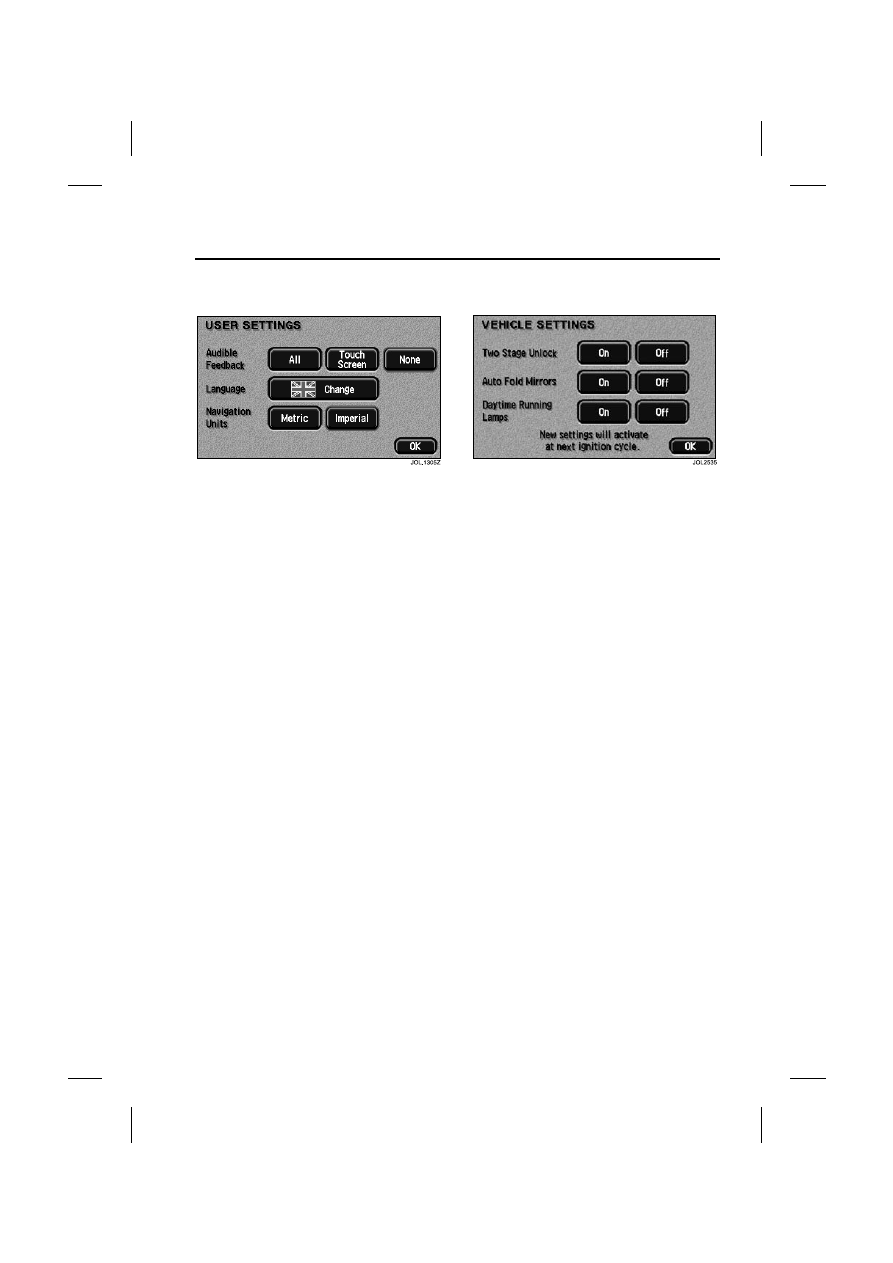

User settings

After touching the User Settings button,
the screen displays the buttons for the
selection of audible feedback, language,
and units of measurement.

All selects audible feedback on the
perimeter buttons and touch-screen
buttons. Touch Screen selects audible
feedback on the touch-screen buttons
only. None selects no audible feedback.

To select another language, touch the
Change button and, if the language is not
shown, scroll the screen as required. To
select a language, touch the flag of the
country required.

Navigation Units provides either imperial
or metric units for use with the navigation
system.

Confirm your selection by touching OK.

Vehicle settings

After touching the Vehicle Settings
button, the screen displays the buttons
that switch certain functions on or off.

Two-stage unlock

If this function is switched on, the first
press of the key transmitter ‘unlock’
button will only unlock the driver’s door.
Press the unlock button a second time to
unlock the remaining doors.

If the function is switched off, pressing the
unlock button once will unlock all of the
doors.

Auto fold door mirrors

When this function is switched on, the
door mirrors will automatically fold flat
when global closing is performed (refer to
Security and Locks chapter of the
Owner’s Handbook).

Daytime running lamps

Where fitted, daytime running lamps will
be activated. It is particularly useful when
visiting countries where daytime running
lamps are compulsory.

Audio System

282

L

Audio System

GENERAL INFORMATION

The audio system can be controlled from
either the radio panel or multi-function
controls on the left-hand side of the
steering wheel.

The sound system antenna is an integral
part of the vehicle backlight and serves
both FM and AM radio wavebands.

Caution: Care must be taken to avoid
spilling or splashing drinks onto the
audio system. In the event of such an
occurrence advise your Jaguar Dealer.

If the unit is to be removed or the battery
disconnected, ensure that the radio code
is recorded. The number will be required
for re-insertion following radio installation.

SECURITY CODE NUMBER

For the United Kingdom and European
countries, the audio head unit is
protected by an anti-theft security code. If
power to the radio drops to 5 volts or less
(dead battery), or there is a power
interruption/disconnection, the radio
display will indicate CODE. At this point
the radio will not operate until the correct
security code is re-entered.

The four-digit code which is listed on an
audio security card supplied with the
vehicle, is entered by pressing preset
buttons 1 to 9. A beep indicates that the
code has been entered correctly.

If the code is entered incorrectly, two
further attempts at code entry will be
permitted. If, after three successive
attempts, the code has not been properly
entered, the display will indicate PLEASE
WAIT. In this condition the radio will not
accept further entries until it has been left
on for at least 30 minutes. After
30 minutes in the On position the radio
will accept three further entries.

Note: In the event of loss of your radio
security card, contact your Jaguar Dealer
who, for security reasons, will require
proof of vehicle ownership.

283

Audio System

R

COPYRIGHT LAWS

Caution: Copyright laws vary in
different countries; please check the
laws in your country if you want to
record from copyright source material.

Caution: Due to technical
incompatibility, recordable (CD-R)
discs and re-writable (CD-RW) discs
may not function correctly.

Caution: These CD units will play
compact discs that conform to the
international Red Book standard audio
specification. Copy protected CDs
from some manufacturers do not
conform to this standard and playback
cannot be guaranteed.

Caution: Dual format, dual sided discs
(DVD Plus, CD-DVD format), now being
adopted by the music industry, are
thicker than normal CDs and
consequently playback cannot be
guaranteed in Jaguar audio units, and
jamming could occur. Warranty claims,
where this type of disc is found to be
inside an audio unit returned for repair,
will not be accepted.

Caution: Irregular shaped CDs and
CDs with a scratch protection film or
self adhesive labels attached should
not be used.

DUAL AND DVDPLUS DISCS

Please be aware that a new generation of
DVDs is being adopted by the music
industry. They are known as Dual Discs
or DVDPlus discs. They have digital
music on one side and video content on
the other. Current in-car audio systems
with a front loading CD player may load
and play this type of disc. However, it is
possible that the disc will not eject. Such
damage to a CD player will not be
covered under warranty.

AUDIO SYSTEM CARE

Do not use gasoline, solvents or abrasive
cleaners on the radio. Wipe the surface of
the radio with a lint-free cloth to remove
dust. Slightly moisten the cloth with clean
water to remove any finger marks.

If the radio is to be removed or the battery
disconnected ensure that the radio code
is recorded. The number will be required
for re-insertion following radio installation
or battery reconnection.

Compact Discs (CDs)

When handling CDs, do not touch the
playing surface. CDs should be stored in
their cases away from direct sunlight,
heat and dust. Scratches, fingermarks or
dust on the surface of a disc can cause
the optical pick-up to skip tracks. If the
surface of a CD is dirty, use an
appropriate CD cleaner.

Do not attempt to play discs that are
damaged, warped, cracked or of
incorrect size. They can seriously damage
the playback mechanism.

Steering Wheel Controls

284

L

Steering Wheel Controls

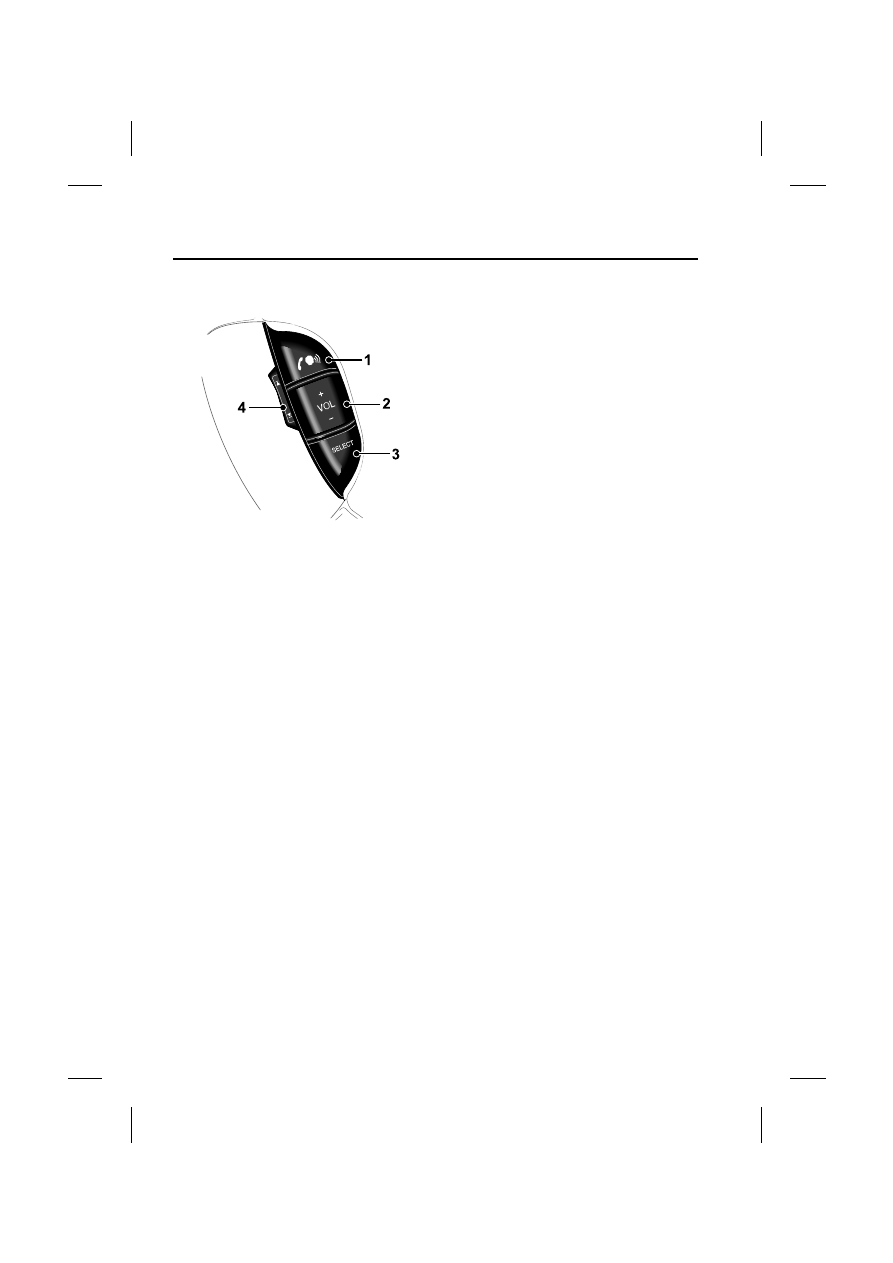

STEERING WHEEL CONTROLS

Four audio system control switches are
situated on the left-hand side of the
steering wheel. Duplicating the functions
of buttons on the audio panel, these
provide fingertip control of audio and
telephone systems whilst driving.

1. Press to start a voice session, or mute

when JaguarVoice is not fitted.

Answer phone call when ringing.

Send/End when in phone mode.

2. Press as required to increase or

decrease volume.

3. Press and release to cycle through

Radio bands, CD and CD Changer, or
press and hold for at least two
seconds to select Phone Ready
mode.

4. Press as required and release to cycle

through preset radio stations, the next
CD track.

Press and hold for at least two
seconds to cycle to next strong
station or next CD.

JAG0655
