Ignition Switch

Security and Locks

IGNITION SWITCH

The facia-mounted ignition switch, on the
right-hand side of the steering column,
has four key positions:

When the key is turned back to the OFF
position, the delayed accessory feature
(window operation etc.) becomes active.

The circuits available in the auxiliary
position remain activated for a preset
timed period or until a front door is
opened.

To remove the ignition key

Automatic transmission vehicles have a
key interlock feature.

Apply the Electric Parking Brake, move
the gear selector to the Park P position
and turn the key to position 0.

The automatic transmission gear selector
must be placed in Park P before the key
can be removed from the ignition switch.

When the key is removed, the gear
selector will be locked in Park.

Gearshift interlock

A brake pedal/gearshift interlock system
is incorporated in the automatic
transmission gear selector mechanism.

To move the gear selector from Park:

1. Turn the ignition key to position II or

start the engine.

2. Press the brake pedal.

3. Select a gear.

Ignition OFF - Is the only position
in which the key can be inserted
and removed.

Auxiliary - allows use of some
electrical circuits, for example,
radio and window operation
(accessory delay only).

Ignition ON - All electrical circuits
except the starter motor are
activated. The key remains in this
position when driving.

III

Engine start - The starter motor is
operated for as long as the key is
held in this position, against
spring pressure.

Vehicle Security

Vehicle Security

GENERAL INFORMATION

When the vehicle is unoccupied or
unattended, you are advised to do the
following:
• Apply the Electric Parking Brake and

move the gear selector to the Park P
position.

• Do not leave children or pets in the

vehicle unattended.

• Do not leave luggage or valuables on

display.

• Remove all keys, including remote

transmitters, from the vehicle prior to
locking the doors, even when the
vehicle is in your garage.

• Close all windows, luggage

compartment and glove
compartment, and lock all the doors.

• Park the vehicle where it can be seen.

At night, park in a well-lit area.

• It is important to keep your keys in

safe places at all times. Leaving them
in conspicuous places is an invitation
for a thief to steal them and,
consequently, your vehicle or
belongings. Keep them as secure as
you would your wallet or purse, both
at home and away.

IMMOBILISATION SYSTEM

This vehicle is fitted with an
immobilisation system. The system
prevents the vehicle being driven away by
unauthorised persons.

Programmable key

An electronic device is fitted in the head of
each key which is programmed to the
vehicle electronic systems.

When a programmed key is inserted into
the ignition switch it is recognised and
accepted by the vehicle’s electronic
systems.

The engine cannot be started with a key
that is not programmed to the vehicle
electronic systems.

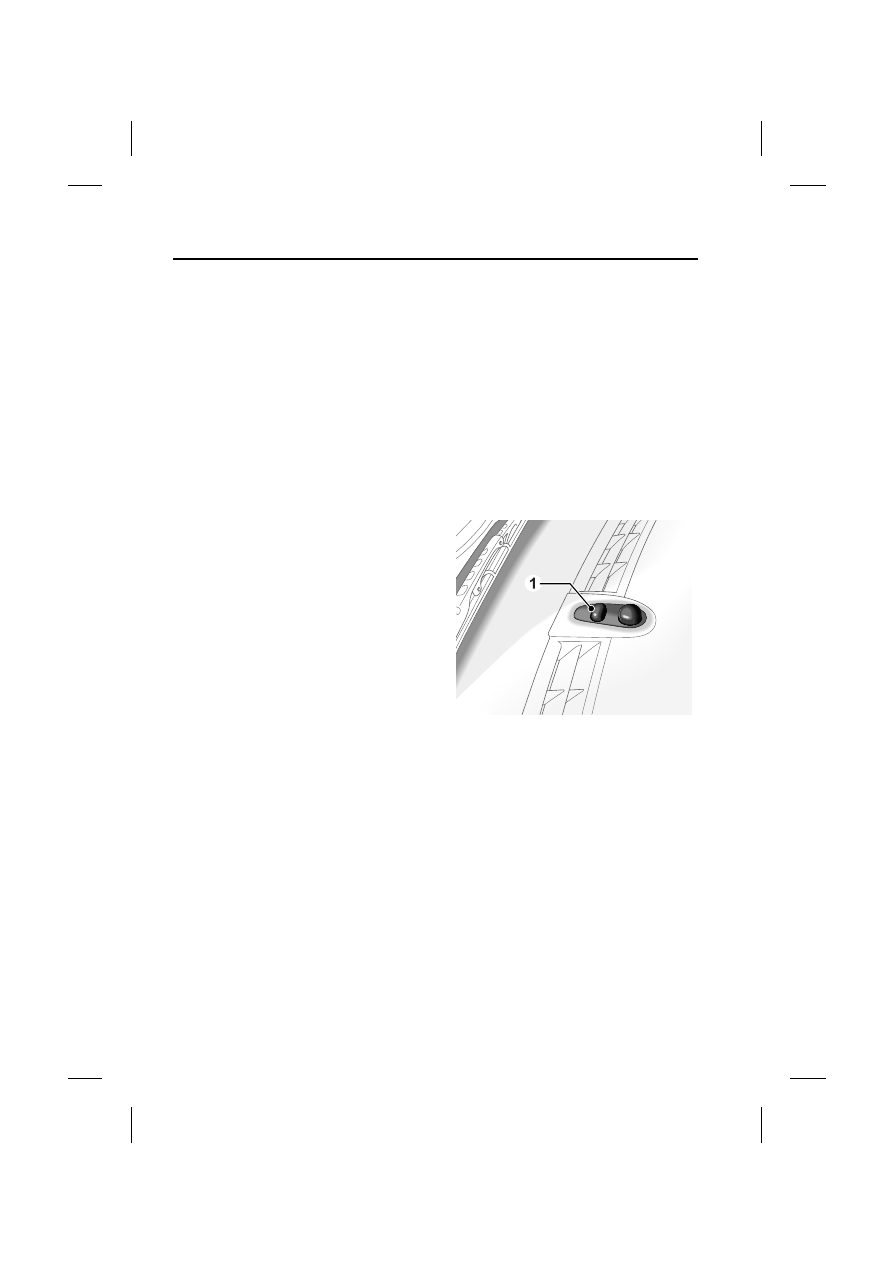

Immobilisation system status light

The immobilisation system status is
shown by a Light Emitting Diode (LED),
which is located on the top surface of the
facia panel (1).

If an ignition key is put into the ignition
switch and turned to position II, and the
LED remains flashing after three seconds,
it is possible that the engine will not start.

Should this occur, please contact a
Jaguar Dealer, who will investigate the
cause of the flashing LED.

JAG0628

Vehicle Security

KEYS

Vehicles are supplied with two integrated
transmitter keys and one green-headed
valet key. Additionally, black-headed keys
are available and for further details,
contact a Jaguar Dealer.

Integrated key transmitter

The integrated transmitter key comprises
the key body integrated with a remote
transmitter. The key operates all the locks
on your vehicle.

Green-headed valet key

The green-headed valet key is not
integrated with a remote transmitter. The
key operates the driver’s door lock and
the ignition switch, but does not operate
the luggage compartment lock.

Black-headed key

This black-headed key is not integrated
with a remote transmitter, but it does
operate all the locks and the ignition
switch on your vehicle. The key is not
supplied with your vehicle. For further
details, contact a Jaguar Dealer.

Additional keys

Five additional keys can be programmed
to operate the locks on your vehicle.

Note: A maximum of three additional
integrated keys can be used.

All additional keys must be obtained from
and programmed by, a Jaguar Dealer.

Key number label

The key number is recorded on an
adhesive label which is affixed to the rear
of the integrated transmitter keys. Peel off
the label and keep safely, not in the
vehicle.

Vehicle Security

KEY TRANSMITTER

WARNING:

Never leave the key transmitter in the
vehicle if children or animals are also
left in the vehicle. The vehicle's
systems and remote control functions
could be operated, which may result in
injury.

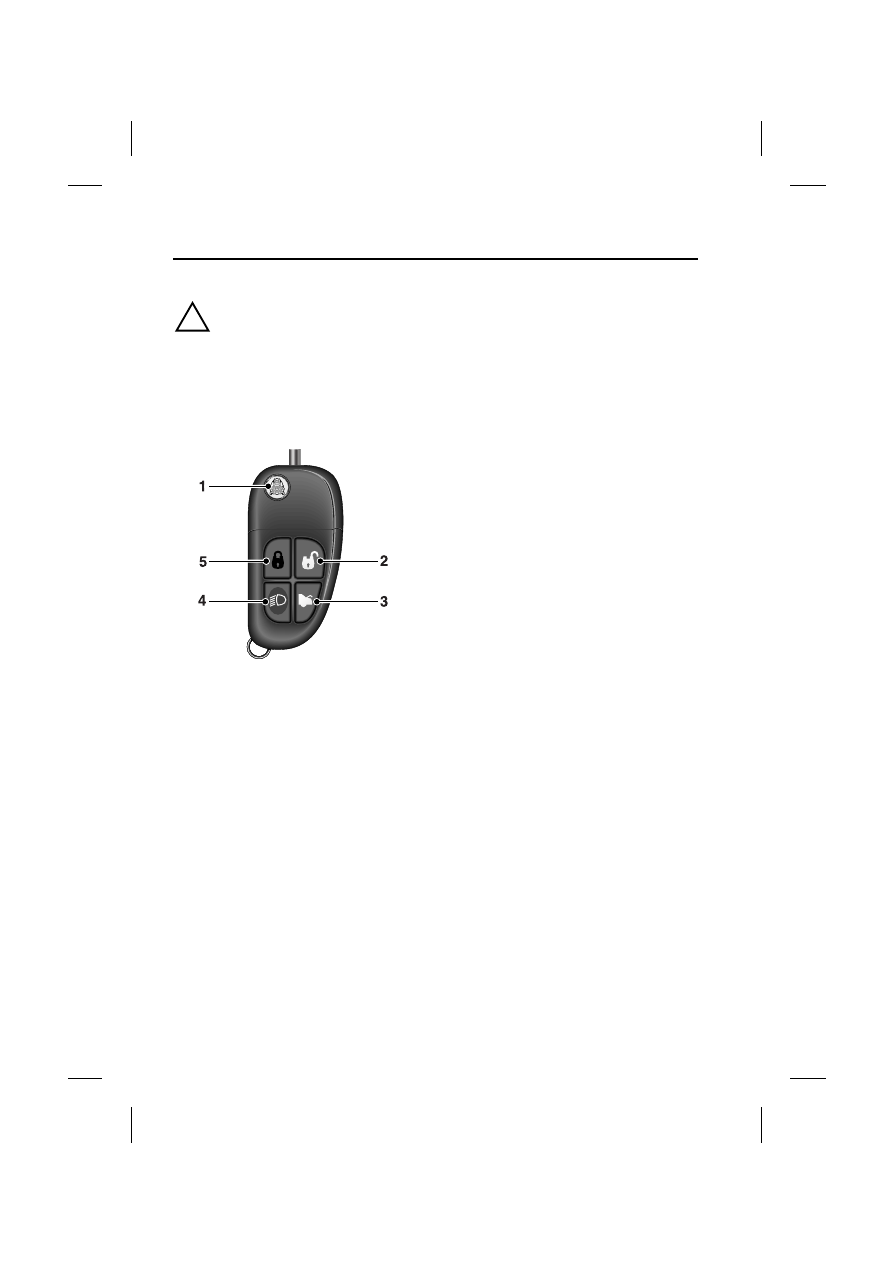

1. To release the key from the

transmitter, press and release the
release button. Press and hold the
button and fold the key into the
transmitter.

2. Unlocks and disarms the vehicle.

3. Releases the luggage compartment

lock.

4. Activates the convenience headlamp

feature or sounds the panic alarm.

5. Locks and arms the vehicle.

Press twice within three seconds to
fold the door mirrors (with power fold
option).

The security system is controlled
remotely by a radio frequency,
battery-operated, integrated transmitter
key.

The transmitter is activated by pressing
one of the operating buttons.

Note:

•

The key transmitter may not operate
correctly in areas which are subject to
interference from other radio
equipment operating on the same
frequency. Interference may emanate
from sources such as amateur radio,
medical equipment,
telecommunications devices and
other remote controls or alarms.
Where such interference is
experienced, operate the key
transmitter as close as possible to the
vehicle, or use the key in the driver’s
door lock.

•

All buttons on the key transmitter will
not operate if a key is in the ignition
switch, however, if the doors, hood or
luggage compartment are open, only
the lock button will not operate.

Each integrated key will operate all the
locks on your vehicle.

Additional integrated key transmitters can
be obtained from your
Jaguar Dealer. See Additional keys on
page 43.

E86118
