Wheels and tires

TIRE INFORMATION LABELS

Tire pressure labels

Tire pressure label - Canada and
Mexico only

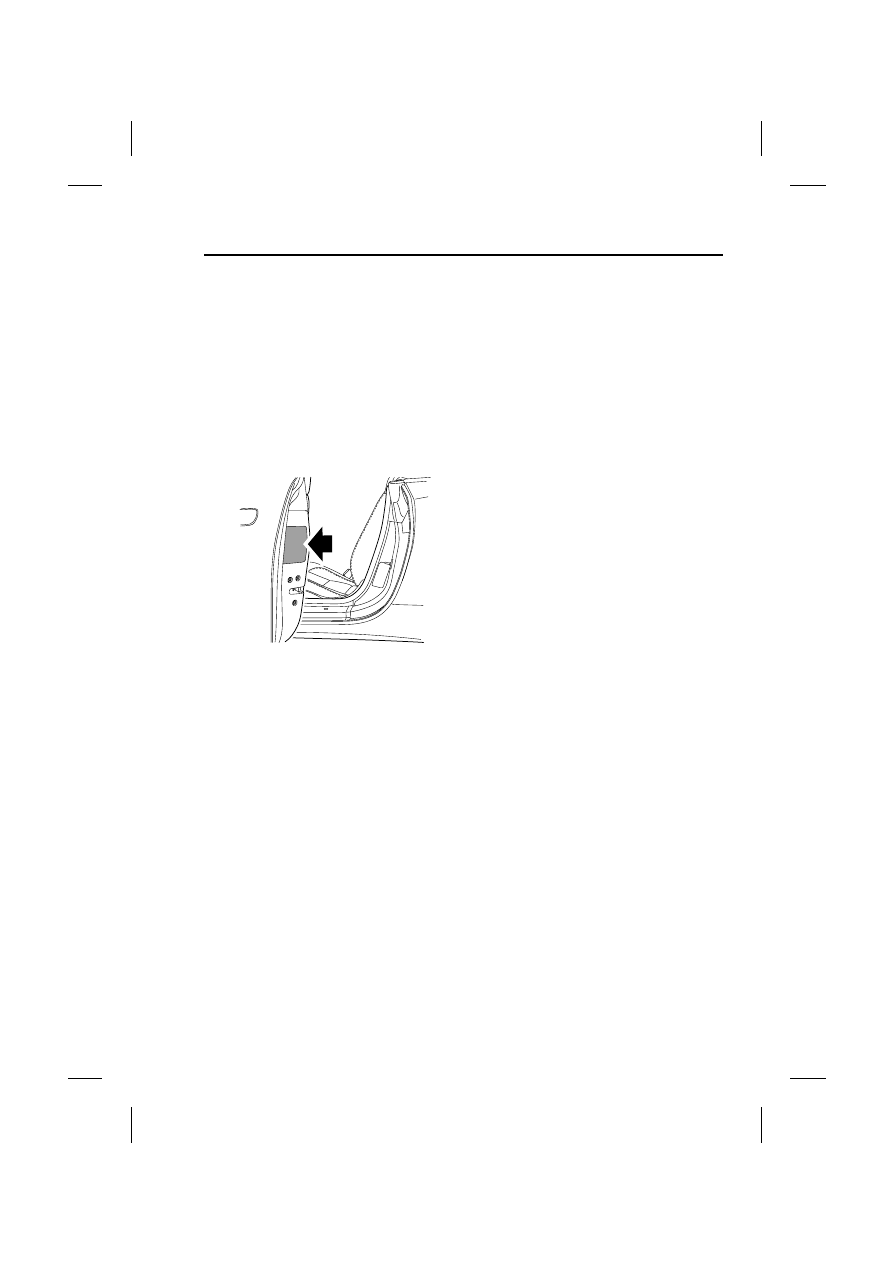

The recommended tire pressures are
listed on a placard label fixed to the end
of the left-hand side door. These
pressures provide optimum ride and
handling characteristics for all normal
operating conditions.

E91695

Wheels and tires

248

Tire pressure label - USA only

A tire information label is visible on the
pillar behind the driver’s door (also known
as the B pillar), giving information specific
to the wheel and tire equipment fitted to
the vehicle when it was built.

These pressures provide optimum ride
and handling characteristics for all
normal operating conditions.

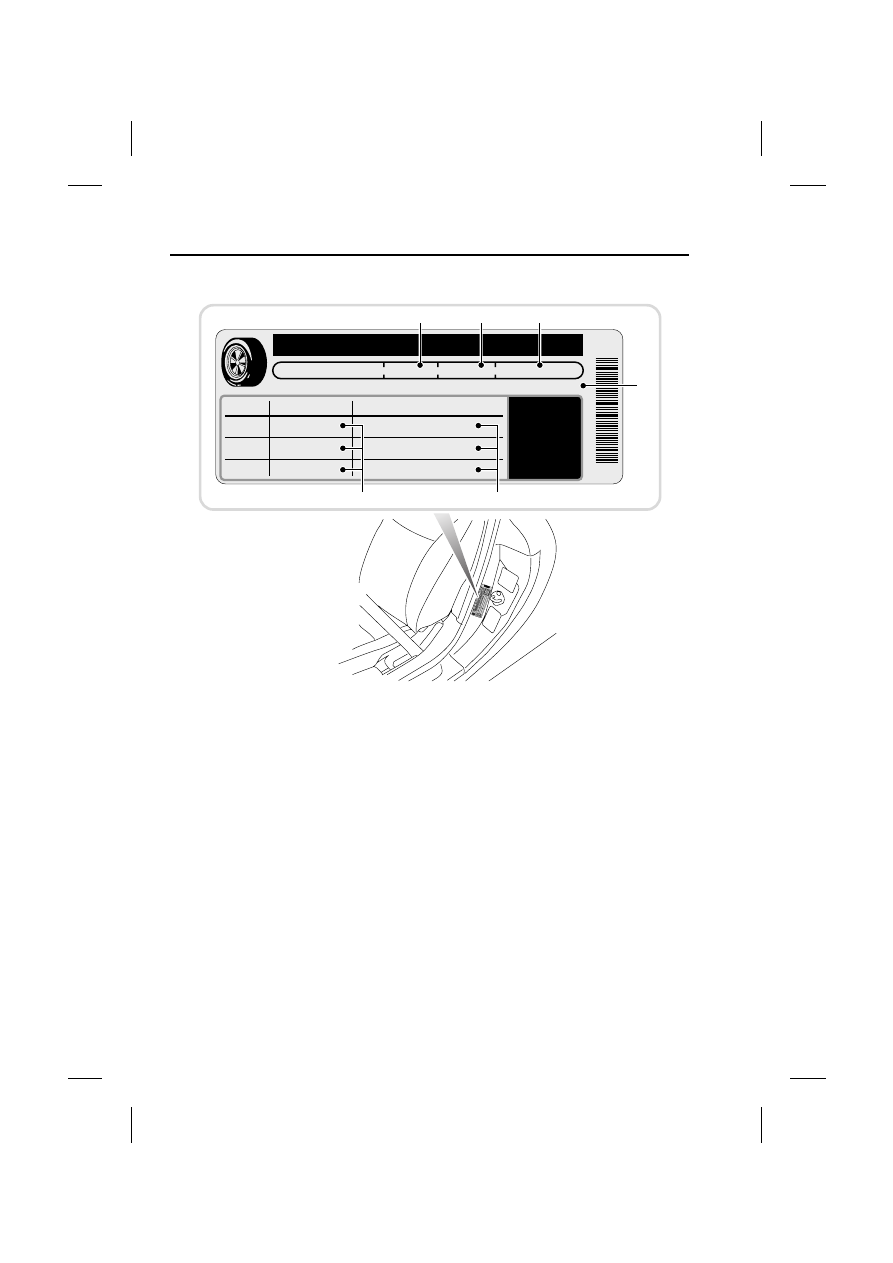

The label contains the following
information:
• The maximum number of occupants

1, divided between the front 2 and
rear 3 of the vehicle.

• The vehicle capacity weight 4, which

includes the weight of the driver,
passengers and cargo.

• Cold inflation pressures for the front,

rear and spare tire 5.

• The size of the tires 6 with which the

vehicle was originally equipped.

Note: The label must not be changed,
even if different wheels are fitted at a later
stage.

TIRE AND LOADING INFORMATION

SEE OWNER'S

MANUAL FOR

ADDITIONAL

INFORMATION

SEATING CAPACITY

TOTAL 4

FRONT 2

REAR 2

TIRE

COLD TIRE INFLATION PRESSURE

FRONT

REAR

SPARE

XXX/XXRXX

TXXX/XXRXX

XXPSI XXXkpa

The combined weight of occupants and cargo should never exceed XXXkg or XXXXlbs

RTC500490

SIZE

XXX/XXRXX

XXPSI XXXkpa

E93881

249

Wheels and tires

TECHNICAL SPECIFICATIONS
Recommended tire fitment

Note: The following chart details the tire
recommended for use in USA, Canada,
Mexico, Dominican Republic and Puerto
Rico. For all other countries refer to
your local Jaguar Dealer for specific
tire fitment.

Tire size

Pattern

Front

245/45ZR18 100Z

Continental Sport Contact 2 Asymmetric

Rear

275/40ZR18 103Z

Continental Sport Contact 2 Asymmetric

Front

245/40ZR19 94Y

Dunlop Sport 01 Asymmetric

Rear

275/35ZR19 96Y

Dunlop Sport 01 Asymmetric

Front

255/35ZR20 97Y

Dunlop Sportmaxx Directional

Rear

285/30ZR20 99Y

Dunlop Sportmaxx Directional

19 inch Run-flat:

Front

245/40R19 94Y

Dunlop Sport 01 RSC DSST

Rear

275/35R19 96Y

Dunlop Sport 01 RSC DSST

Temporary use spare
wheel:

Front and rear:

Alloy 4 x 18

T135/80 R18

Pirelli

Fuses

250

Fuses

CHANGING A FUSE

Note: Jaguar recommend that owners do
not remove or replace relays. It is
recommended that you seek qualified
assistance in the event of a relay failure.

Always switch off the ignition, and the
affected electrical circuit before replacing
a fuse.

Fuse failure is identified by an inoperative
circuit.

A special tool for removing and replacing
Mini and ATO-fuses is provided in the
passenger and rear seat compartment
fuse boxes, together with spare fuses.

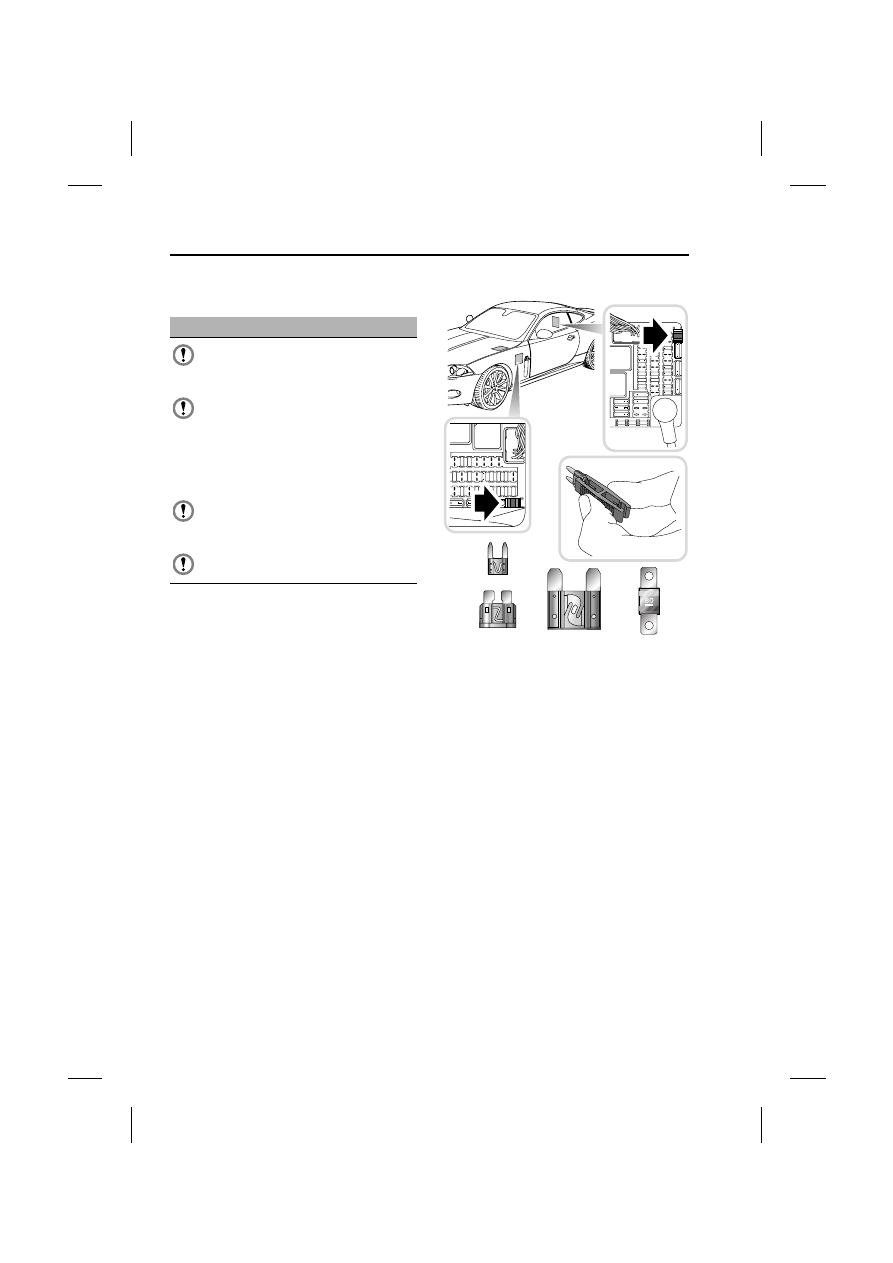

Four types of fuses are fitted in the fuse
boxes:

1. Mini-type

2. ATO-type

3. Maxi-type

4. Midi-type.

If a spare fuse is used, renew it with a fuse
of the same amperage rating.

Push the tool on to the suspect fuse and
withdraw it.

If the wire in the fuse is broken, the fuse
has blown.

Fit a new fuse using the tool.

CAUTIONS

Always turn off the ignition system
and the affected electrical circuit
before replacing a fuse.

Fit Jaguar approved replacement
fuses of the same rating and type,
or fuses of matching specification.

Using an incorrect fuse may result in
damage to the vehicle's electrical
system, and can result in a fire.

If the replacement fuse blows after
installation the system should be
checked by your Jaguar Dealer.

No attempt should be made to
repair a fuse that has blown.

E91721
