Model

HFC1035KD

HFC1042K2RD

HFC1042K3RT

Cabin

Single Cab

Double Cab

Engine

HFC4DA1渊E-玉)

HFC4DA1-1渊E-域)

HFC4DA1-2B(E-芋)

Type

in line-4,diesel

in line-4,

ind -cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

Displacement (cc)

2771

Compression Ratio

Max Power (kw/rpm)

57/3600

68/3600

Max Torque (N.m/rpm)

174/2100-2300

202/2100-2300

Transmission

JAC MSB-5M

Speed Ratio

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

Gear Position

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

Final gear ratio

5.375

Brake system

hydraulic brake

Tyre

7.00R16 Rear single

Overall Size渊mm) 渊L*W*H)

4850*1730*224

4850*1730*2240

4875*1715*2215

4918*1868*2154

Rear body size渊mm冤(L*W*H)

3120*1620*400

2080*1620*400

2080*1770*400

Tread (front /rear )渊mm冤

1385/1395

Wheelbase渊mm冤

2490

Min Turing Radius渊m冤

Min Ground Clearance渊mm冤

198

Max Speed渊km/h冤

110

Seating Capacity

2+3

Max Gradeability(%)

Technical specification

150

OWNER爷S MANUAL

JAC High end Light Trucks

Model

HFC1042K3T

HFC1045KRD

HFC1040K/KR1

Cabin

Single Cab

Double Cab

Single/King Cab

Engine

HFC4DA1-2B(E-芋)

HFC4DA1-1渊E-域)

Type

型式

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

Displacement (cc)

2771

Compression Ratio

17.5

Max Power (kw/rpm)

68/3600

Max Torque (N.m/rpm)

202/2100-2300

Transmission

JAC MSB-5M

Speed Ratio

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

Gear Position

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

Final gear ratio

5.375

B301-4.875

D803-6.142

Brake system

hydraulic brake

Tyre

7.00R16 Rear single

6.50-16/6.50R16

6.50-16

Overall Size渊mm) 渊L*W*H)

4850*1730*2240

5320*1880*2150

5745*1866*2213

Rear body size渊mm冤(L*W*H)

3120*1620*400

2540*1770*400

3930/3600*1770*400

Tread (front /rear )渊mm冤

1385/1395

1580/1395

1420,1440/1395

Wheelbase渊mm冤

2490

2800

3000

Min Turing Radius渊m冤

Min Ground Clearance渊mm冤

198

190

185

Max Speed渊km/h冤

110

Seating Capacity

2+3

Max Gradeability(%)

151

Model

HFC1040K/KR1

HFC1045K9T/K9R1T

HFC1045K9/K9R1

Cabin

Single/King Cab

Engine

HFC4DA1渊E-玉)

HFC4DA1-2B(E-芋)

HFC4DA1-2B1(E-芋)

HFC4DA1-1A渊E-域)

Type

in line-4,diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-coolerturbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

Displacement (cc)

2771

Compression Ratio

17.5

Max Power (kw/rpm)

57/3600

68/3600

80/3600

Max Torque (N.m/rpm)

174/2100-2300

202/2100-2300

220/2100-2300

Transmission

JAC MSB-5M

Speed Ratio

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

Gear Position

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

Final gear ratio

D803-6.142

B1DAB0-5.571

Brake system

hydraulic brake

Tyre

6.50-16

6.50R16/6.50-16

Overall Size渊mm) 渊L*W*H)

5745*1866*2213

5980*1998*2220

Rear body size渊mm冤(L*W*H)

3930/3600*1770*400

4180/3850*1900*400

Tread (front /rear )渊mm冤

1420,1440/1395

1580/1395

Wheelbase渊mm冤

3000

3308

Min Turing Radius渊m冤

Min Ground Clearance渊mm冤

185

Max Speed渊km/h冤

Seating Capacity

Max Gradeability(%)

152

OWNER爷S MANUAL

JAC High end Light Trucks

Model

HFC1045K2/R1

HFC1045K2

HFC1042K

Cabin

Single/King Cab

Single Cab

Engine

HFC4DA1-1渊E-域)

HFC4DA1渊E-玉)

Type

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

diesel

in line-4,diesel

Displacement (cc)

2771

Compression Ratio

17.5

Max Power (kw/rpm)

68/3600

57/3600

Max Torque (N.m/rpm)

202/2100-2300

174/2100-2300

Transmission

JAC MSB-5M

Speed Ratio

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

Gear Position

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

Final gear ratio

B1DAB0-5.571

B1DAB0-6.142

D800-6.142

Brake system

hydraulic brake

Tyre

6.50R16/6.50-16

7.00R16

Overall Size渊mm) 渊L*W*H)

5980*1998*2220

5980*1998*2200

5980*1880*2200

Rear body size渊mm冤(L*W*H)

4180/3850*1900*400

4180*1770*380

Tread (front /rear )渊mm冤

1580/1395

1440/1425

Wheelbase渊mm冤

3308

3360

Min Turing Radius渊m冤

Min Ground Clearance渊mm冤

185

190

Max Speed渊km/h冤

100

Seating Capacity

Max Gradeability(%)

153

Model

HFC1040K2

HFC1042KR

HFC1042K2T/K2RT

HFC1042K

Cabin

Single/King Cab

Double Cab

Single/King Cab

Double Cab

Engine

HFC4DA1-1渊E-域)

HFC4DA1-2B(E-芋)

Type

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

Displacement (cc)

2771

Compression Ratio

Max Power (kw/rpm)

68(80)/3600

68/3600

Max Torque (N.m/rpm)

202(240)/2100-2300

68kw/3600

202/2100-2300

Transmission

JAC MSB-5M

Speed Ratio

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

Gear Position

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

Final gear ratio

D800-6.142

Brake system

hydraulic brake

Tyre

7.00R16

Overall Size渊mm) 渊L*W*H)

5995*1900*2250

5995伊1900伊2250

5995*1900*2250

Rear body size渊mm冤(L*W*H)

4230/3900*1790*400

3200伊1790伊400

4230/3900*1790*400

*1790*400

Tread (front /rear )渊mm冤

1440/1425

Wheelbase渊mm冤

3360

Min Turing Radius渊m冤

Min Ground Clearance渊mm冤

190

Max Speed渊km/h冤

100

Seating Capacity

2+3

Max Gradeability(%)

154

OWNER爷S MANUAL

JAC High end Light Trucks

Model

HFC1042K2T/K2RT

HFC1042K

HFC1035KD

HFC1020K/KR1

Cabin

Single/King Cab

Double Cab

Single Cab

Single/King Cab

Engine

HFC4DA1-2B1(E-芋)

HFC4DA1-1渊E-域)

HFC4DA1渊E-玉)

Type

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,

ind-cooler turbocharged,

diesel

in line-4,diesel

Displacement (cc)

2771

Compression Ratio

Max Power (kw/rpm)

80/3600

92/3600

77/3600

Max Torque (N.m/rpm)

202/2100-2300

174/2100-2300

Transmission

JAC MSB-5M

Speed Ratio

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

5.529袁2.782袁

1.641袁1袁

0.785袁R尧5.271

Gear Position

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

1 3 5

2 4 R

Final gear ratio

D800-6.142

5.375

D870-6.142

Brake system

hydraulic brake

Tyre

7.00R16

7.00R16 Rear single

hydraulic brake

Overall Size渊mm) 渊L*W*H)

5995*1900*2250

4850*1730*2240

5400*1868*2200

Rear body size渊mm冤(L*W*H)

4230/3900*1790*400

*1790*400

3120*1620*400

3580/3250*1710*370

Tread (front /rear )渊mm冤

1440/1425

1385/1395

1440/1395

Wheelbase渊mm冤

3360

2490

2800

Min Turing Radius渊m冤

Min Ground Clearance渊mm冤

190

198

185

Max Speed渊km/h冤

100

110

Seating Capacity

Max Gradeability(%)

Technical specification

155

Use of instruments and ap鄄
paratuses in the cab

Integrated switch and instru鄄
ment cluster

Integrated switch

(figure below)

which is composed of steering shaft
lock seat ignition start lock and com鄄
bination switch lies underneath the
steering wheel.

Ignition switch
Ignition switch is on the right side of
integrated switch. It has four func鄄
tions: LOCK尧ACC尧ON尧START. When
the key is on the 'LOCK' position,
the ignition switch has been connect鄄
ed to the power source and the lock鄄
up of steering gear has been disen鄄
gaged. Turn the key to 'ACC' posi鄄
tion clockwise, the circuit of acces鄄
sories like radio and tape player can
be connected. Turn to the 'ON' posi鄄
tion, and the instrument circuit is con鄄
nected. If keep on turning until to the
'START' position, the engine can be
started. You should unlash the han鄄
dle of the key immediately after the
engine started. And the key can re鄄
turn to the 'ON' position by the ac鄄

tion of spring. The schematic dia鄄
gram of ignition switch is as follows.

Combination switch ( left control han鄄
dle)
Combination switch is under the
control of the multifunction handle,
which lies in the lower left and inferi鄄
or place of the steering wheel. It can
control small light尧headlight尧head鄄
light dimmer and turning to the left or

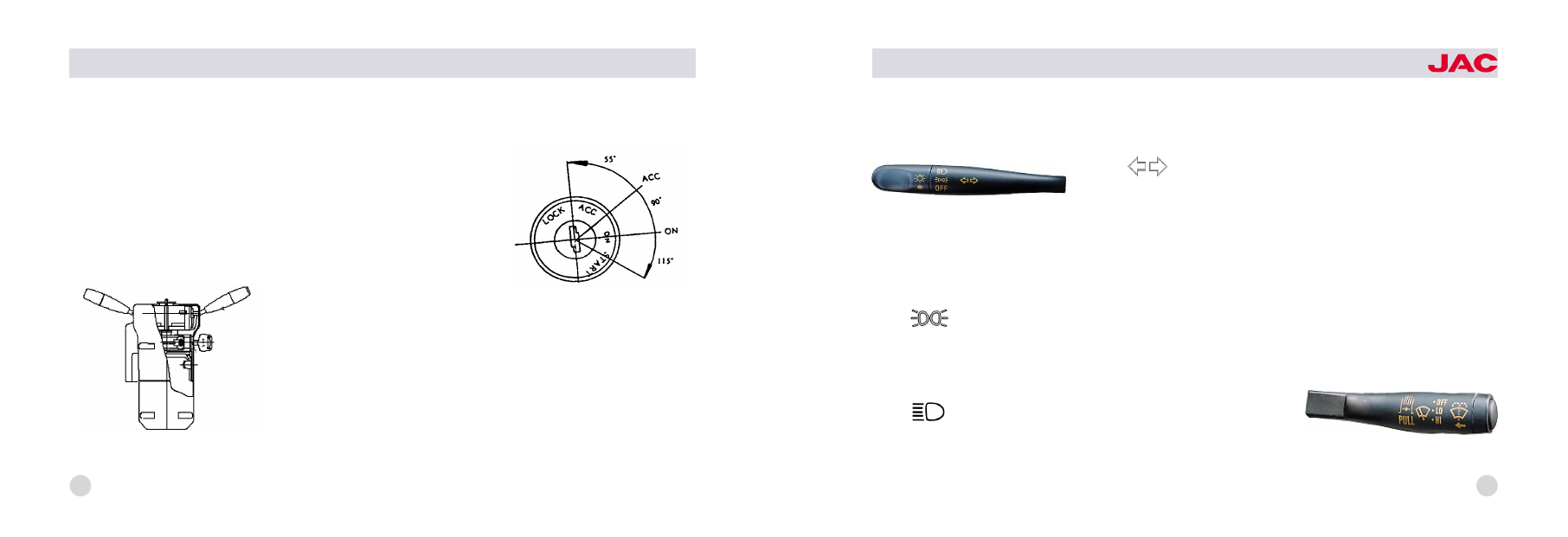

schematic diagram of integrated switch

schematic diagram of ignition switch

HFC1020

series trucks

the right by two different movement
modes. The symbol and function of
the combination switch is as follows:

1. The OFF symbol indicates that
small light and headlight do not light.
(But at this time the high beam can
light if you put up the handle.)
2. The

symbol is the indica鄄

tion of small light. Turn the control
handle clockwise by 30毅 ,and the
front尧rear small lights and the instru鄄
ment light can light.
3. The

symbol is the indica鄄

tion of headlight. Keep on the turning
of the left control handle clockwise

by 30毅 , the front headlight尧the rear
small light and the instrument light
can light.
4. The

symbol is the indica鄄

tion of steering. Forward and back鄄
ward motion of the control handle
can operate the left and right turning
lamp and the turn light indicator in
the instrument panel. Push the con鄄
trol handle forward in the horizontal
direction, the right turning lamp lights
and there has the indication of turn鄄
ing right in the instrument panel. On
the other hand, pull the control han鄄
dle backward, the left turning lamp
lights and there has the indication of
turning left in the instrument panel. If
the control handle is in the middle
position, then there has no indication

of turning.
5. Dimmer of headlight: Lift the left
control handle upwards gently and
do the 'uplift -looseness' motion, it
can control the dimmer function of
the headlight. Uplift the handle once,
high beam headlamp lights; loose
the handle, it goes out. Repeating
the above action can control the
work status of the high beam head鄄
lamp to obtain the purpose of dim鄄
mer function when overtaking or
passing in night.
Combination switch (right control
handle)

right control handle

left control handle

Content .. 87 88 89 90 ..
