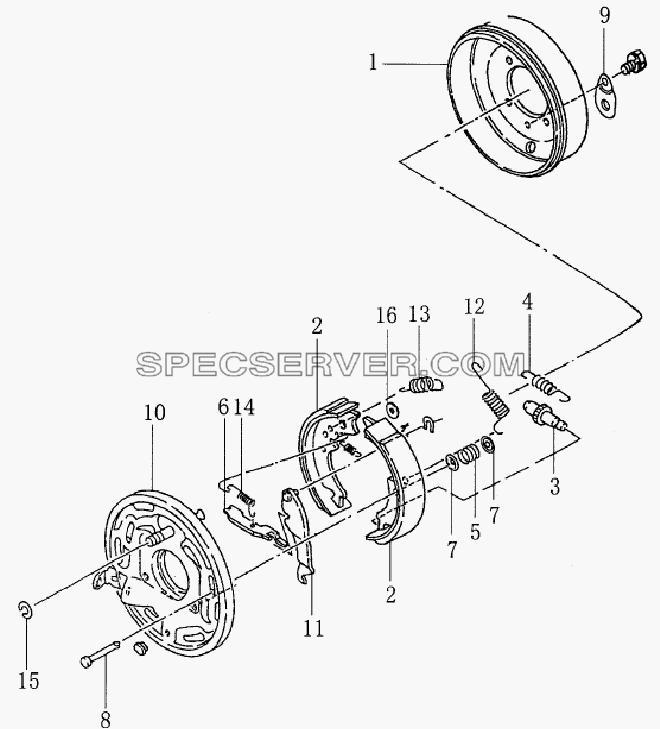

№		Номер детали	Наименование запчасти
-		3507010Z8	parking brake unit
1		WSL3507015	parking brake drum
2		WSL3507060	parking brake shoe with lining unit
3		GB5783-86	Bolt
4		WSL3507022	parking brake shoe upper pulling reed
5		WSL3507018	parking brake shoe pressing reed
6		ZQ6600-3507013	parking brake shoe pushing board
7		WSL3507017	parking brake shoe pressing reed seat
8		WSL3507016	parking brake shoe pressing reed pulling rod
9		WSL3507014	parking brake drum clearence adjusting hole cover
10		ZQ6600-3507040	parking brake drum backboard unit
11		WSL3507050	hand brake shoe clearence adjusting organ unit
12		WSL3507012	hand brake shoe pushing rod unit
13		WSL3507021	hand brake shoe return spring
14		WSL3507021	hand brake shoe return spring
15		Washer-08	clamping washer
16		GB859-87	Spring washer

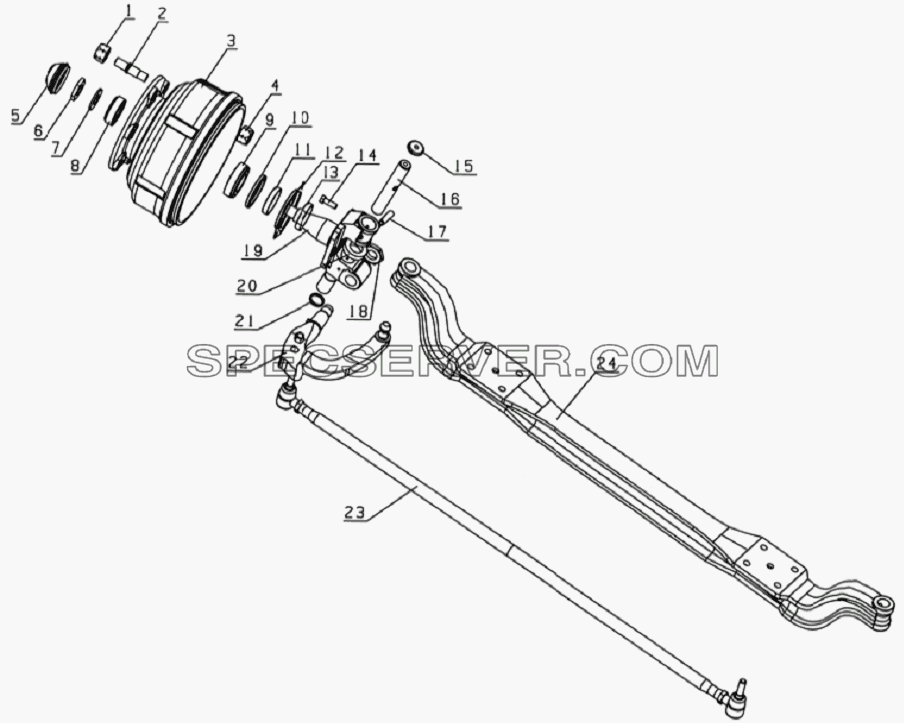

3000D120XZ Front axle assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		3103311D8	steering knuckle-crank arm
1		3103056D8	tire-right nut
1		3103057D8	tire-left nut
2		3103051D8	front wheel hub left bolt
2		3103052D8	front wheel hub right bolt
3		3103200D4XZ	left&front wheel huband brake drum assy
3		3103201D8	front wheel hub
3		3103300D4XZ	right&front wheel huband brake drum assy
3		3501007D4XZ	front drum
4		130-3103058ZC	front wheel hub-inner nut
5		3103090D4XZ	wheel hub cover
6		3001124D4XZ	nut
7		3103107D8	lock plate
8		30306	wheel hub-outer bearing
9		32209	wheel hub-inner bearing
10		BJ136-3103080	oil seal
11		3103104D8	oil seal seat
12		3103106D8	oil retainer plate
13		3103105D8	oil retainer plat bushing
14		3001109D8	bolt
15		3001208D8	keen pin cover
16		3001105D8	keen pin
17		3001106D8	keen pin -lock bolt
18		Q341B08	nut
19		3001300D8	steering knuckle assembly
19		3001400D8	steering knuckle assembly
20		98206	thrust bearing
21		3001208D8	keen pin cover
22		3103312D8	steering straight arm
23		3003500D8	tie rod assy
24		3001101D4XZ	front axle

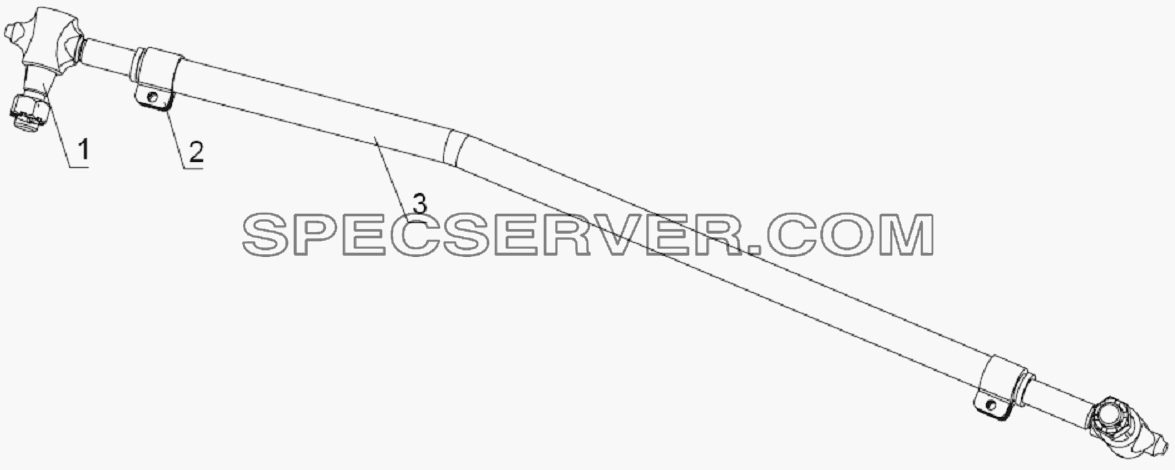

3003600D0 Steering connecting rod assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		3003610D0	Connecting rod front joint assembly
2		3003602D0	Steering connecting rod joint clip
3		3003611D0	Connecting rod

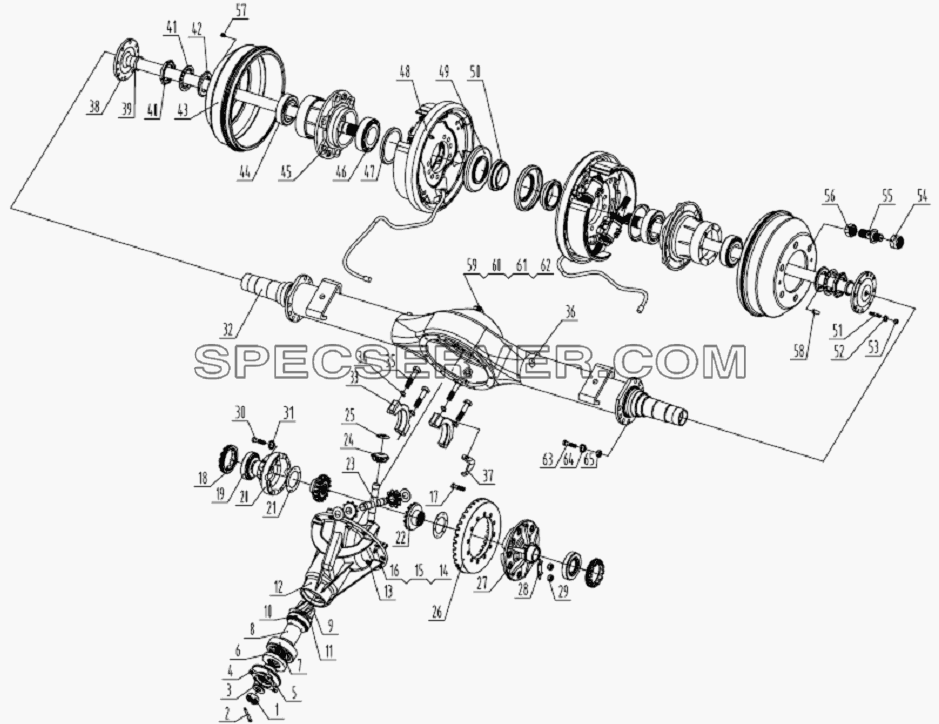

2400D120 Rear axle assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		2402203-HF13014	nut
2		Q5004036	cotter
3		2402217-HF13014	shim
4		2402261-HF13014A	flange
5		2402262-HF13014	dust fender
6		2402204-HF13014	oil seal
7		30307	bearing
8		2402202-HF13014	spacer
9		2402251-HF13014	pinion
10		32309	bearing
11		2402215-HF13014	shim
12		2402101-HF13014	carrier
13		Q340B08	Nut
14		Q40308	spring washer
15		Q1290825	stud bolt
16		Q1290835	stud bolt
17		2402004-HF13014	bolt
18		2402104-HF13014	nut
19		32210	bearing differential right housing
20		2403102-HF13014	differential right housing
21		2403002-HF13014	thrust plate
22		2403201-HF13014	axle shaft gear
23		2403004-HF13014	spinder
24		2403202-HF13014	planetory gear
25		2403003-HF13014	thrust plate
26		2402252-HF13014	ring gear
27		2403101-HF13014	differential left housing
28		2402017-HF13014	lock spacer
29		Q341B10	Nut
30		Q150B1050	bolt
31		2403105-HF13014	lock spacer
32		2401000-HF13014	axle housing
33		2402102-HF13014	bearing cover
34		Q40514	spring washer
35		2402103-HF13014	bolt
36		Q901	vent-plug
37		2402105-HF13014	locking plate
38		2400005-HF13014M	shaft
39		2400009-HF13014	outer oil seal
40		2400001-HF13014	nut
41		2400003-HF13014	lock washer
42		2400050-HF13014	nut
43		3104102-HF13014ZC	rear brake drum
44		32211	bearing
45		3104101-HF13014	rear hub
46		32212	bearing
47		3104104-HF13014	inner oil seal
48		3502100-D120	brake assambly
48		3502200-D120	brake assambly
49		2400023-HF13014	oil fender
50		2400021-HF13014	bush
51		Q1291030	bolt
52		Q40310	spring washer
53		Q341B10	Nut
54		3104111-HF13014	bolt
54		3104211-HF13014	bolt
55		3104114-HF13014	cup nut
55		3104214-HF13014	cup nut
56		3104112-HF13014	inner nut
56		3104212-HF13014	inner nut
57		Q2541020	bolt
58		Q5210510	annul
59		2400008-HF15015	plug coke
60		2400046-HF15015	gasket
61		Q62316	plug coke
62		2400047-HF15015	gasket
63		2400007-HF14015	bolt
64		Q40310	spring washer
65		Q341B10	Nut

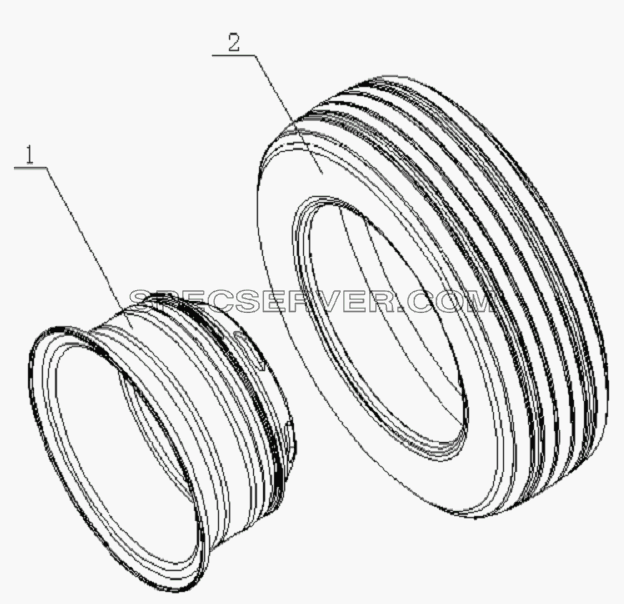

3101D4 Wheel assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		3101010D4	Wheel rim unit
2		6.50-15-8PR	Tire assembly

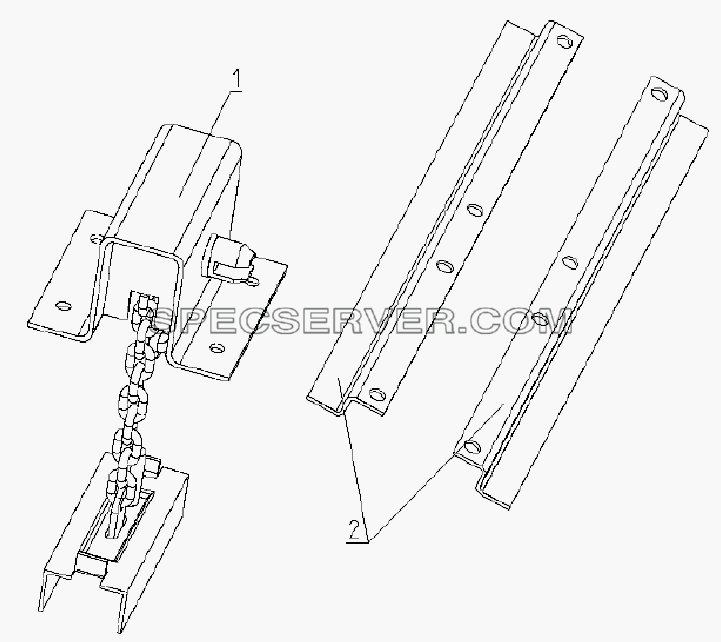

3105D4 Spare tire regulator system для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		3105010D0	Spare tire regulator assembly
2		2801191D4-sg0	front spare tire crossbeam
2		2801192D4-sg0	rear spare tire crossbeam
