Iveco EuroCargo (12 to 26 t). Manual - part 133





2

YES

YES

YES

YES

YES

YES

WOBBLE

Regular wheel incidence.

Check axle assembly, fix or replace distorted elements.

Front axle perfectly aligned.

Reset alignment and clamp spring band nuts on the
axle.

Regular toe-in.

Make correct toe-in.

Efficient steering heads of track rods.

Replace defective elements.

Regular clearance of wheel hub bearings.

Adjust

end

play

after

making

appropriate

replacements.

Centred wheels:

centred, regular rim
correct assembly of tyre on rim.

Replace defective rim.
Deflate and centre tyre on rim.

Balanced wheels.

Make wheel balancing.

NO

NO

NO

NO

NO

NO

NO

E

URO

C

ARGO

T

ECTOR

12-26 t

76

FRONT AXLE 5871/5

Base - February 2003

3

YES

YES

NOISE

Good lubrication of wheel hub bearings.

Top up oil in wheel hubs.

Efficient wheel hub bearings.

Replace worn bearings and adjust end play.

Regular coupling between steering knuckle pin and
roller bearings.

Check and replace worn elements.

NO

NO

NO

E

URO

C

ARGO

T

ECTOR

12-26 t

FRONT AXLE 5871/5

77

Base - February 2003

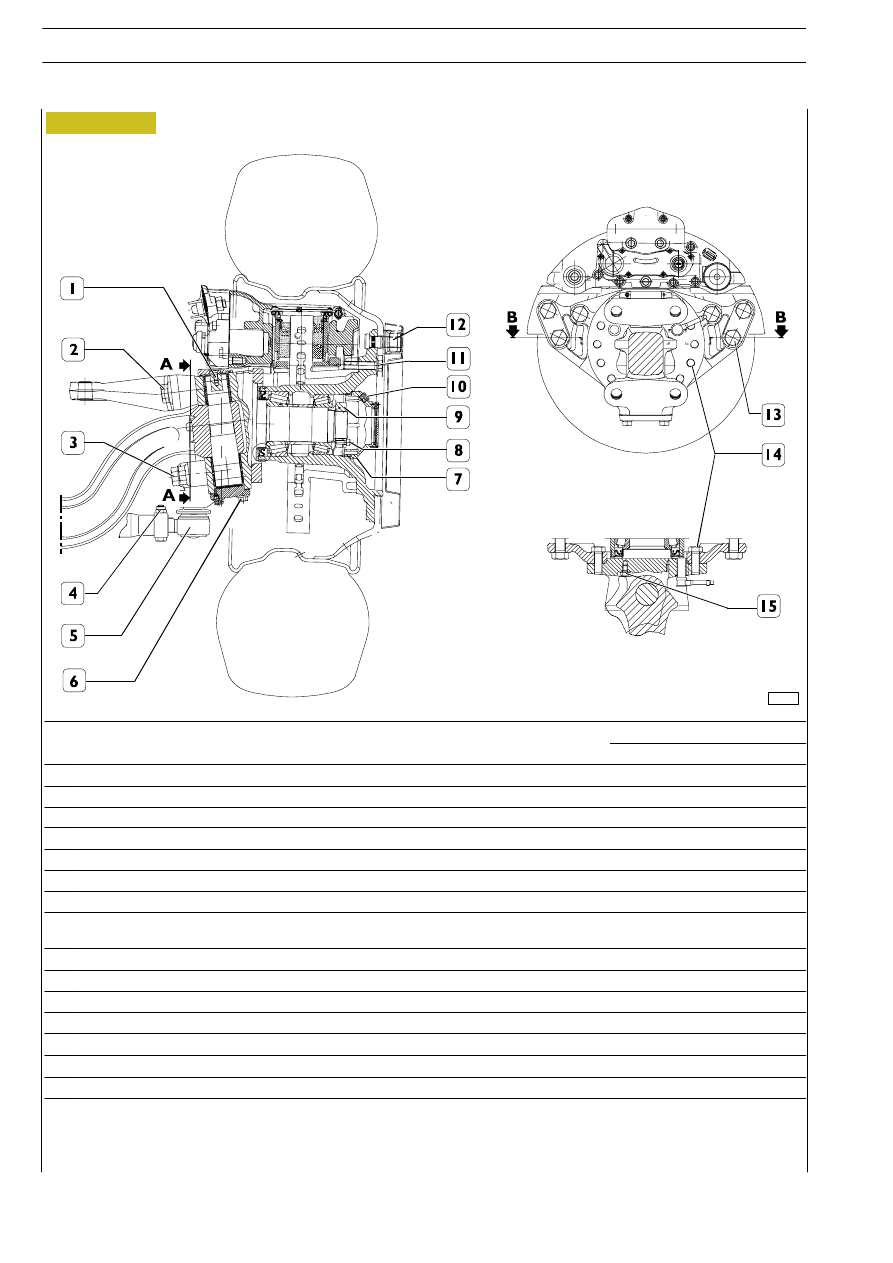

71195

Figure 9

SEC A-A

SEC B-B

E

URO

C

ARGO

T

ECTOR

12-26 t

78

FRONT AXLE 5871/5

Base - February 2003

PART

TORQUE

PART

Nm

(kgm)

1

Oval headed screw for securing upper cover

10.8

± 2

(11

± 0.2)

2

Self-braking hexagonal head screw for securing longitudinal levers on stub axle

1325

± 75

(135

± 7.5)

3

Self-braking hexagonal head screw for securing transverse tie rod lever on stub axle

1325

± 75

(135

± 7.5)

4

Clamp locking nut for transverse tie rod

80

± 10

(8.1

± 1)

5

Notched nut for ball head pin

201

± 20

(20.5

± 2)

6

Screw for securing lower cover on stub axle

117

± 6

(11.9

± 0.6)

7

Wheel hub cover

133.5

± 13.5

(13.6

± 1.3)

8

Cylindrical headed screw with embedded hexagon for locking wheel bearings adjustment
clamp

27.5

± 2.5

(2.8

± 0.2)

9

Wheel bearings securing ring nut

515.5

± 24.5

(52.5

± 2.5)

10 Bevel threaded plug for wheel hub cover

57.5

± 2.5

(5.9

± 0.25)

11 Hexagonal head screw for securing brake disc to wheel hub

281.5

± 13.5

(28.6

± 1.3)

12 Wheel securing nut

627.5

± 62.5

(63.9

± 6.4)

13 Self-locking hexagonal head screw for securing brake shoes

615.5

± 61.5

(62.7

± 6.2)

14 Screw for securing brake shoes support

313.5

± 15.5

(31.9

± 1.5)

15 Steering stop screws

58.5

± 5.2

(5.9

± 0.5)

E

URO

C

ARGO

T

ECTOR

12-26 t

FRONT AXLE 5871/5

79

Base - February 2003

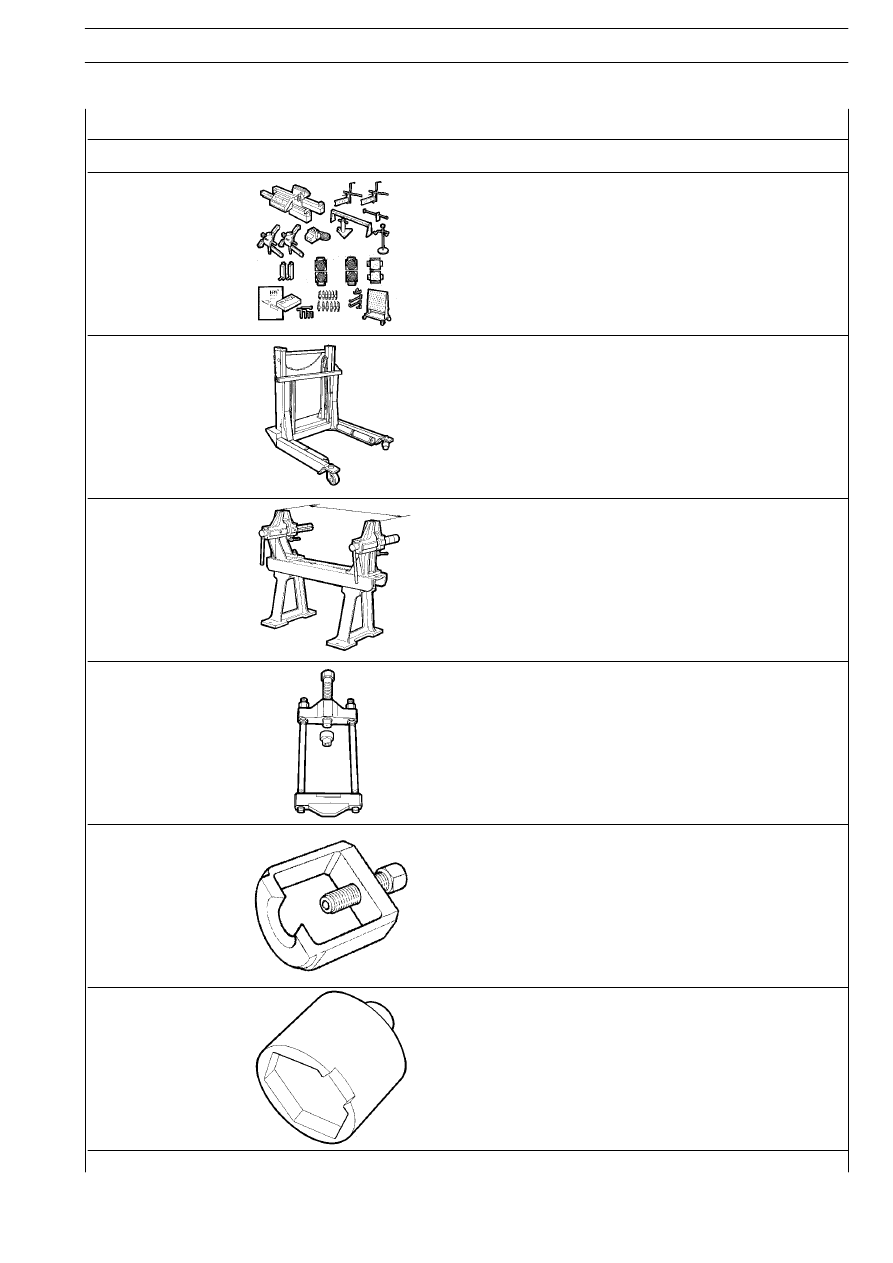

TOOL No.

DESIGNATION

99305354

Portable optical equipment to check wheel attitude

99321024

Hydraulic truck for wheel detachment and reattachment

99322215

Stand for axle overhaul

99347047

Tool for steering knuckle pin removal

99347068

Extractor for track rod head pins

99354207

Wrench (94.5 mm) for front wheel hub caps
