Iveco EuroCargo (12 to 26 t). Manual

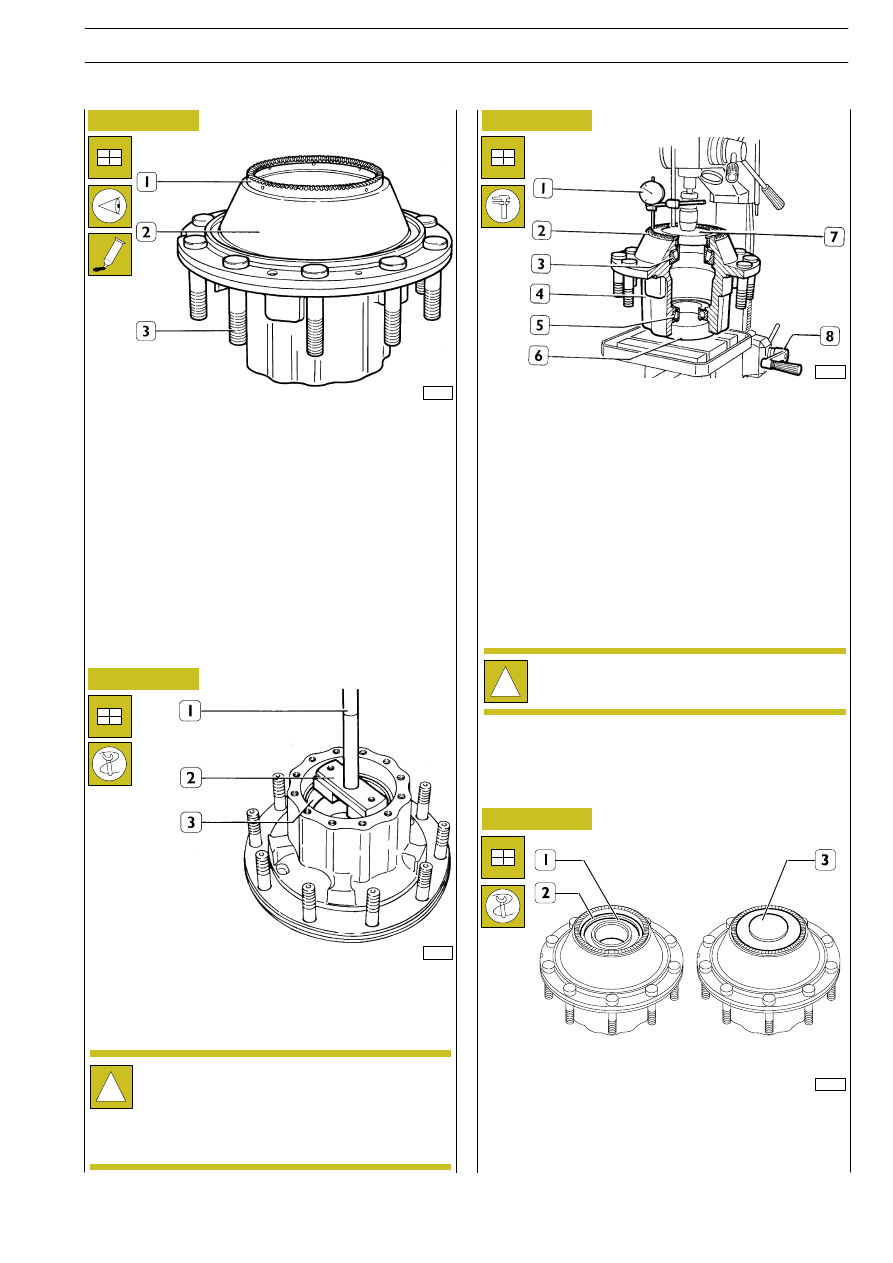

Place the tapered roller bearing (1) in the outer ring (2). Using
the keying device 99374134 (3) fit the gasket (under a press)
in the wheel hub.

Ensure the rest surface of screw heads is free from burrs, slags
or nicks before fitting new screws (3).
The load to be applied to screw heads for driving them into
their seats must not exceed 2300 Kg.
When driving operation is completed, screws should abut
perfectly on the wheel hub face : maximum squareness toler-
ance 0,2 mm.
If the oil slinger (2) was removed in order to be replaced, coat
oil slinger and hub mating face with sealing compound that can
resist heat to temperatures of 40 to 250

°C.

36298

36299

40326

62665

Figure 14

Figure 15

Figure 16

Figure 17

Fit taper roller bearing outer races in wheel hub using handle
99370007 (1) and drift (2): 99374094 for outer bearing race
(3) and 99374094 for inner bearing race.

When fitting race (3) do not use phonic wheel (1) as
a support base.
Press fit until bearings are 5 mm from abutting end and
then complete operation by hand.

Refit phonic wheel (2), if necessary, by heating to a tempera-
ture of 150

°C. Ensure phonic wheel is perfectly bedded onto

hub seat after installation.
Check squareness of phonic wheel (2) as follows.
Position wheel hub (4) with taper roller bearings on base of
column drill. Interpose a spacer between base and outer bear-
ing race (5) so that wheel hub may turn.
Rest a plate (7) on the internal bearing roller ring (3).
Turn handle (8) to raise base so that drill chuck comes into
contact with plate (7) and bearings (3 and 5) are slightly pre-
loaded.

Turn wheel hub to settle bearings when pre-loading.

Position magnetic base dial gauge with flat base stylus as shown
in figure and turn wheel hub. Check that maximum squareness
error for phonic wheel (2) does not exceed 0,2 mm.

URO

ARGO

ECTOR

12-26 t

AXLES IN TANDEM (INTERMEDIATE)

Base - February 2003

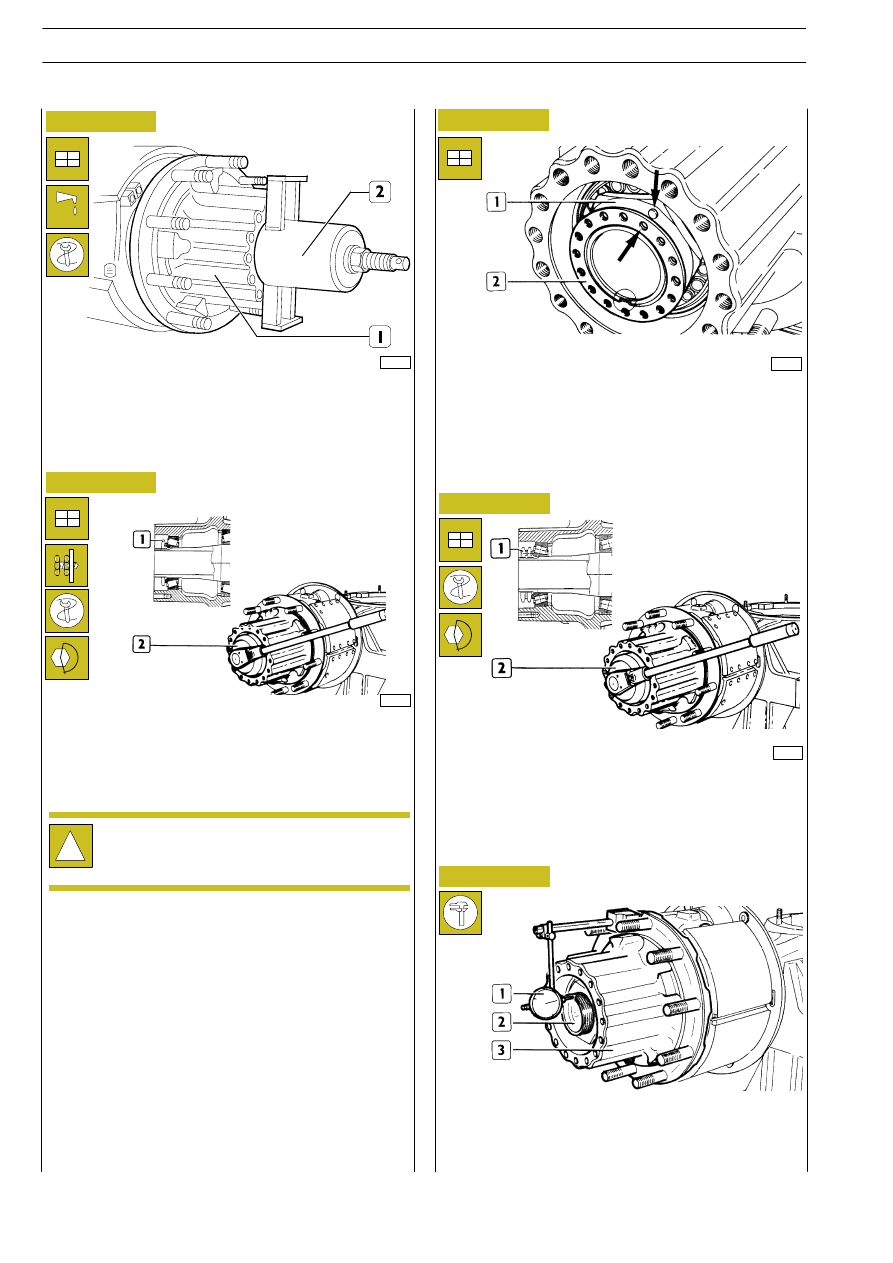

ASSEMBLING WHEEL HUBS

Lubricate the bearing seat on the sleeve and the wheel hub
seal (1) with TUTELA W 140/M-DA oil.
Position the tapered roller bearing in the wheel hub (1) and,
using the tool 99345103 (2) applied as in the figure, fit the
wheel hub (1) onto the sleeve.

Tighten nut (1). Then adjust wheel hub bearing end play as fol-
lows.
Use wrench 99355167 (2) to tighten nut (1) to a torque of
98.1 Nm (10 kgm).

36304

19366

36305

Figure 18

Figure 19

Figure 20

Fit the lock ring (2).
If the nut (1) for the locating dowel does not match any of the
lock ring holes (2) (see

→), progressively undo the adjusting

nut (1) until the lock ring can be inserted. (Consider also the
end play specification obtained with the previous operation).

Tighten nut (1) and torque it to 392.3 Nm (40

±2 kgm) using

wrench 99355167 (2).

Place a magnetic base dial gauge (1) on wheel hub (3); rest
gauge stylus on sleeve (2) and check wheel hub end play. It
should not be over 0.00

÷ 0.05 mm.

77225

Tighten nut by turning hub simultaneously in both
directions to settle bearings.

Figure 21

Figure 22

Loosen nut (1) to obtain an end play of 0.2

÷ 0.3 mm.

URO

ARGO

ECTOR

12-26 t

AXLES IN TANDEM (INTERMEDIATE)

Base - February 2003

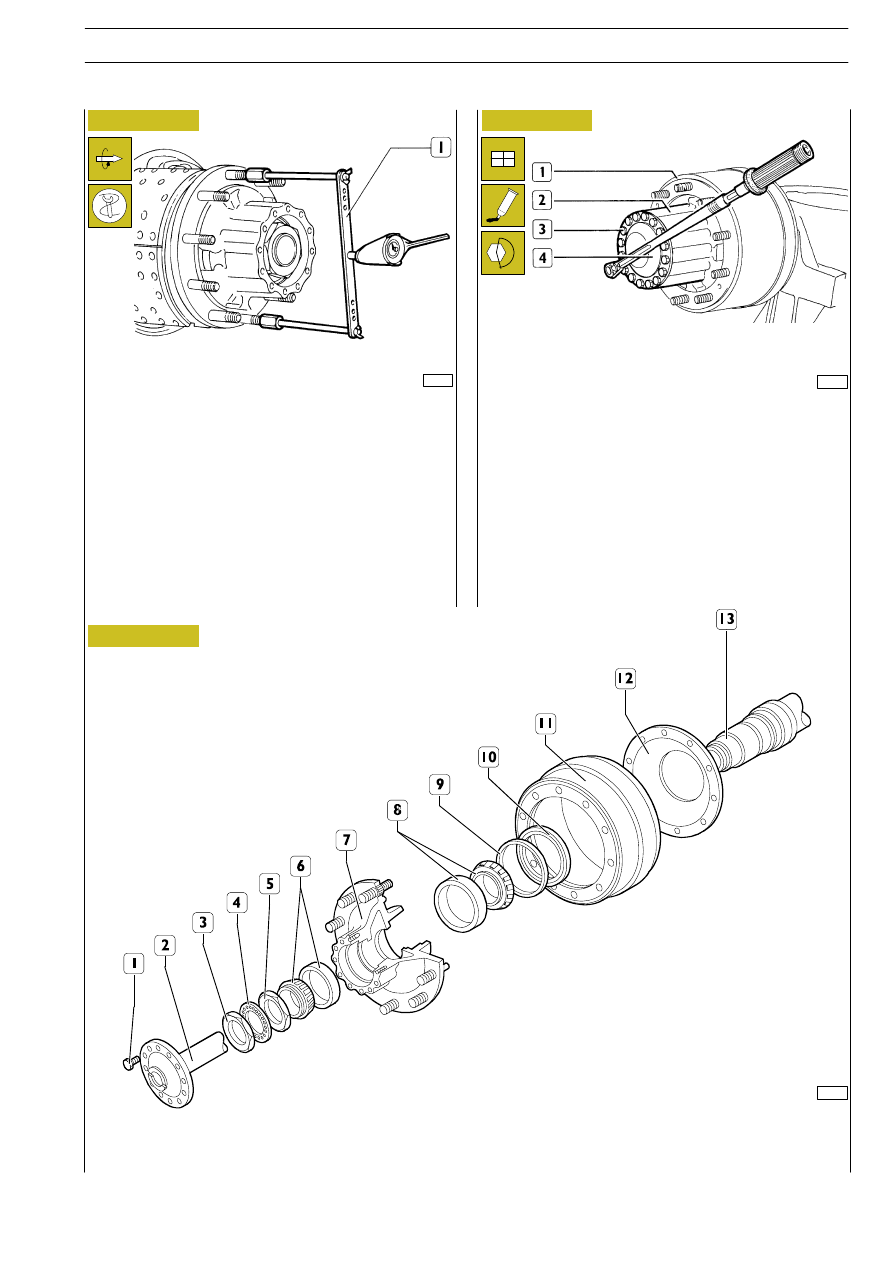

Fit the drum (1) onto the wheel hub (2).
Smear “Type B” sealing compound on both contact surfaces
between the drive shaft and the wheel hub.
Insert the drive shaft (4), screw down the screws (3) fixing the
drive shaft (4) to the hub (2) and tighten them, using a torque
wrench, to the prescribed torque.
Repeat this operation on the opposite side.
After these operations, replenish the axle housing with TUTE-
LA W 140/M-DA oil of the prescribed quantity and proceed
to check the transmitter for signalling differential locking works
properly.
Check the efficiency of the ABS sensors as described in the
“Fault-Diagnosis Guide” manual.

36307

77226

36309

Figure 23

Figure 24

Figure 25

Apply tool 99395026 (1) to the wheel hub pins and, using a
torque wrench, check that the rolling torque is no greater than:
1.96 Nm (0.20 kgm).

This torque must correspond to a maximum end float of the
bearings of 0.05 mm.

COMPONENTS OF WHEEL HUB

1. Screw - 2. Drive shaft - 3. Nut - 4. Safety ring - 5. Nut - 6. External tapered roller bearing - 7. Wheel hub - 8. Internal roller

bearing - 9. Seal - 10. “Phonic” wheel - 11. Drum brake - 12. Oil sump - 13. Rear axle sleeve.

URO

ARGO

ECTOR

12-26 t

AXLES IN TANDEM (INTERMEDIATE)

Base - February 2003

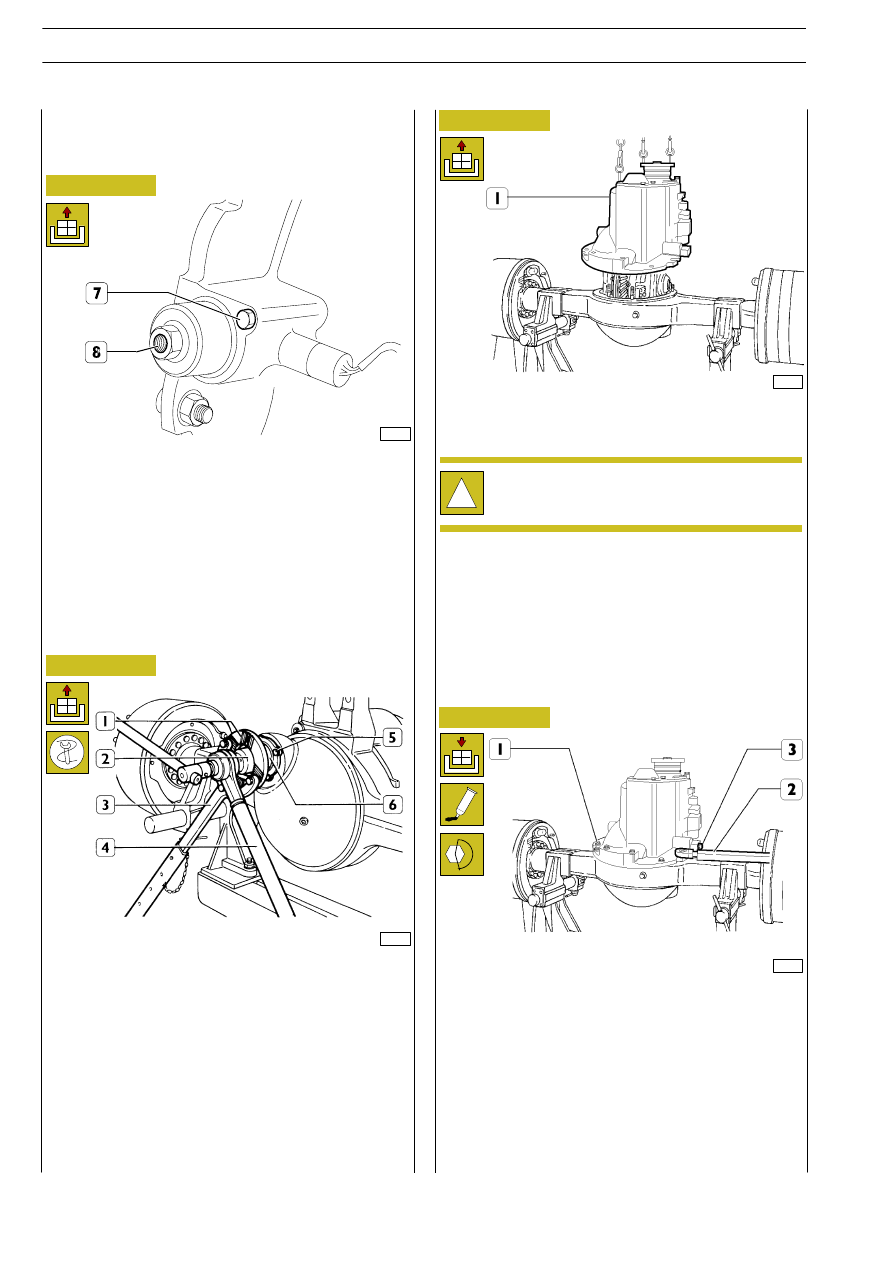

Lock the differential gear, operating as follows: unscrew the
screw (7) and screw it down in the hole (8): screw down the
screw fully to get the differential lock to go in.

526210 REMOVING DIFFERENTIAL GEAR —

TRANSFER BOX (with rear axle on
stand 99322215)

36344

77222

77227

77228

Figure 26

Figure 27

Figure 28

Figure 29

Use retainer 99370317 (3) to stop flange (1) rotation. Un-
screw drive flange (1) retaining nut using wrench 99355131
(2) and torque adaptor (4).
Remove screws (5) and disconnect axle housing output shaft
mounting (6).

Loosen differential carrier (1) retaining screws. Screw in three
screws to be used as extractors and separate differential
carrier from axle housing by means of eyebolts and metal
ropes.

Coat the axle housing to differential mating face with sealant.
Insert differential in axle housing. Tighten nuts (1) and screws
with lock washers to the specified torque using a torque
wrench (2).
Fit differential axle shafts as described in 525030 operation.
Backout screw (3) to release the differential lock device; insert
screw in its seat.

Use mounting 99370616 for differential carrier re-
moval with axle assembled on vehicle.

REFITTING

DIFFERENTIAL

GEAR

—

TRANSFER BOX (with rear axle on stand
99322215)

URO

ARGO

ECTOR

12-26 t

AXLES IN TANDEM (INTERMEDIATE)

Base - February 2003
