Iveco Stralis AT/AD. Manual - part 6

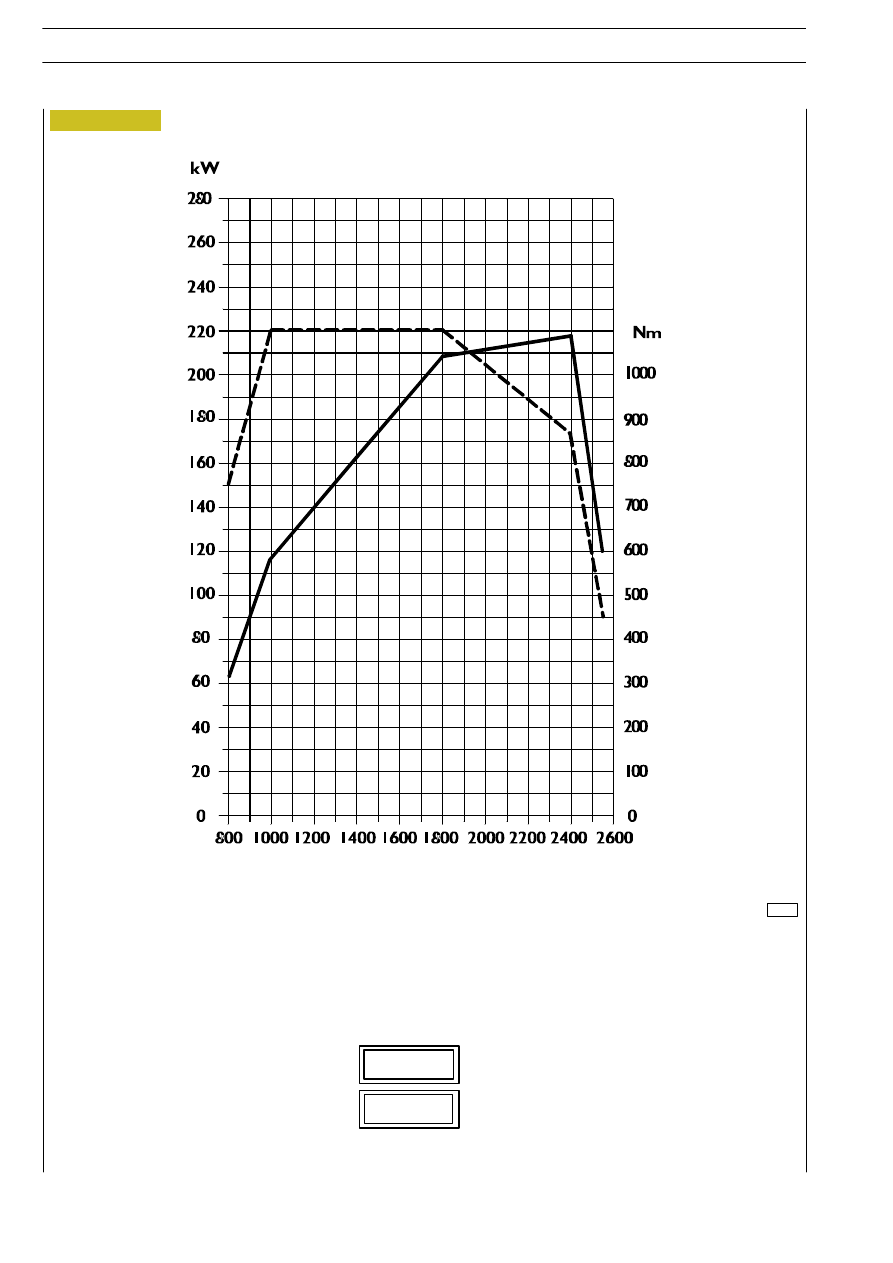

F2BE0681E: POWER-TORQUE CURVES

52243

Max OUTPUT 221 kW

at 2400 rpm

Max TORQUE 1110 Nm

at 1000 rpm

301HP

113 kgm

Figure 3

rpm

10

ENGINE F2B

S

TRALIS

AT/AD

Base - January 2003

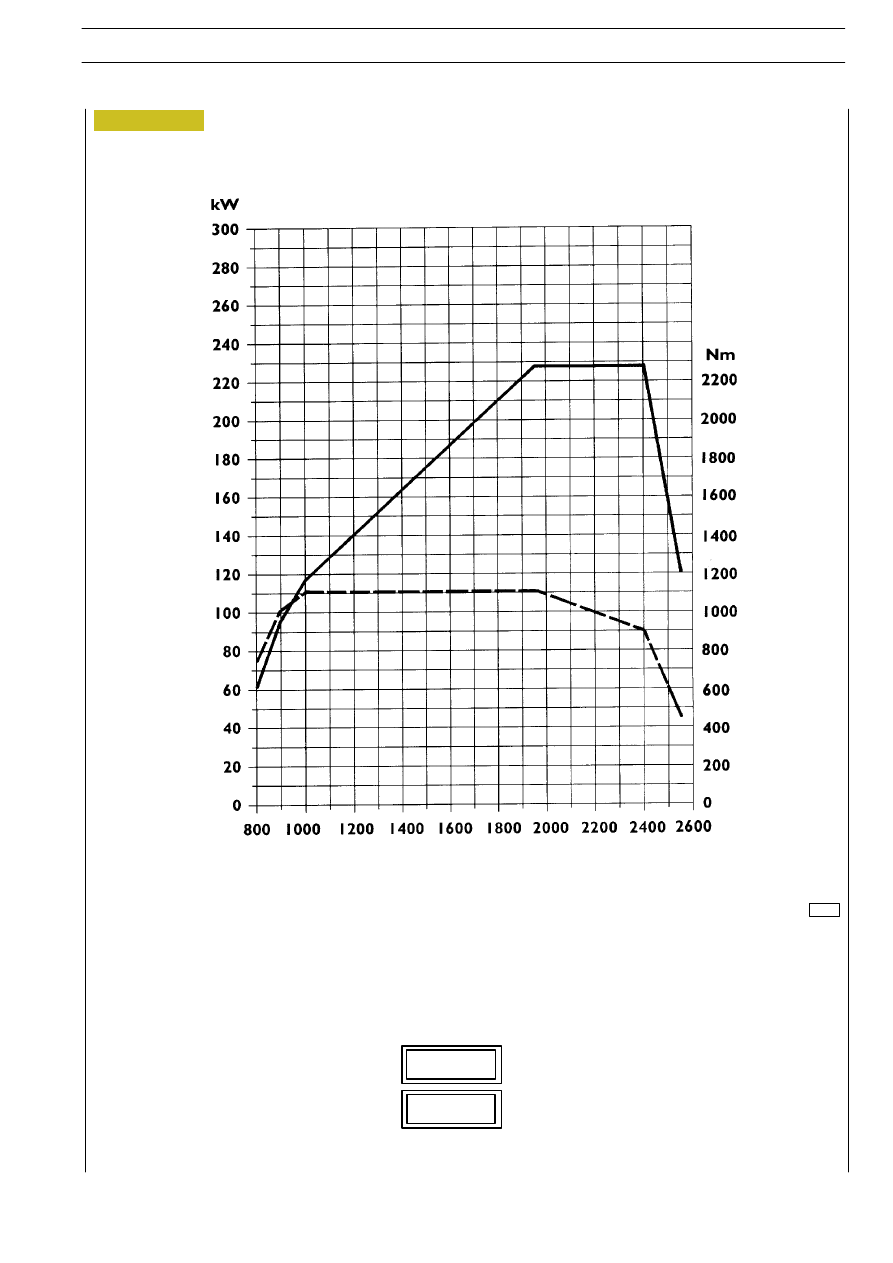

F2BE0681B: POWER-TORQUE CURVES

47531

Max OUTPUT 228 kW

at 2400 rpm

Max TORQUE 1100 Nm

at 1000 to 1950 rpm

310HP

114 kgm

Figure 4

rpm

ENGINE F2B

11

S

TRALIS

AT/AD

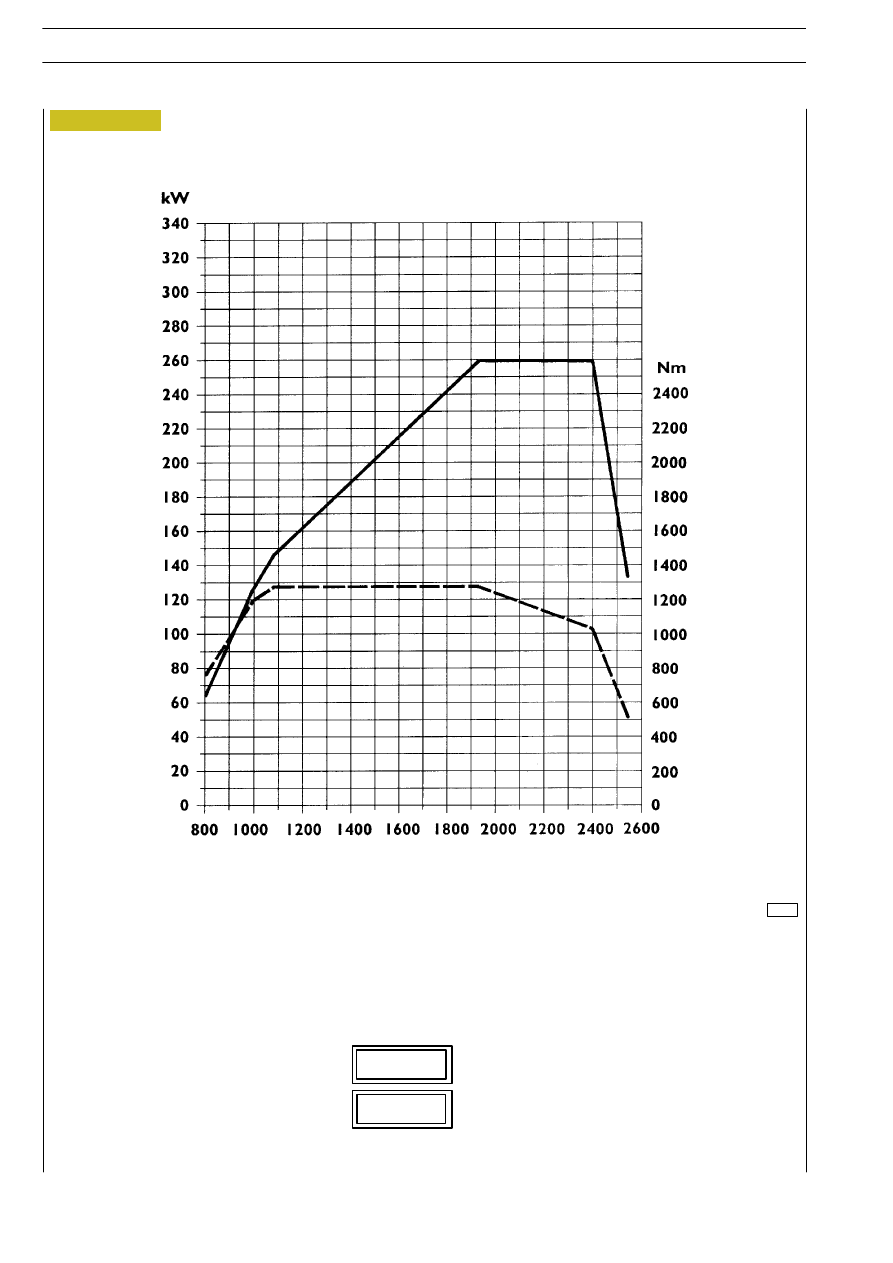

F2BE0681A: POWER-TORQUE CURVES

47532

Max OUTPUT 259 kW

at 2400 rpm

Max TORQUE 1280 Nm

at 1080 to 1930 rpm

352HP

131 kgm

Figure 5

rpm

12

ENGINE F2B

S

TRALIS

AT/AD

Base - January 2003

ENGINE F2B

13

S

TRALIS

AT/AD

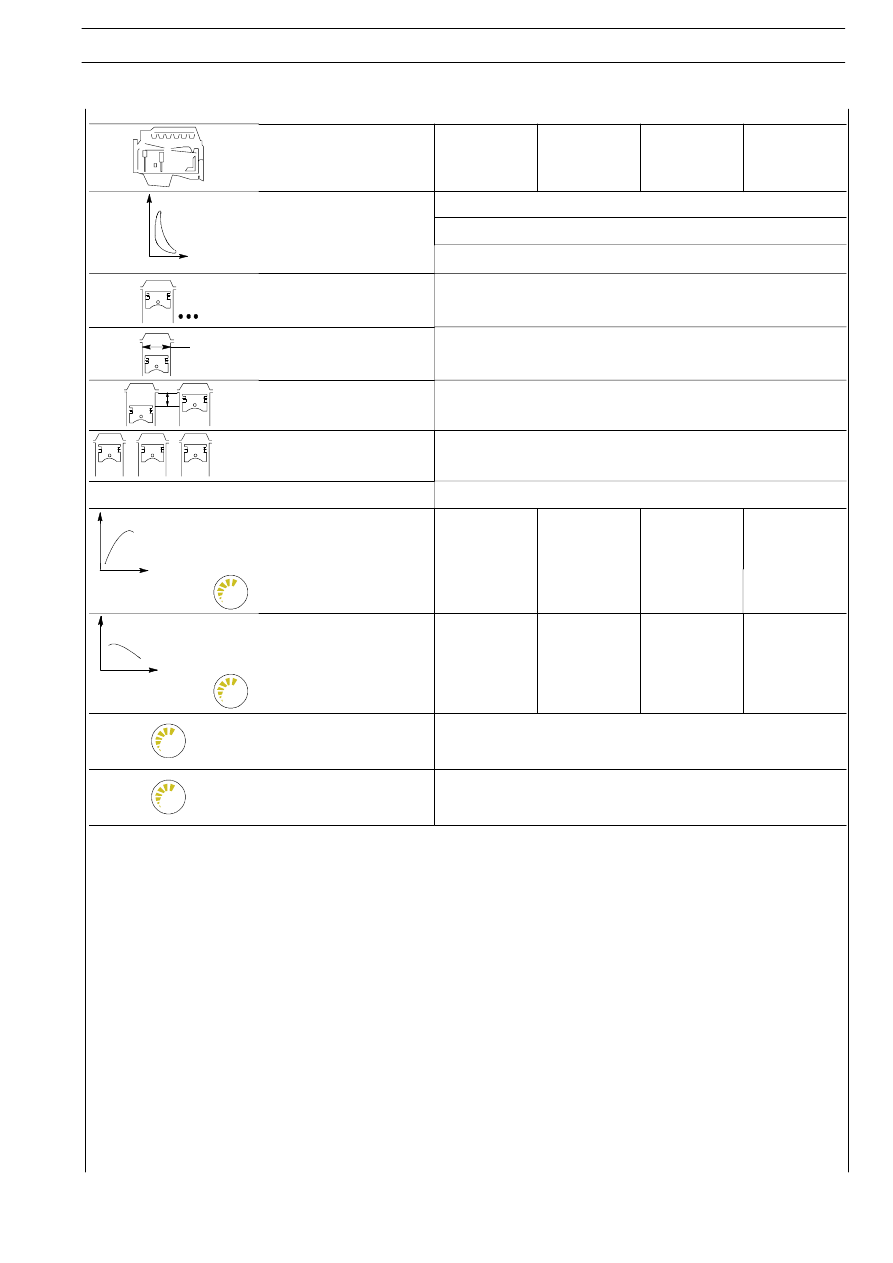

GENERAL CHARACTERISTICS

Type

F2BE0681A

F2BE0681B

F2BE0681E

F2BE0681F

Cycle

Diesel 4 strokes

Feeding

Turbocharged with aftercooler

Injection

Direct

N. of cylinders

6 on-line

∅

Diameter

mm

115

Stroke

mm

125

+

+

+.. =

Total displacement cm

3

7790

ρ

Compression ratio

16

± 0.8

Max. power

KW
(HP)

259

(352)

228

(310)

221

(301)

200

(273)

rpm

2400

2400

2400

2400

Max. torque

Nm
(Kgm)

1280

(131)

1115

(114)

1110 (113)

1115

(114)

rpm

1080 to 1930

1000 to 1950

1000

1000 to 1770

Engine idling speed,
no load

rpm

525

± 25

Maximum engine
speed, no load

rpm

2760

± 20
