Iveco Daily. Manual - part 339
Replacing the modulator/control unit requires calibration of
the longitudinal acceleration sensor (described on page 64).
In this case, the steering angle sensor shall not be calibrated
since it features its own internal memory.
Re-attachment is carried out by reversing the order of
detachment operations. Also follow the advice below:
- connect the connector with great attention, taking care
to insert it perpendicularly to the seat to avoid damaging
the pins;
- after re-attachment has been completed, perform the
programming and calibration procedures described
below.

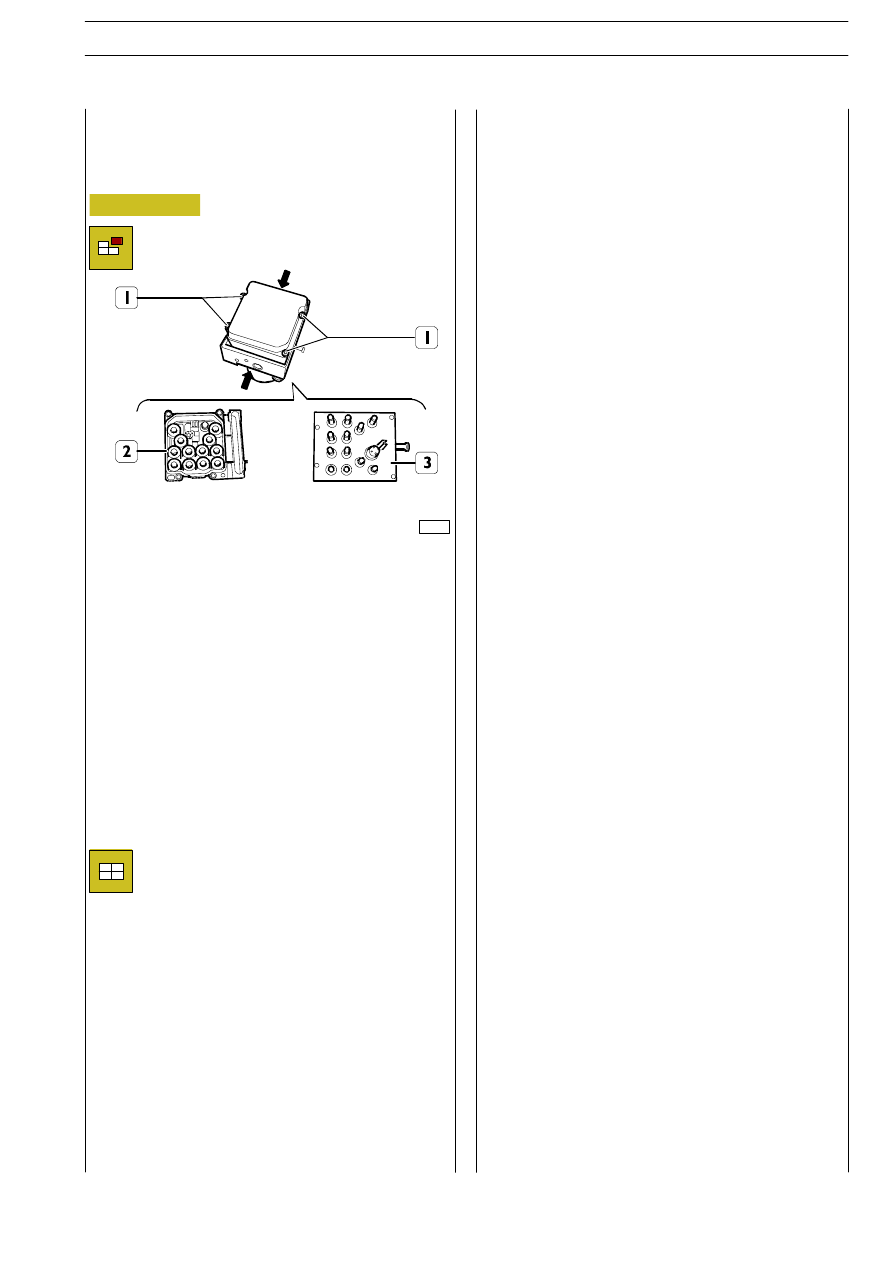

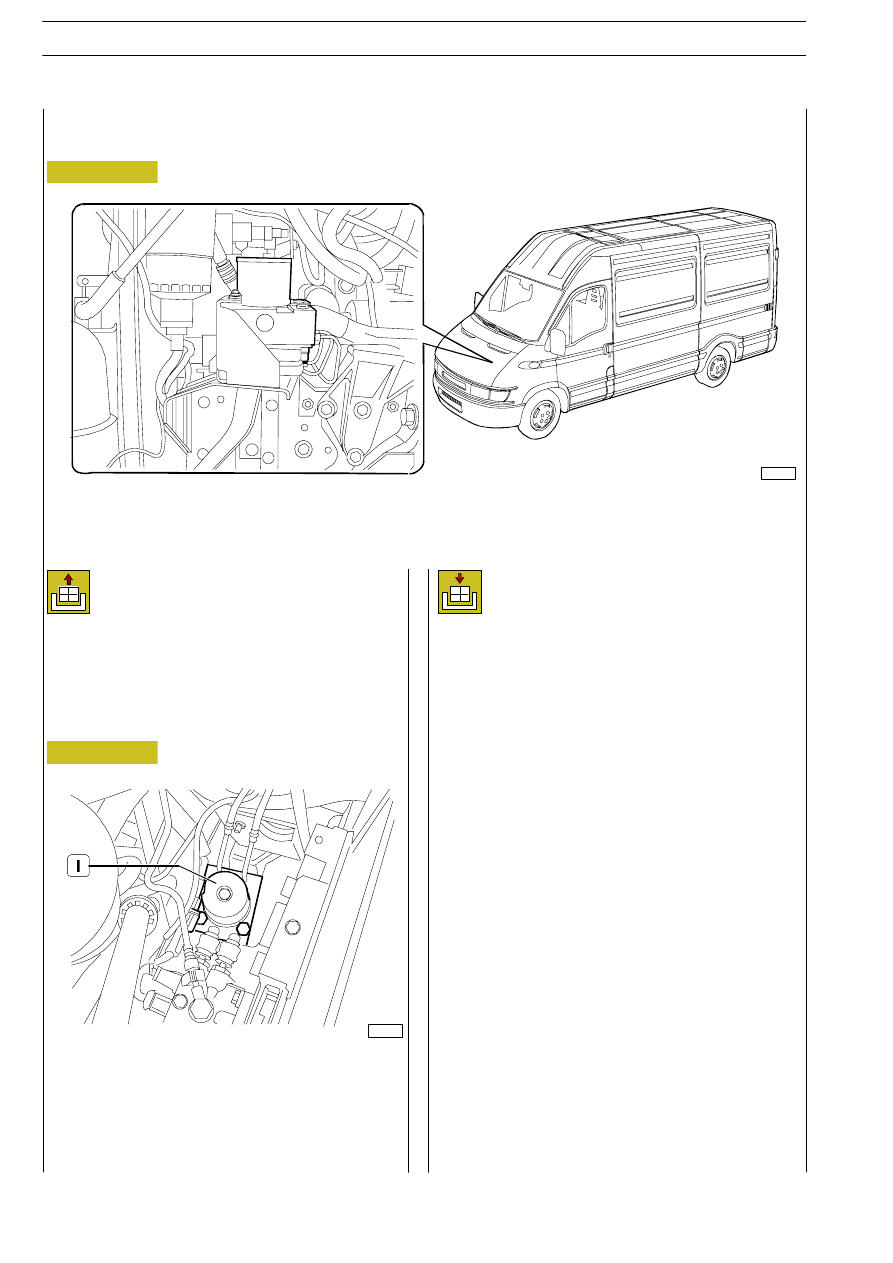

Figure 91
Removal
Calibration
Disconnect the six oil ducts from modulator (1).
Clear the modulator parts of the oil escaped when
disconnecting the ducts.
Disconnect the electric connection.
Loosen the screws securing the modulator to the support
bracket.
Remove the modulator/control unit (1).
102109
526741104
ELECTROHYDRAULIC MODULATOR/CONTROL UNIT
Refitting
Disconnect the battery cables in the engine compartment.
Take off the hydraulic braking system fluid cap, then remove
the filter.
Suck the braking system fluid by means of a syringe.
Figure 92
102320
Programming
Programming requires entering the following variant codes
(by means of the diagnosis instrument): type of drive, engine,
MTT, wheelbase, type of front and rear suspensions, height.
Easy compares the type of vehicle (PIC reading) with the
control unit code to avoid installation errors (single wheels
instead of dual wheels), and downloads the variant codes into
the control unit.
66
HYDRO-PNEUMATIC SYSTEM - BRAKES
D
AILY
Revi - February 2005
