Iveco Daily. Manual - part 285





42

FRONT MECHANICAL SUSPENSIONS

D

AILY

Base - May 2004

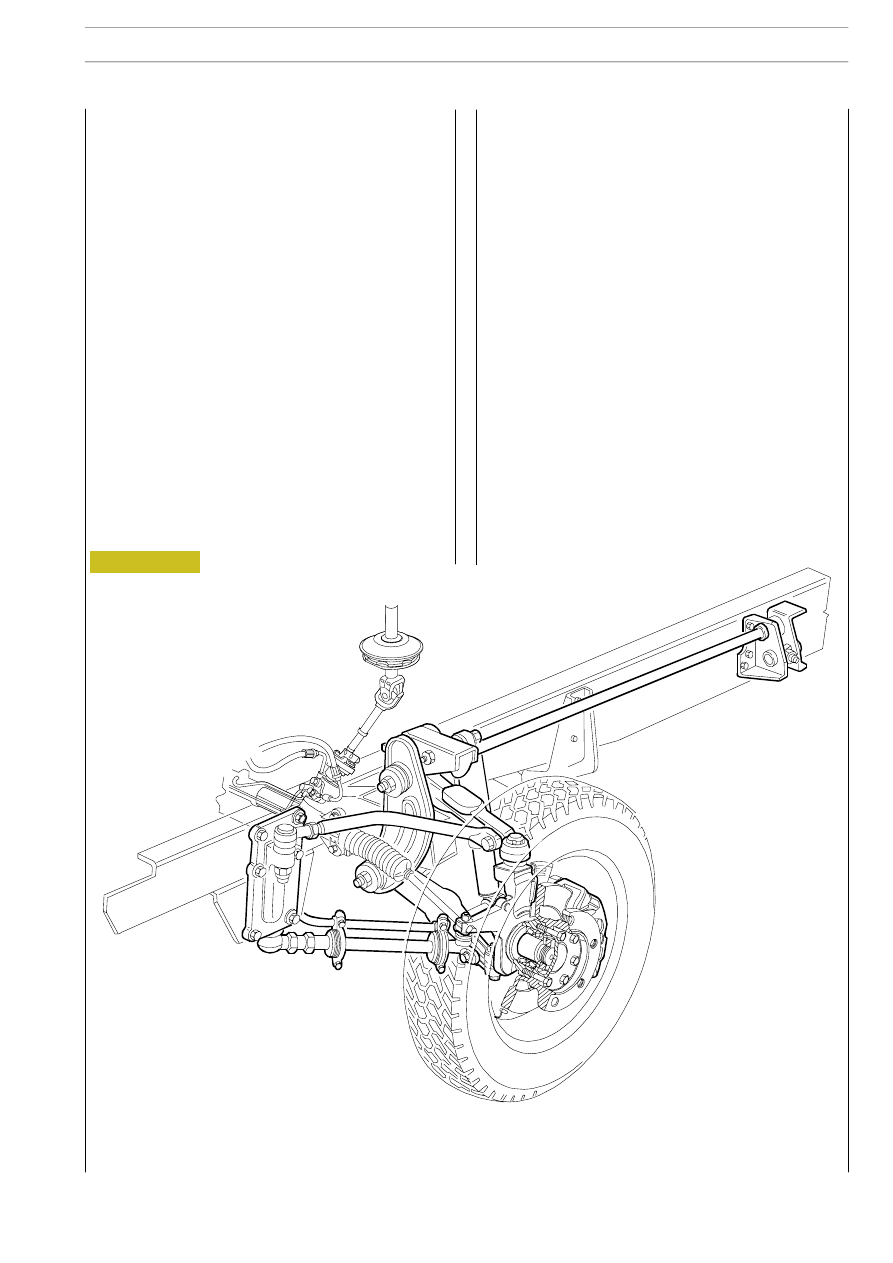

Figure 66

ASSEMBLY DRAWING OF FRONT TORSION BAR SUSPENSION

The hydraulic shock absorbers are the double-acting
telescopic type.

The side tie rods are mounted at the front to the chassis
frame mounting by means of adjustable link pins, and at the
rear to the transverse levers.

The purpose of the stabilizer bar, mounted on the bottom
reaction screw stays, is to maintain the parallelism between
the axis of the wheels and the chassis frame, cancelling any
load unbalance on the wheels mounted on the same axle.

The purpose of the rubber pads fixed on the top mounting
of the shock absorbers is to limit the upward movement of
the suspension.

(Axle 5823 - vehicles 60C - 65C)

Description

The torsion bar suspension is composed of:
- two bottom suspension arms;

- two top suspension arms;

- two longitudinal torsion bars;

- two hydraulic shock absorbers;

- two bottom reaction tie rods;

- two top reaction tie rods;

- a stabilizer bar;

- two rubber pads.

The longitudinal torsion bars are anchored at the front to the
top suspension arms and at the rear to a mounting secured
to the chassis frame.

FRONT MECHANICAL SUSPENSIONS

43

D

AILY

Base - May 2004

TORSION BAR SUSPENSION

44

FRONT MECHANICAL SUSPENSIONS

D

AILY

Base - May 2004

SPECIFICATIONS AND DATA

Torsion bar suspension with independent wheels, stabilizer bar

Models

Torsion bar suspension with independent wheels, stabilizer bar

and hydraulic shock absorbers

60 C - 65 C

Torsion bar diameter mm

33

Top tie rod adjustment distance

378

± 0.8 mm

Top tie rod adjustment distance

220

± 0.5 mm

Bottom tie rod adjustment distance

369

± 0.5 mm

Bottom tie rod adjustment distance

300.4

± 0.5 mm

Lower linkage adjustment (for recently manufactured vehicles)

363.5

± 0.5 mm

Lower linkage adjustment (for recently manufactured vehicles)

299

±

mm

+0.3

0

377

± 0.15 mm

219

± 0.15 mm

Front shock absorbers

Models:

60 C - 65 C

Mannesmann - Sachs

ARVIN

Distance between centre of eyes:

Open

mm

430

 3

400

 3

Closed

mm

280

 3

280

 3

Stroke

mm

150

120

Stabilizer bar

60 C - 65 C

Models:

Twin cab

Truck

Chassis Cabs

Cut

Away

Vans

Chassis

Cowls

Semi-Glazed

Stabilizer bar diameter

mm

20

22

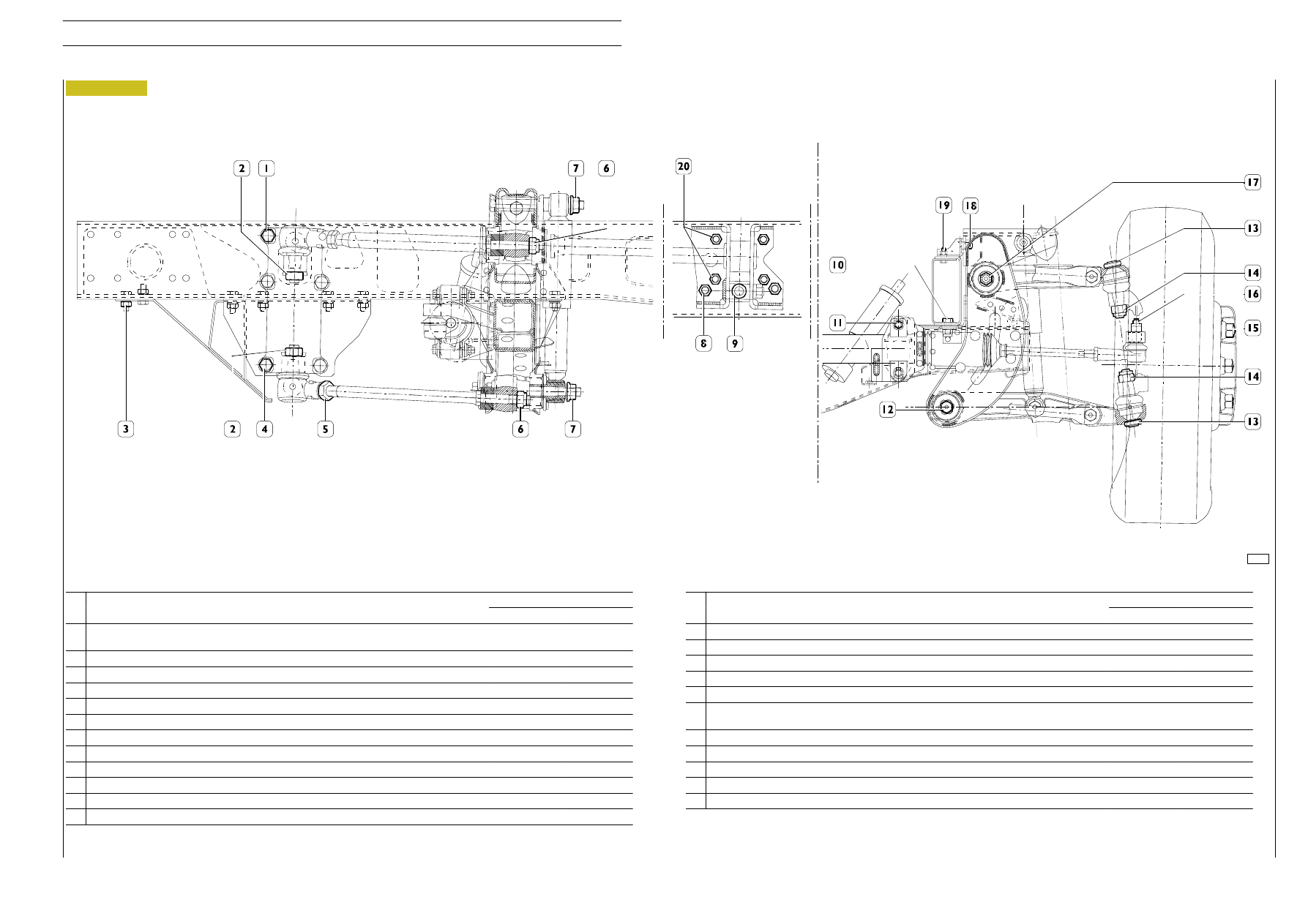

Figure 67

62103

FRONT MECHANICAL SUSPENSIONS

45

D

AILY

Base - May 2004

TIGHTENING TORQUES

DESCRIPTION

TORQUE

DESCRIPTION

Nm

kgm

1

Nut, reaction rod mounting upper fastening to
chassis fixing screw

140

14

2

Nut, reaction rod ball joint to mounting

98

÷ 137

10

÷ 14

3

Nut, reaction rod and knckle joint stiffener to chassis fixing screw

41

4.1

4

Nut for screw fixing cross member to reaction rod support

140

14

5

Nut, ball joint to upper tie rod

98

÷ 137

10

÷ 14

6

Nut, upper tie rod to upper arm fastening screw

150

÷ 183

15.3

÷ 18.7

7

Nut, shock absorber upper and lower fastening screw

116

÷ 142

11.8

÷ 14.5

8

Nut, lower bracket fastening screw suspension adjustment unit

151

÷ 184

15.4

÷ 18.8

9

Nut, torsion bar adjusting lever pin

197

÷ 241

20

÷ 24

10 Nut, cross member to chassis side member lower wing fixing screw

80

8

11 Nut for steering box fixing screw

50

÷ 61

5.1

÷ 6.2

12 Nut, lower arms to cross member anchoring screw

206

÷ 252

21.0

÷ 25.7

DESCRIPTION

TORQUE

DESCRIPTION

Nm

kgm

13 Ring nut, ball joint to upper/lower arms

83

÷ 152

8.5

÷ 15.5

14 Nut, ball joint to steering knuckle

157

÷ 177

16

÷ 18

15 Nut, fixing will

284.5

÷ 343.3 28.4 ÷ 34.3

16 Nut fixing steering box rod ball joint to stub axle lever

83

÷ 68

8.4

÷ 6.9

17 Hexagonal-head slotted nut, torsion bar to supension arm

84

÷ 103

8.6

÷10.5

18 Nut, cross member upper fastening to bracket on chassis side member upper wing fixing

screw

52.5

5.2

19 Nut, cross member upper anchoring bracket to chassis side member upper wing fixing screw

20

2

20 Nut, upper and intermediate bracket fastening screw (suspension adjustment unit)

104

10.4

-

Screw for nut fixing front tubular cross member to side members

42

÷ 51

4.2

÷ 5.2

-

Nut, stabilizer bar clamps fixing screw

24.5

2.4

-

Rubber plug nut

68

÷ 83

6.9

÷ 8.5
