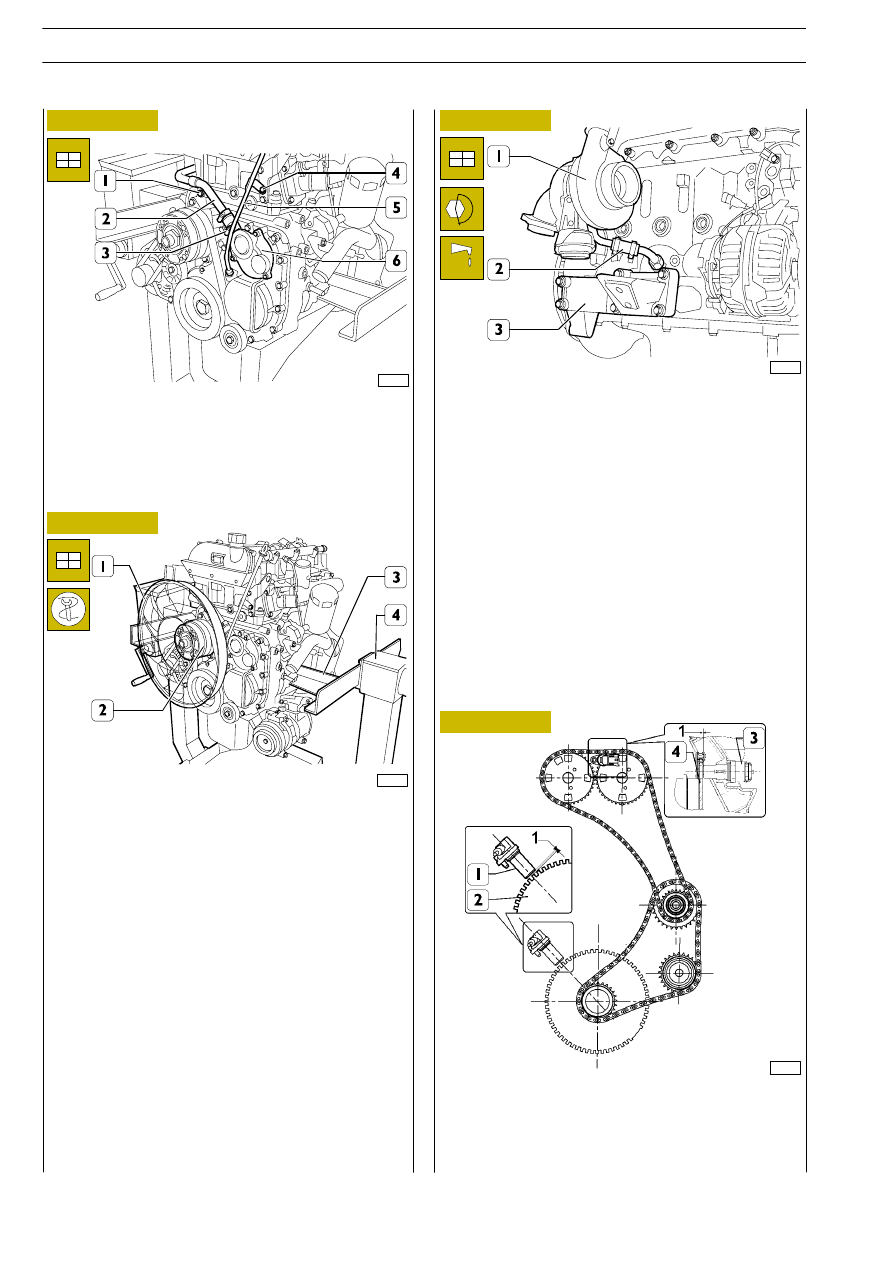

Figure 223
Figure 224
Figure 225
Figure 226
Connect the pipe (2) to the cover (6) and fasten it with the
clamp (3).
Drive in the screw (1) and tighten it to the prescribed torque.
Fit the pipe (5) of the oil level dip rod and fasten the support
bracket on the cylinder head by tightening the screw (4) to
the prescribed torque.
If present, refit the cooling fan (1) to the electro-magnetic
joint (2). Apply the spring equalizing rocker arm on the
engine lifting hooks, fasten the rocker arm to the hoist and
remove the engine from the rotating stand (3).
Remove the brackets 99361041(3).
Complete engine assembly.
Fit on the left and right engine mountings (3) and tighten the
fixing screws to the prescribed torque.
Connect the oil pipe (2) to the turbocharger (1) and to the
crankcase and tighten the fixing screws and the coupling of
the oil pipe (2) to the prescribed torque.
If applicable, mount the following parts:
- Engine cable, connecting its electrical connections to the
thermostat temperature sensor, timing sensor, engine
speed sensor, pressure regulator, rail pressure sensor
and intake manifold air pressure/temperature sensor.
- Hydraulic accumulator guard.
- Top soundproofing cover.
- Add the prescribed grade and quantity of lubricating oil
to the engine.
The sensor gap is:
- 1 mm, between the gear (4) of the camshaft and the
phase sensor (1).
- 1 mm, between the phonic wheel (2) and speed sensor
(1).
764264
Timing speed sensor
764266
Engine speed sensor
