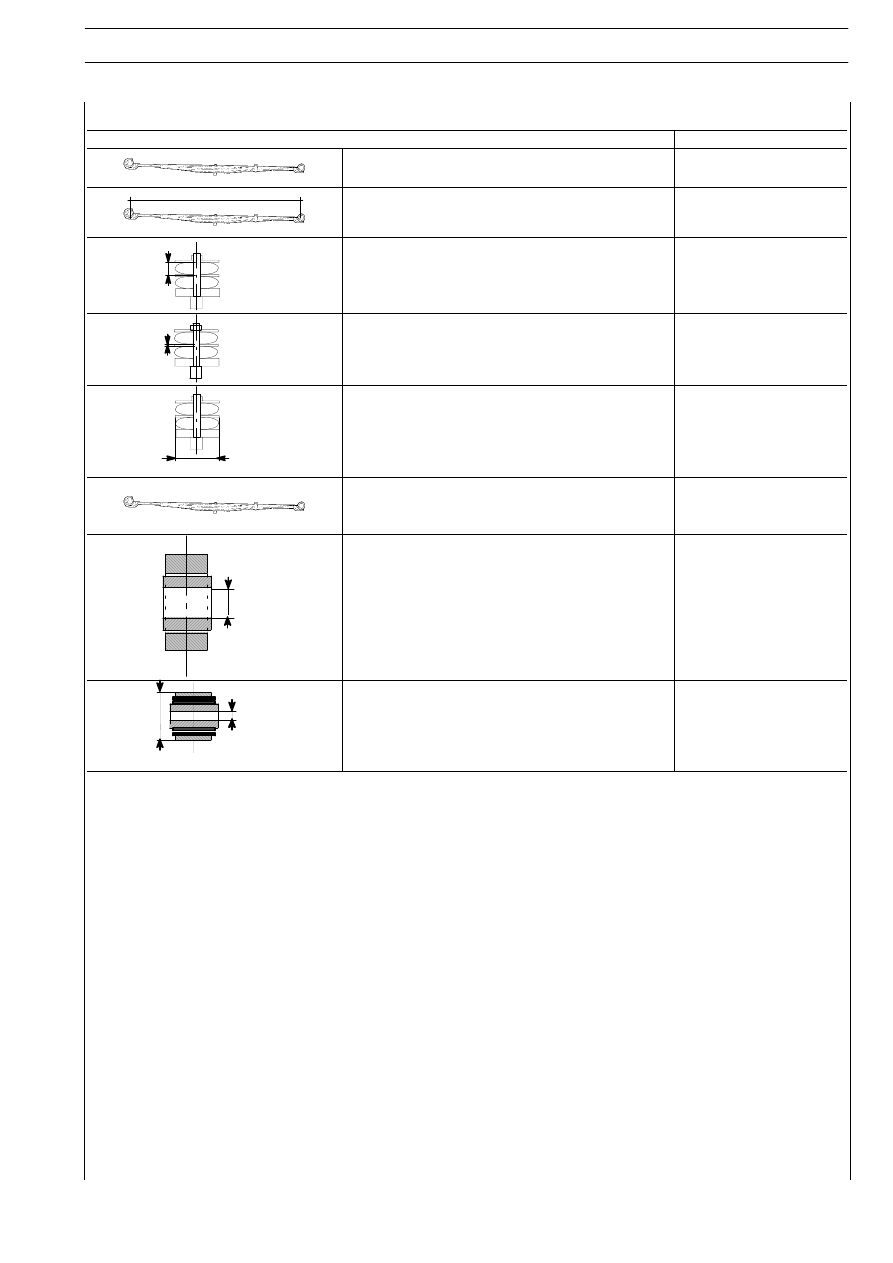

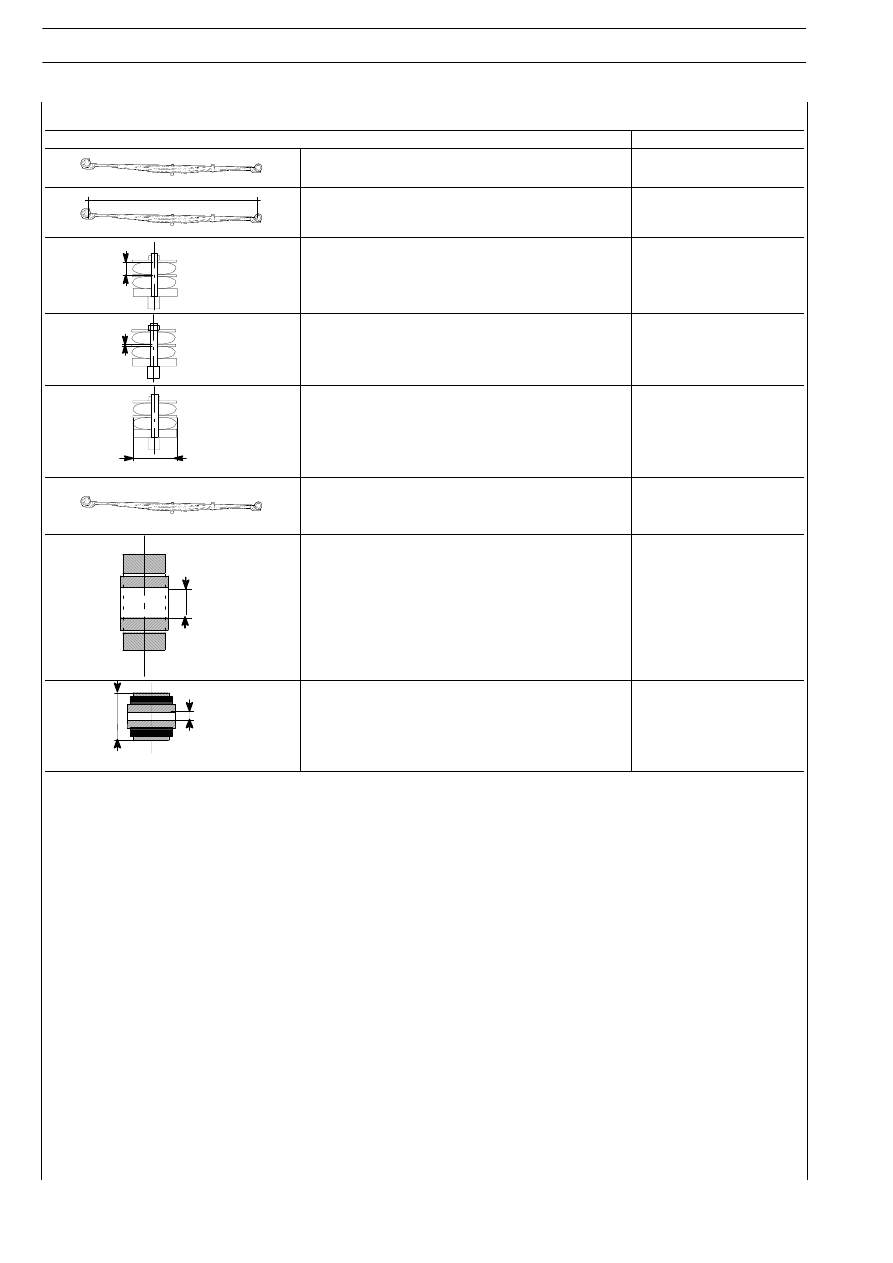

64 REAR MECHANICAL SUSPENSIONS D AILY E URO 4 45 C - 50 C (semi-elliptical with leaf spring) mm Semi-elliptical springs N o 2 L Spring length (measured at centre of eyes) 1415 ± 4 S Leaf thickness (measured at the centre), master leaf (1st - 7th) additional leaf (1st - 6th) 9 S Gap between leaves 7 L Leaf width 60 ± 0.5 CONTROL DATA WITH NEW SPRING: Main spring flexibility with static load Flexibility with static load after aux. spring action 15 mm/kN 3.6 mm/kN D Main leaf eye inner diameter (Bush seat) 40 ± 0.5 D d D = bush outer diameter 40 +0 −0.1 d = bush inner diameter 16.5 +0.2 −0 |
