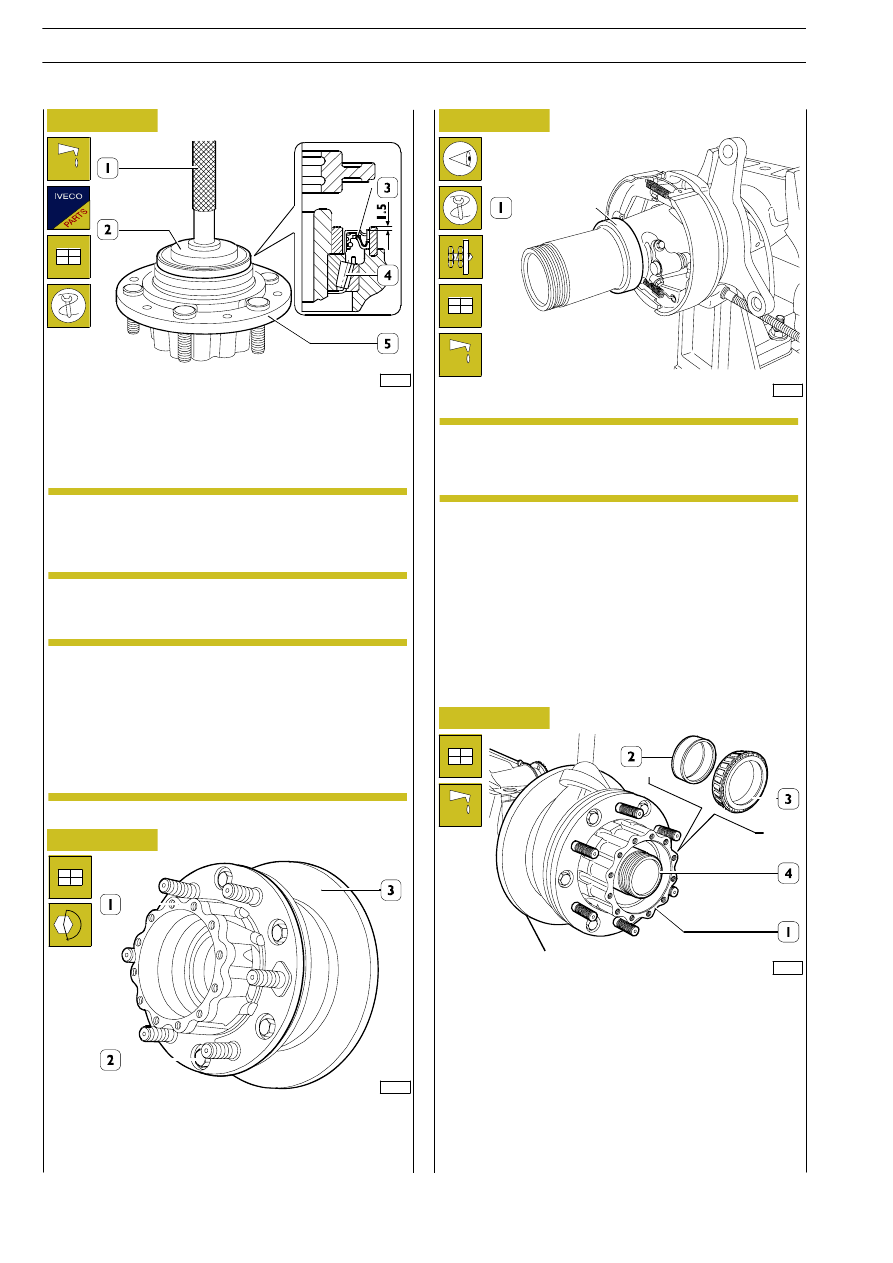

Lubricate the sleeve and the sealing ring supporting ring (1)
with TUTELA W140/M-DA (SAE 85W140) oil.

Use suitable rope and hoist to fit wheel hub (1) on sleeve (4).
Lubricate spacer (2) and outer bearing inner ring (3) with
Tutela W140/M-DA and fit them on sleeve (4).

Lubricate rear taper roller bearing inner ring (4) with SAE W
140 M-DA oil and fit it to wheel hub (5).
Use tool 99374132 (2) provided with proper handle
99370006 (1) to fit sealing ring (3).

Fit the brake disc (3) on the wheel hub (1) and tighten the
fastening screws (2) to the specified torque.

Fit the phonic wheel, if any, on the wheel hub.

Use tool 99374132 (2) side to position the sealing
ring (3) at 1.5 mm from wheel hub side surface.

NOTE

Phonic wheel fitting shall be performed after heating
it at 150ºC.

When fitting is over, check whether the phonic
wheel is resting perfectly on the hub seat.

Check whether phonic wheel squareness and
oscillation is lower than 0.2 mm.

NOTE

Check and, if necessary, adjust the clearance
between the parking brake drum and shoes as
described in the Brakes section.

NOTE

100

REAR AXLE 450517/2

AILY

URO

62898

62900

62899

62891

62902

62903

Figure 25

Figure 26

Figure 27

Figure 28

Figure 29

Figure 30

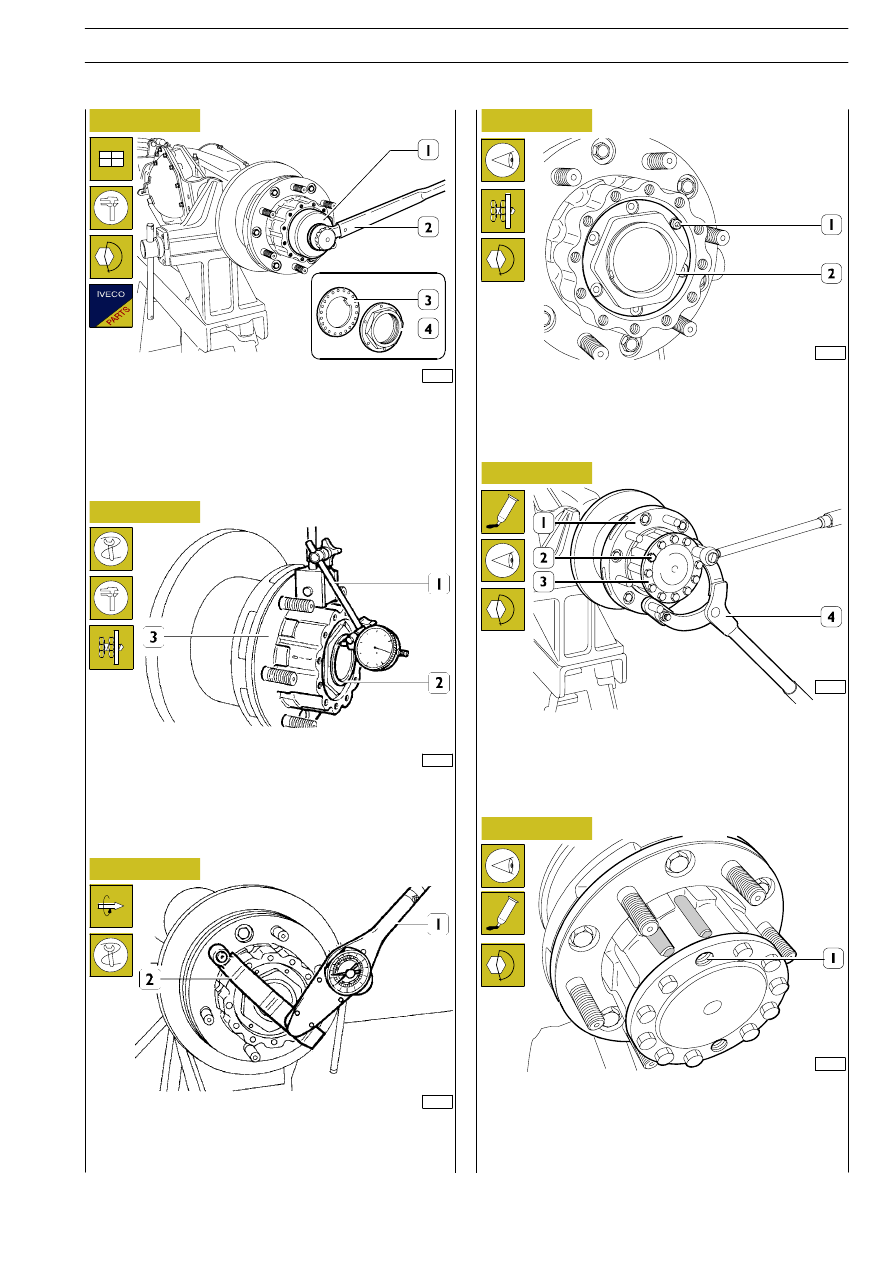

Fit the safety washer (3) so that the clip is guided properly into
rear axle casing sleeve groove.
Tighten ring nut (4) with wrench 99357080 (1) and
dynamometric wrench (2), tighten the new ring nut (4) to the
specified torque.

Position the dial gauge 99395684 (1) with a magnetic base
on the wheel hub (3) and rest the rod on the sleeve (2).

Check whether wheel hub end play is falling between 0 and
0.16 mm.

Use tool 99395026 (2) and the dynamometric wrench
99389819 (1) to check whether the wheel hub rolling torque
is falling between 0 and 4 Nm (0 - 0.4 kgm).

After checking the end play and the rolling torque, check
whether one of the adjustment nut (1) holes is coinciding with
one of the safety washer holes otherwise loosen the
adjustment nut (1) until it is possible to fit the fastening screw
(2). Tighten the fastening screw (2) and the adjustment nut to
the specified torque.

Smear the contact surface between axle shaft (3) and wheel
hub (1) with IVECO sealing compound 1905685.
Fit axle shaft (3), tighten the fastening screws (2), excluding
those set between the two wheel hub marks (see Figure 30)
with tool 99370317 (4) lock wheel hub (1) rotation.

Set horizontally to ground the two holes (1) located between
the wheel hub marks and pour through 0.2 l of W140 M-DA
oil on each wheel side.

Smear the threaded section of the screws acting as plug with
IVECO sealant 1905683 and tighten to the specified torque.

REAR AXLE 450517/2

101

AILY

URO

62904

Figure 31

Position brake calliper (1) including the brake lining on the
supporting flange (2).
Tighten the fastening screws to the specified torque.

62880

Figure 32

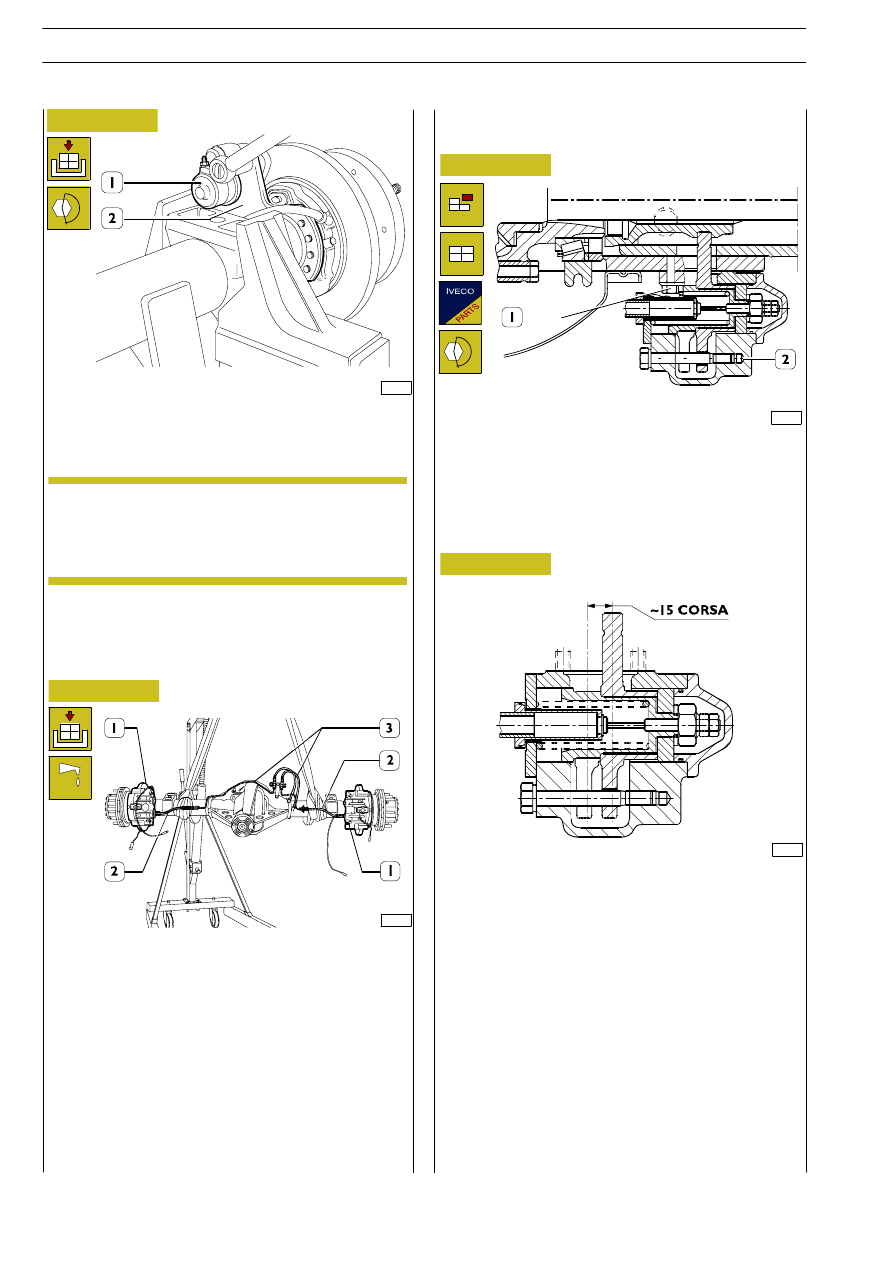

Remove the rear axle assembly from the overhaul stand. Refit
brake fluid pipes (2 and 3) to rear axle casing and brake
callipers (1).
Fill rear axle casing with oil in the specified amount and quality.

Figure 33

Figure 34

Remove the 4 screws (1) including washers and disconnect the
differential locking device (2).
When refitting, replace the gasket located between differential
locking device and rear axle casing.
Tighten screws (1) to the specified torque.

62906

DIFFERENTIAL LOCKING DEVICE SECTION

Differential locking device engagement/disengagement lever
stroke shall be equal to 5 mm.

62907

526260

Differential locking

The brake lining with the wear sensor shall be fitted
on brake calliper piston side.
Comply with BRAKE section requirements to move
back the brake calliper piston.

NOTE

102

REAR AXLE 450517/2

AILY

URO

DIFFERENTIAL

REPAIR

OPER-

ATIONS

Differential unit removal

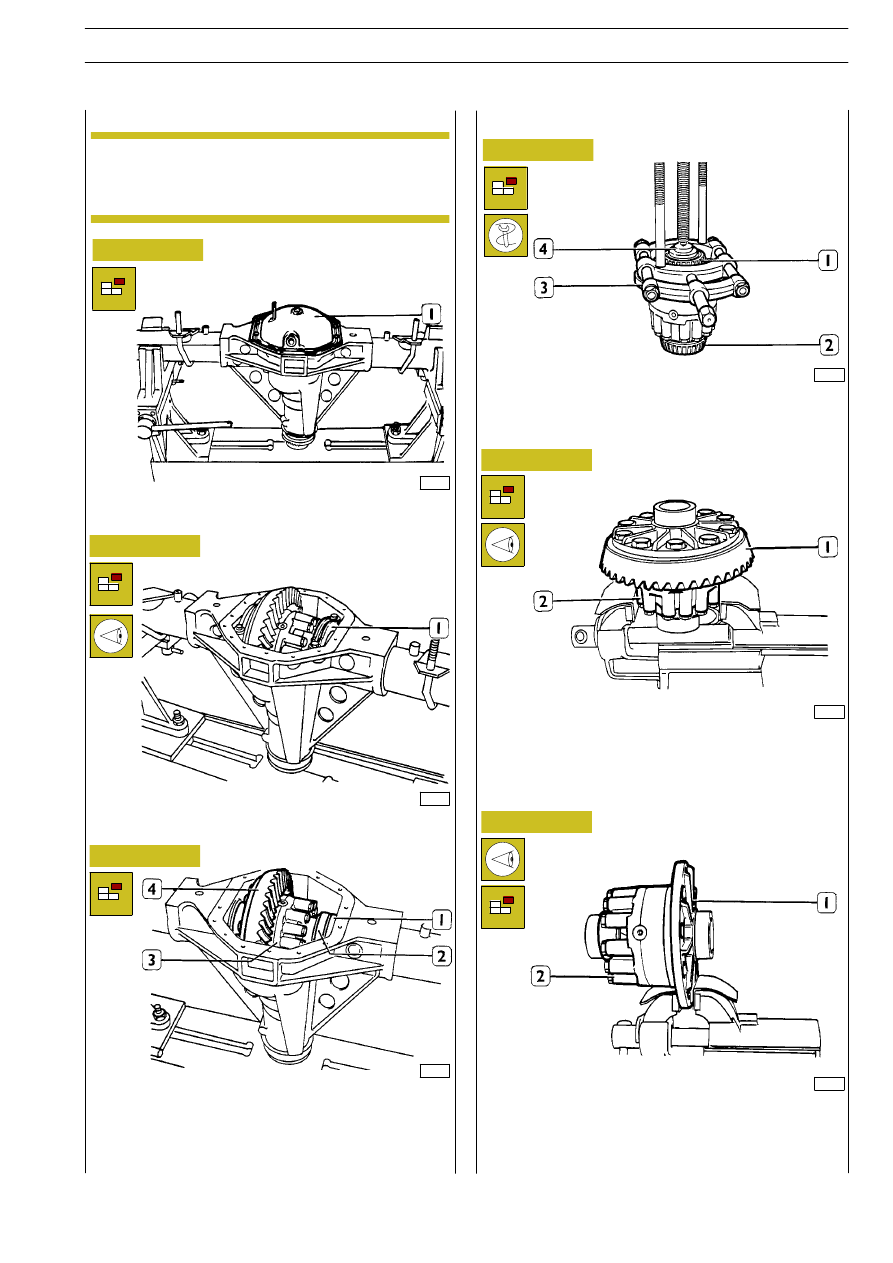

Remove gearing (1) inspection cover including the gasket.

33077

Figure 35

Figure 36

Figure 37

Figure 38

Remove caps (1) after marking them.

Remove the spacer (1) and remove the gearing case (3) in-
cluding the crown wheel (4) and the outer rings (2) for sup-
porting bearings. Remove the other spacer and the adjust-
ment rings. Do not reverse the outer races of the gearing case
supporting bearings.

Remove gearing case supporting bearings (1 and 2) using
puller 99348001 (3) and counter block 99345056 (4).

Figure 39

Clamp the gearing case (2) in a vice and remove the ring bevel
gear (1) from the gearing case (2).

33082

33083

Mark gearing half-boxes (1 and 2), loosen the fastening
screws, position the gearing case on a bench and remove the
two half-boxes.

Figure 40

Gearing case removal

33078

33079

33081

Before performing differential repair, drain oil and
remove axle shafts as described previously.

NOTE

REAR AXLE 450517/2

103

AILY

URO
