Iveco Daily Euro 4. Manual - part 12

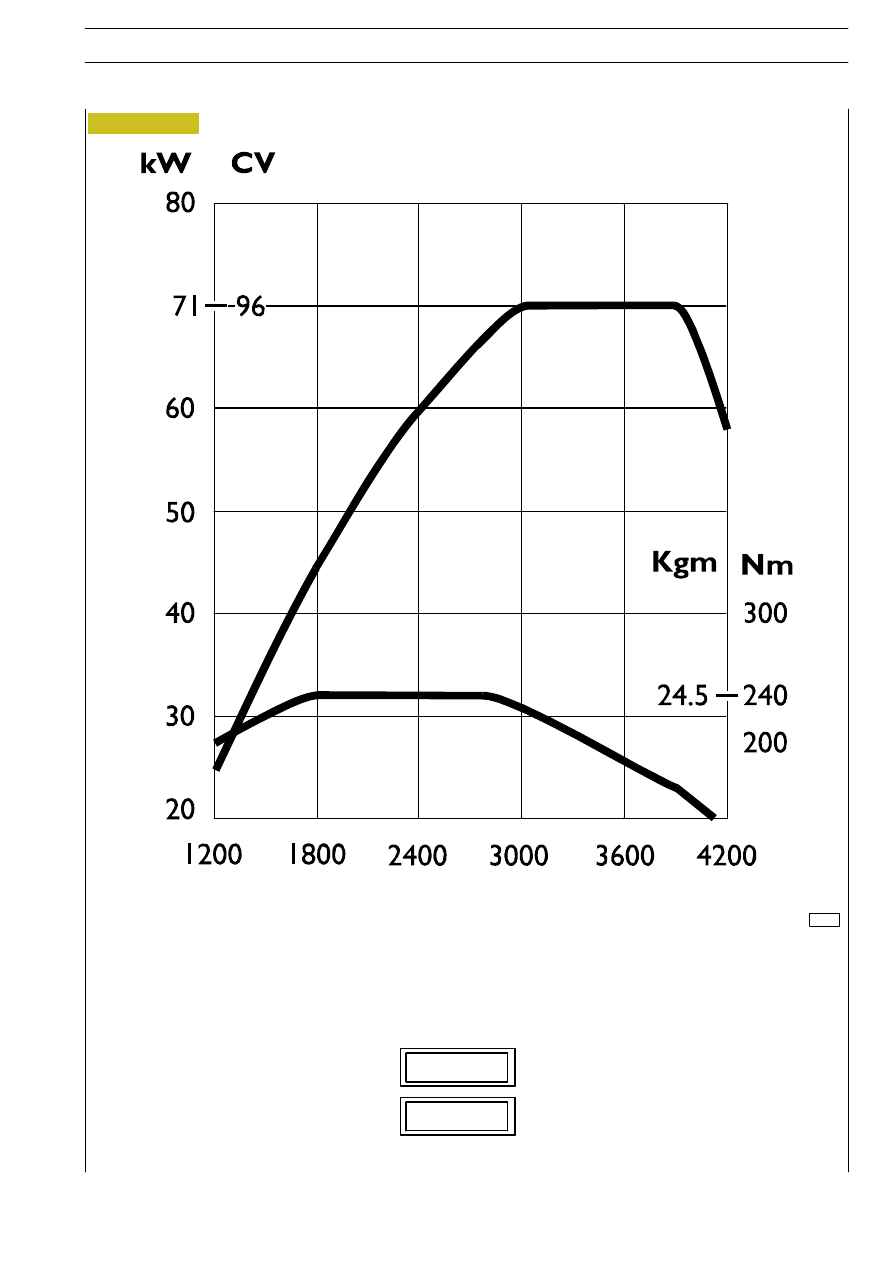

CHARACTERISTIC CURVES OF ENGINE F1AE0481F

102408

Max OUTPUT 71 kW

at 3000

÷3700 rpm

Max TORQUE 240 Nm

at 1800

÷2800 rpm

96 HP

24.4 kgm

Figure 36

rpm

F1A ENGINE

35

D

AILY

E

URO

CHARACTERISTIC CURVES

102409

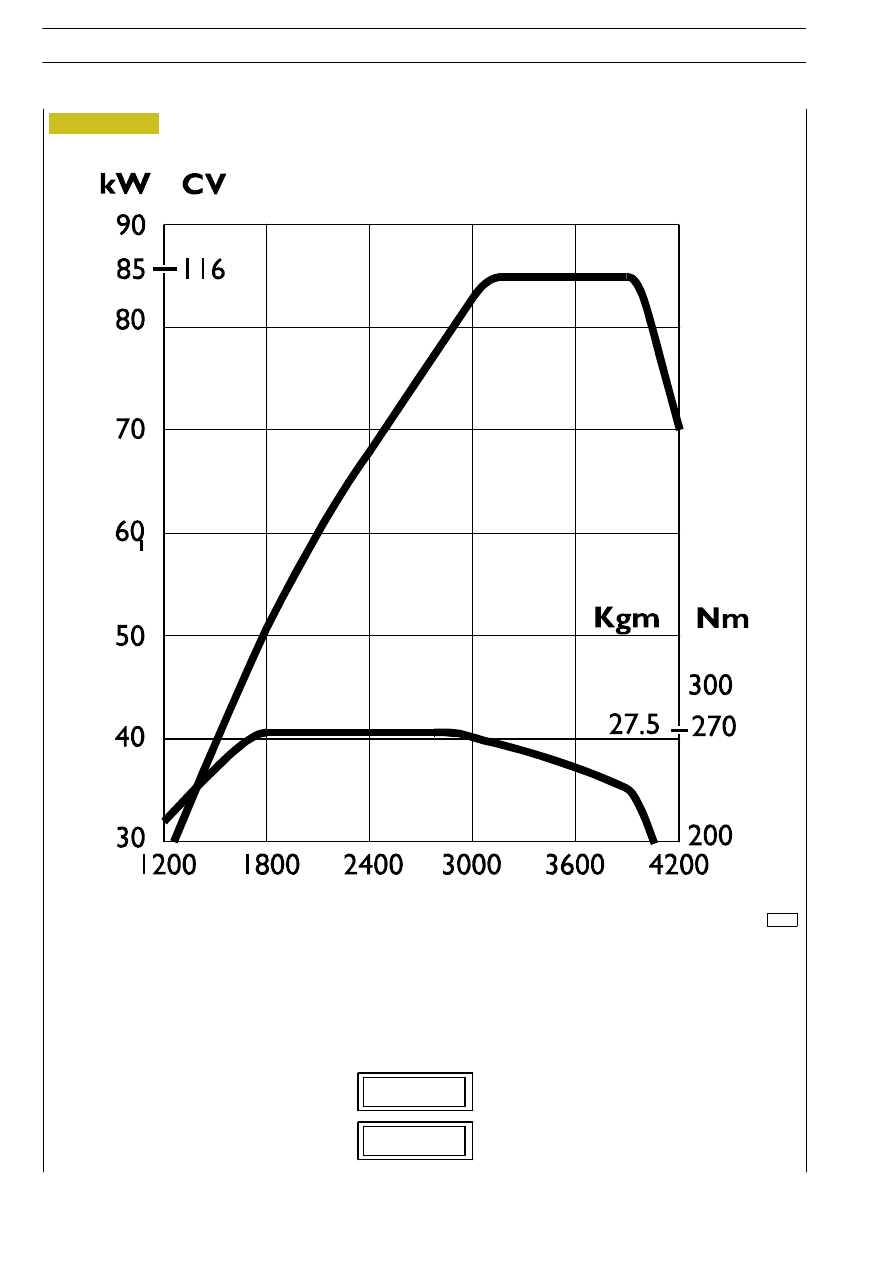

CHARACTERISTIC CURVES OF ENGINE F1AE0481G

Max OUTPUT 85 kW

at 3000

÷3900 rpm

Max TORQUE 270 Nm

at 1800

÷2800 rpm

116 HP

27.5 kgm

Figure 37

rpm

36

F1A ENGINE

D

AILY

E

URO

4

102410

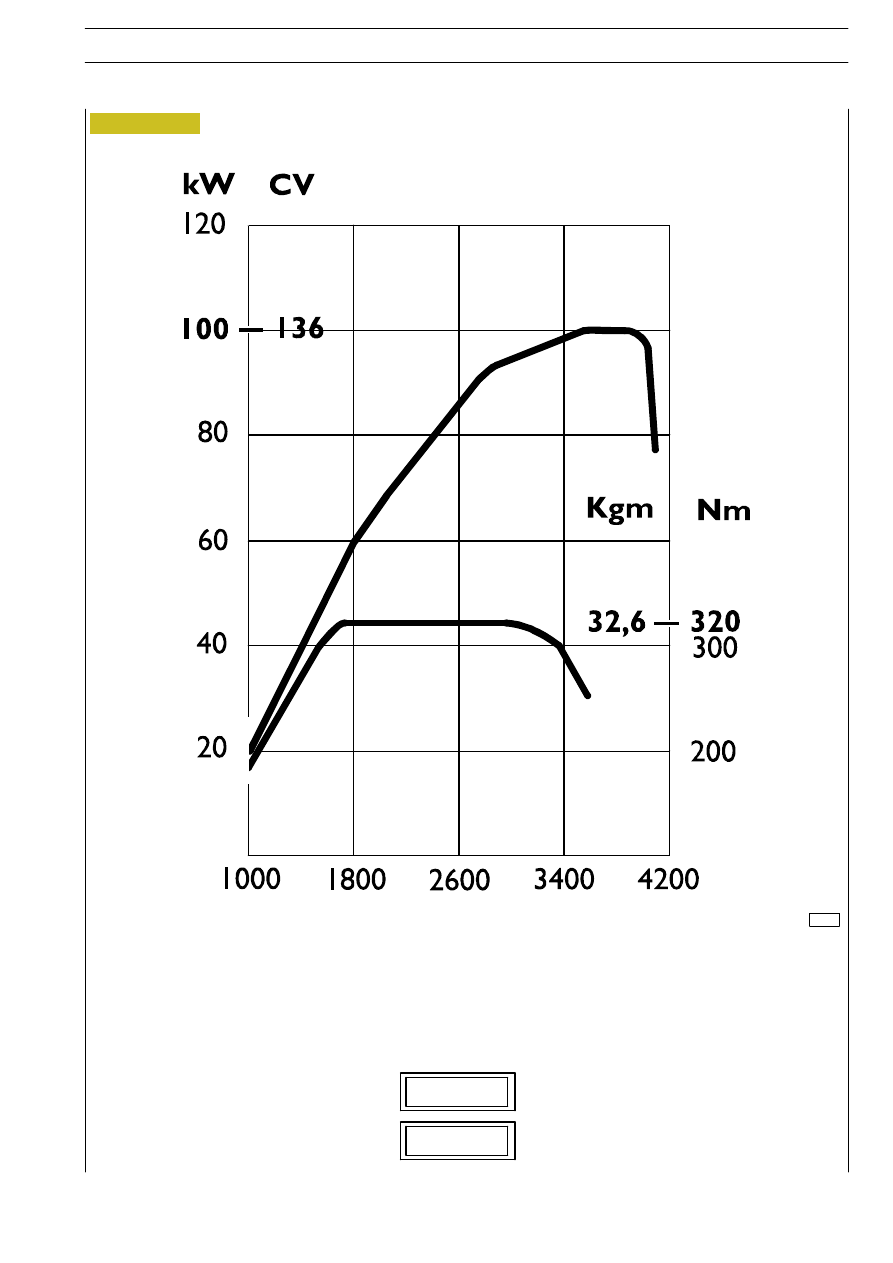

CHARACTERISTIC CURVES OF ENGINE F1AE0481H

Max OUTPUT 100 kW

at 3600

÷3900 rpm

Max TORQUE 320 Nm

at 1700

÷2900 rpm

136 HP

31.6 kgm

Figure 38

rpm

F1A ENGINE

37

D

AILY

E

URO

SELF-ADHESIVE LABEL

Figure 39

Figure 40

CRANKCASE MARKING

108448

112216

Engine variant

Iveco drawing number
— 9 digits

Engine serial number
— 7 digits

GAN — 9 characters

Electro-injector class

38

F1A ENGINE

D

AILY

E

URO

4

A

=

IVECO trademark

IVECO

B

=

IVECO name of engine variant **

F1AE0481A * A001

C

=

Engine serial number

1359862

D

=

1

st

digit, main journal no. 1 (engine front)

E

=

Main bearing selection diameters

12345

F

=

Barrel selection diameters

1234

G

=

1

st

digit, cylinder no. 1 (engine front)

(**) Data obtainable from “XZ” engine ordering number information
