Unscrew the oil filters (1) by tool 99360314.

- disconnect the oil piping (3) and (4) and take off the clips

(

←);

- undo the fixing screws (1) and disassemble the heat

exchanger (2).

Take out the screws (2) and remove the intake manifold (1).

101960

99258

104254

Disconnect the fuel piping (1) from the feeding pump (2).

Disassemble:

the feeding pump (2);

the fuel filter group (3) and the piping (1).

104253

104255

Disassemble:

the starting engine (1);

the power unit (2) and its relative support;

the oil gauge dip stick (3) from the crankshaft.

Disassemble the drive (1).

To go on with the engine disassembly as described for the
industrial/agricultural applications engines.

Figure 14

104247

SECTION 2 - G-DRIVE APPLICATION

CURSOR ENGINES G-DRIVE

Base - May 2007

Handle all parts extremely carefully. Never get your
hands or fingers between pieces.
Wear the required safety clothing such as goggles,
gloves and safety shoes.

Remove screws (1) and remove oil pressure adjustment valve
(2).

Figure 15

Figure 16

F3A engine assembly

To assembly again the engine inverting the described
operations for the disassembly.

107970

107971

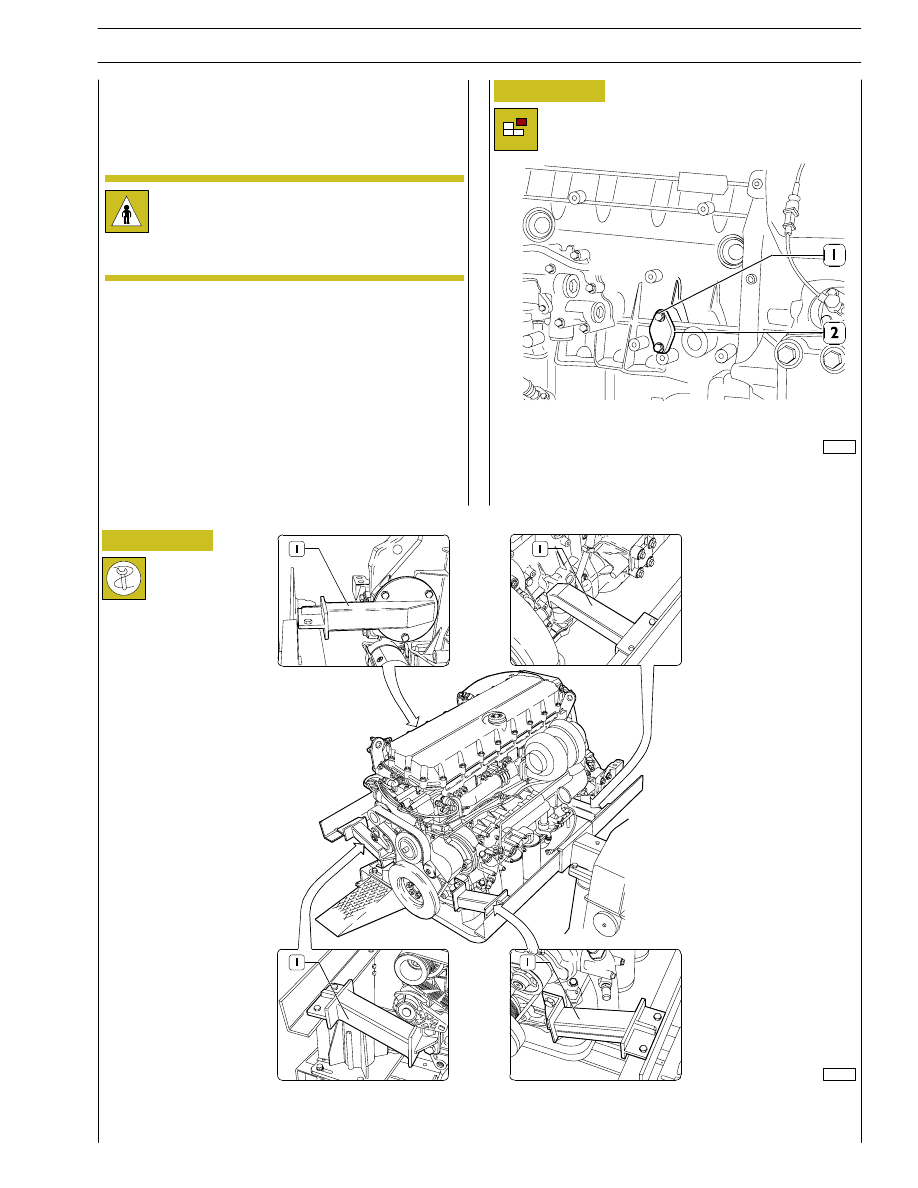

Secure the engine to the rotary stand with the brackets 99361036 (1).
To release the lubrication oil from the pan.

F3B engine disassembly

Protect the electric parts before doing any washing with
high-pressure jets.

Here are described and illustrated the engine disassembly
operations which are different from the operations for the
industrial application engines.

Before securing the engine on the rotary stand, remove:

the electric engine cable (1) by disconnecting it from the
control unit and all the sensors/transmitters to which it is
connected.

Remove the engine supports.

CURSOR ENGINES G-DRIVE

SECTION 2 - G-DRIVE APPLICATION

Base - May 2007

Figure 17

Figure 18

Figure 19

Figure 20

Figure 21

107903

Remove guard (3).
Remove retaining screws and remove alternator (2) from
bracket (1) and from support (4), then remove the latter from
block.

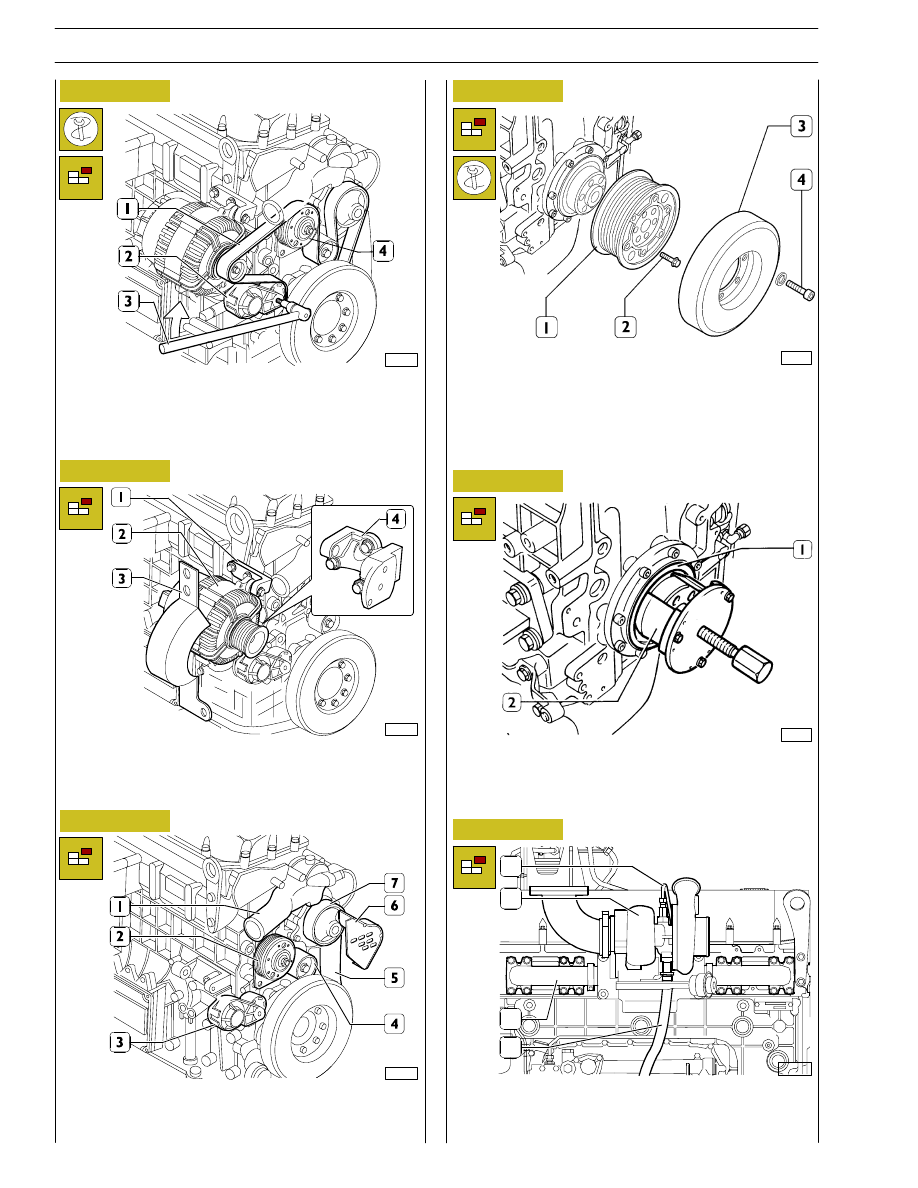

Use specific tool (3) to operate on belt tensioner (2) in
direction of arrow, remove water pump alternator and
ventilator control belt (1). Remove screws and disconnect
electromagnetic ventilator coupling (4).

107904

87204

107889

Remove thermostat (1), ventilator support (2), automatic belt
tensioner (3), fixed belt tensioner (4), pipeline (5),guard (6),
water pump (7).

Block the flywheel rotation with tool 99360351.

Remove screws (4), then disassemble damper flywheel (3).

Remove the screws (2) and the pulley (1).

45254

Install extractor 99340051 (2) and remove the seal gaskets
(1). Unscrew the screws and remove the cover.
Disconnect all electric connections and sensors.

Figure 22

107890

Disconnect oil pipes (1 and 4) of turbo compressor (2).
Disconnect turbo compressor (2) from exhaust manifold (3).

SECTION 2 - G-DRIVE APPLICATION

CURSOR ENGINES G-DRIVE

Base - May 2007

Figure 23

Figure 24

Figure 25

Figure 26

Figure 27

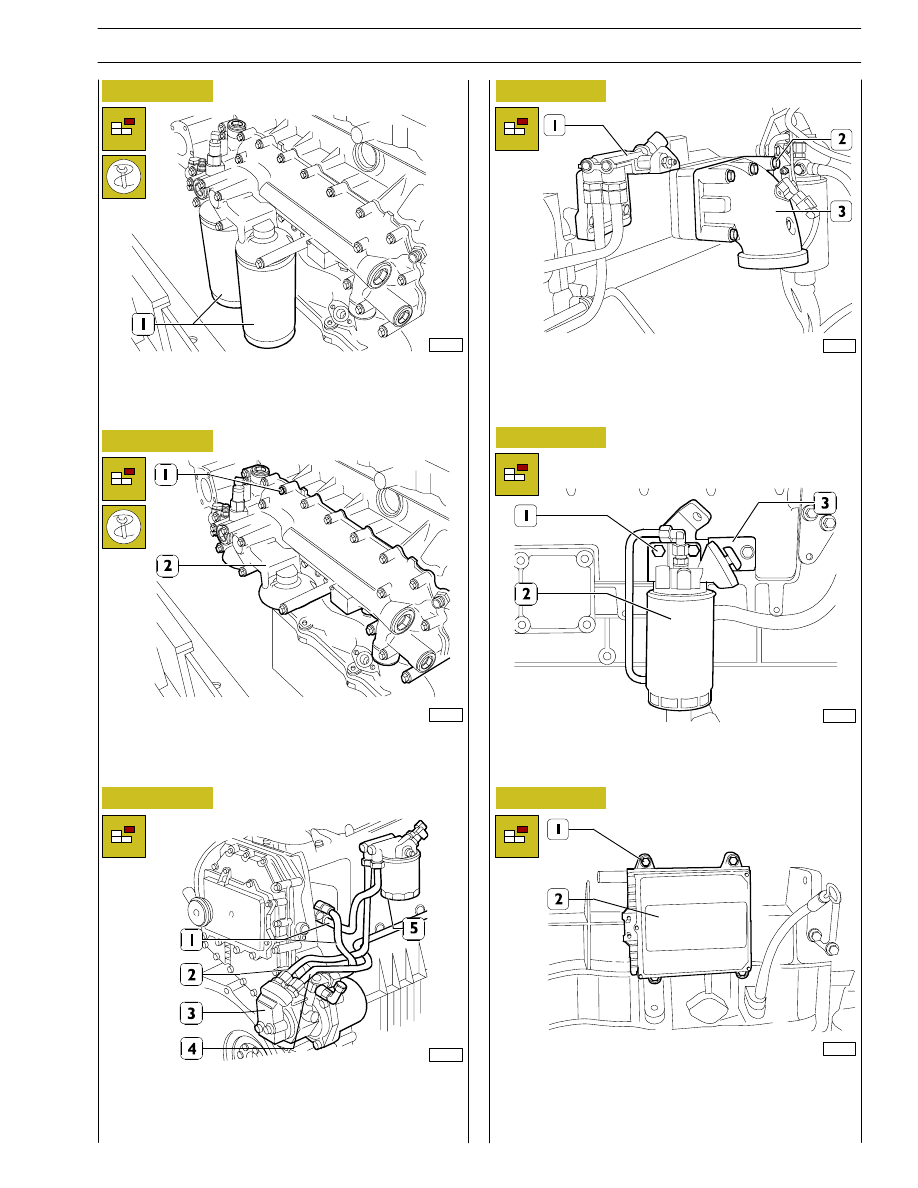

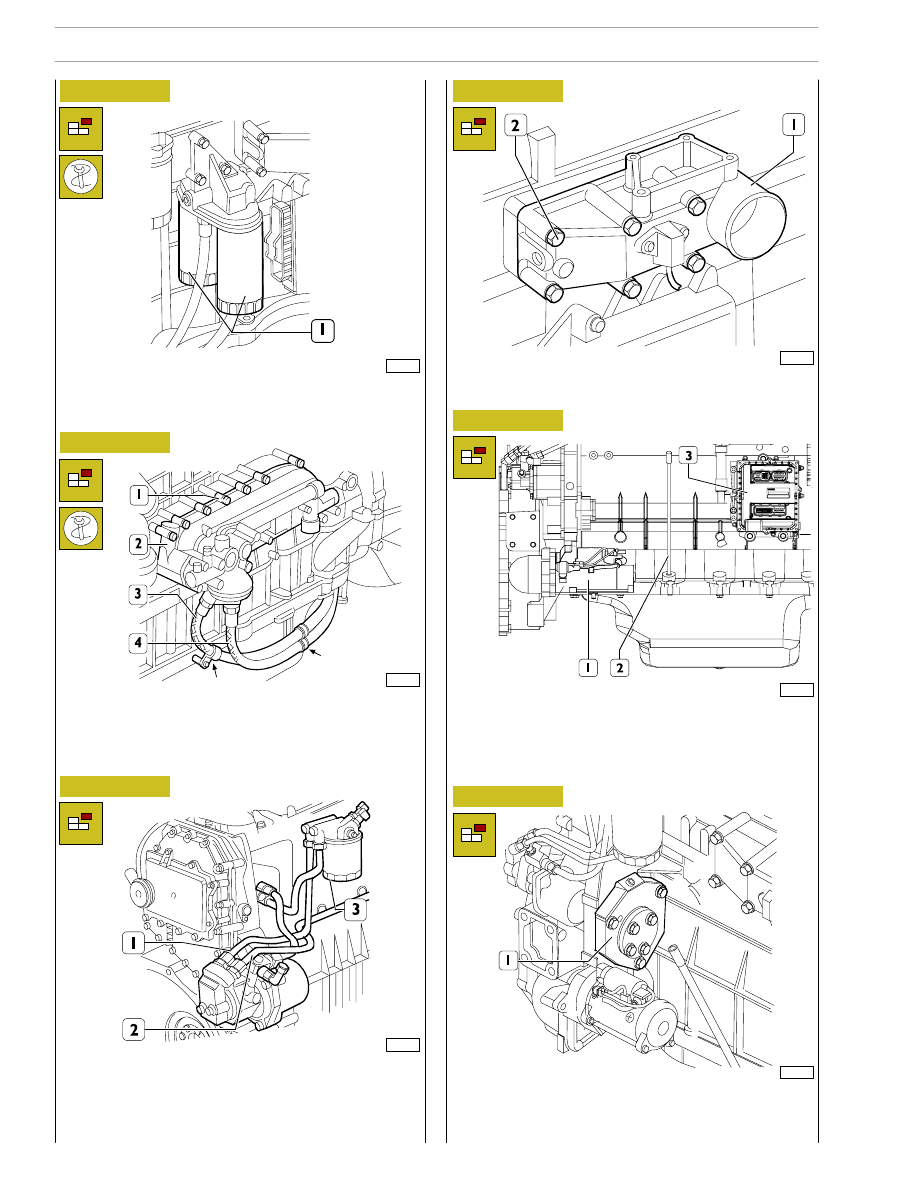

Unscrew the oil filter (1) by tool 99360314.

Remove retaining screws and support (1) of fuel filter.
Remove screws (2) and remove intake manifold (3).

107972

107973

107974

107975

107976

Remove screws (1) and bracket (3) supporting sedimentation
tank prefilter (2).

Remove screws (1) and disconnect ECU (2).

Figure 28

107977

Unscrew the screws (1) and remove the heat exchanger (2).

Disconnect the fuel pipes (1 and 4) from the fuel pump (2).
Remove supply pump (3) and fuel filter (5).

(Demonstration)
