SECTION 2 - G-DRIVE APPLICATION
CURSOR ENGINES G-DRIVE
Base - May 2007

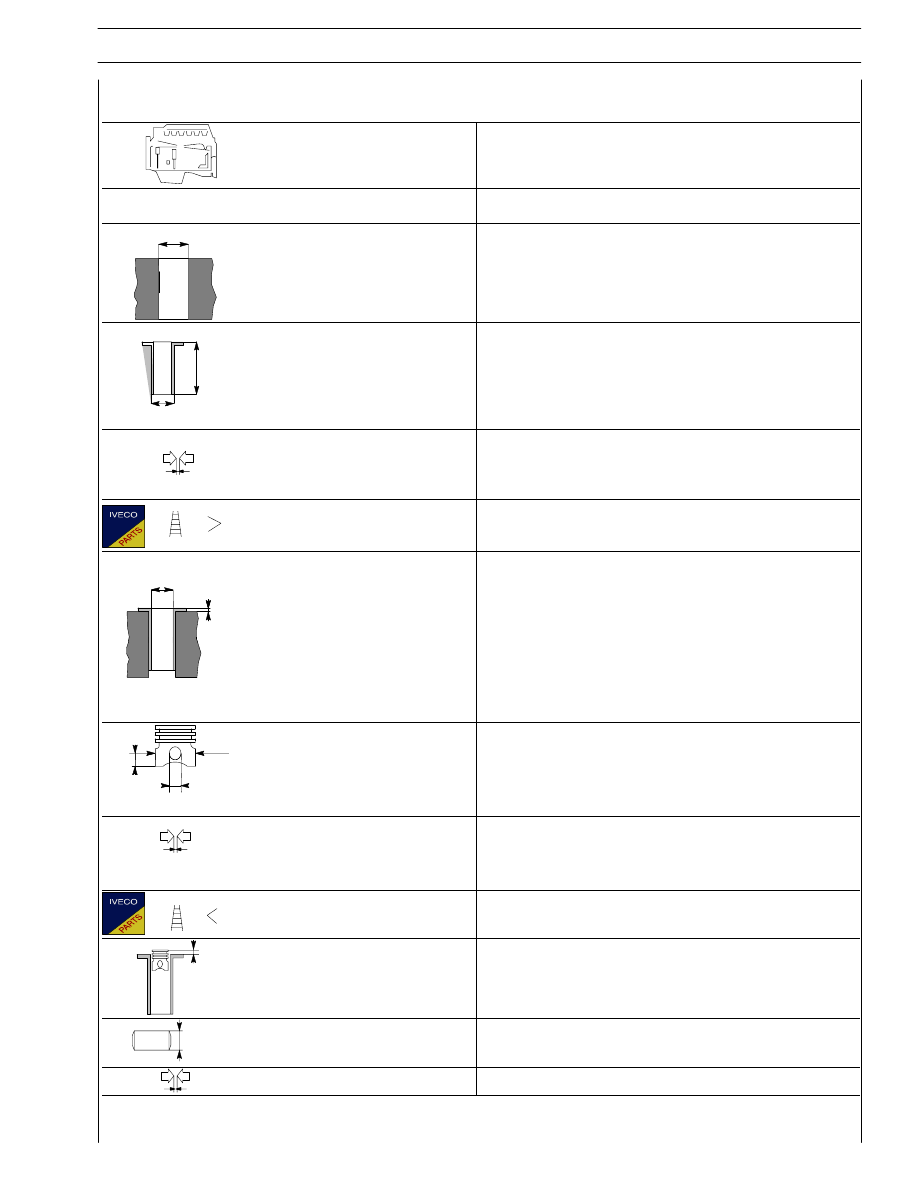

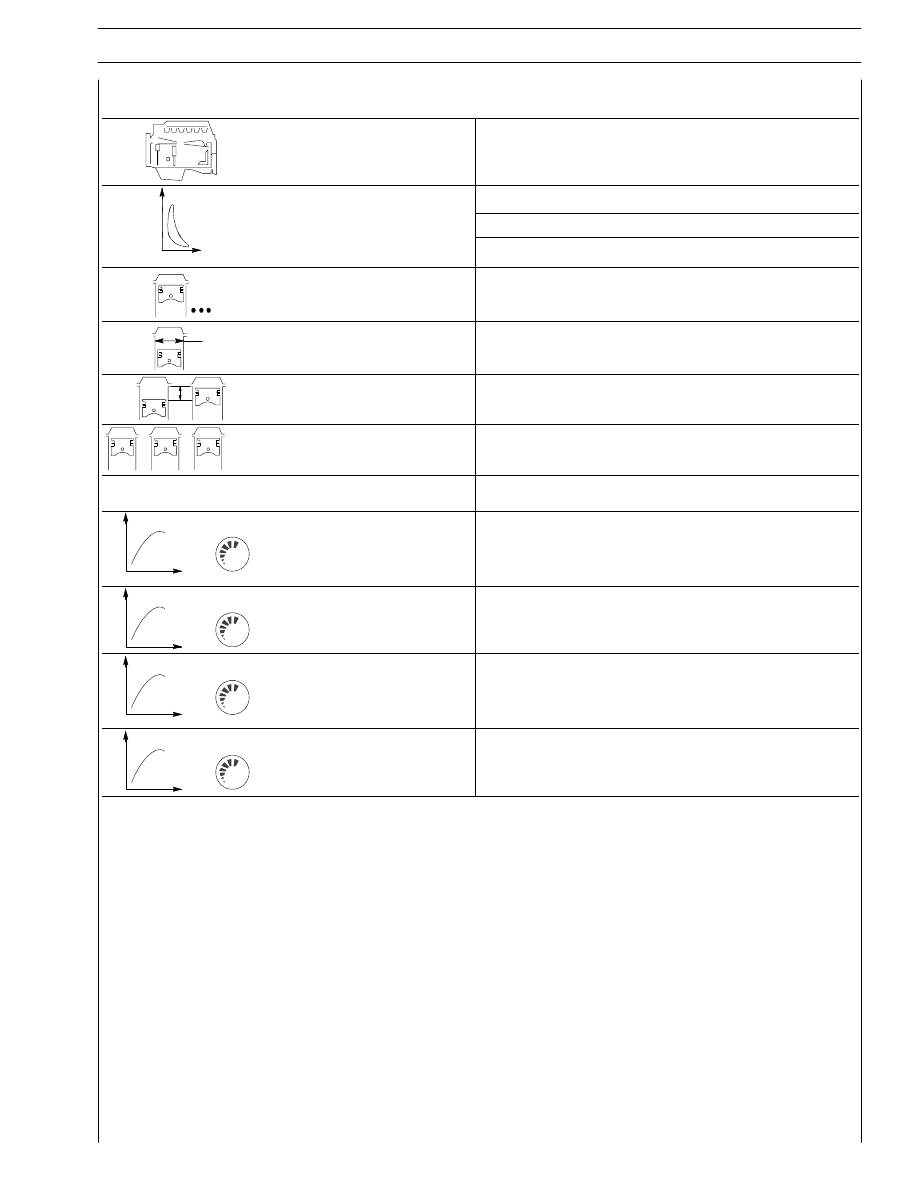

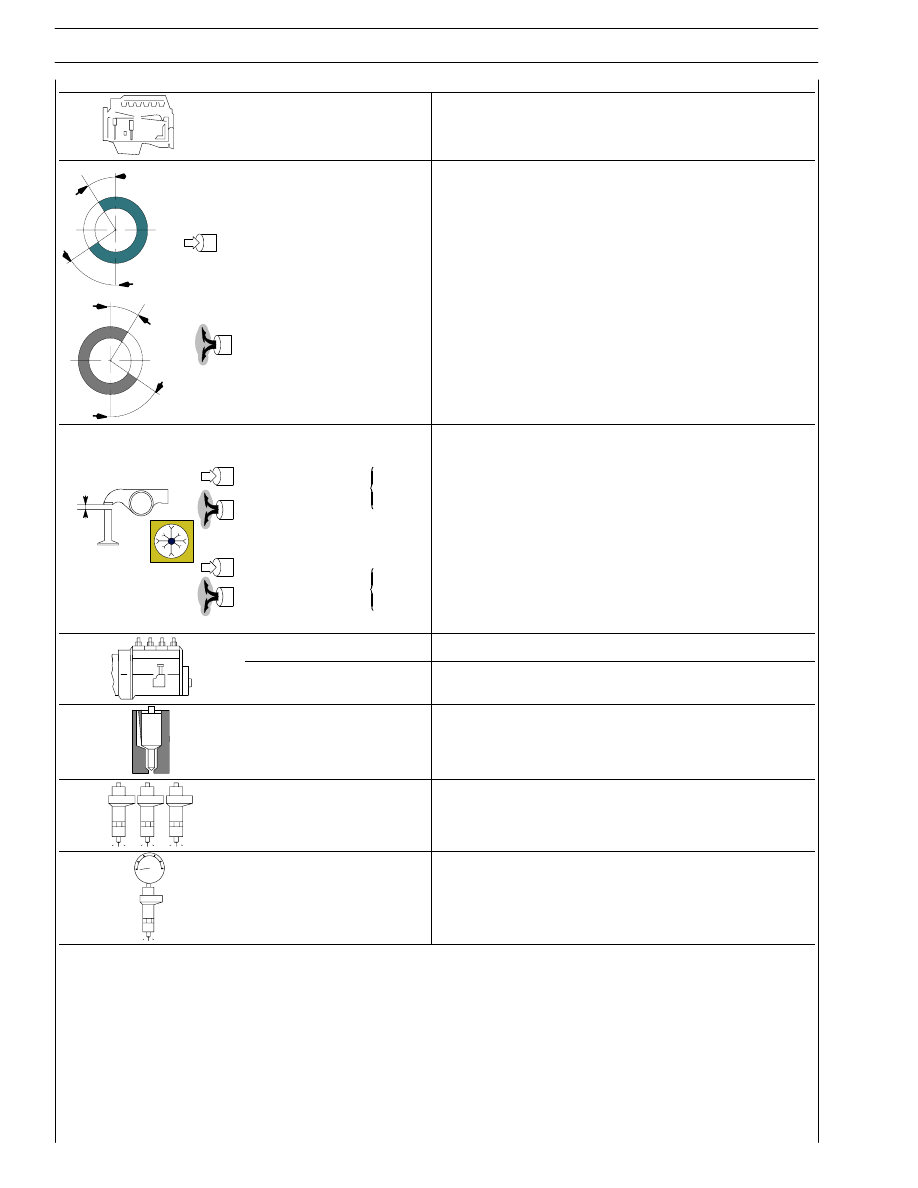

F3A
Type
mm

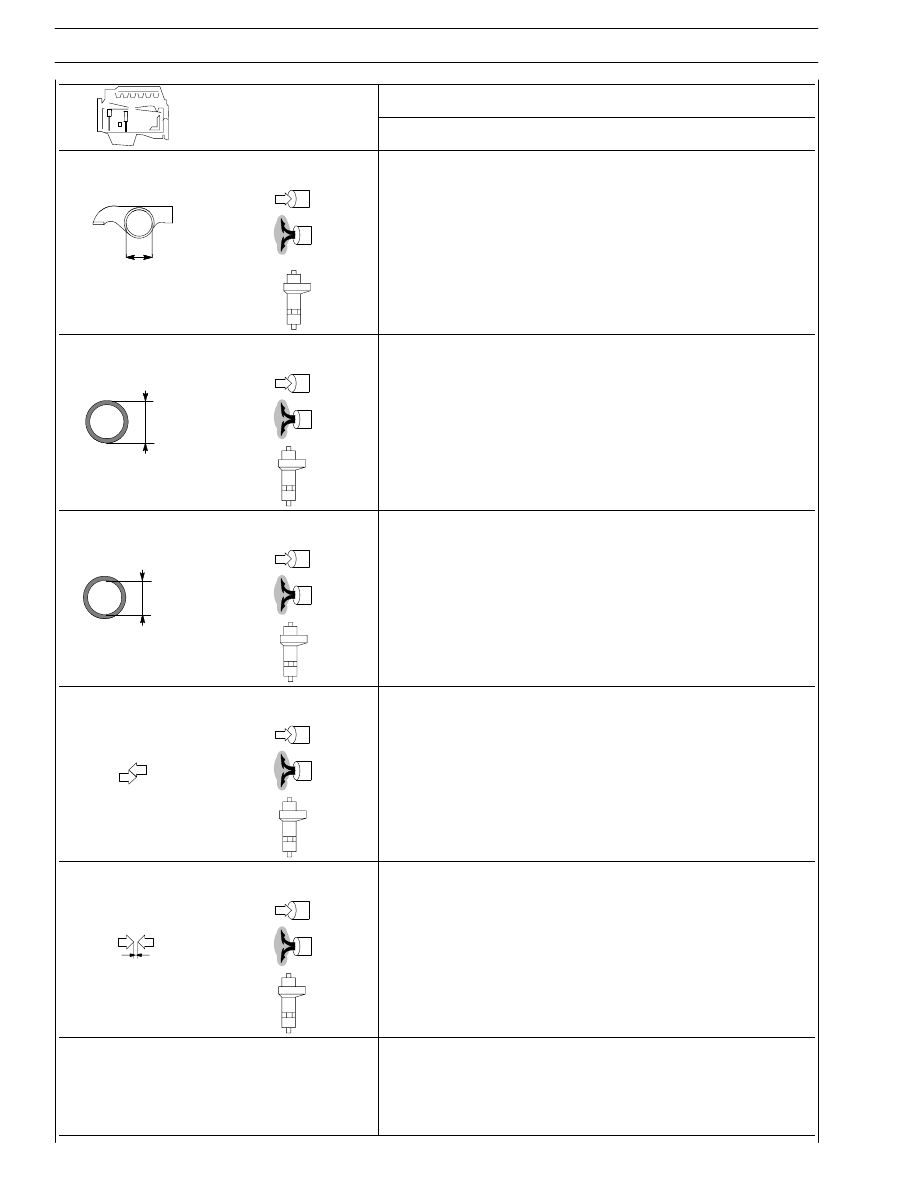

Bushing housing in
rocker arms
45.000 to 45.016
59.000 to 59.019
∅
46.000 to 46.016
Bushing outer diameter
for rocker arms
45.090 to 45.130
∅
59.100 to 59.140
46.066 to 46.091
Bushing inner diameter
for rocker arms
42.025 to 42.041
∅
56.030 to 56.049
42.015 to 42.071
Between bushings and
housings
0.074 to 0.130
0.081 to 0.140
0.050 to 0.091
Between bushings of
rocker arms and shaft
0.025 to 0.057
0.025 to 0.057
0.015 to 0.087
TURBOCHARGER
Type
HOLSET HX55
End float
-
Radial play
-
