A = Selection class Ø 135.000 to 135.012 mm
B = Selection class Ø 135.011 to 135.023 mm
X = Selection class marking area

On finding maximum wear greater than 0.150 mm or
maximum ovalization of 0.100 mm compared to the values
shown in the figure, you need to replace the cylinder liner as
no grinding, facing or reconditioning is permitted.

REPAIR OPERATIONS
CYLINDER BLOCK
Checks and measurements

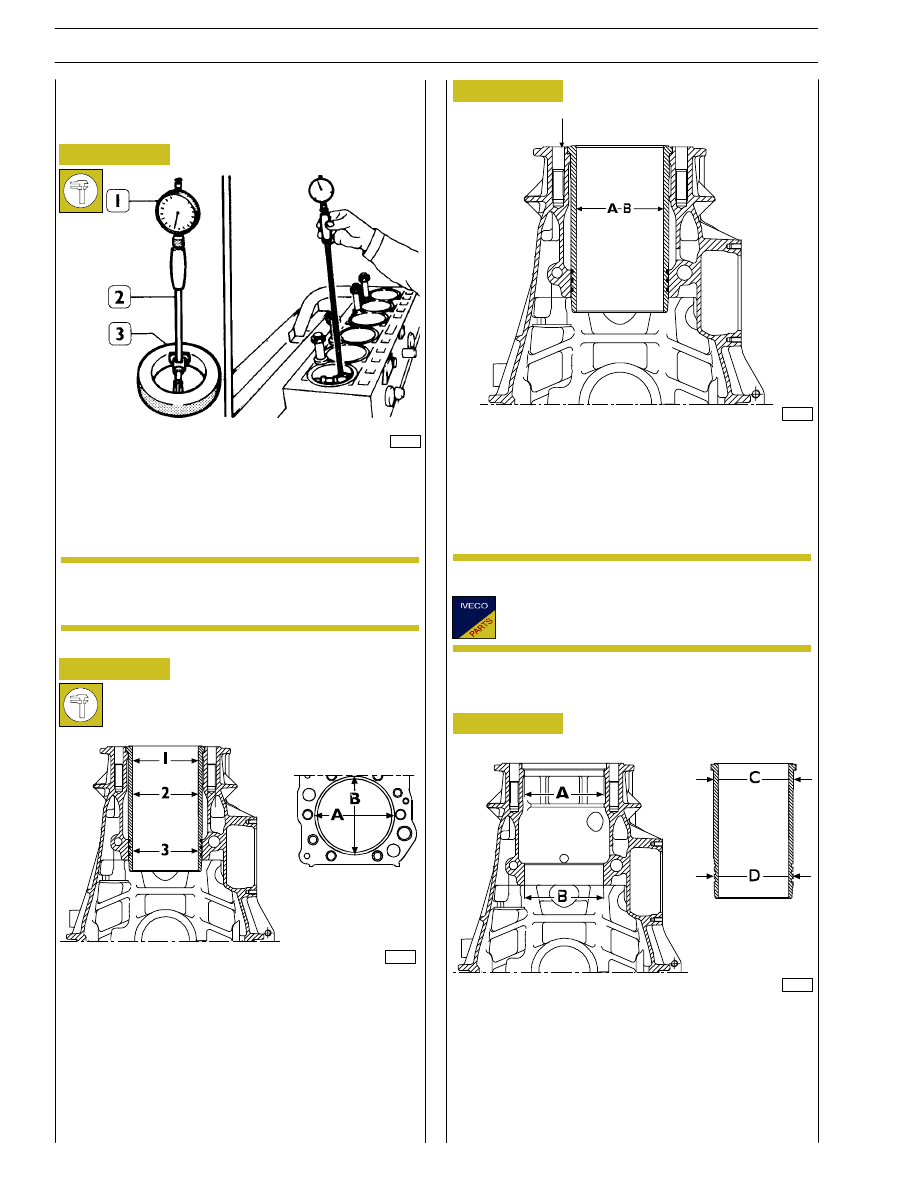

Internal diameter of the cylinder liners is checked for
ovalization, taper and wear, using a bore dial (1) centesimal
gauge (2) previously reset to ring gauge (3), diameter 135
mm.

If a 135 mm ring gauge is not available use a
micrometer caliper.

A = Ø 153.500 to 153.525 mm
B = Ø 152.000 to 152.025 mm
C = Ø 153.461 to 153.486 mm
D = Ø 151.890 to 151.915 mm

The diagram shown in the figure gives the outside diameter
of the cylinder liner and inside diameter of its seat.

The cylinder liners can, if necessary, be extracted and fitted
several times in different seats.

34994

60595

60597

Figure 6

Figure 7

Figure 8

Figure 9

1 = 1

measurement

2 = 2

measurement

3 = 3

measurement

The measurements have to be made on each single cylinder
liner at three different heights and on two levels (A-B) at right
angles to each other as shown in Figure 7.

(Demonstration)

The cylinder liners are supplied as spare parts with
selection class ”A”.

60596

NOTE

SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS

F3B CURSOR ENGINES

Base - May 2007

101503

Figure 10

Figure 11

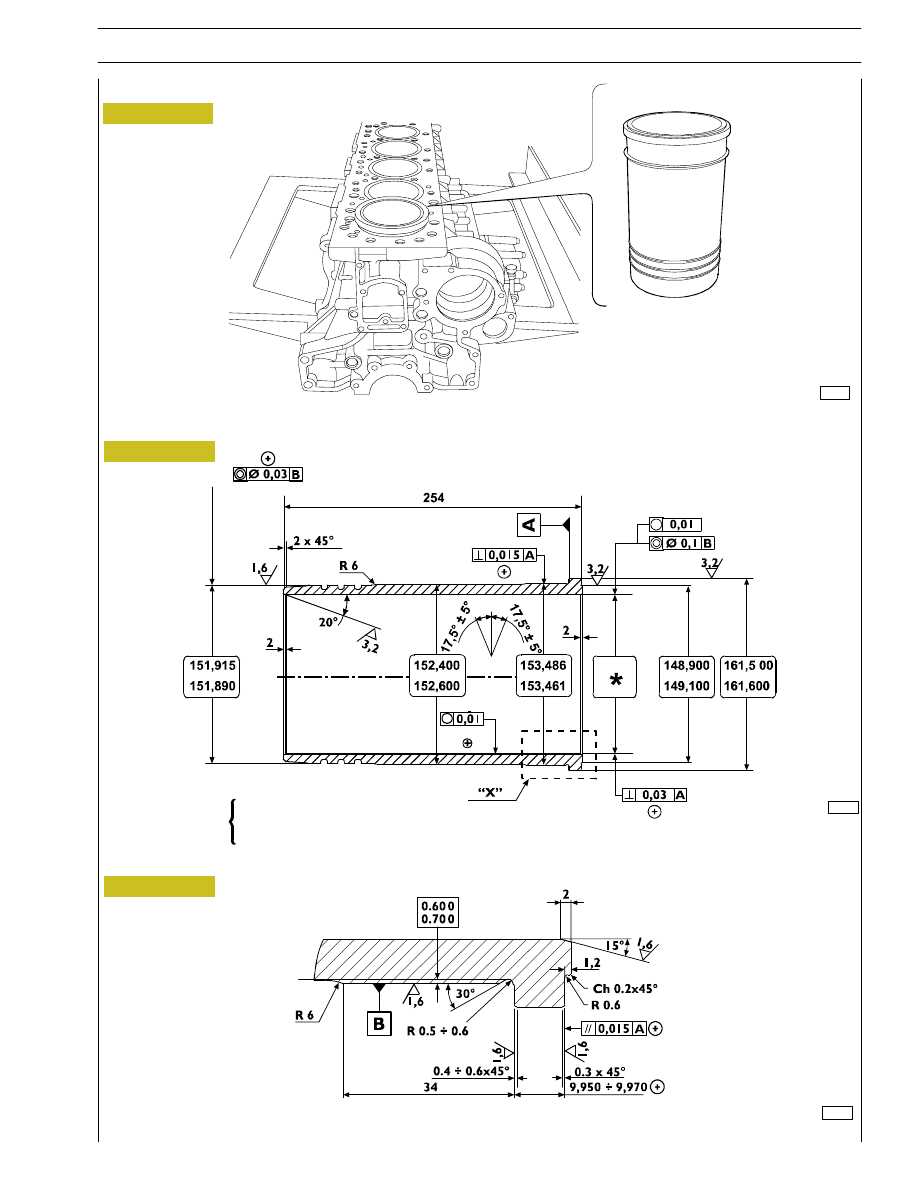

MAIN CYLINDER LINER DATA

DETAIL “X”

“Y“ - Selection class marking area

Figure 12

CRANKCASE ASSEMBLY WITH CYLINDER LINERS

A 135.000 to 135.013 mm
B 135.011 to 135.024 mm

Selection class

60598

101502

Cylinder liners

SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS

F3B CURSOR ENGINES

47577

16798

60521

Figure 13

Figure 14

Figure 15

Figure 16

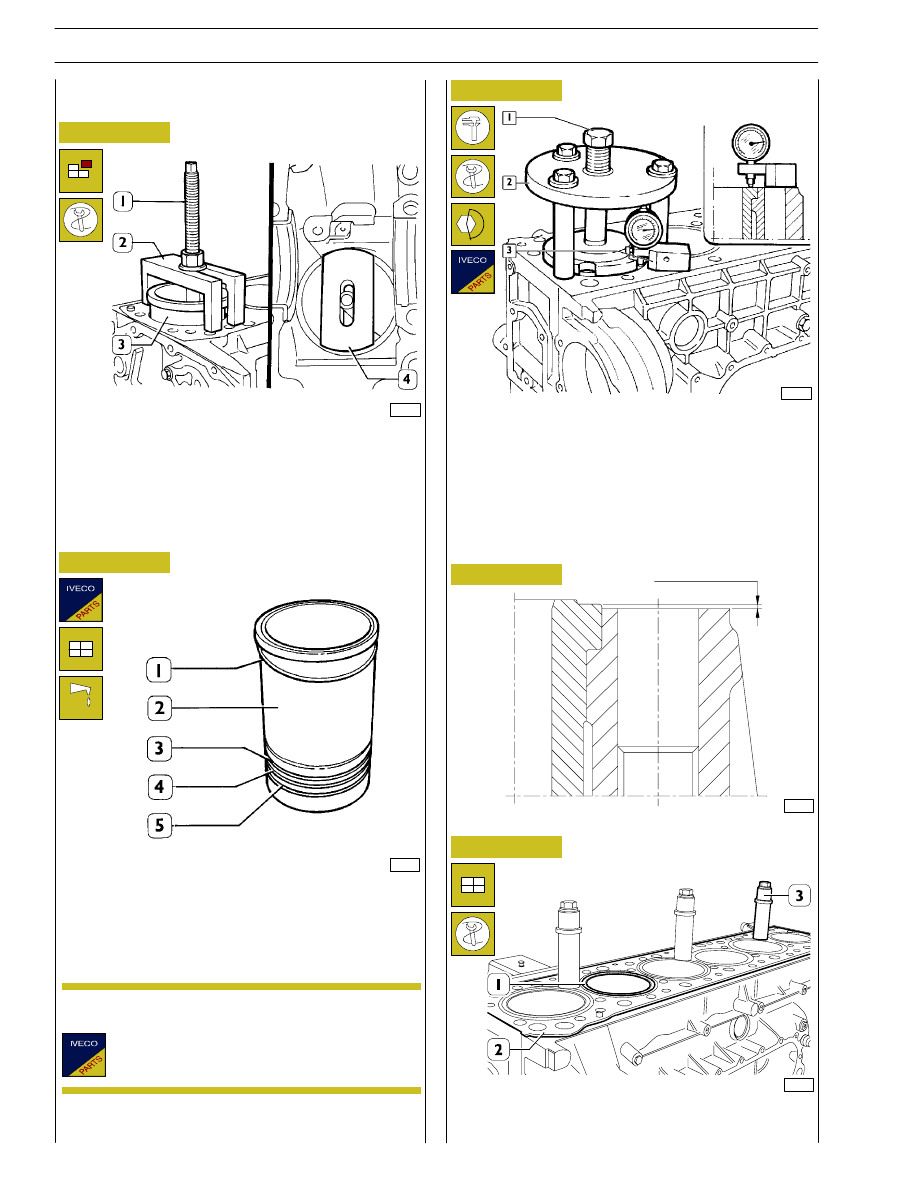

Position the parts 99360706 (2) and the plate 99360728 (4)
as shown in the figure, checking that the plate (4) rests on the
cylinder liner correctly.
Screw down the nut of screw (1) and extract the cylinder
liner (3) from the crankcase.

Always replace the water seals (3, 4 and 5).
Fit the adjustment ring (1) on the cylinder liner (2). Lubricate
the bottom of it and mount it in the cylinder assembly using
the appropriate tool.

Check the protrusion of the cylinder liners with tool 99360334
(2) and tightening the screw (1) to a torque of 225 Nm.
Using the dial gauge 99395603 supplied as standard with the
dial gauge base 99370415 (3), check that the protrusion of
the cylinder liner over the supporting face of the cylinder
head is 0.045 - 0.075 mm (Figure 16); if this is not so, replace
the adjustment ring (1) (Figure 14), supplied as a spare part
with several thicknesses.

On completing assembly, lock the cylinder liners (1) to the
crankcase (2) with the pins 99360703 (3).

Assembly and checking protrusion

Figure 17

CYLINDER LINER PROTRUSION

49017

The adjustment ring (1) is supplied as a spare part
with the following thicknesses: 0.08 mm - 0.10 mm
- 0.12 mm - 0.14 mm.

60520

0.045 to 0.075

Replacing cylinder liners
Removal

NOTE

SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS

F3B CURSOR ENGINES

Base - May 2007

GROUND

BUFF

101506

Figure 18

Figure 19

. Detail of the main journal unions

Detail of the crankpin unions

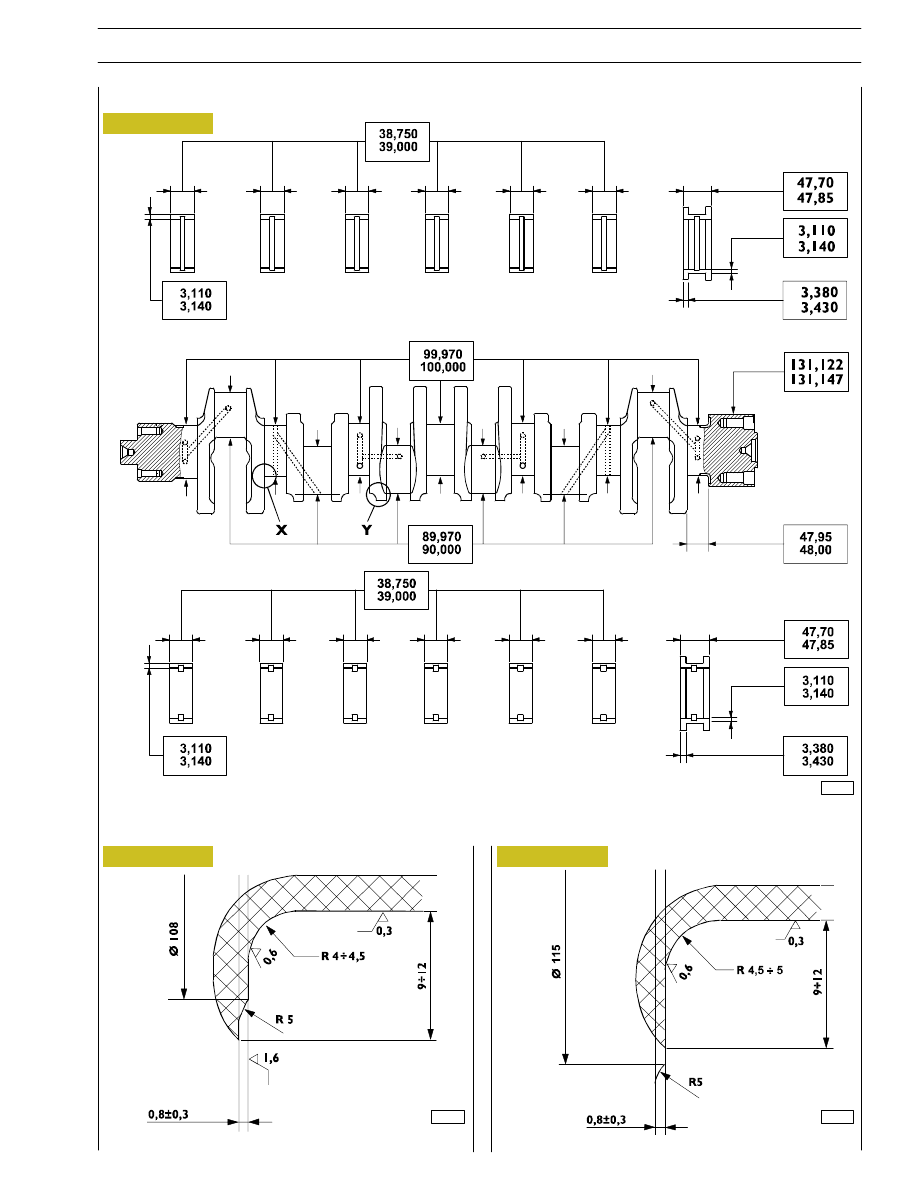

MAIN DATA OF CRANKSHAFT AND MAIN BEARING SHELLS

Check the state of the main journals and crankpins of the crankshaft. They must not be scored or be too ovalized or worn.

The data given refer to the normal diameter of the journals.

Top main bearing shells

Bottom main bearing shells

Figure 20

POLISHED

GROUND

101504

101505

Crankshaft

SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS

F3B CURSOR ENGINES
