METER AND GAUGE

8E–7

Meter Assembly W/O TOD–2

Connector No. I–9

Terminal

Function

1

A/T oil temp warning light

2

Seat belt warning light

3

Check trans warning light

4

Brake warning light

5

Check engine warning light

6

Charge warning light

7

Lighting switch

8

Illumination controller

9

Tachometer

10

D position (A/T)

11

—

12

A/T shift indicator control unit

13

—

14

2 position (A/T)

15

Starter switch

16

Ground (Gauge)

17

Cruise set indicator light

18

Cruise main indicator light

19

4WD indicator light

20

—

21

Winter drive indicator light

22

Oil pressure warning light

23

—

24

Air bag warning light

25

Power drive indicator light

26

—

27

Up shift indicator light (–)

28

Turn signal indicator light (Left)

29

Up shift indicator light (+)

30

Ground (Warning)

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Engine coolant temperature gauge

5

Speedometer

6

—

7

—

8

Battery (+)

9

—

10

—

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High-beam indicator light (–)

15

High-beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

Oil pressure gauge

20

Fuel gauge

21

—

22

Reduced power

8E–8

METER AND GAUGE

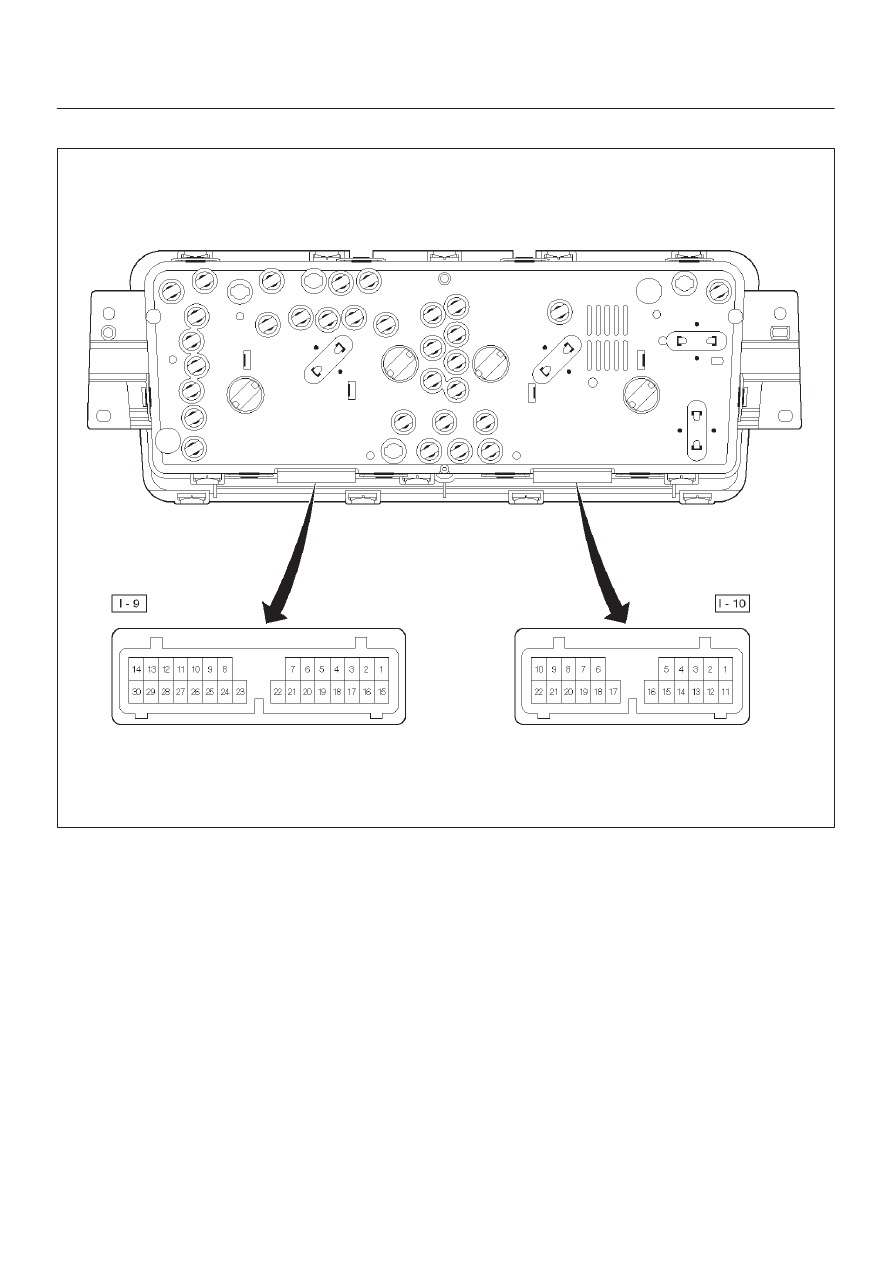

Meter Assembly W/TOD–1

825RW035

METER AND GAUGE

8E–9

Meter Assembly W/TOD–2

Connector No. I–9

Terminal

Function

1

—

2

Air bag warning light

3

A/T oil temp warning light

4

Charge warning light

5

Seat belt warning switch

6

Check trans warning light

7

Brake warning light

8

—

9

Tachometer

10

—

11

Turn signal indicator light (Left)

12

A/T shift indicator control unit

13

2 position (A/T)

14

D position (A/T)

15

Rear (TOD)

16

Auto (TOD)

17

Check (TOD)

18

Cruise set indicator light

19

Cruise main indicator light

20

Oil pressure warning light

21

Front “1” (TOD)

22

Front “2” (TOD)

23

Front “3” (TOD)

24

Lighting switch

25

Illumination controller

26

Starter switch

27

—

28

Winter drive indicator light

29

Power drive indicator light

30

—

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Ground (Warning)

5

Speedometer

6

—

7

—

8

Ground (Gauge)

9

Check engine warning light

10

Battery (+)

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High beam indicator light (–)

15

High beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

—

20

Fuel gauge

21

Reduced power

22

Engine coolant temperature gauge

8E–10 METER AND GAUGE

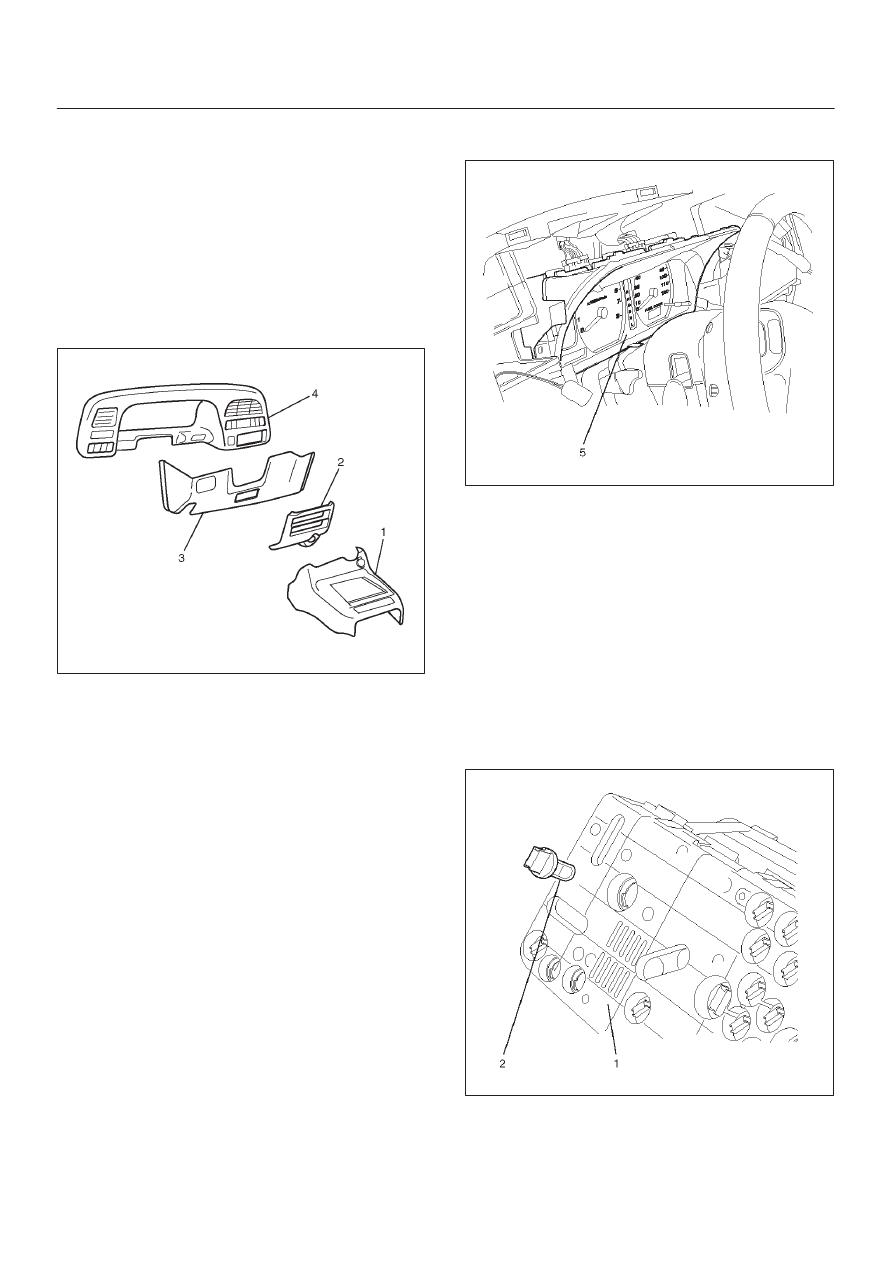

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover(3).

Refer to the Instrument Panel Assembly in Body
Structure section.

740R200051

5. Remove four fixing screws and disconnect the meter

connectors to remove the meter assembly(5).

825RW031

CAUTION: The removed meter assembly should be
placed upright or with its face side up.

Installation

To install, follow the removal steps in the reverse order.

Warning Light Bulb, Indicator Light Bulb, Illumination Light Bulb,

A/T Indicator Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the meter assembly(1).

Refer to the Meter Assembly removal steps in this
section.

3. Hold the bulb socket by hand and rotate it

counterclockwise to remove the socket & bulb(2)
from the meter body.

825RW032

Installation

To install, follow the removal steps in the reverse order.
