Alarm & Relay Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the glove box.
3. Remove the instrument panel passenger lower cover

assembly.

4. Remove the passenger Knee bolster reinforcement

assembly.

5. Remove the fixing bolts, disconnect the connectors

and then remove the alarm & relay control unit (1).

826RW020

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim pad(2).
3. Remove two screws, disconnect the connector,

remove the washer hose and then remove the rear
washer tank(3).

4. Pull out the rear washer motor(1) from the washer

tank.

885RS009

Installation

To install, follow the removal steps in the reverse order.

8B–10 WIPER/WASHER SYSTEM

Rear Wiper Arm/Blade

Removal

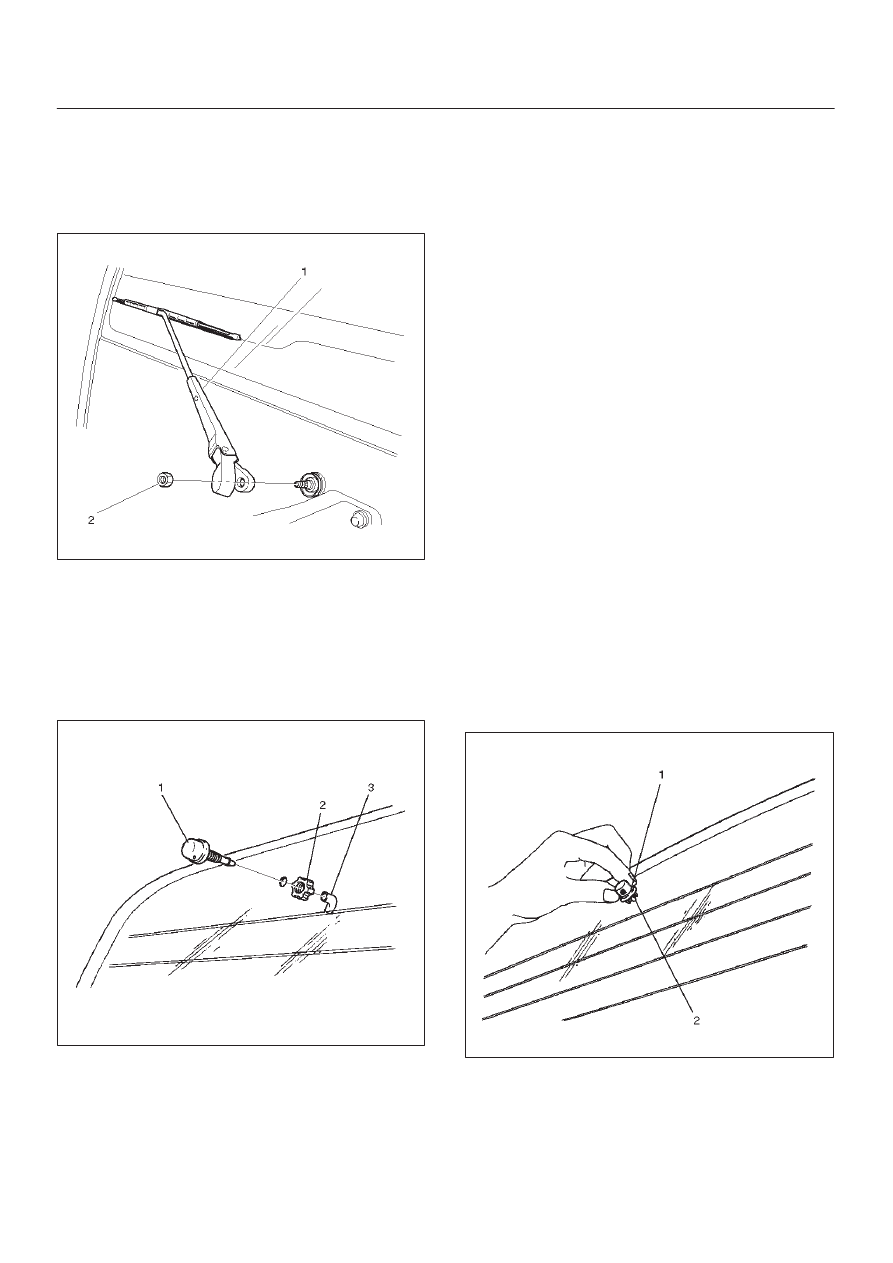

1. Remove the arm nut(2).
2. Remove the wiper arm/blade(1).

885RS008

Installation

Refer to the installation steps of the Rear Wiper Motor in
Wiper/Washer System section.

Rear Washer Nozzle

Removal

1. Disconnect the hose(3).
2. Remove the lock nut(2), and then remove the washer

nozzle(1).

885RS005

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Nozzle Angle
Adjustment

Loosen the lock nut(2) of the washer nozzle(1) to adjust
the injection angle of the cleaning fluid, and then retighten
the lock nut(2).

885RS004

WIPER/WASHER SYSTEM

8B–11

Rear Washer Spray Pattern

885RS003

Legend

(1) Washer Nozzle
(2) Spray Target

Rear Wiper Blade Rubber

Removal and Installation

Refer to the Windshield Wiper Blade Rubber in this
section.

Main Data and Specifications

Torque Specifications

Application

N·m

Lb Ft

Lb In

Windshield Wiper Motor Shaft Nut

14

—

122

Windshield Wiper Arm Nuts

31

23

—

Rear Wiper Motor Shaft Nut

6

—

52

Rear Wiper Arm Nut

9

—

78

ENTERTAINMENT

8C–1

TROOPER

BODY AND ACCESSORIES

ENTERTAINMENT

CONTENTS

Service Precaution

8C–1

. . . . . . . . . . . . . . . . . . . . . .

Cigarette Lighter

8C–2

. . . . . . . . . . . . . . . . . . . . . . . .

General Description

8C–2

. . . . . . . . . . . . . . . . . . . . .

Removal

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital Clock and Outside Temp

8C–3

. . . . . . . . . . .

Removal

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front ACC Socket

8C–4

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear ACC Socket

8C–4

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rod Type Antenna

8C–5

. . . . . . . . . . . . . . . . . . . . . .

Removal

8C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diversity Glass Antenna

8C–6

. . . . . . . . . . . . . . . . . .

Glass Antenna System Parts Location

8C–6

. . . .

Glass Antenna Pattern

8C–7

. . . . . . . . . . . . . . . . . . .

Glass Antenna Amplifier Removal

8C–7

. . . . . . .

Glass Antenna Amplifier Installation

8C–7

. . . . . .

Radio

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Speaker

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tweeter Assembly

8C–9

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Speaker

8C–10

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
