MANUAL TRANSMISSION

7B–11

141RW024

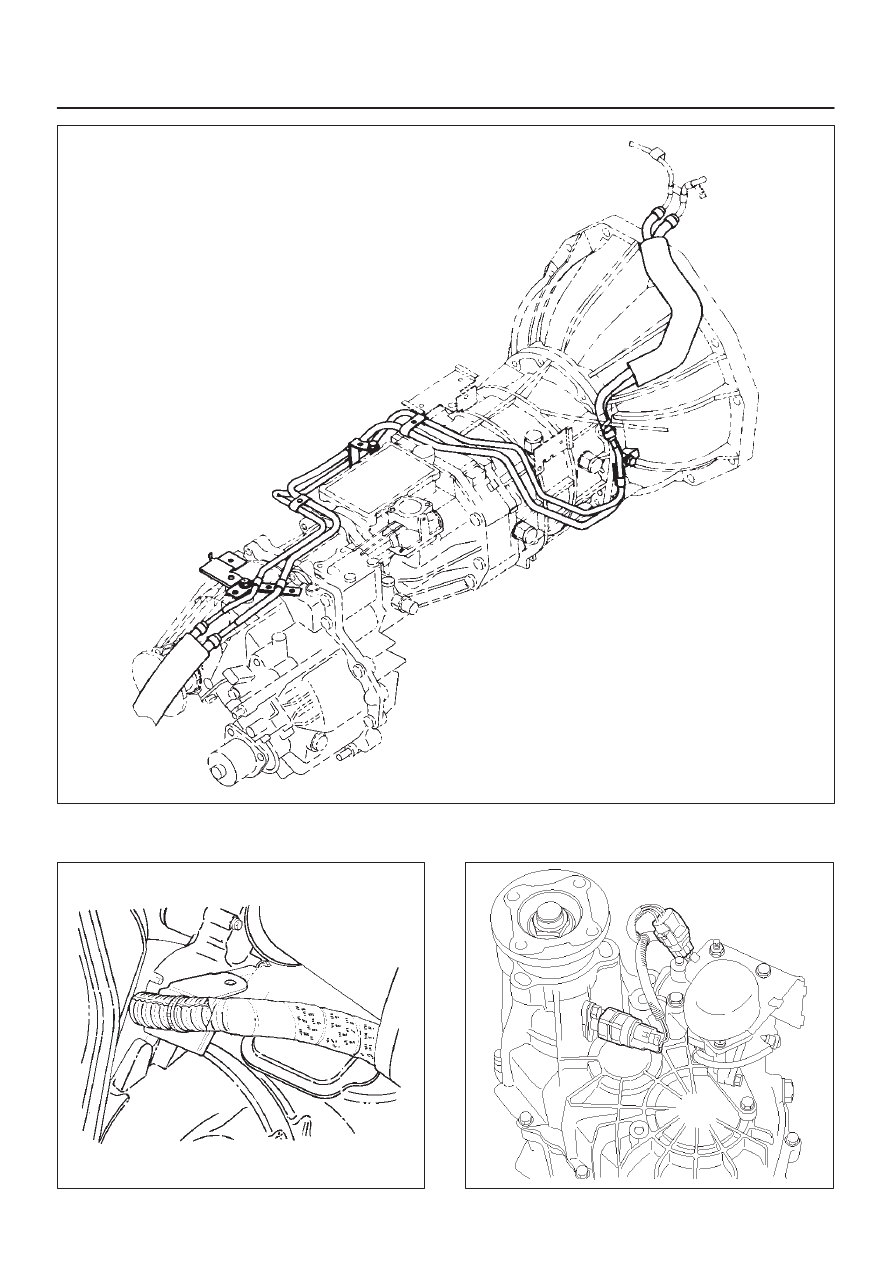

19. Install bracket and two transmission harness clamps

to the transmission case.

220RS028

20. Connect the speedometer sensor and 2WD–4WD

actuator harness connector.

225RW007

7B–12 MANUAL TRANSMISSION

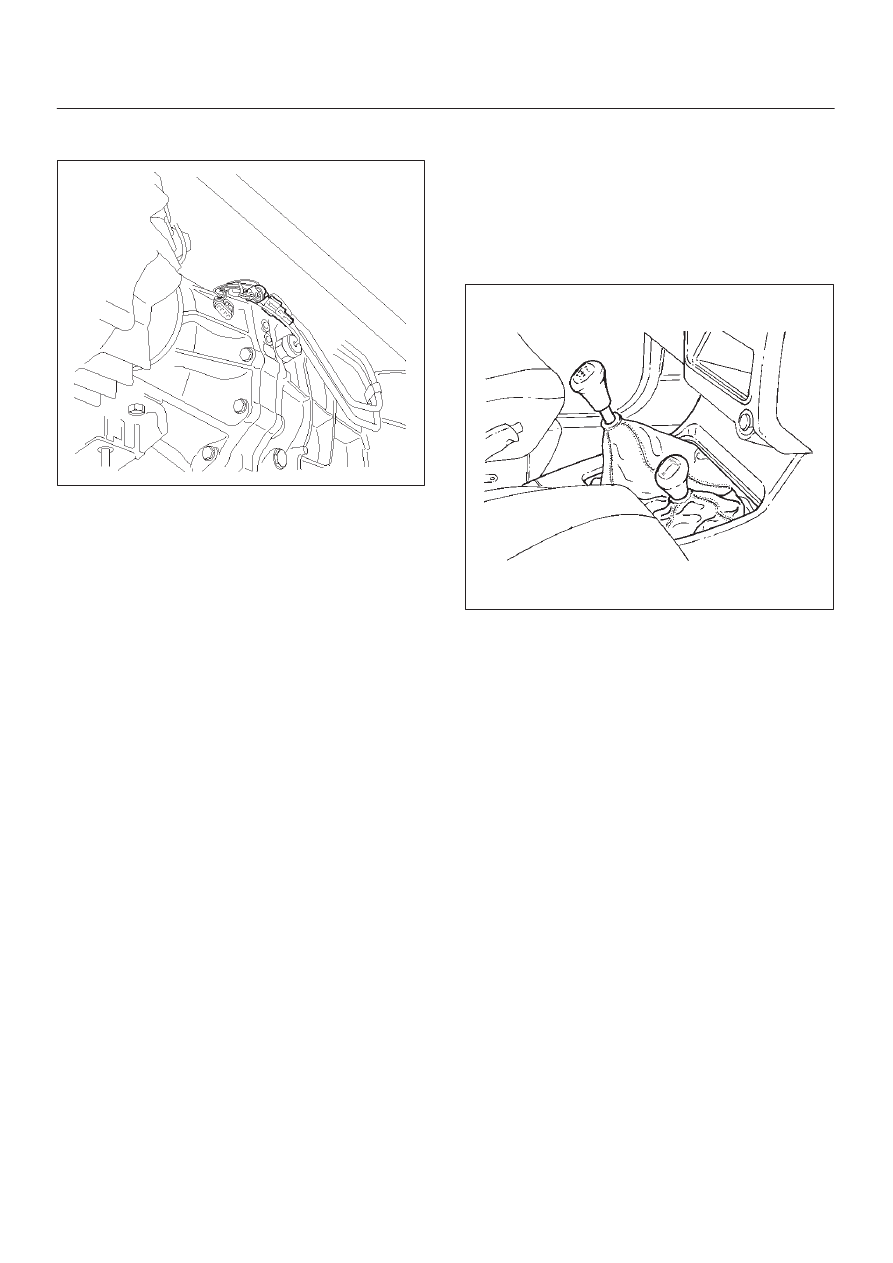

21. Connect the backup lamp switch, 4WD indicator

switch, and 1-2 indicator switch harness connectors.

230RW005

22. Install the front propeller shaft and tighten the fixing

bolts and nuts specified torque.

Torque: 63 N·m (46 lb ft)

23. Install the rear propeller shaft and tighten the fixing

bolts and nuts specified torque.

Torque: 63 N·m (46 lb ft)

24. Install transfer protector and tighten the fixing bolts

specified torque.

Torque: 37 N·m (27 lb ft)

25. Install the transmission control lever and transfer

control lever.

26. Install the grommet assembly.
27. Install the front console assembly.
28. Install the gear control lever knob.

235RX001

29. Connect battery ground cable.
30. Install engine hood.

MANUAL TRANSMISSION

7B–13

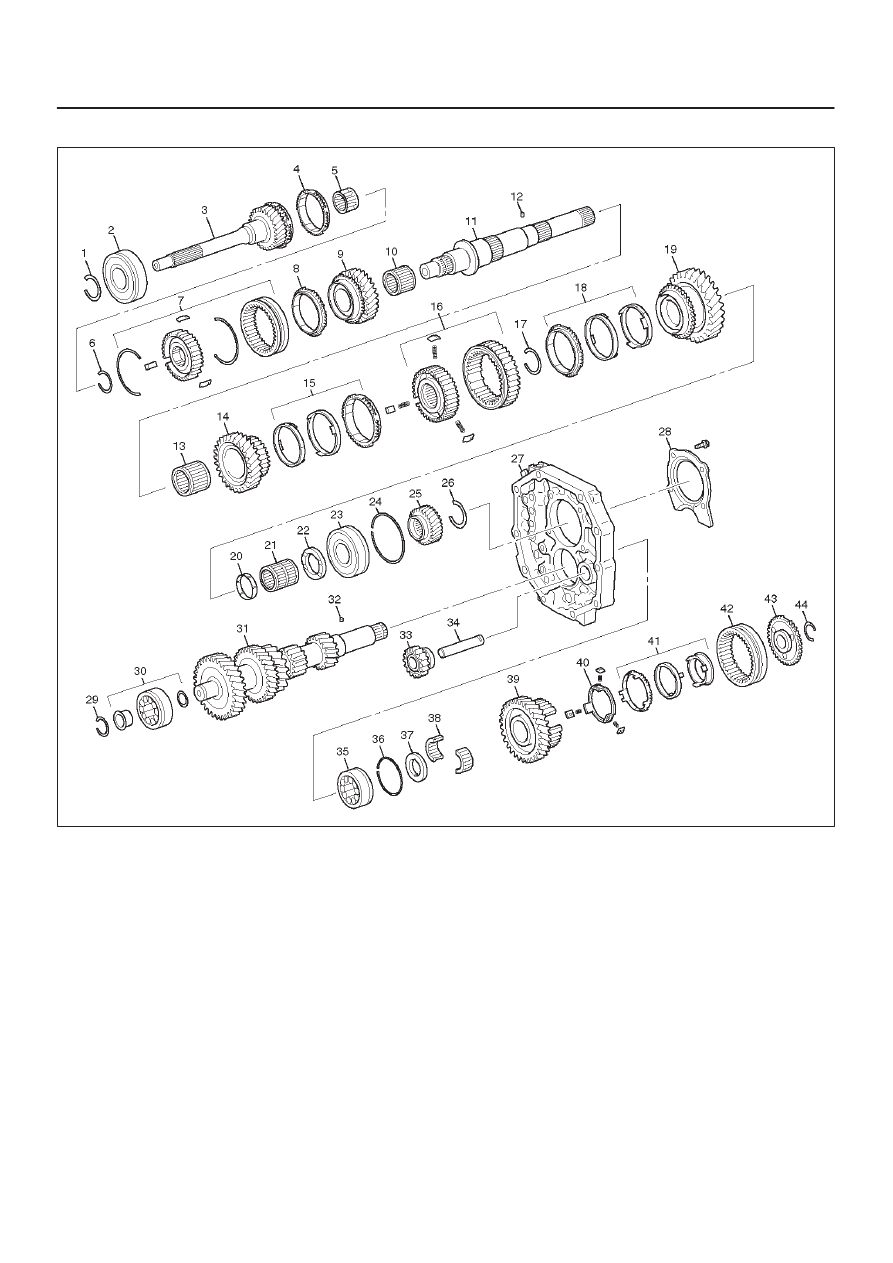

Disassembled View

226RW182

Legend

(1) Snap Ring
(2) Bearing
(3) Top Gear Shaft
(4) Block Ring
(5) Roller Bearing
(6) Snap Ring
(7) Clutch Hub No.2 Assembly
(8) 3rd Block Ring
(9) 3rd Gear

(10) 3rd Gear Needle Roller Bearing

(11) Mainshaft

(12) Thrust Washer Pin
(13) 2nd Gear Needle Roller Bearing
(14) 2nd Gear
(15) Synchronizer Assembly
(16) Clutch Hub No.1 Assembly
(17) Snap Ring
(18) Synchronizer Assembly

(19) 1st Gear
(20) 1st Gear Bearing Spacer
(21) 1st Gear Needle Roller Bearing
(22) 1st Gear Thrust Washer
(23) Mainshaft Bearing
(24) Snap Ring
(25) 5th Gear
(26) Snap Ring
(27) Intermediate Plate
(28) Bearing Retainer
(29) Snap Ring
(30) Front Bearing Assembly
(31) Counter Gear Shaft
(32) Thrust Washer Pin
(33) Reverse Idle Gear
(34) Reverse Idle Gear Shaft
(35) Counter Gear Shaft Center Bearing
(36) Snap Ring
(37) Thrust Washer

7B–14 MANUAL TRANSMISSION

(38) Roller Bearing
(39) Counter 5th Gear
(40) Reverse Block Ring
(41) Synchronizer Assembly

(42) Hub Sleeve No.3
(43) 5th Gear Spline Piece
(44) Snap Ring

226RW181

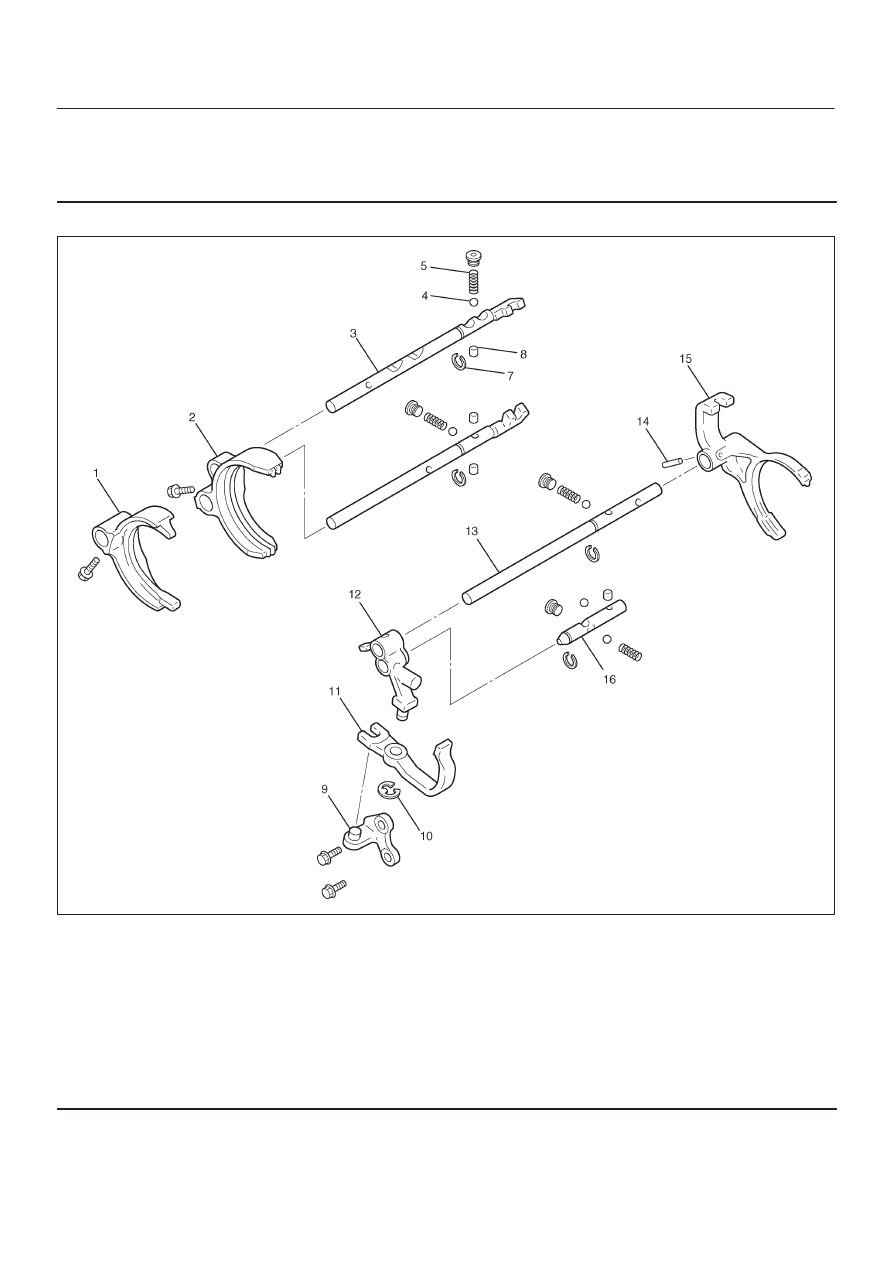

Legend

(1) 3rd-4th Shift Arm
(2) 1st-2nd Shift Arm
(3) 3rd-4th Shift Rod
(4) Ball
(5) Spring
(6) 1st-2nd Shift Rod
(7) Snap Ring
(8) Interlock Pin

(9) Reverse Shift Arm Bracket

(10) E–Ring

(11) Reverse Shift Arm No.2

(12) Reverse Shift Arm No.1
(13) 5th Reverse Shift Rod
(14) Spring Pin
(15) 5th Shift Arm
(16) Reverse Shift Rod
