POWER ASSISTED SYSTEM

2A–17

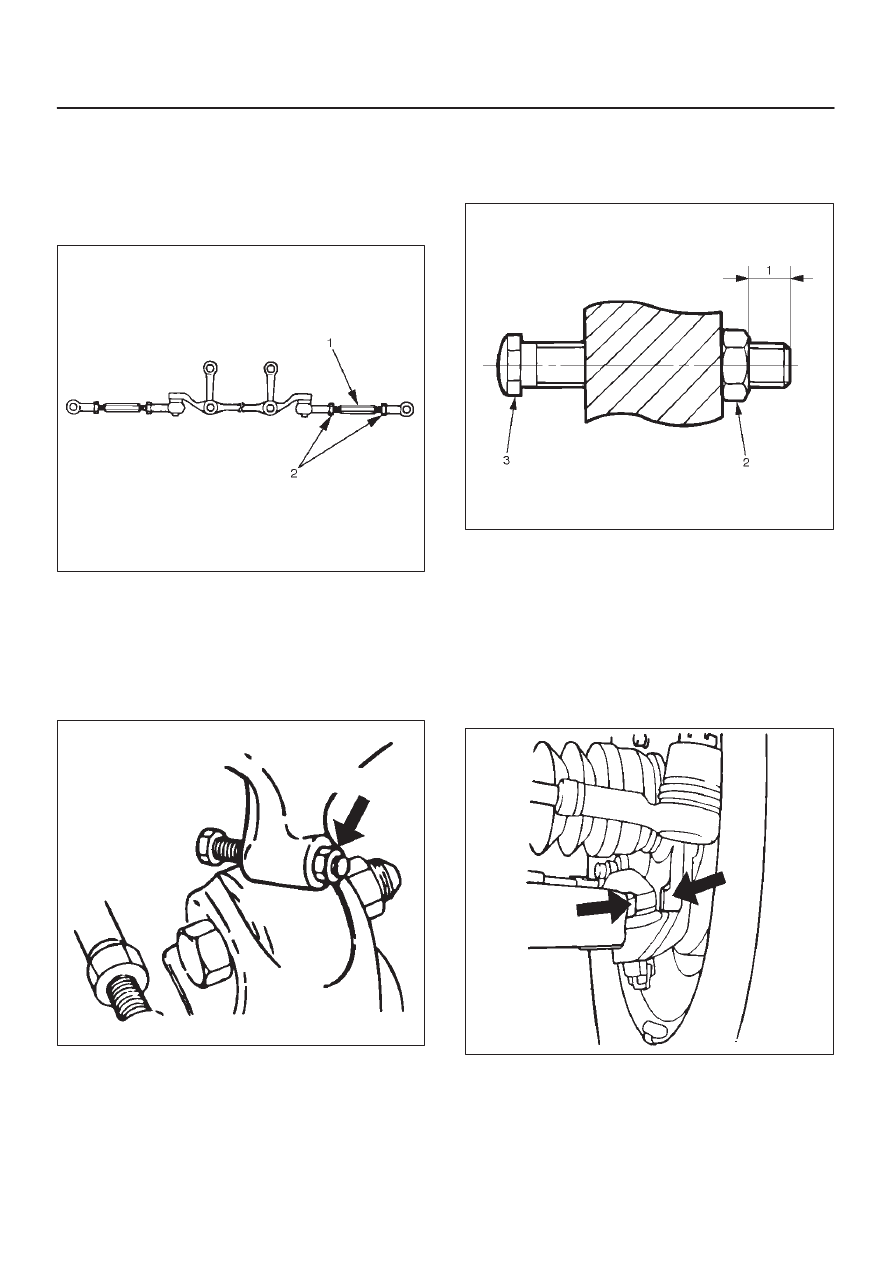

Toe-in Adjustment

1. To adjust the toe-in angle, loosen the lock nuts(2) on

the outer track rods(1) and turn the outer track rods.
Turn both rods the same amount, to keep the steering
wheel centered .

Toe-in: 0

±

 2 mm (0

±

 0.08 in)

433RS001

2. Tighten the lock nut to the specified torque.

Torque: 118 N·m (87 lb ft)

Maximum Steering Angle Adjustment

The maximum steering angle of the front wheels can be
adjusted with the stop bolts under the frame side
members.

433RS002

1. Position each front wheel on the turning radius gauge

in a straight-ahead position.

2. Set the parking brake firmly.

3. Adjust the inside wheel angle of each side with the

stop bolts.

NOTE: The maximum protruding length(1) of stop bolt(3)
from the lock nut(2) should be 10 mm or less

433RS003

4. Similarly adjust the inside wheel angle of the other

side with stop bolt.

Inside wheel: 34

°

 (+0

°

 to –2

°

)

Outside wheel: 32

°

NOTE: Maximum steering angles should be set after
adjusting front wheel alignment.

5. If the stop between the lower link end and the knuckle

comes ahead of the stop bolt, adjust the stop bolt so
that inner stop bolt touches the drop arm (relay lever).

433RS004

6. Tighten the lock nut to the specified torque.

Torque: 23 N·m (17 lb ft)

2A–18

POWER ASSISTED SYSTEM

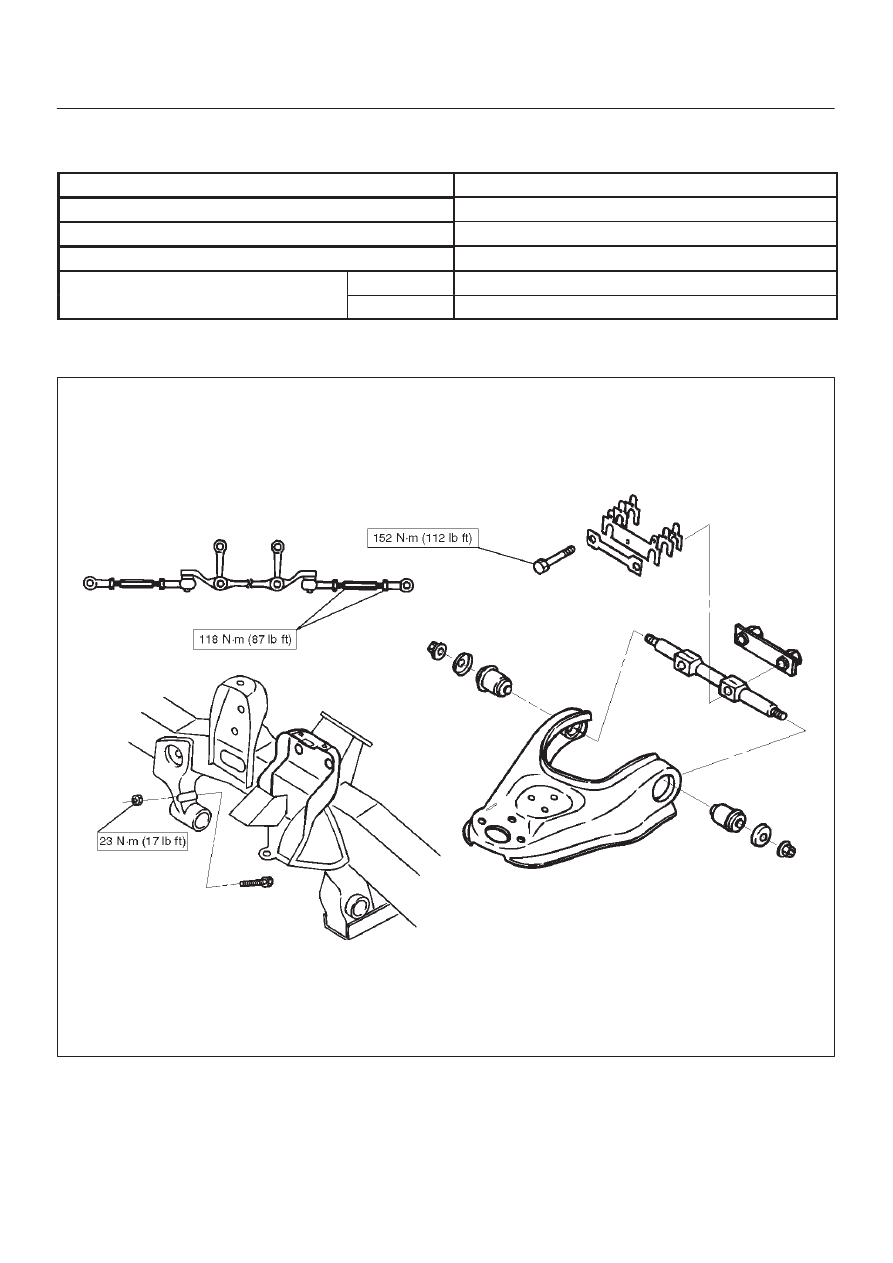

Main Data and Specifications

General Specification

Caster

2

°

10’

±

 45’

Camber

0

°



±

 30’

King pin inclination

12

°

30’

±

 30’

Toe-in

±

 2 mm (0

±

 0.08 in)

Max. steering angle

inside

34

°

 (+0

°

 to –2

°

)

outside

32

°

Torque Specification

E03RS001

POWER ASSISTED SYSTEM

2A–19

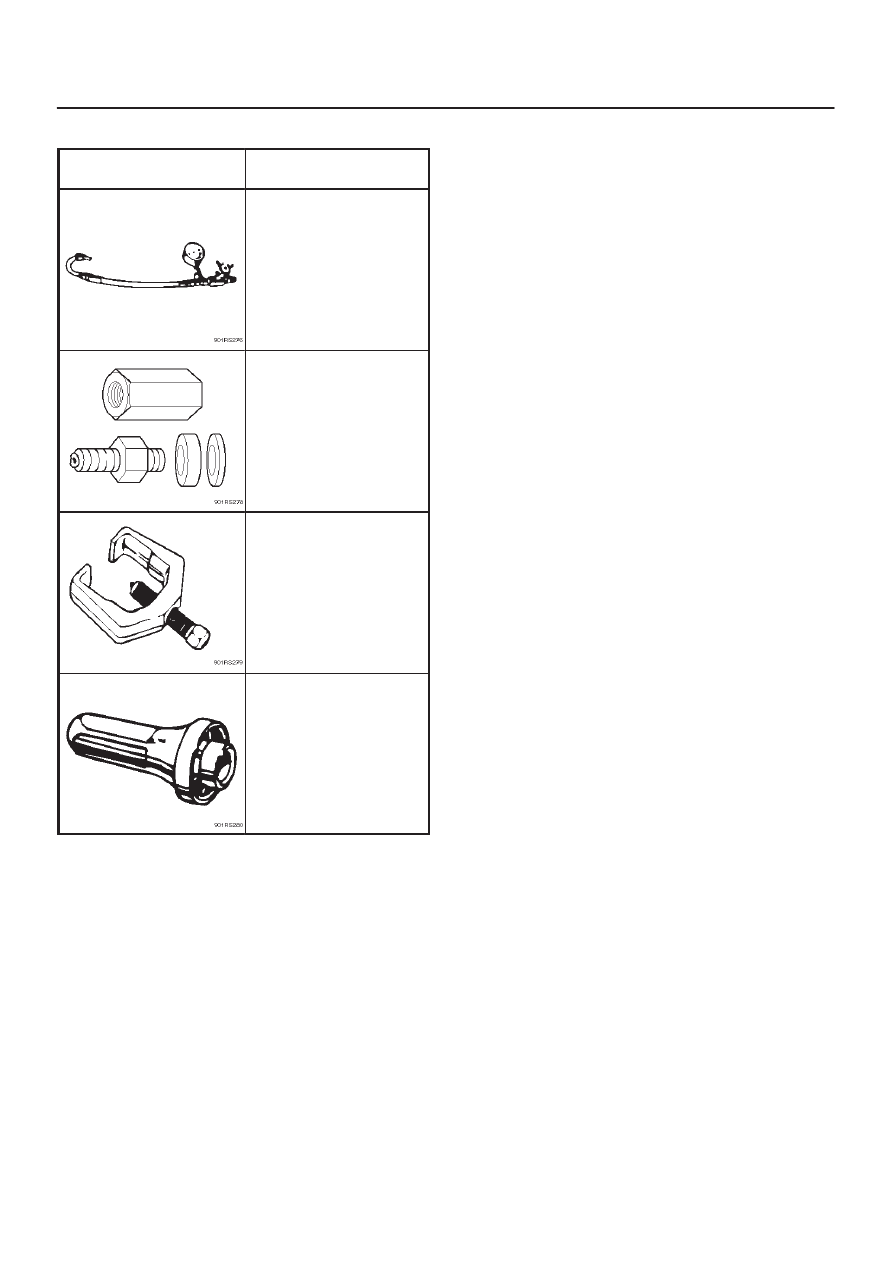

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–29877–A

Tester:

Power steering

J–39213

Adapter:

Power steering tester

J–29107

Remover:

Pitman arm

J–26508

Installer:

Extension housing oil

seal

2A–20

POWER ASSISTED SYSTEM

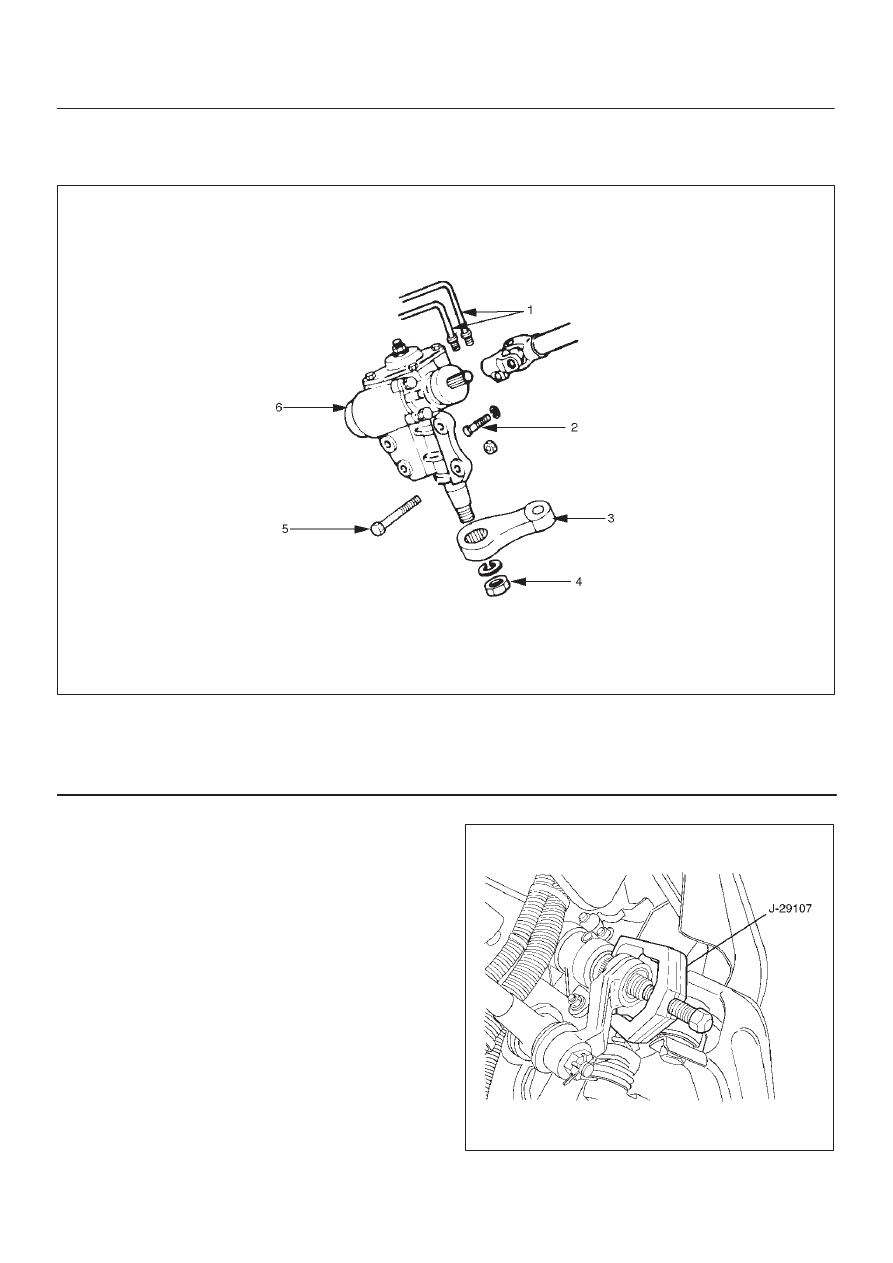

Power Steering Gear

Power Steering Gear and Associated Parts

431RS002

Legend

(1) Pipe
(2) Universal Joint Bolt
(3) Pitman Arm

(4) Nut
(5) Gear Box Mounting Bolt and Nut
(6) Gear Box

Removal

1. Remove the stone guard.
2. Remove the lower fan shroud. Refer to Radiator in

Engine section.

3. Disconnect stabilizer bar at the stabilizer links.

Loosen stabilizer bracket fixing nuts.

4. Remove pipe.
5. Remove nut.
6. Use Pitman arm remover J–29107 to remove pitman

arm.

433RS005
