Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 510

SUPPLEMENTAL RESTRAINT SYSTEM

9J–23

060R200037

SUPPLEMENTAL RESTRAINT SYSTEM

9J–24

Menu

D

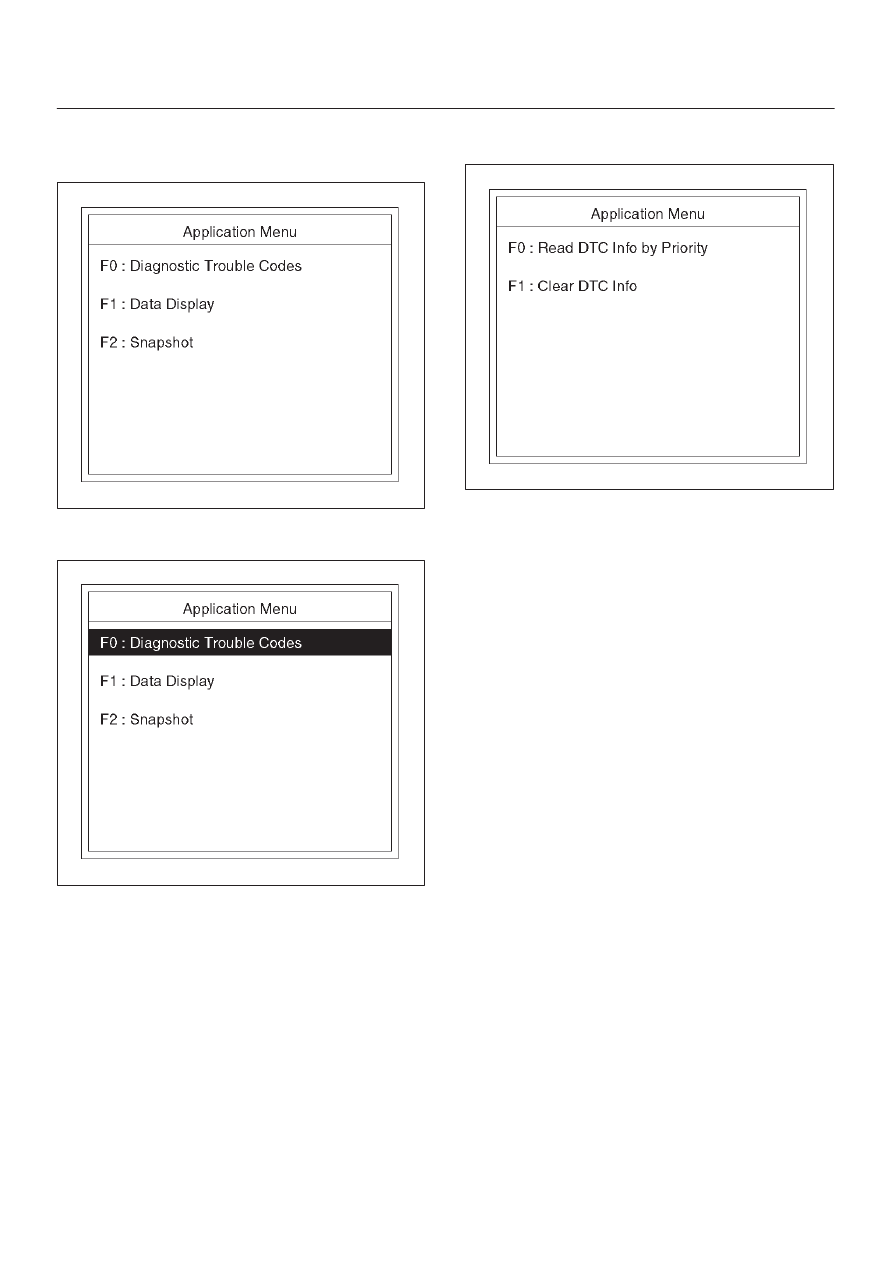

The following table shows which functions are used
for the available equipment versions.

060RY00113

DTC Modes

060RY00114

D

Read DTC info by Priority

D

Clear Info

060RY00115

Plottong Snapshot Graph

This test selects several necessary items from the data
list to plot graphs and makes data comparison on a long
term basis. It is an effective test particularly in emission
related evaluations.
For trouble diagnosis, you can collect graphic data (snap
shot) directly from the vehicle.
You can replay the snapshot data as needed. Therefore,
accurate diagnosis is possible, even though the vehicle is
not available.

SUPPLEMENTAL RESTRAINT SYSTEM

9J–25

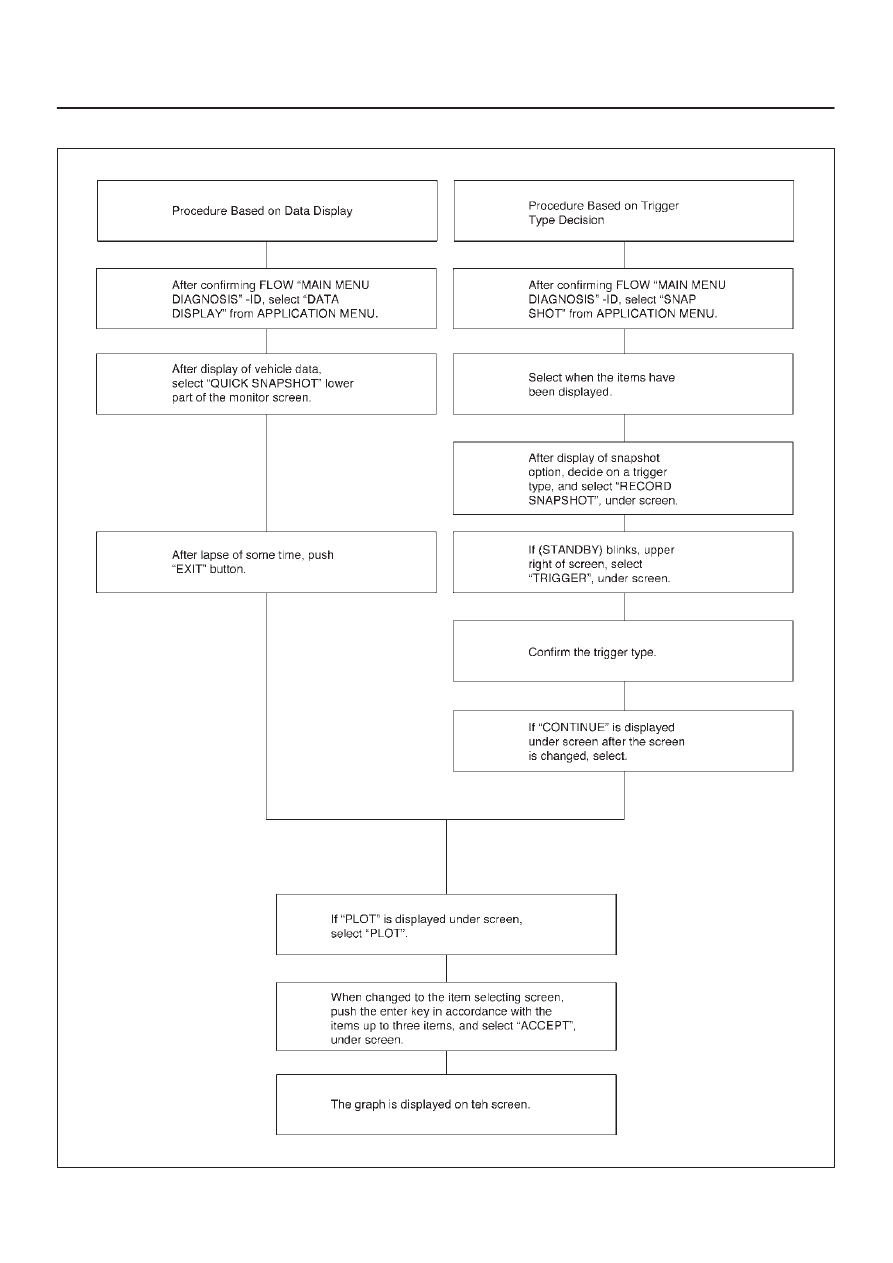

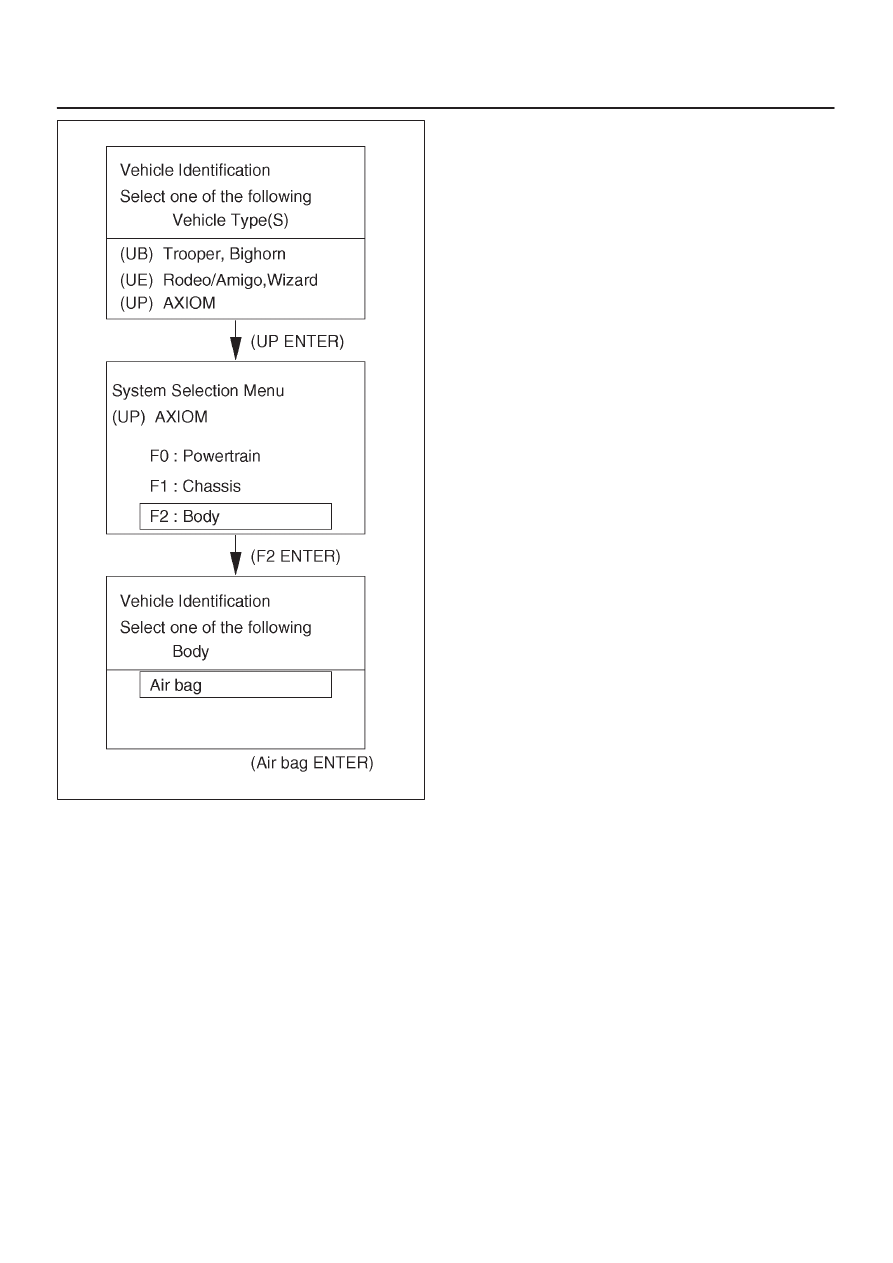

Plotting Graph Flow Chart (Plotting graph after obtaining vehicle information)

060RX041

SUPPLEMENTAL RESTRAINT SYSTEM

9J–26

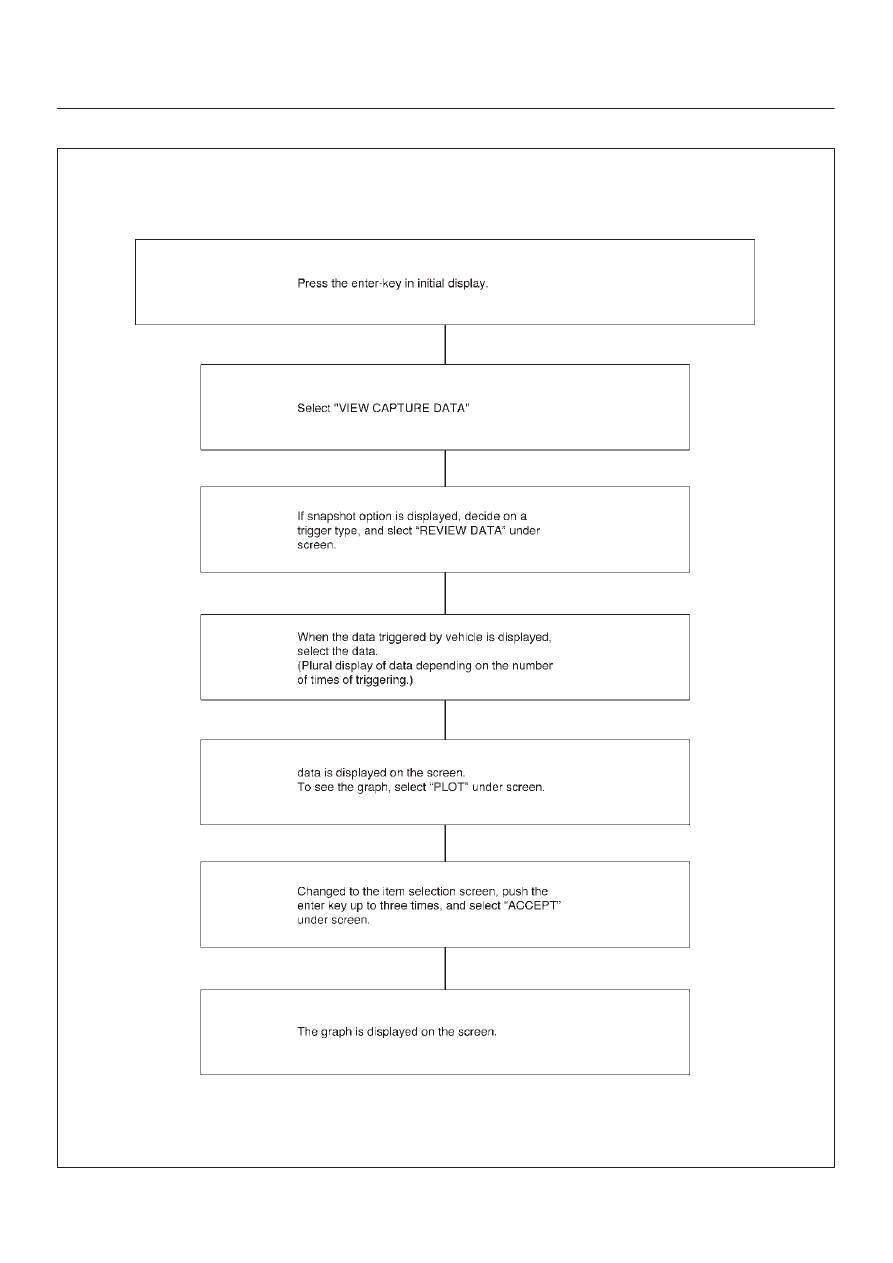

Flow Chart for Snapshot Replay (Plotting Graph)

060RX040
