METER AND GAUGE

8E–7

A/T Shift Indicator Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Pry up the bended portions(2) of the metal cover(1).

821RY00060

8E–8

METER AND GAUGE

3. Remove the meter lense(3) from the meter visor(4).
4. Remove the meter visor from the meter case(5).

821RY00061

5. Remove the meter assembly.

D

Push the metal cover(6) with the screw driver(7).

821RY00062

6. Remove the meter rear cover.
7. Remove the meter circuit board.
8. Remove the A/T shift indicator bulb.

Installation

To install, follow the removal steps in the reverse order.

METER AND GAUGE

8E–9

Vehicle Speed Sensor

Removal

1. Disconnect the battery ground cable.

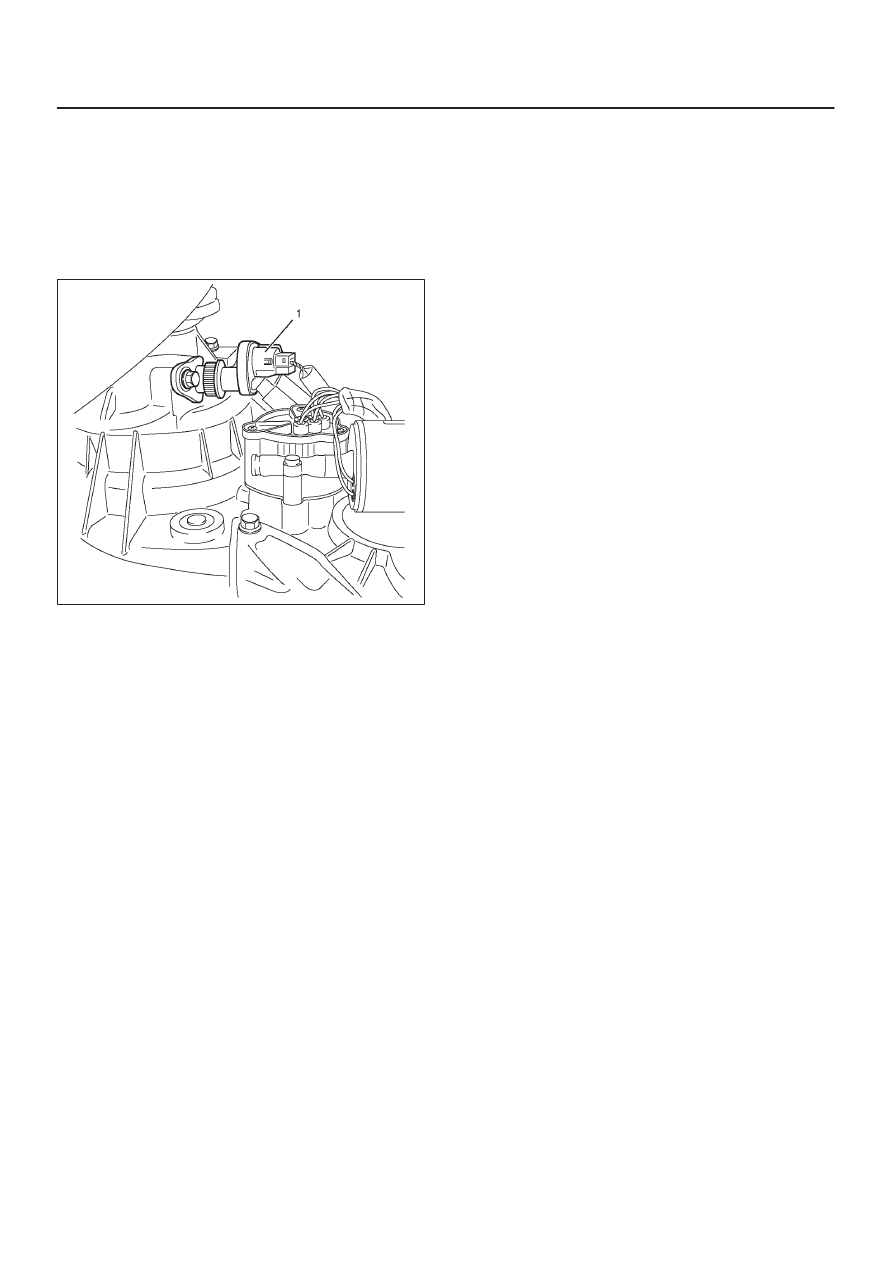

2. Remove the vehicle speed sensor(1).

D

Disconnect the connector.

D

Rotate the sensor counterclockwise.

225R200001

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the vehicle speed sensor to the specified

torque.

Torque: 25 N·m (18 lb ft)

Fuel Tank Unit

Removal

Refer to

Engine Fuel section.

8E–10 METER AND GAUGE

Main Data and Specifications

Torque Specifications

Application

N·m

Lb Ft

Lb In

Vehicle Speed Sensor Fixing

27

20

—
