WIPER/WASHER SYSTEM

8B–3

Windshield Washer Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the fender panel (right side).

D

Refer to

Fender Panel in Body Structure section.

3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

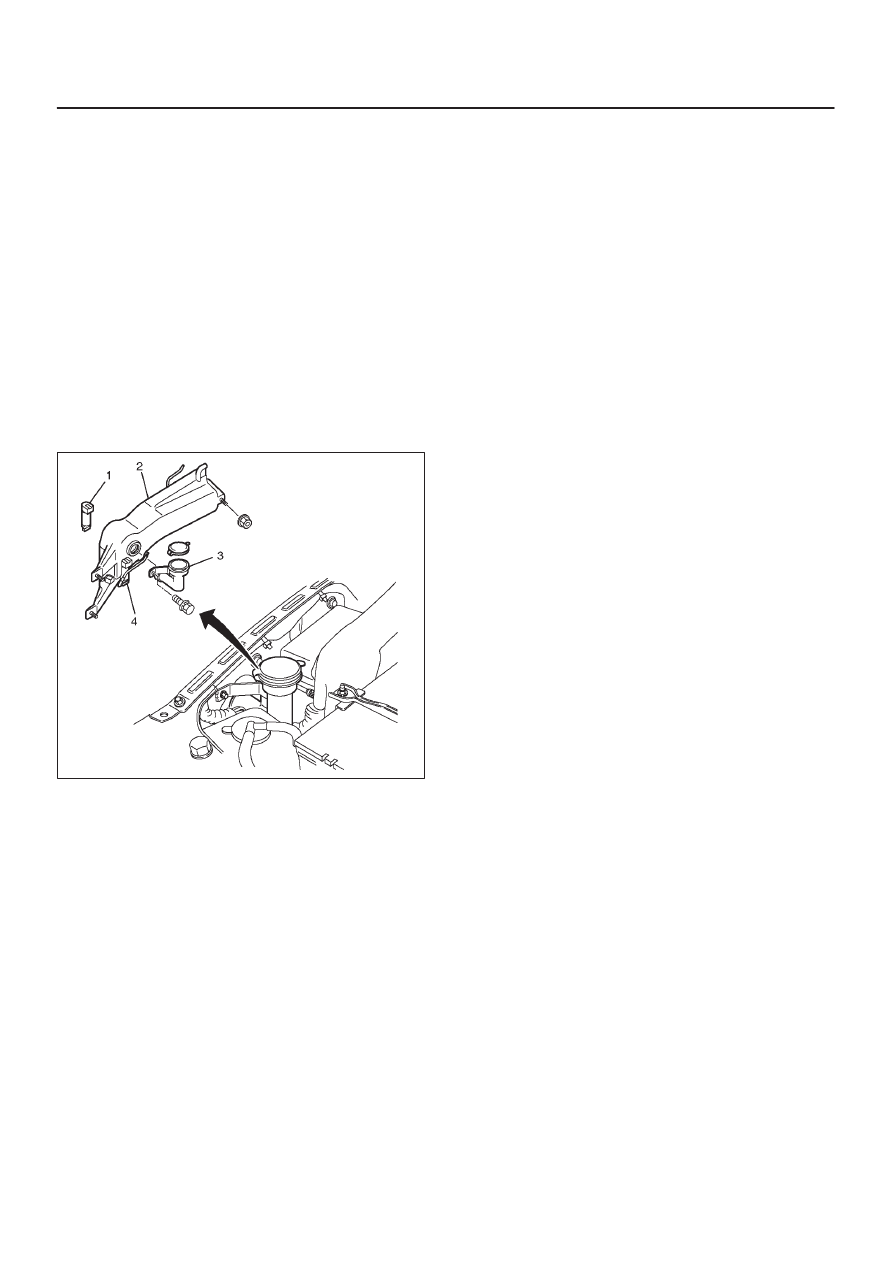

5. Remove the filler neck (3).

D

Remove the bolt.

6. Remove the washer tank (2).

D

Remove the three nuts.

7. Remove the windshield washer motor (4).

D

Pull out the motor from the washer tank.

880R200001

Installation

To install, follow the removal steps in the reverse order.

8B–4

WIPER/WASHER SYSTEM

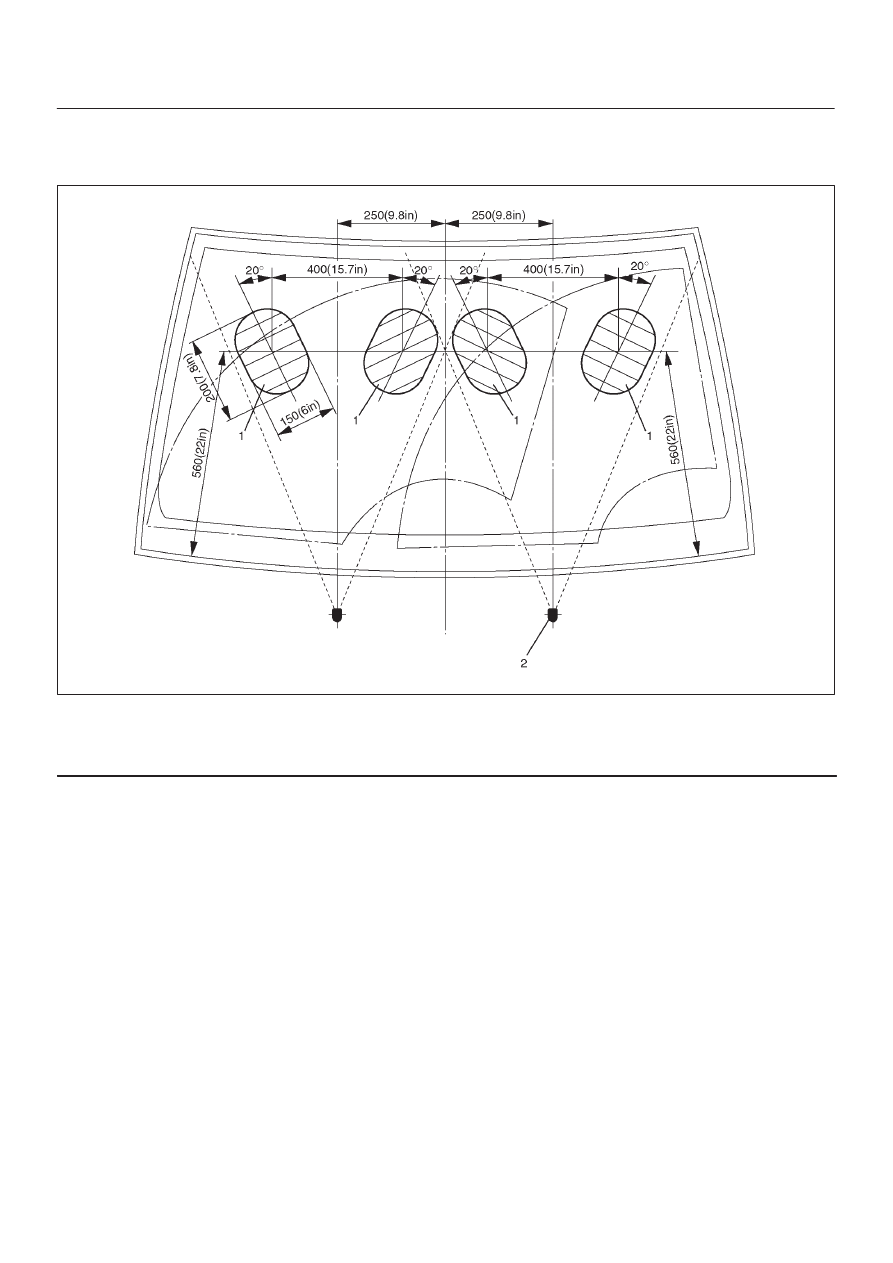

Windshield Washer Spray Pattern

880R200006

Legend

(1) Spray Target
(2) Washer Nozzle

WIPER/WASHER SYSTEM

8B–5

Windshield Wiper Linkage

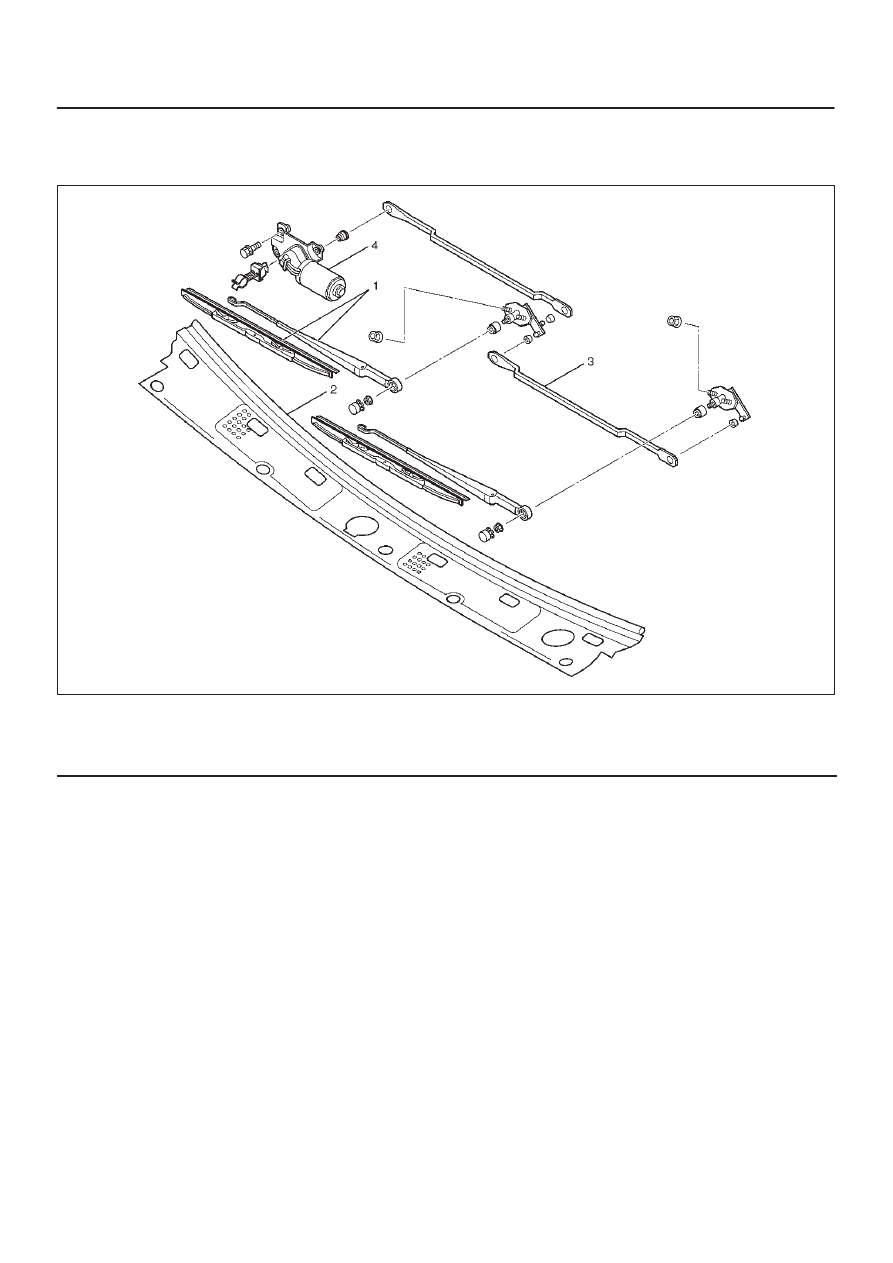

Windshield Wiper Linkage and Associated Parts

880RW004

Legend

(1) Windshield Wiper Arm/Blade
(2) Vent Cowl Cover

(3) Windshield Wiper Linkage Assembly
(4) Windshield Wiper Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the windshield wiper arm/blade.
3. Remove the vent cowl cover.
4. Remove the windshield wiper motor.
5. Remove the pivot assembly mounting nuts.
6. Take out the windshield wiper linkage assembly from

the opening of the cowl.

Installation

To install, follow the removal steps in the reverse order.

8B–6

WIPER/WASHER SYSTEM

Windshield Wiper Arm/Blade

Removal

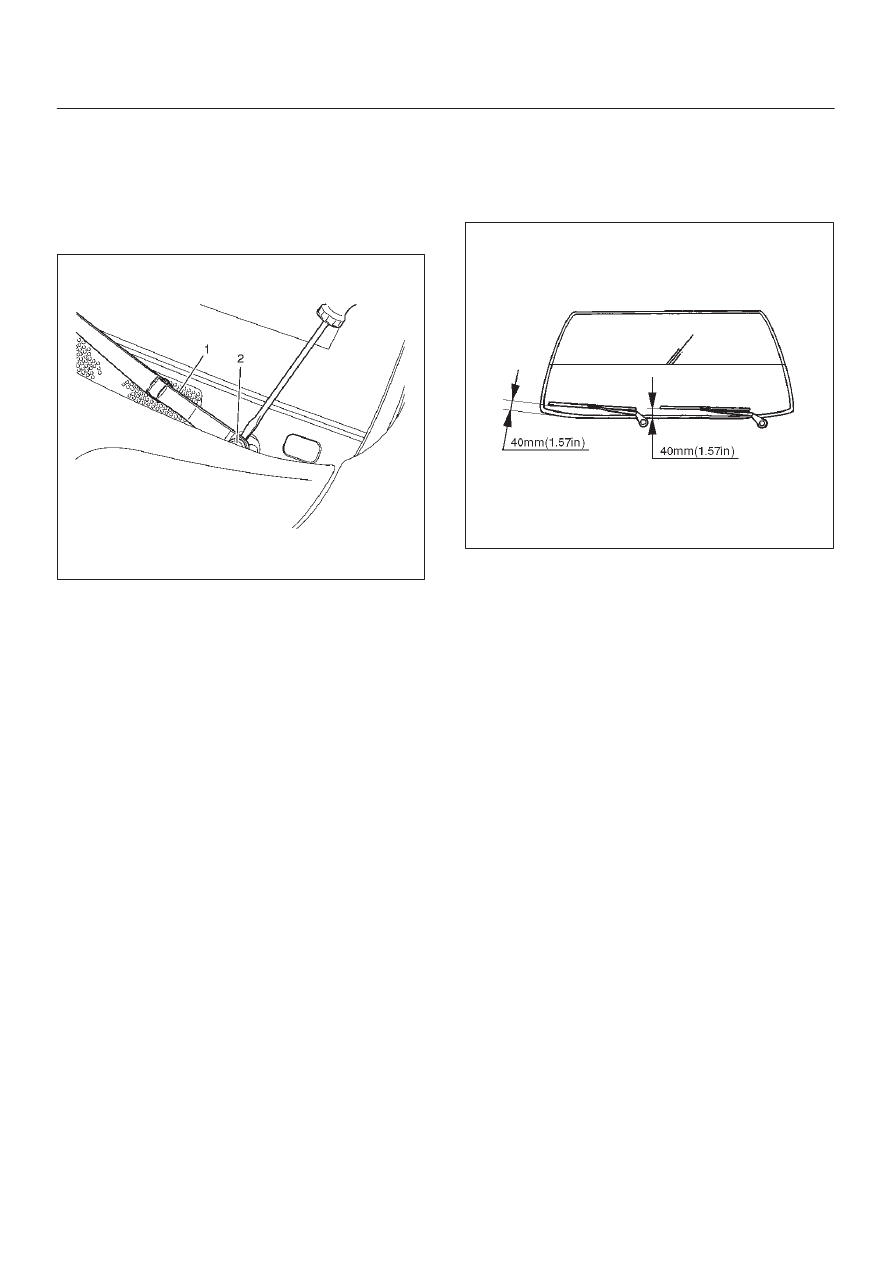

1. Pry the cap(2) off with the tip of a screwdriver.
2. Remove the nut.
3. Remove the wiper arm/blade(1).

880RW003

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

880RW006

1. Before installing the wiper arm/blade to the shaft,

confirm that the motor stops at the autostop position.

2. Set the wiper arm/blade so that the tips of both blades

are positioned about 40 mm (1.57 in) from the upper
edge of the cowl cover as shown in the figure.

3. Tighten the nuts to the specified torque.

Torque: 23 N·m (17 lb ft)
