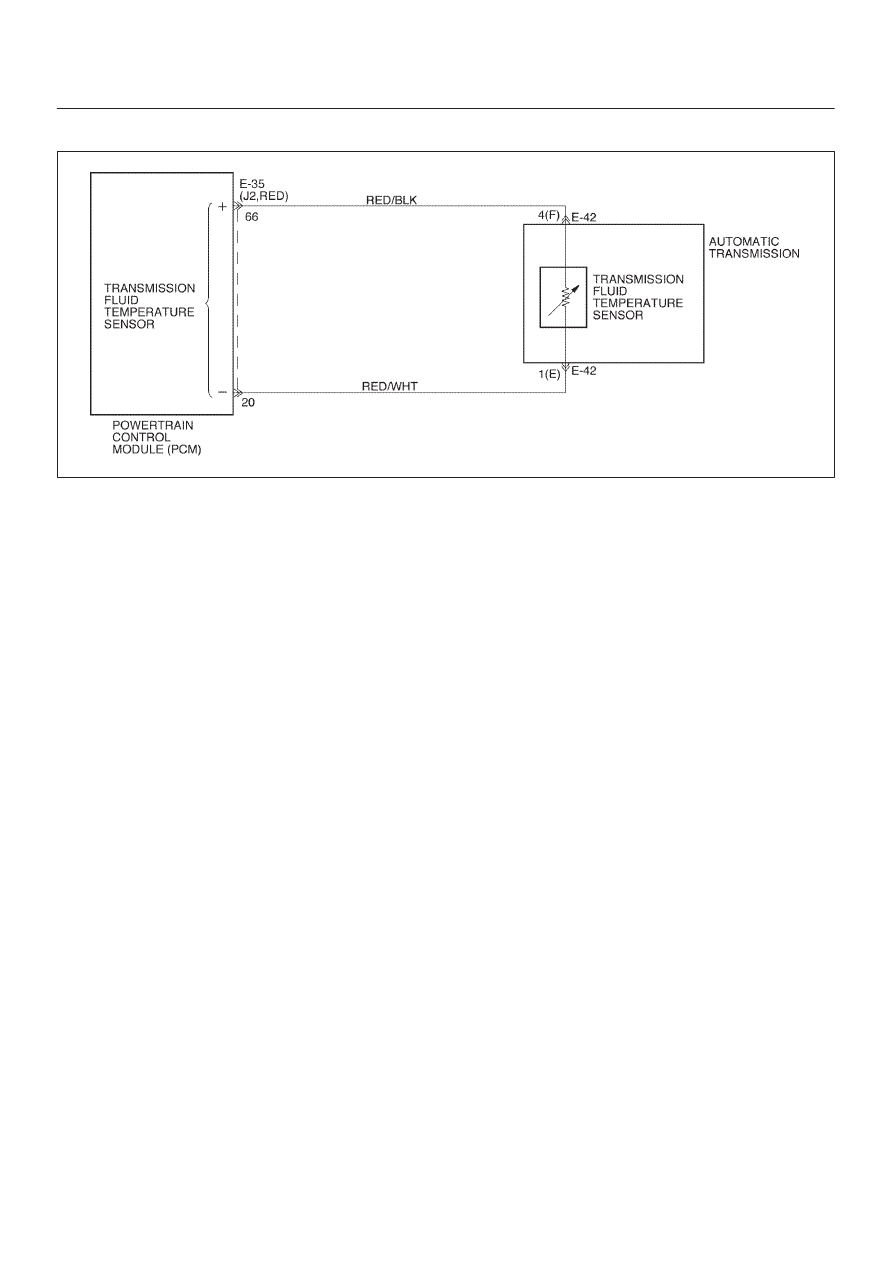

7A1–34 TRANSMISSION CONTROL SYSTEM (4L30–E) D When diagnosing for an intermittent short or open D First diagnose and clear any engine DTCs or TP Test Description The number below refers to the step number on the the 7–way connector. If the voltage increases to DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance Step Action Yes No 1 Was the Powertrain On–Board Diagnostic (OBD) System Check Go to Step 2 Go to OBD System Check Refer to Driveability and Emissions in Engine section 2 Perform the transmission fluid checking procedure. Refer to Did you perform the fluid checking procedure? Go to Step 3 Go to Checking Transmission Fluid Level and Condition in Automatic Transmission (4L30–E) section 3 1. Install the scan tool. position. NOTE: Before clearing DTCs, use the scan tool in order to record 3. Record the DTC Freeze Frame and Failure Records. engine wiring harness from PCM connectors E35–66 and Does the TFT change by more than ± 20 ° C (36 ° F)? Go to Step 6 Go to Step 4 4 1. Turn the ignition “off”. connector E–42. 4. Using the J39200 DVOM and J35616 Connector Test Adapter Kit, connect the DVOM leads from terminal E42–4(F) to 5. Set the DVOM on MIN/MAX to measure resistance. assembly from the PCM to the TFT sensor connector. Does the DVOM MAX display a resistance greater than the value Go to Step 7 Go to Step 5 5 Does the DVOM MIN display a resistance less than the value Go to Step 8 — 6 Inspect circuit RED/BLK and RED/WHT of the engine wiring Did you find a problem? Go to Step 12 Go to Step 11 |
