7A–37

AUTOMATIC TRANSMISSION (4L30–E)

Transmission Assembly

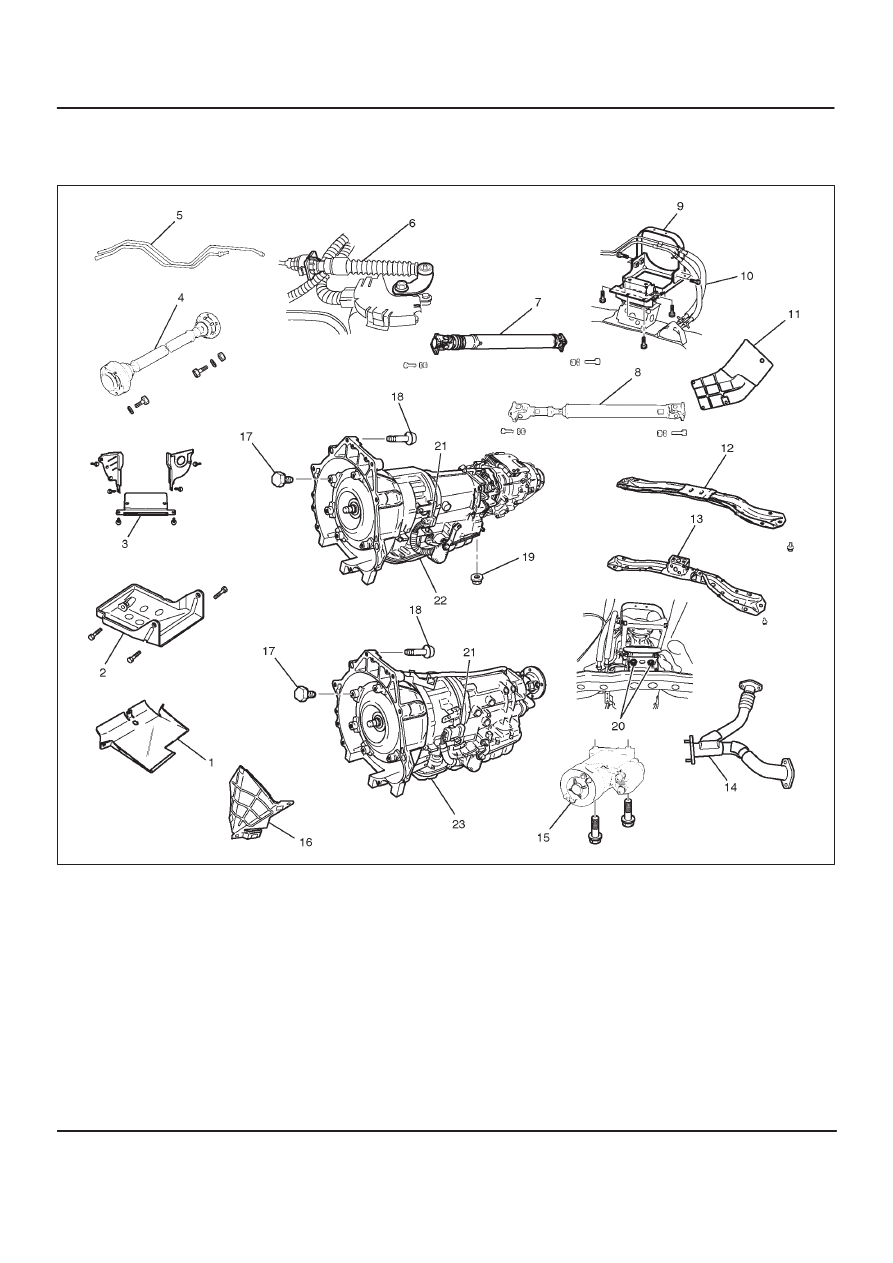

Transmission and Associated Parts

240R200005

Legend

(1) Fairing Plate
(2) Transfer Protector (4

×

4)

(3) Under Cover
(4) Front Propeller Shaft (4

×

4)

(5) Transmission Oil Cooler Pipe
(6) Select Cable
(7) Rear Propeller Shaft (4

×

2)

(8) Rear Propeller Shaft (4

×

4)

(9) Rear Mount Rubber and Propeller Protector

Assembly (4

×

2)

(10) Fuel Pipe

(11) Fuel Pipe Heat Protector

(12) Third Crossmember (4

×

4)

(13) Third Crossmember (4

×

2)

(14) Center Exhaust Pipe (4

×

4)

(15) Starter
(16) Harness Heat Protector
(17) Torque Converter Bolt
(18) Engine-Transmission Bolt
(19) Rear Mount Nut (4

×

4)

(20) Rear Mount Nut (4

×

2)

(21) Harness Connector
(22) Transmission Assembly with Transfer

Assembly (4

×

4)

(23) Transmission Assembly (4

×

2)

7A–38

AUTOMATIC TRANSMISSION (4L30–E)

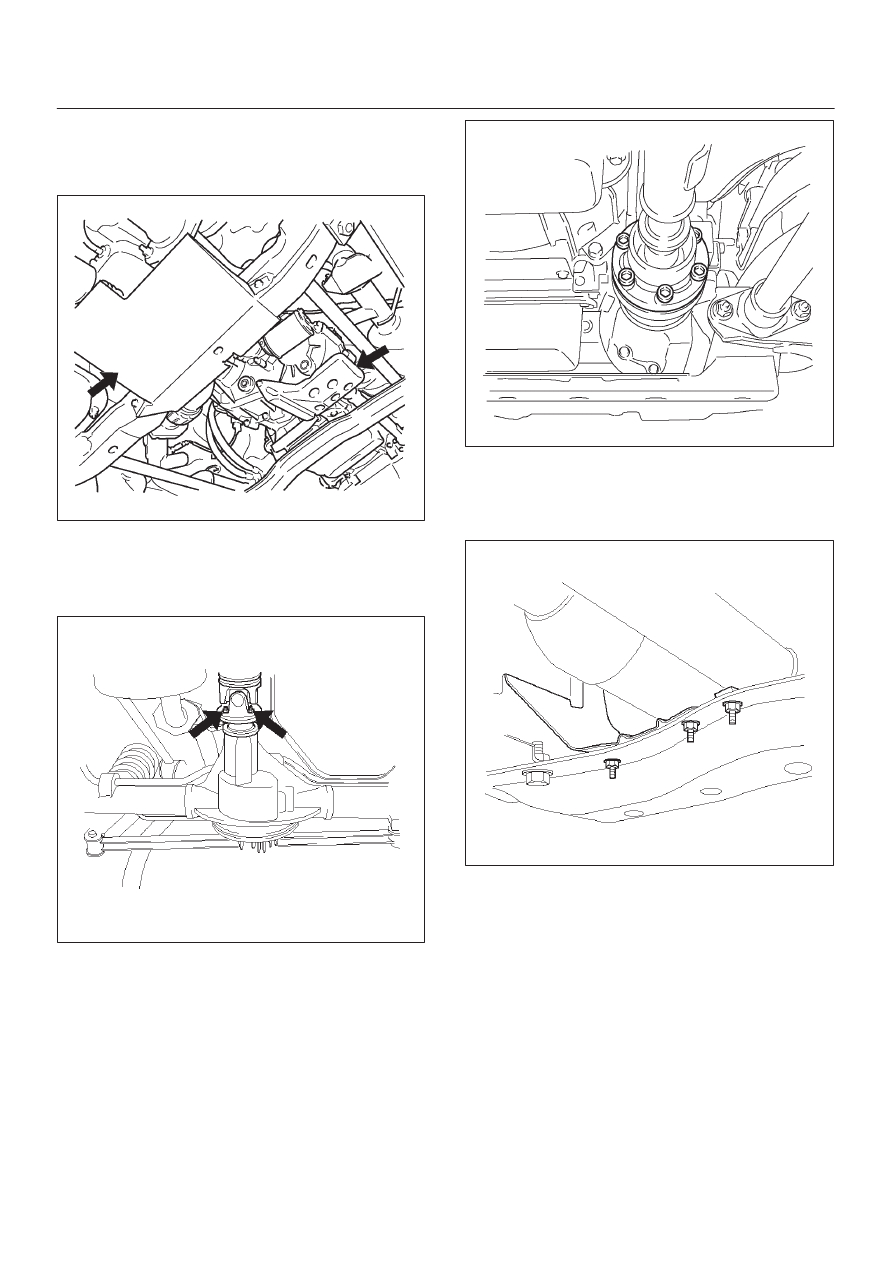

Removal

1. Disconnect battery ground cable.
2. Remove transfer protector (4

×

4) and fairing plate.

150R200001

3. Remove rear propeller shaft and front propeller shaft

(4

×

4).

NOTE: Apply alignment marks on the flange at both front
and rear sides.

401RW008

401R200008

4. Remove center exhaust pipe (4

×

4).

5. Remove fuel pipe heat protector and clip from third

crossmember.

6. Disconnect fuel pipe bracket from third crossmember.

141RW004

7A–39

AUTOMATIC TRANSMISSION (4L30–E)

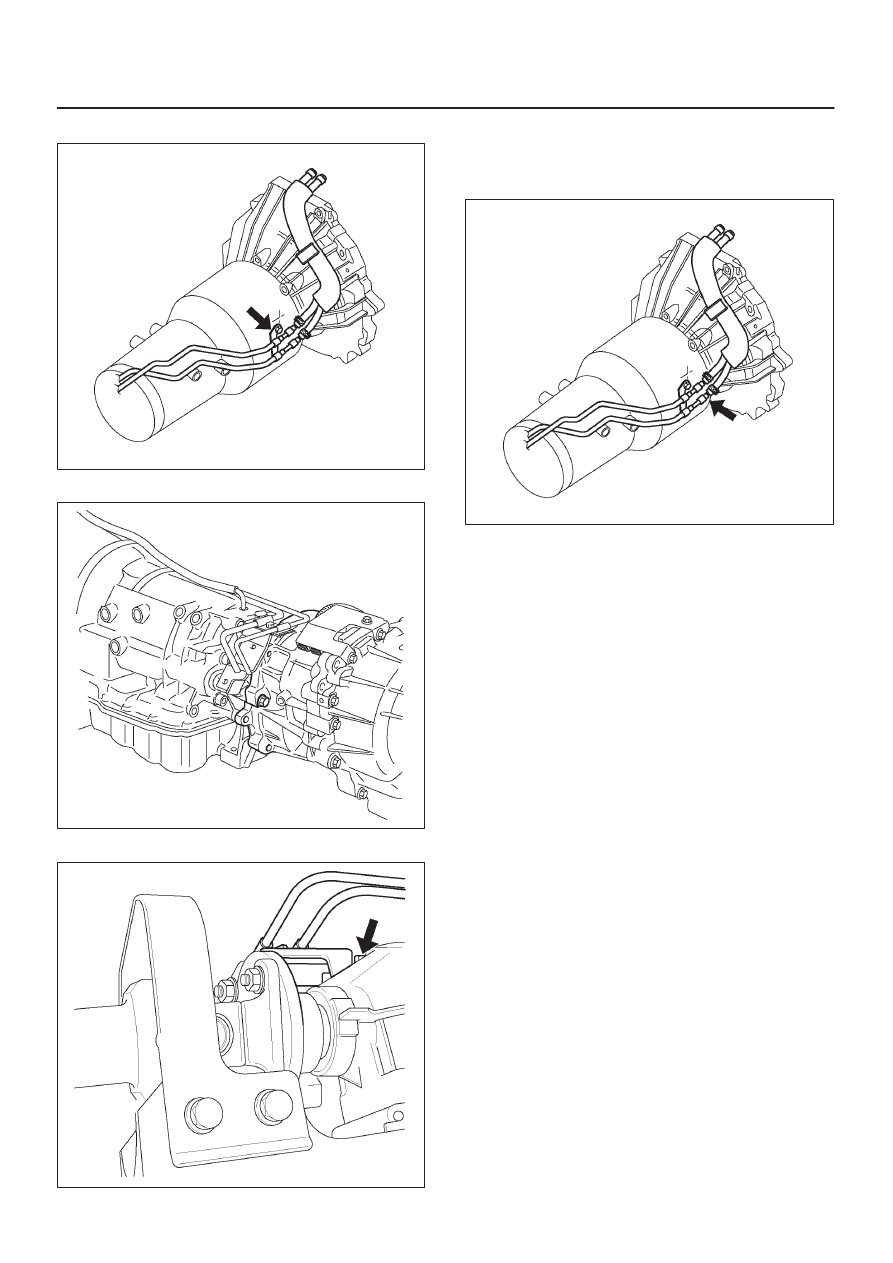

7. Disconnect fuel pipe bracket from transmission side.

141R200003

(4

×

4)

240R200010

(4

×

2)

141R200002

Fuel hose connector removal procedure
If removal of the fuel hose connector is required for
transmission servicing and/or replacement, follow the
steps below.

141R200001

NOTE:

D

An O-ring is used as a seal between the fuel pipe and
the connector. Take care not to damage the contact
surfaces during the removal procedure. Do not allow
the surface to become contaminated with dirt or other
foreign material.

D

Perform the entire removal procedure with your
hands. Do not use tools.

7A–40

AUTOMATIC TRANSMISSION (4L30–E)

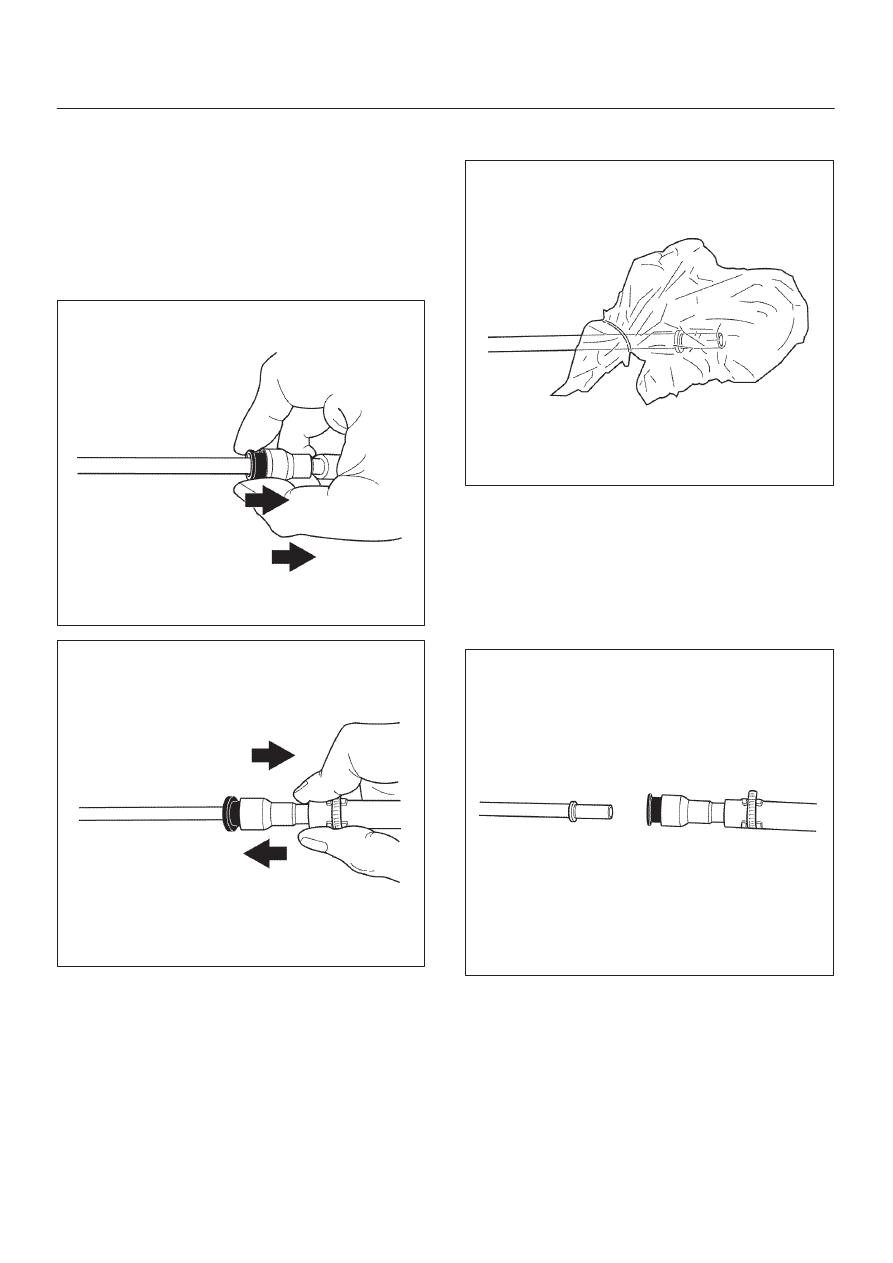

1. Separating the connector and fuel pipe

1. Clean the fuel pipe and connector to remove

mud and other dirt.

2. Pull the black plastic piece toward the

connector. Hold the piece near the connector.
Pull the connector from the fuel pipe.

If the connector and fuel pipe are stuck togeth-
er, jiggle the connector back and forth to loosen
the connector. Do not yank the connector from
the fuel pipe.

141RY00002

141RY00003

3. Tie a vinyl bag around the connector and fuel

pipe to protect them from dirt.

141RY00004

2. Joining the connector and fuel hose

1. Remove the vinyl bag from the connector and

fuel hose. Check that the contact surfaces are
undamaged and free of dirt and other foreign
material. Clean if necessary.

2. Align the axis of the fuel pipe and connector.

Push the connector into the fuel pipe until a
distinct click is heard.

141RY00005
