6E–98
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

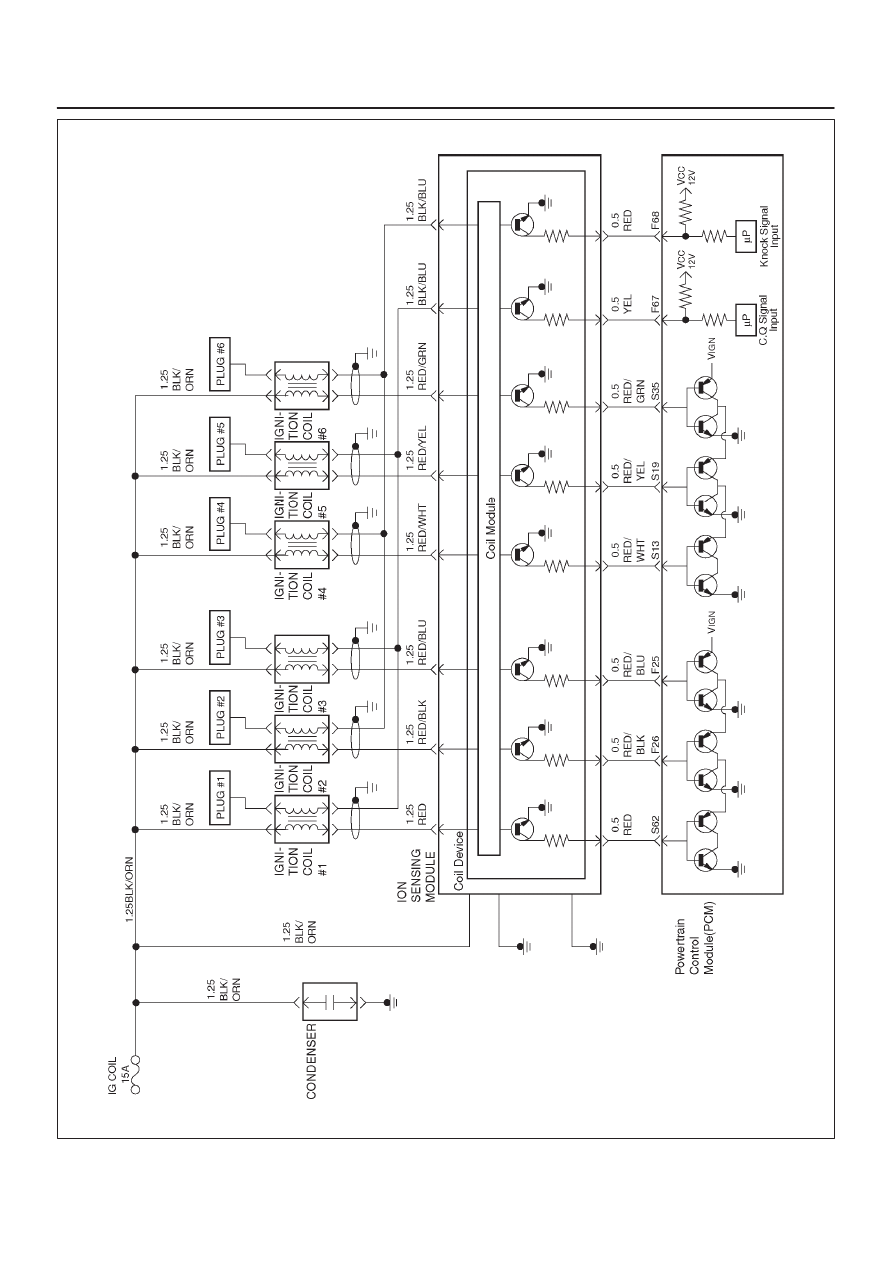

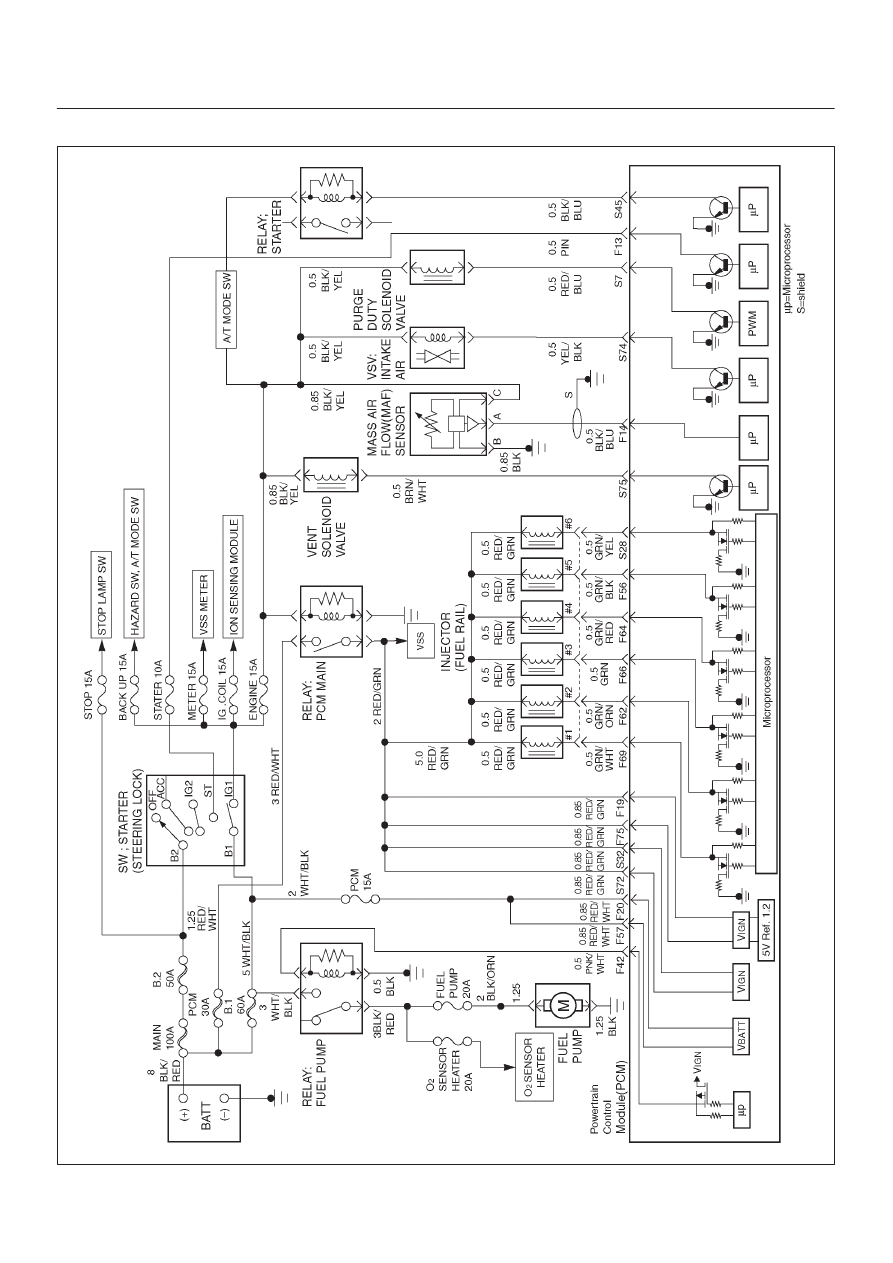

Starter Control System Check
(Cont'd)
Step
No
Yes
Value(s)
Action
16
Repair the circuit as necessary.
Is the action complete?
—
Verify repair
—
17
Check the starter signal circuit.
1. Remove the starter fuse (10A).
2. Disconnect the PCM.
3. Check the circuit between Powertrain Control
module (PCM) and starter fuse.
Is the problem found?
—
Go to
Step 18
Go to
Step 19
18
Repair the circuit as necessary.
Is the action complete?
—
Verify repair
—
19
Check the “park or neutral” signal circuit.
1. Remove the starter relay.
2. Disconnect the PCM.
3. Check the circuit between PCM and starter relay.
Is the problem found?
—
Go to
Step 20
Go to
Step 21
20
Repair the circuit as necessary.
Is the action complete?
—
Verify repair
—
21
Check the “park or neutral” signal circuit.
1. Remove the starter relay.
2. Disconnect the MODE switch.
3. Remove the engine (15A) fuse and back up (15A)
fuse.
4. Check the circuit between MODE switch and starter
relay.
5. Check the circuit between MODE switch and engine
fuse.
6. Check the circuit between MODE switch and PCM.
7. Check the circuit between MODE switch and back
up fuse.
Is the problem found?
—
Go to
Step 22
Go to
Step 23
22
Repair the circuit as necessary.
Is the action complete?
—
Verify repair
—
23
Check the MODE switch. Refer to
4L30E Automatic
transmission.
Is the problem found?
Go to
Step 24
Go to
Step 25
24
Replace the MODE switch.
Is the action complete?
—
Verify repair
—
25
Check the starter motor. Refer to
Section 6D Engine
Electrical.
Is the problem found?
Go to
Step 26
Go to
Step 28
26
Replace the starter motor.
Is the action complete?
—
Verify repair
—
