9J1–3

RESTRAINT CONTROL SYSTEM

“Flash Code” Diagnostics

Flash code diagnostics can be used to read current codes
and to determine if history codes are present but cannot
be used to clear codes or read history codes. Flash code
diagnostics is enabled by grounding by terminal 13
shorting to terminal 4 of the DLC with the ignition switch
“ON”. Grounding terminal 13 of the DLC pulls the
“Diagnostics Request” input (Terminal 1) of the SDM low
and signals the SDM to enter the flash code diagnostic
display mode.
The SDM displays the trouble codes by flashing the
warning lamp. Each code that is displayed will consist of a
number of flashes which represents the tens digit, a 1.2
second pause, following by a number of flashes which
represents the ones digit of the code. Each code is
displayed one time before moving on to the next code.
After all of the codes have been displayed, the entire code
sequence will continually by repeated until ground is
removed from terminal 13 of the DLC.
Two special codes exist when reading in the flash code
mode (Flash Code 12 and Flash Code 13).  “Flash Code
12” will always be the first code displayed when the flash
code mode is enabled Code 12 is not an indication of a
SRS problem but an indication that the flash code mode
has been enabled.  If there are no current or history codes
present, the SDM will display code 12 until ground is
removed from the DLC at terminal 13.  “Flash Code 13”
will be displayed if there are history codes.  To read the
history codes, a scan tool must be used.

RESTRAINT CONTROL SYSTEM

9J1–4

Tech 2 Scan Tool

From 2001 RODEO (UE), dealer service departments
are recommended to use Tech 2. Please refer to Tech 2
scan tool user guide.

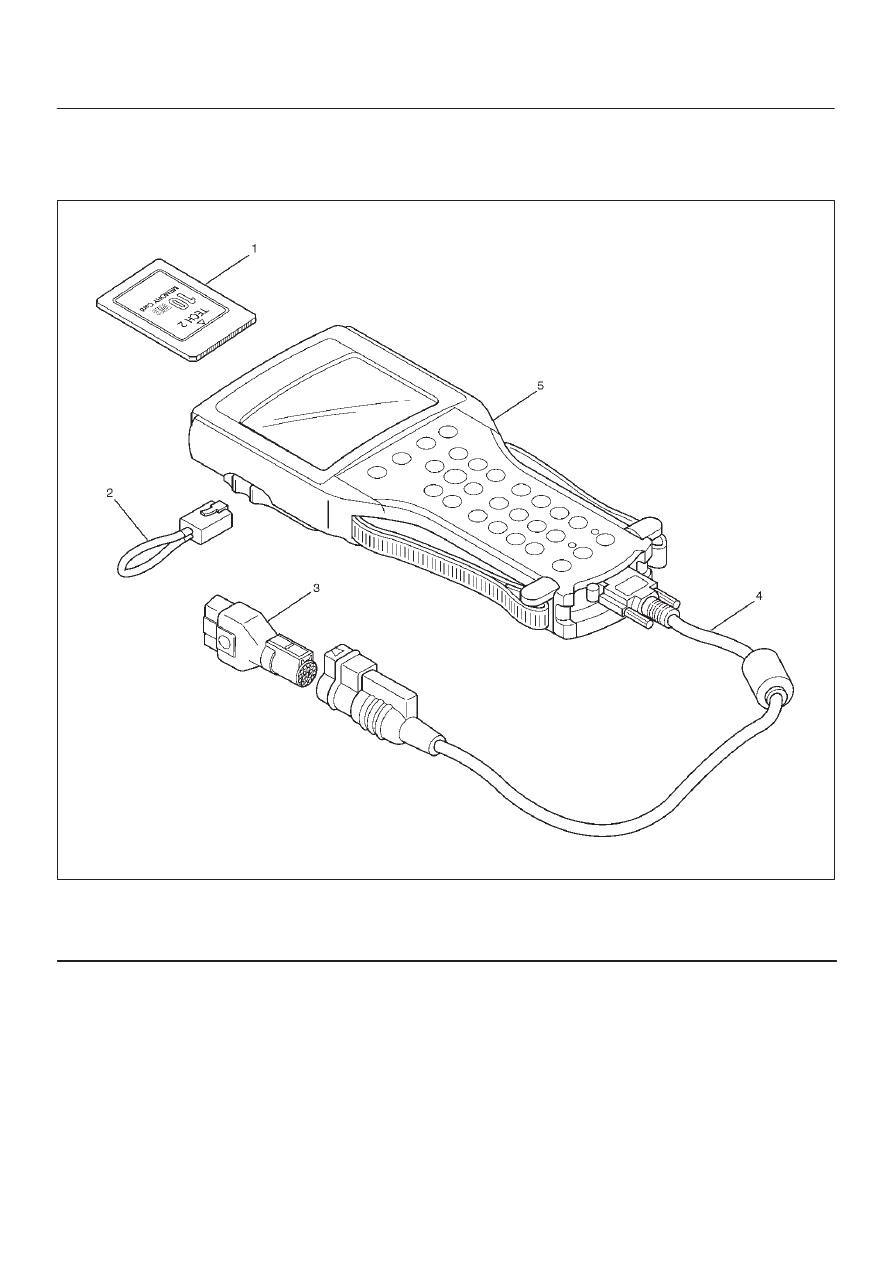

901RW180

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adaptor
(4) Data Link Connector (DLC) Cable
(5) Tech–2

Getting Started

D

Before operating the Isuzu PCMCIA card with the
Tech 2, the following steps must be performed:

1. The Isuzu 2001 MY System PCMCIA card (1) inserts

into the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC cable

(4).

3. Connect the DLC cable to the Tech 2 (5)
4. Mark sure the vehicle ignition is off.

9J1–5

RESTRAINT CONTROL SYSTEM

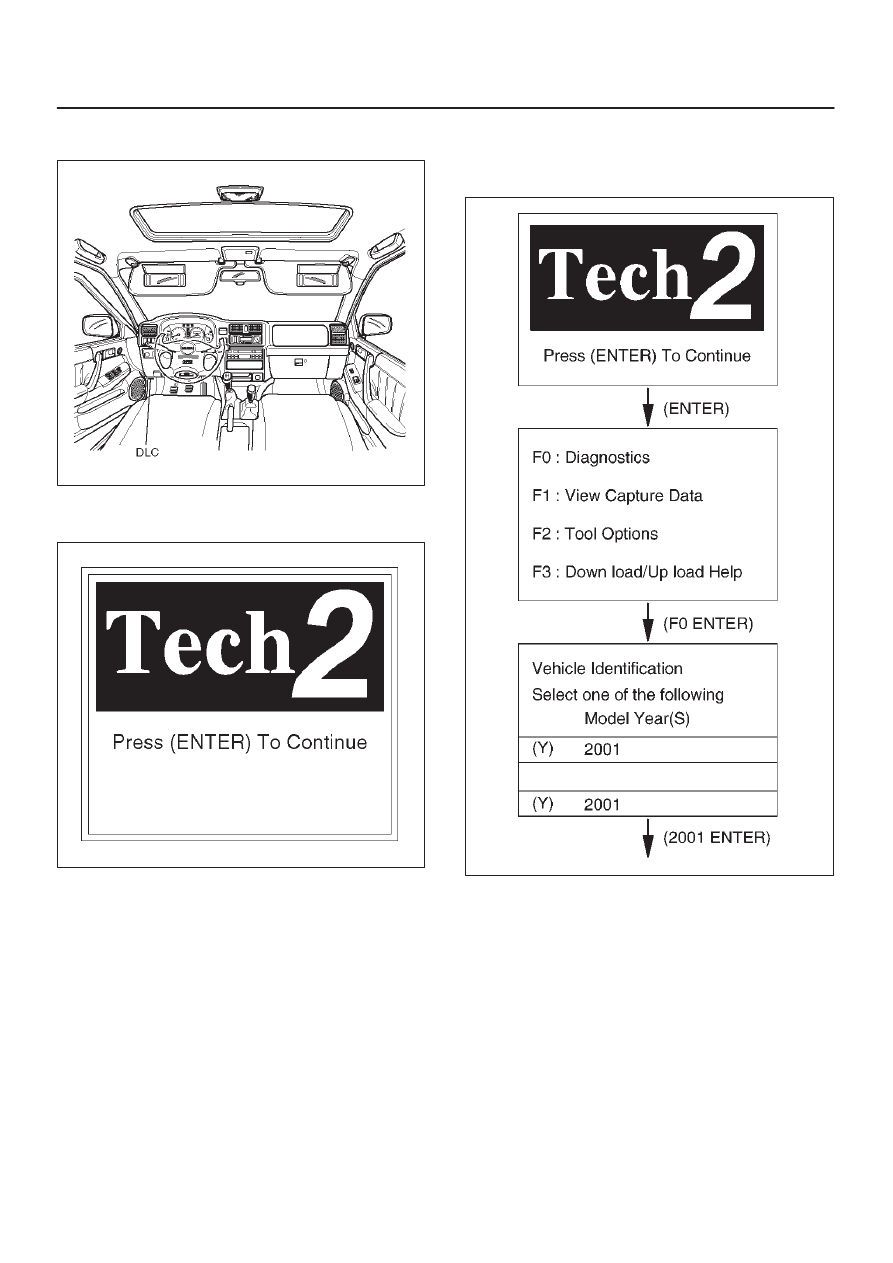

5. Connect the Tech 2 SAE 16/19 adapter to the vehicle

Data Link Connector (DLC).

740RW060

6. The vehicle ignition turns on.
7. Verify the Tech 2 power up display.

060RW009

NOTE: The RS232 loop back connector is only to use for
diagnosis of Tech 2 and refer to user guide of the Tech 2.

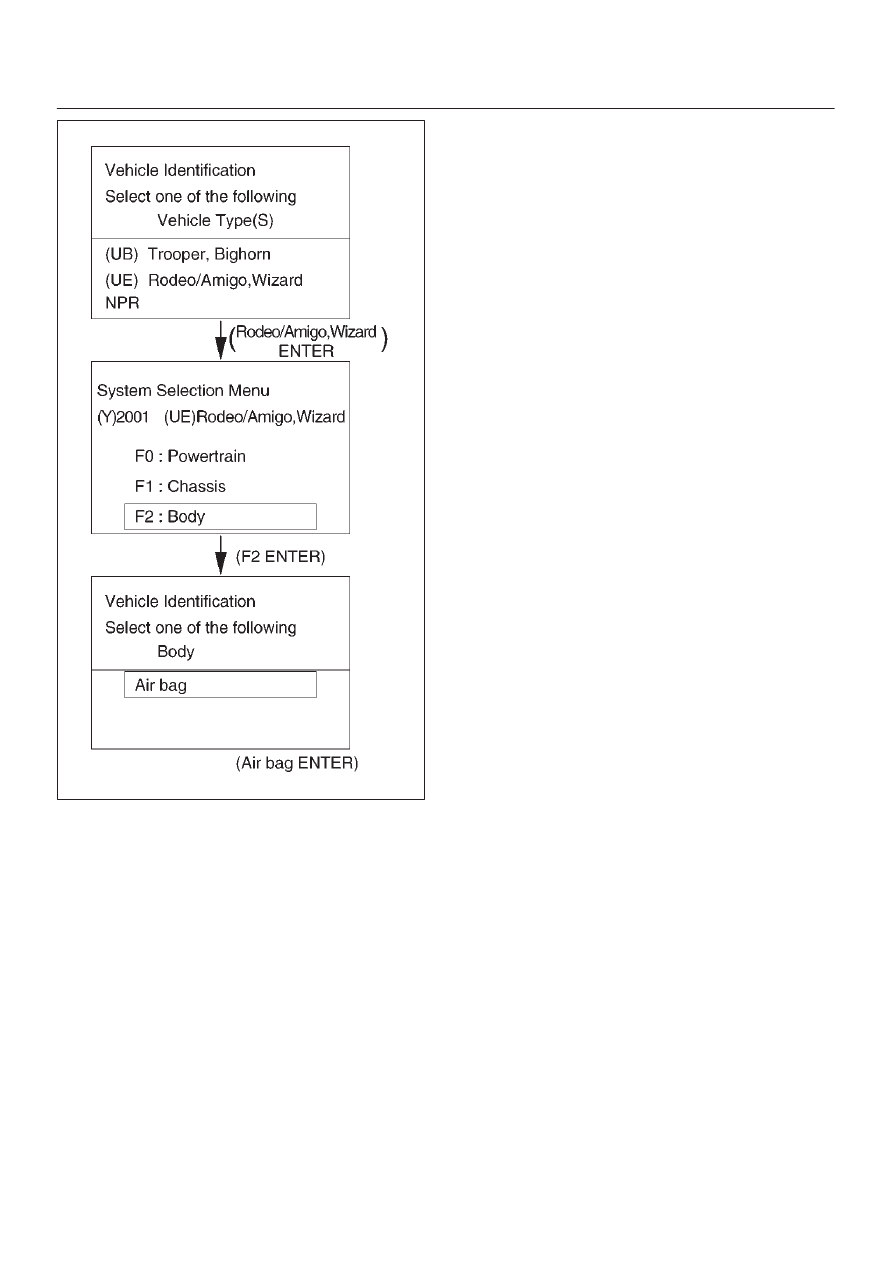

Operating Procedure
The power up screen is displayed when you power up the
tester with the Isuzu systems PCMCIA card. Follow the
operating procedure below.

060R100049

RESTRAINT CONTROL SYSTEM

9J1–6

060R100050
