EXTERIOR/INTERIOR TRIM

8J–27

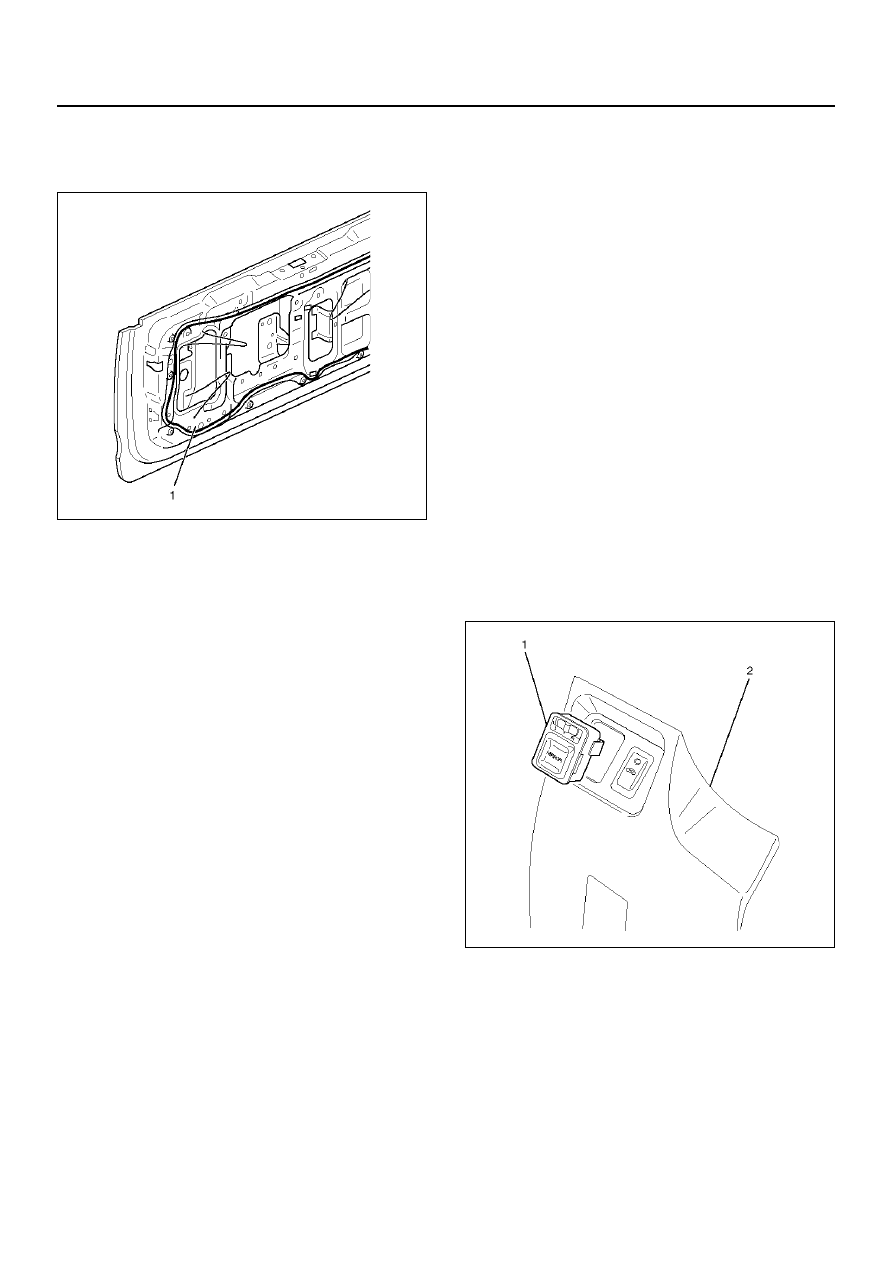

4. Remove the waterproof sheet (1).

• Carefully remove the waterproof sheet not to

brake it.

681R100001

5. Remove the license plate garnish asm.

• Remove the a screw on the upper side.

• Remove the two fixed nuts from the inside of the

tailgate and remove the three clips by pushing the
tip of the clips with a screwdriver.

Installation

To install, follow the removal steps in the reverse order.

Power Door Mirror System

General Description

The system consists of the starter switch, door mirror
switch, rear defogger/mirror defogger switch and door
mirrors on both sides.
When the door mirror switch is operated with the starter
switch at either “ACC" or “ON" position, the motor in the
door mirror (on either side) rotates to allow the
horizontal and vertical adjustment of mirror angles.
When the rear defogger/mirror defogger switch is turned
“ON" with the starter switch “ON", the heater of the left
and right mirrors and the tailgate glass are activated.

Door Mirror Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the instrument panel lower cover (2).

Refer to the instrument panel assembly in Body
Structure section.

3. Remove the door mirror switch (1).

825RW094

Rear Defogger/Mirror Defogger Switch

Refer to the Rear Defogger/Mirror switch removal and
installation steps in Lighting System section.

Door Mirrors

Refer to Door Mirror Assembly in this section.

8J–28

EXTERIOR/INTERIOR TRIM

Power Window System

General Description

The power window system consists of power window
switches and power window motors on driver and
passenger sides and power window relay.  With the
starter switch in “ON" position, the battery voltage is
supplied through power window relay to the power
window switches on driver and passenger sides.
Selection of up or down switch changes the motor
rotating direction to open or close the window.
When the power window “LOCK" switch on the driver
side is pressed, the power source for the other switches
are disconnected causing the power window operation
to seize.

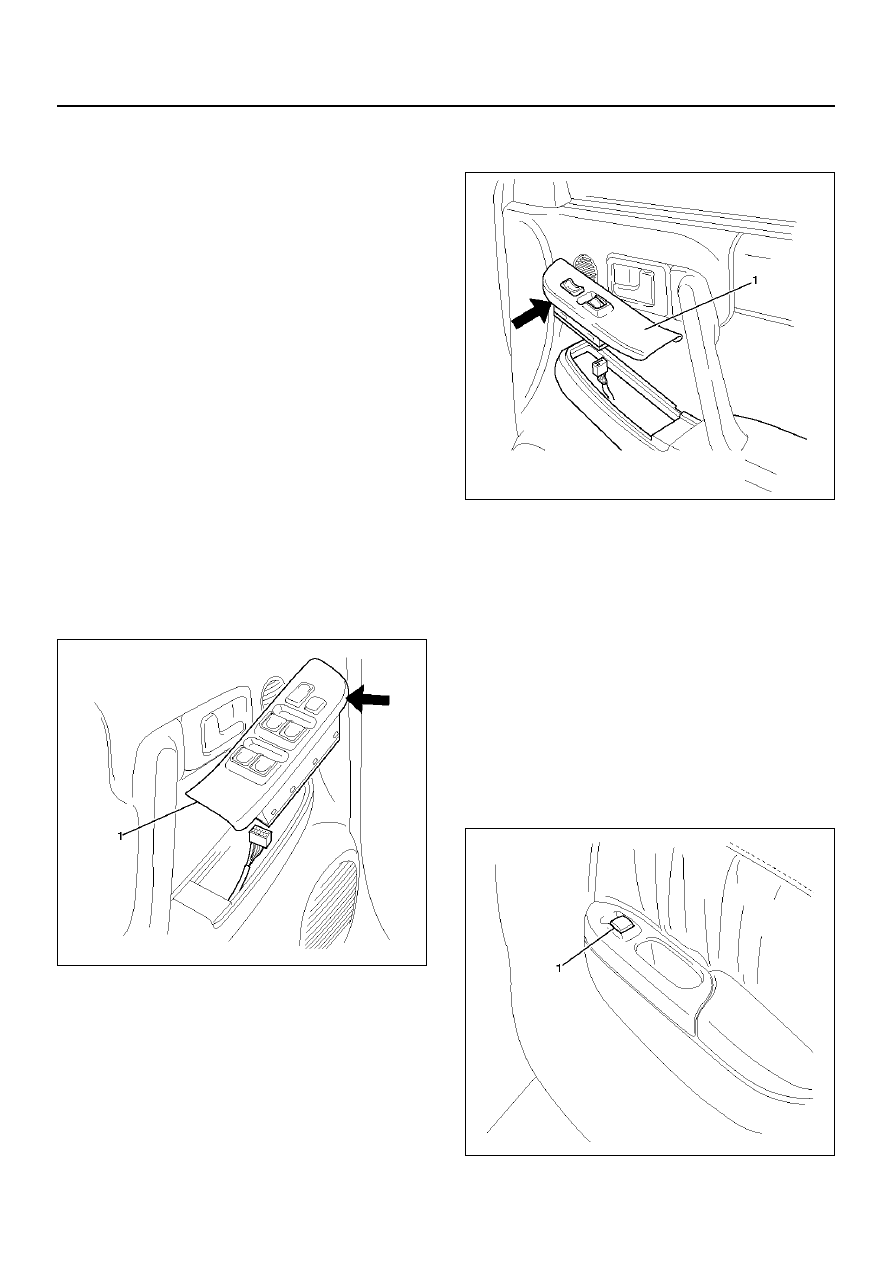

Power Window Switch Driver Seat
Side

Removal

1. Disconnect the battery ground cable.

2. Remove the switch (1).

• Pull out the switch by pushing the spring with the

tip of a screwdriver.

• Disconnect the connector.

825RW080

Installation

To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.

2. Remove the switch (1).

• Pull out the switch by pushing the spring with the

tip of a screwdriver.

• Disconnect the connector.

825RW097

Installation

To install, follow the removal steps in the reverse order.

Rear-Left and Right Sides

Removal

1. Disconnect the battery ground cable.

2. Remove the rear door trim pad (2).

• Refer to the Rear Door Trim Pad removal steps in

Exterior/Interior Trim section.

• Disconnect the rear power window switch (1)

connector.

3. Remove the rear power window switch (1).

• Remove the switch fixing screw from the back

side of the rear door trim (2).

825RW081

EXTERIOR/INTERIOR TRIM

8J–29

825RW079

Installation

To install, follow the removal steps in the reverse order.

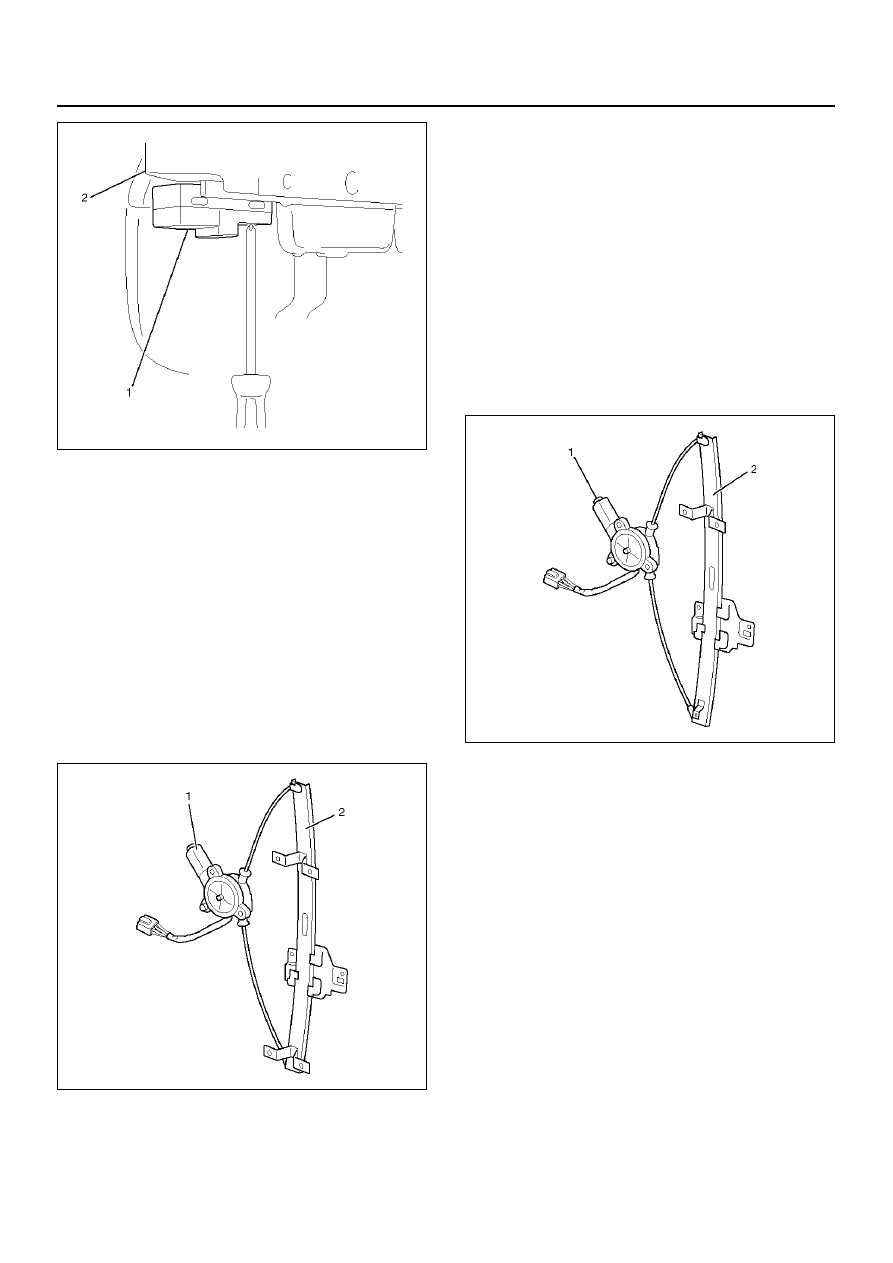

Power Window Motor

Driver Seat Side

Removal

1. Disconnect the battery ground cable.

2. Remove the window regulator assembly (2).

• Refer to the Window Regulator and Glass

removal steps in Body Structure section.

3. Remove the power window motor (1).

• Remove three screws.

825RW096

Installation

To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal and Installation

Refer to the Front Window Motor — Driver Seat side
removal and installation steps in this section.

Rear-Left Side

Removal

1. Disconnect the battery ground cable.

2. Remove the rear window regulator assembly (2).

• Refer to the Rear Window Regulator and Glass

removal steps in Body Structure section.

3. Remove the power window motor (1).

• Remove three screws.

825RW095

Installation

To install, follow the removal steps in the reverse order.

Rear-Right Side

Removal and Installation

Refer to the Rear Power Window Motor — Left Side
removal and installation steps in this section.

8J–30

EXTERIOR/INTERIOR TRIM

Main Data and Specifications

Torque Specifications

Application

N·m

lb ft

lb in

Front & Rear Seat Belt A nchor Bolts

39

29

—

Roof Rail Fixing Bolts

8

—

69
