8C–8

ENTERTAINMENT

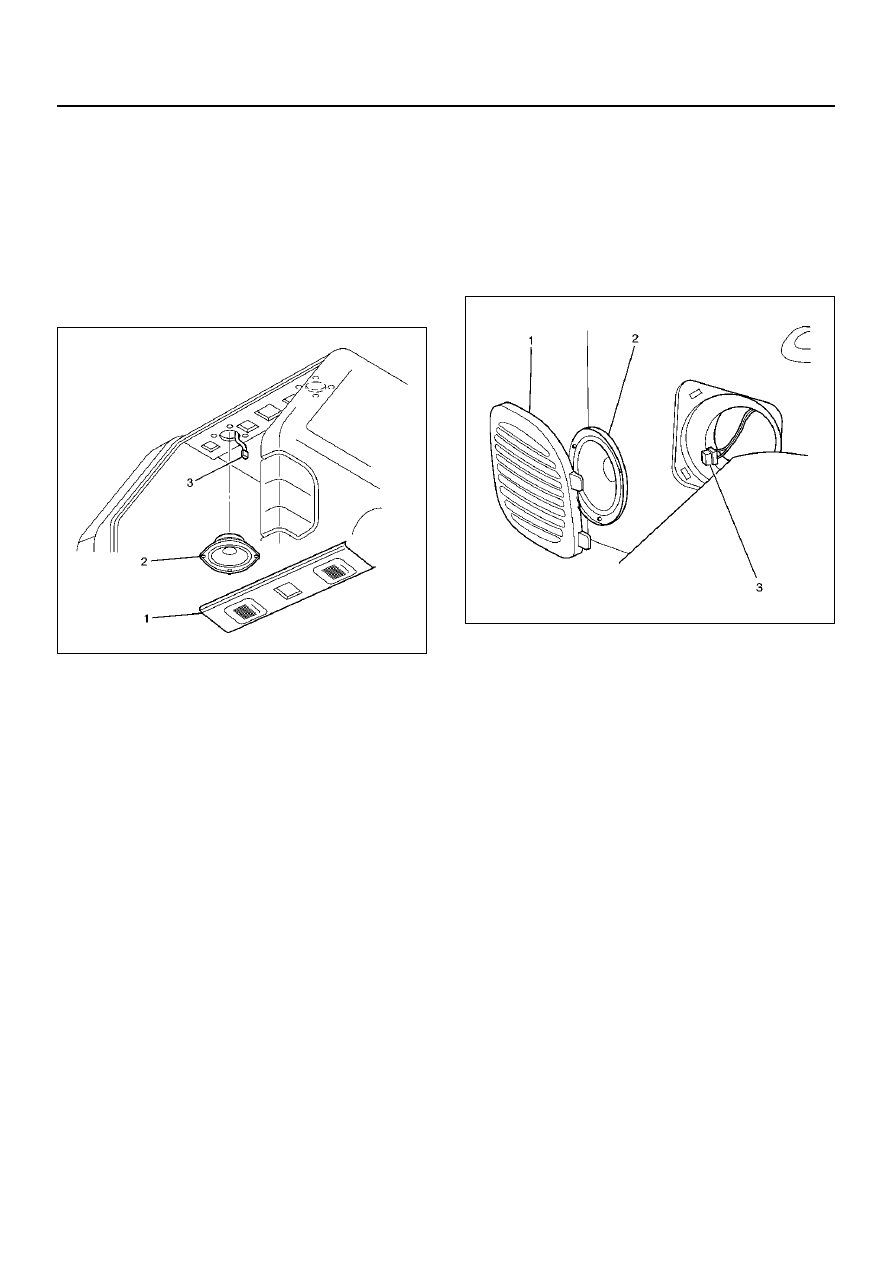

Rear Speaker (LWB)

Removal

1. Disconnect the battery ground cable.

2. Remove the roof rear lining (1).

• Release the locks and clips.

3. Remove the speaker (2).

• Remove the four screws.

• Disconnect the connector (3).

890RW019-1

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

Rear Speaker (SWB)

Removal

1. Disconnect the battery ground cable.

2. Pull the grille (1) to release the locks clips and then

remove it.

3. Remove four screws and disconnect the connector

(3) to remove the speaker (2).

890RW048-1

Installation

To install, follow the removal steps in the reverse order.

ENTERTAINMENT

8C–9

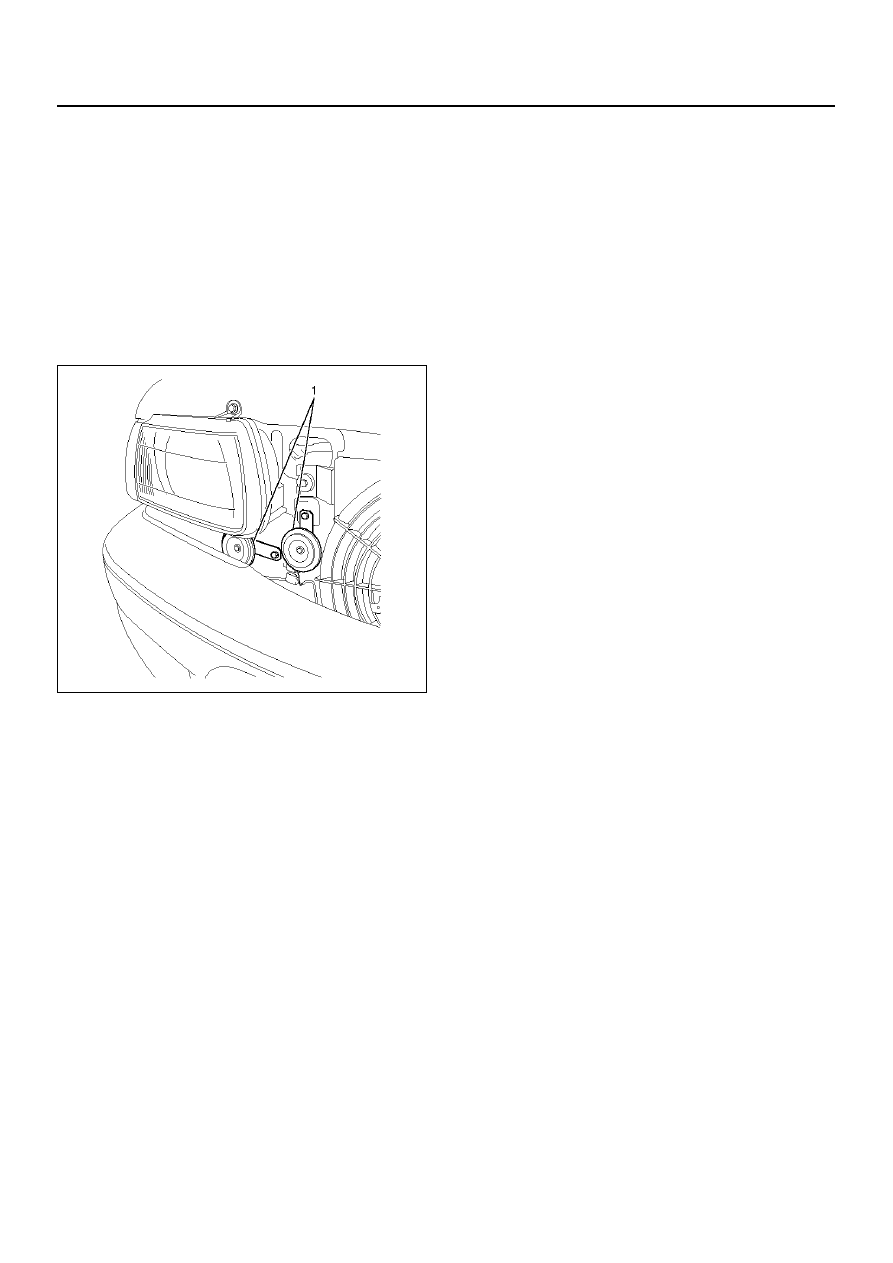

Horn

Removal

1. Disconnect the battery ground cable.

2. Remove the radiator grille.

• Refer to Engine Hood and Fender in Body

Structure section.

3. Remove the horn (1).

• Disconnect the connector.

• Remove the horn mounting bolt.

828R100001

Installation

To install, follow the removal steps in the reverse order.

8D–1

WIRING SYSTEM

RODEO

BODY AND ACCESSORIES

WIRING SYSTEM

CONTENTS

Fuse, Relay and Diode

8D–2

. . . . . . . . . . . . . . . . . . .

Relay / Fuse Box Location

8D–2

. . . . . . . . . . . . . .

Relay / Fuse Box (Instrument Panel)

8D–3

. . . . .

Relay / Fuse Box (L4 Engine Room)

8D–4

. . . . .

Relay / Fuse Box (V6 Engine Room)

8D–5

. . . . .

Circuit Diagram

8D–6

. . . . . . . . . . . . . . . . . . . . . . . . .

Fuse Block Circuit–1 (L4)

8D–6

. . . . . . . . . . . . . . .

Fuse Block Circuit–2 (V6)

8D–7

. . . . . . . . . . . . . . .

Earth Location (Engine Room)

8D–8

. . . . . . . . . .

Earth Location (Cabin)

8D–9

. . . . . . . . . . . . . . . . .

Starter and Generator (L4)

8D–10

. . . . . . . . . . . . . .

Starter and Generator (V6)

8D–11

. . . . . . . . . . . . .

ECM (L4)

8D–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PCM (V6)–1

8D–13

. . . . . . . . . . . . . . . . . . . . . . . . . .

PCM (V6)–2

8D–14

. . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight and Fog Light

8D–15

. . . . . . . . . . . . . . . .

TURN, HAZARD, STOP, Back Up, Horn and
 A/T Shift Lock

8D–16

. . . . . . . . . . . . . . . . . . . . . . . .

Room, Luggage, Courtesy, Spot, Warning
 Buzzer (LWB)

8D–17

. . . . . . . . . . . . . . . . . . . . . . . .

Room, Luggage, Courtesy, Spot, Warning
 Buzzer (SWB)

8D–18

. . . . . . . . . . . . . . . . . . . . . . . .

Power Window and Door Lock

8D–19

. . . . . . . . . .

Alarmer Unit

8D–20

. . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper/Washer, Rear Defogger and
 Mirror Defogger

8D–21

. . . . . . . . . . . . . . . . . . . . . . .

Audio, Clock, Cigarette Lighter and ACC
 Socket (W/O AMP)

8D–22

. . . . . . . . . . . . . . . . . . . .

Audio, Clock, Cigarette Lighter and ACC
 Socket (W/AMP)

8D–23

. . . . . . . . . . . . . . . . . . . . . .

Door Mirror

8D–24

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Meter (L4)

8D–25

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Meter (V6)–1

8D–26

. . . . . . . . . . . . . . . . . . . . . . . . . .

Meter (V6)–2

8D–27

. . . . . . . . . . . . . . . . . . . . . . . . . .

Anti-theft with Keyless Entry (LWB)

8D–28

. . . . . .

Anti-theft with Keyless Entry (L4 SWB)

8D–29

. . .

Anti-theft with Keyless Entry (V6 SWB)

8D–30

. . .

Air Conditioning

8D–31

. . . . . . . . . . . . . . . . . . . . . . .

ABS

8D–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS–Air Bag

8D–33

. . . . . . . . . . . . . . . . . . . . . . . . . .

Intelligent Suspension

8D–34

. . . . . . . . . . . . . . . . . .

Shift on the Fly

8D–35

. . . . . . . . . . . . . . . . . . . . . . . .

Sunroof

8D–36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Illumination Light

8D–37

. . . . . . . . . . . . . . . . . . . . . .

FRT Wiper

8D–38

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Seat

8D–39

. . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

8D–2

WIRING SYSTEM

Fuse, Relay and Diode

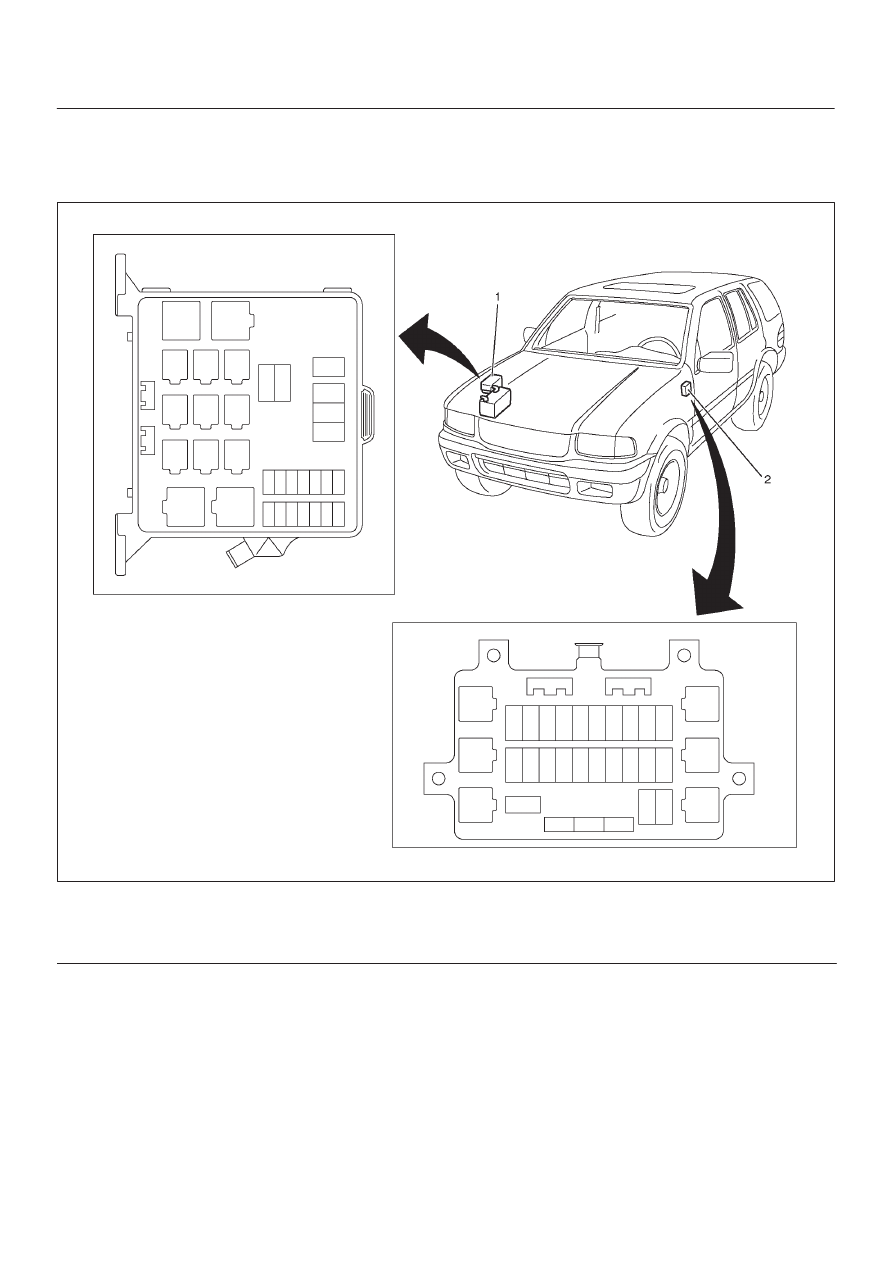

Relay / Fuse Box Location

810R200004

Legend

(1) Relay/Fuse Box (Engine Room)
(2) Relay/Fuse Box (Instrument Panel)
