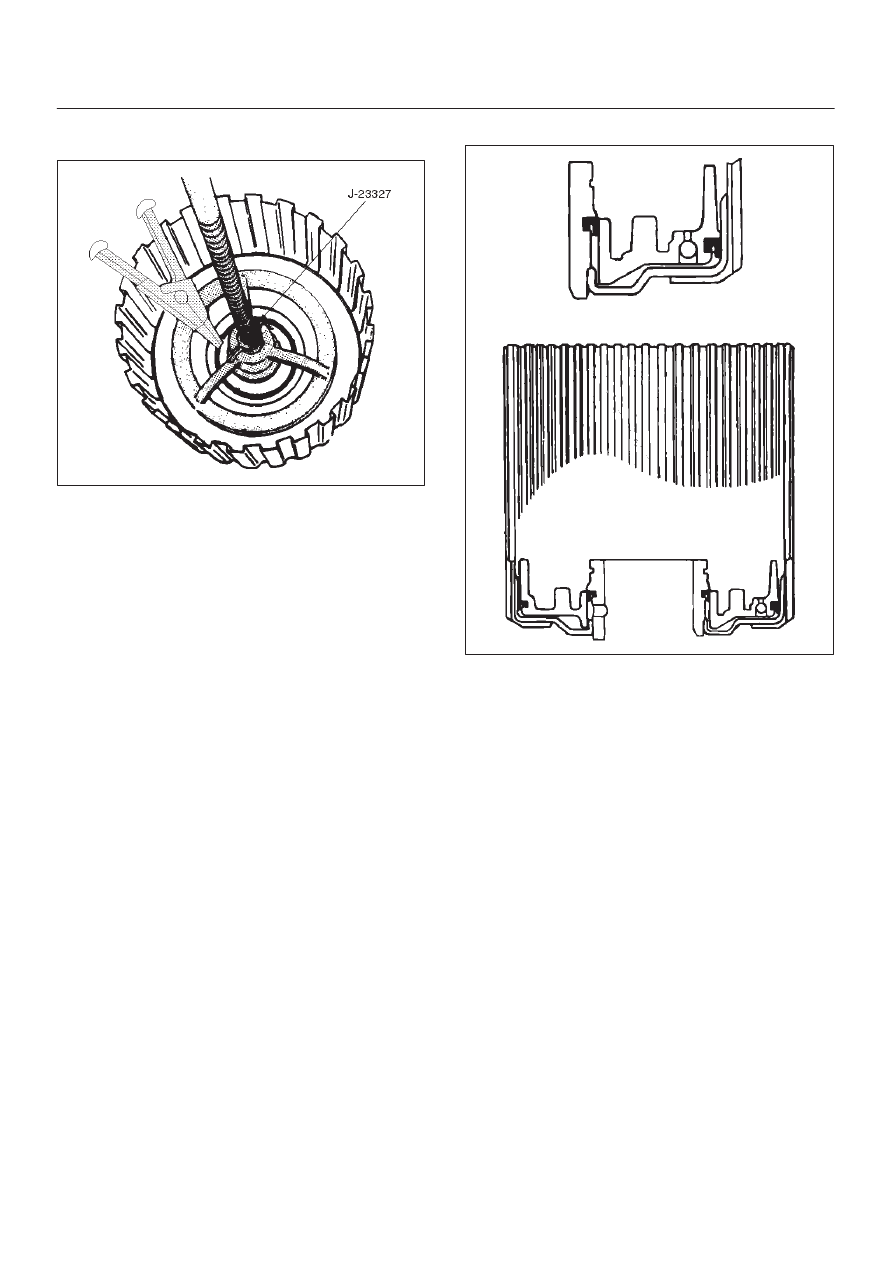

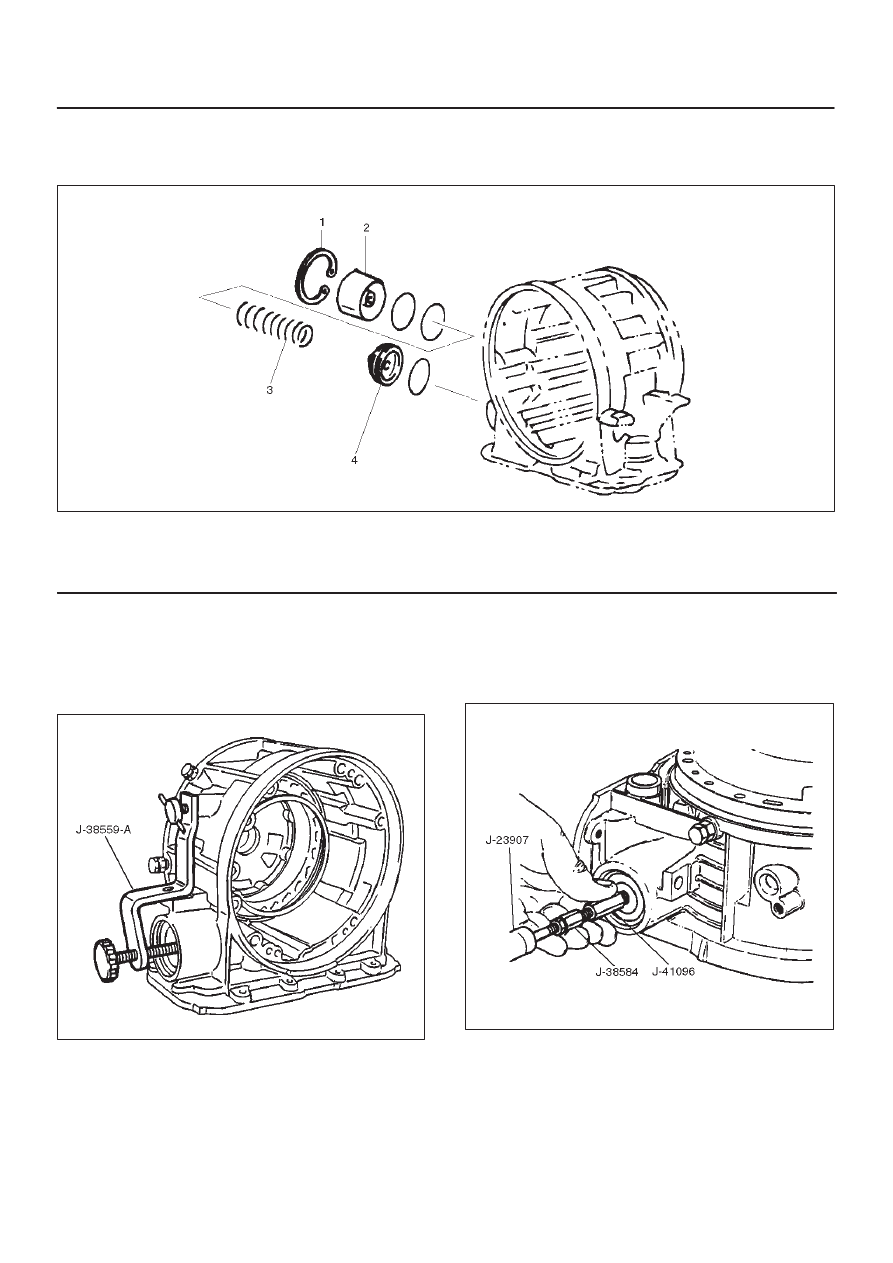

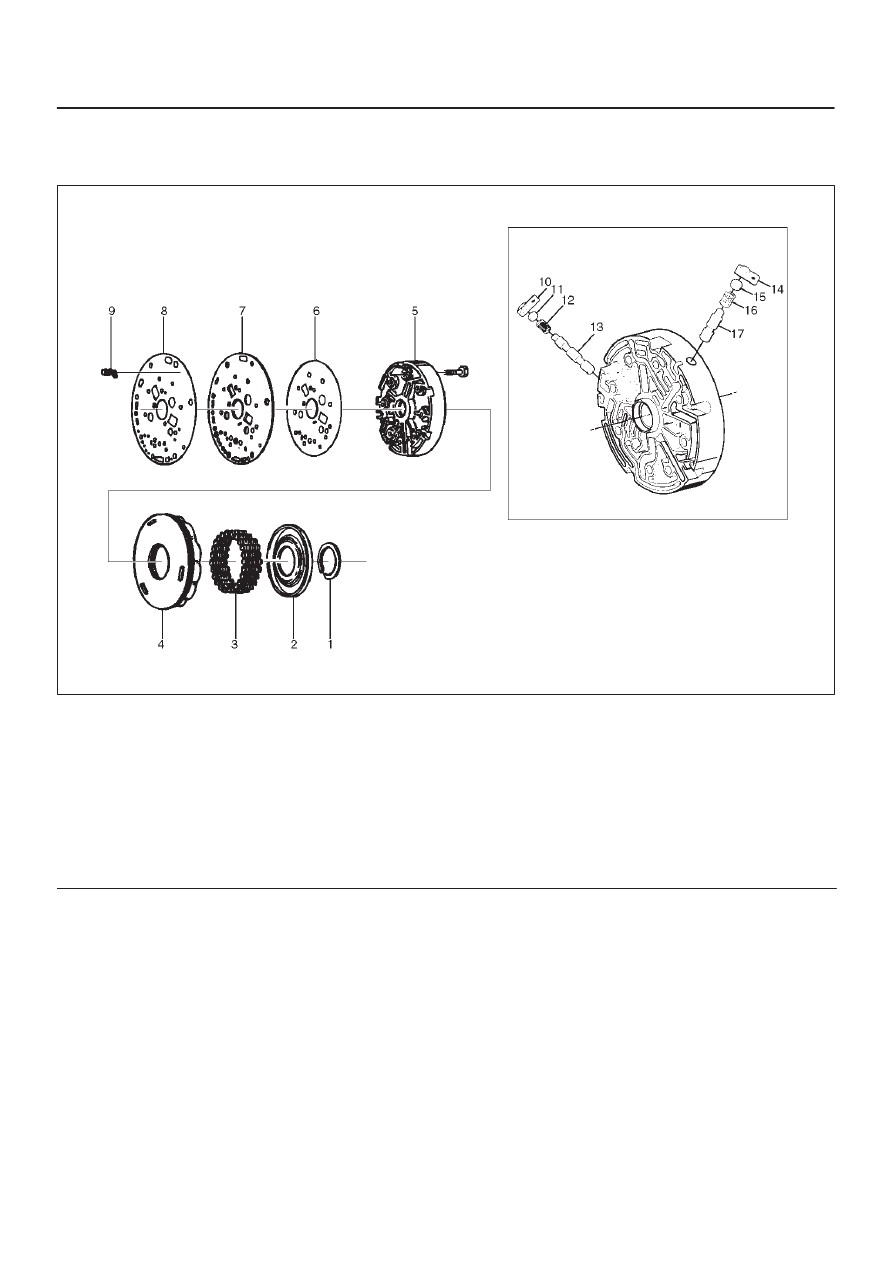

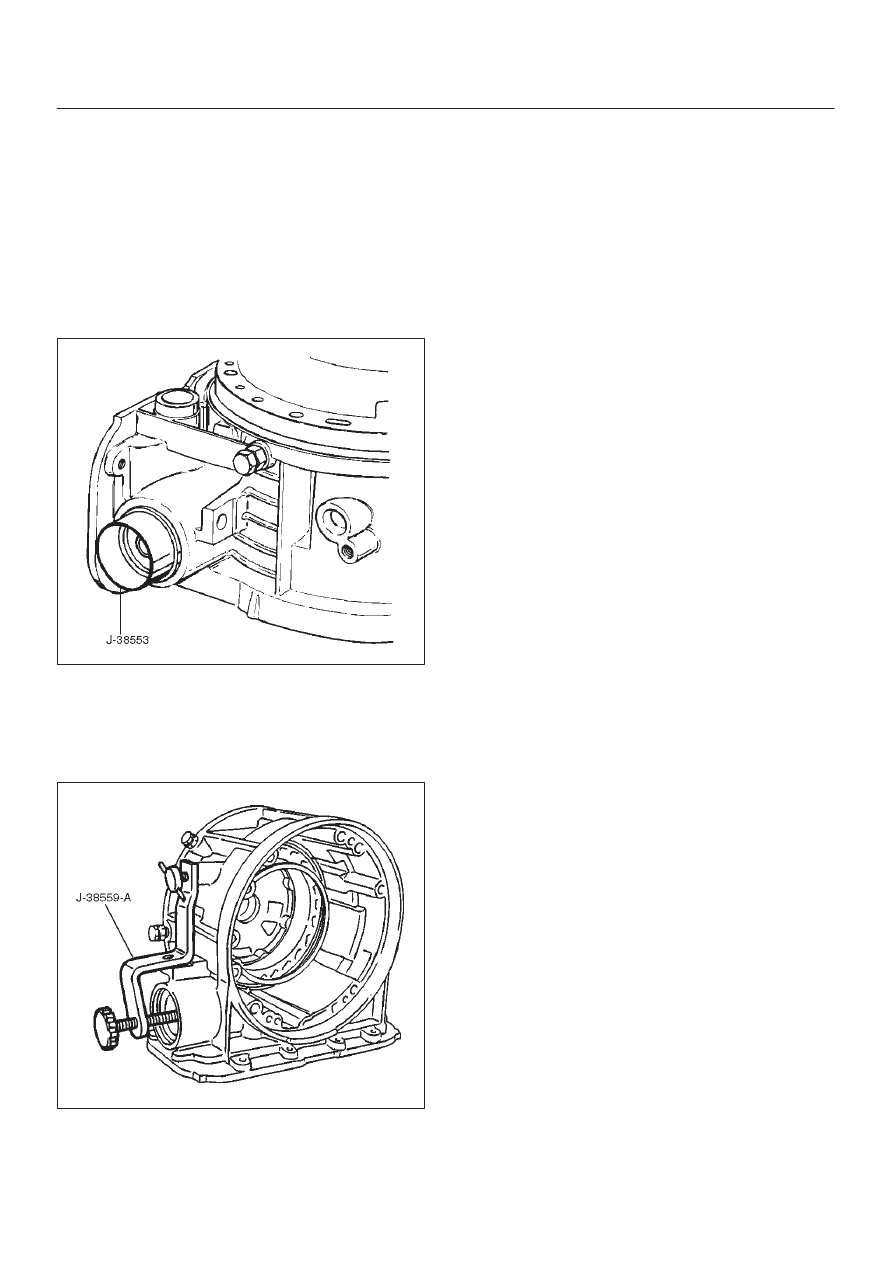

7A–92 AUTOMATIC TRANSMISSION (4L30–E) 5. Remove spring seat (8), springs (9) and piston assembly (10) from second clutch drum (11). 247RS006 Inspection and Repair Visual Check: If any damage, deformation or wear is found, replace the Operation Check: Shake the piston and listen for check ball movement. Reassembly 1. Install piston assembly (10) into the second clutch drum (11). D Lubricate the lip seal with transmission fluid. Use NOTE: Lip of the seal should point toward front of D Remove the installer. 247RS007 2. Install twenty-two piston springs (9) and spring seat (8) on the second clutch piston (10). Place retaining D Use the J–23327 compressor to compress the NOTE: Do not let spring seat catch in ring groove. D Remove the compressor. 3. Install waved plate (6) and clutch plates (5). Start with a steel plate and alternate with lined plates. D Align second clutch inner tangs. 4. Install spacer (4), with the fluted end toward clutch plates. 5. Install retaining ring (3), ring gear (2) and retaining ring (1). |
