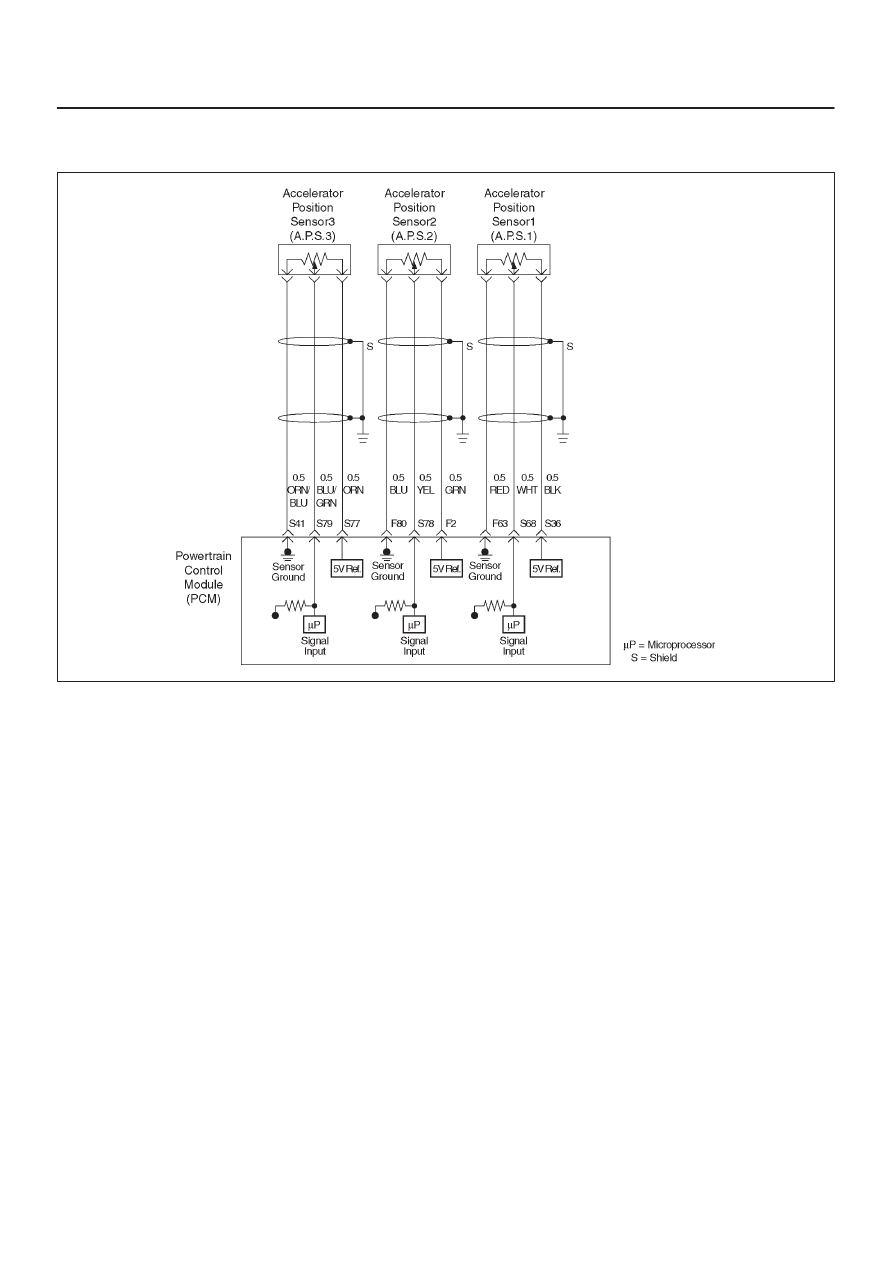

6E2–399 RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS If DTC P1120 cannot be duplicated,the information If it is determined that the DTC occurs intermittently, Diagnostic Trouble Code(DTC)P1120-TPS 1 Circuit Fault
Step Action Value(s) Yes No 1 Was the “On-Board(OBD)System Check” performed? — Go to Step 2 Go to OBD System Check 2 Was the “Electric Throttle Control (ETC) System — Go to Step 3 Go to ETC System check 3 1. Ignition “ON”, engine not running. Is the MAP reading less than the specified value? 100kPa Go to Step 4 Go to Step 7 4 1. Disconnect the MAP sensor. signal at the MAP sensor harness connector. 3. Observe the MAP reading on the Tech 2. Is the MAP reading less than the specified value? (If no, — Go to Step 6 Go to Step 5 5 1. Check the MAP signal circuit between the PCM and MAP grund circuit. 2. If the MAP signal circuit is open or shoted, repair it as necessary. Was the MAP signal circuit open or shorted? — Verify repair Go to Step 13 6 Replace the MAP sensor. Is the action complete? — Verify repair — 7 Observe the TP angle reading on the Tech 2 while Does the TP angle increase steadily and evenly from Closed throttle TP sensor 1= 8 ∼ 13% Wide open throttle TP sensor 1= 87 ∼ 97% Go to Step 8 Go to Step 9 8 Was the DTC P1120 stored? — Go to Step 13 Refer to Diagnostic Aids 9 1. Connect a DVM between the 5Volt reference circuit and the TP sensor ground circuit at the TP1sensor 2. Observe the voltage using a DVM. Is the voltage near the specified value? 5V Go to Step 10 Go to Step 11 |
