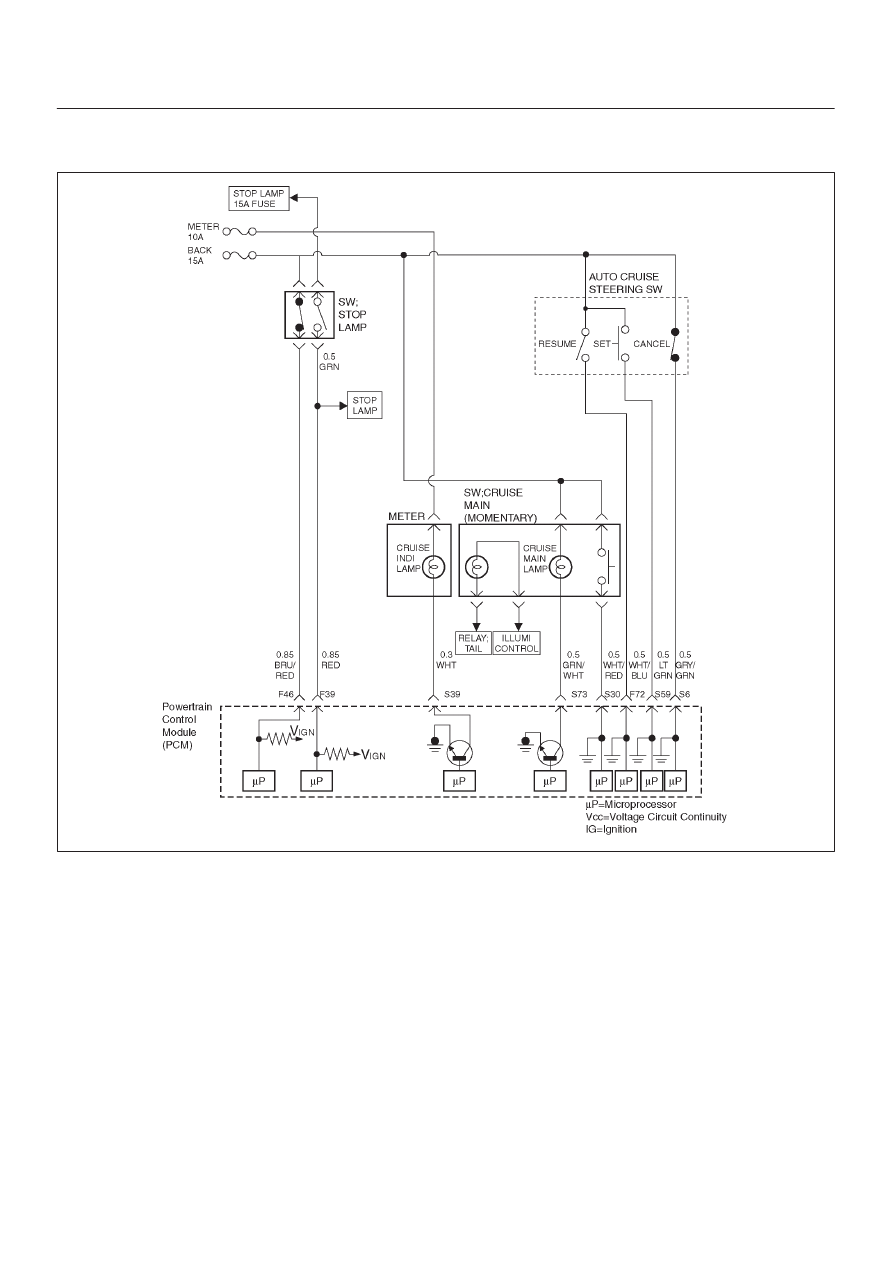

6E2–371 RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Aids An intermittent may be caused by the following: D Poor connections. D Misrouted harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D Poor connection at PCM-Inspect harness connectors D Damaged harness-Inspect the wiring harness for If the harness appears to be OK, observe the Cruise A change in the display will indicate the location of If DTC P0567 cannot be duplicated, the information If it is determined that the DTC occurs intermittently, DTC P0567 Cruise Resume Switch Circuit Error
Step Action Value(s) Yes No 1 Was the “On-Board (OBD) System Check” performed? — Go to Step 2 Go to OBD System Check 2 Check the signal circuit for auto cruise resume switch. 1. Ignition is “OFF”. cruise resume switch signal circuit between the Is a problem found? Go to Step 3 Go to Step 4 3 Repair the main cruise resume switch signal circuit. Is the action complete? — Verify repair — 4 Check the auto cruise resume switch. Is a problem found? — Go to Step 5 Go to Step 6 5 Repair or replace the main cruise resume switch. Is the action complete? — Verify repair — 6 Replace the PCM. IMPORTANT: The replacement PCM must be Refer to ON-Vehicle Service in Power Control Module and Sensors for procedures. And also refer to latest Service Bulletin. Check to see if the latest software is released or not. And then Down Load the LATEST PROGRAMMED Is the action complete? — Verify repair — |
