6D3–8

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

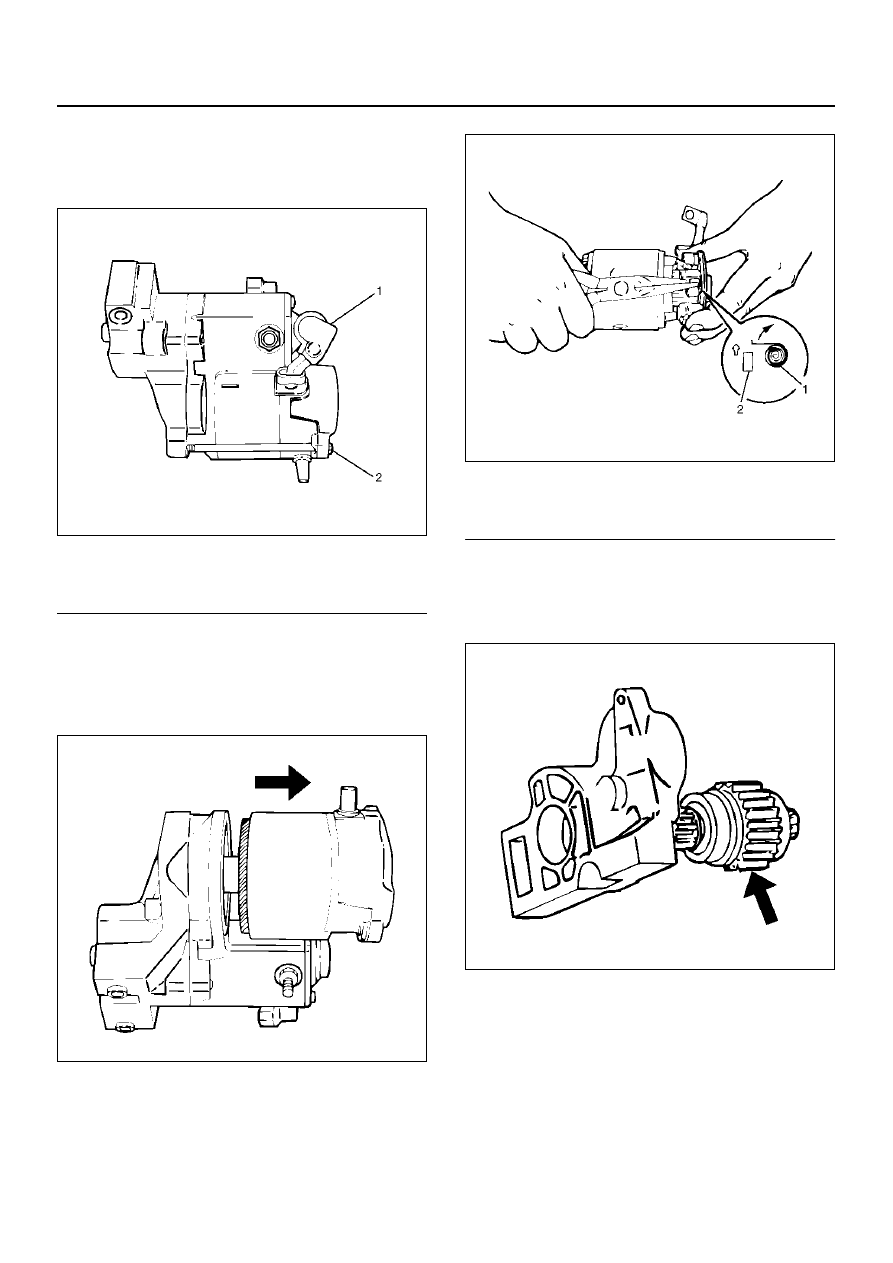

Disassembly

1. Remove the lead wire (1) from the magnetic switch.

2. Remove the through bolts (2).

065RY00053

EndOFCallout

3. Remove the yoke from the magnetic.

4. Remove the yoke cover.

5. Use the long nose pliers to remove the brush and

brush holder.

065RY00054

065RY00055

EndOFCallout

6. Remove the armature.

7. Remove the housing.

8. Remove the overrunning clutch from the housing.

065RY00056

Legend

(1) Lead Wire
(2) Through Bolt

Legend

(1) Spring
(2) Brush

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

6D3–9

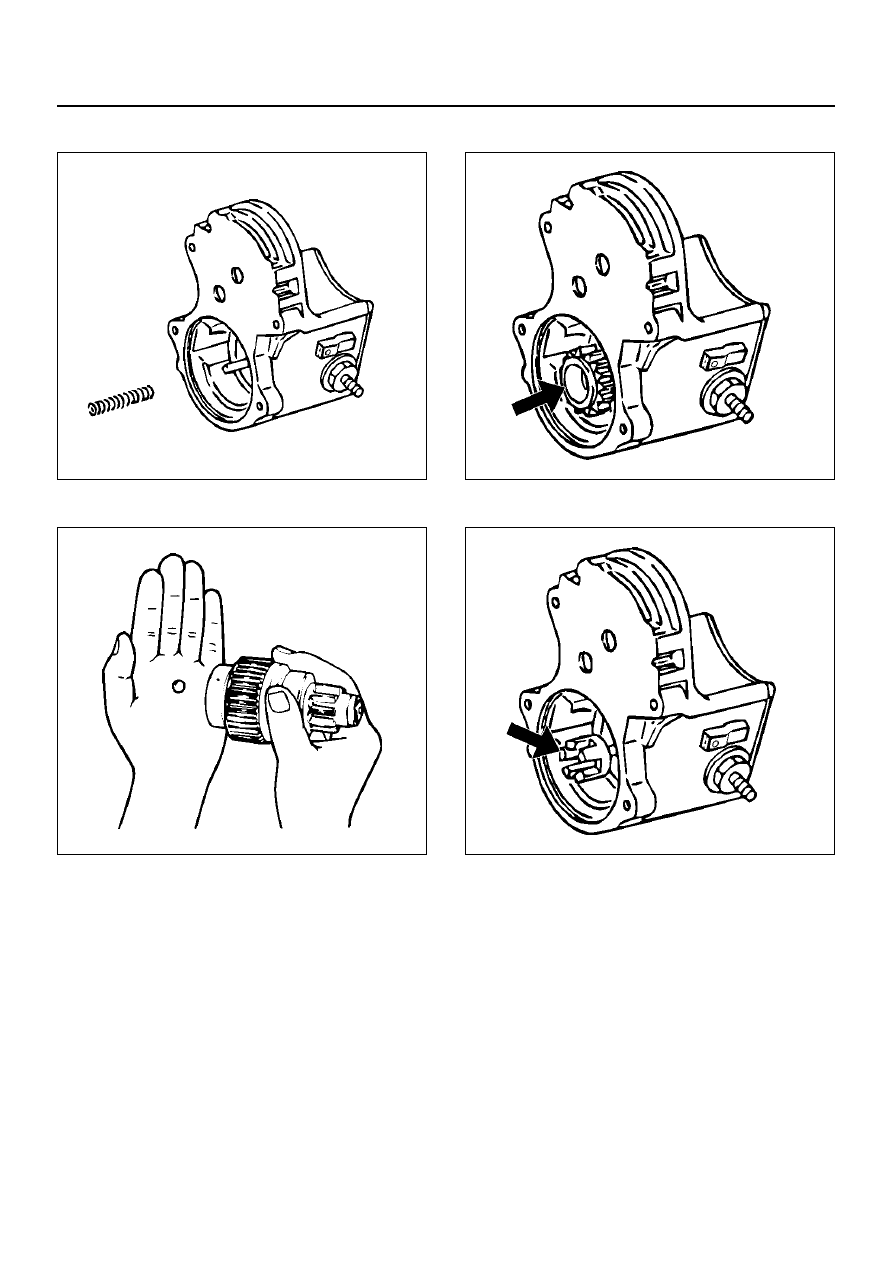

9. Remove the return spring from the magnetic switch.

065R100014

10. Remove the steel ball from the overrunning clutch.

065RY00058

11. Remove the idle pinion from the magnetic switch.

065R100015

12. Remove the retainer from the magnetic switch.

065R100016

13. Remove the magnetic switch.

6D3–10

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Inspection and Repair

Repair or replace necessary parts if extreme wear or
damage is found during inspection.

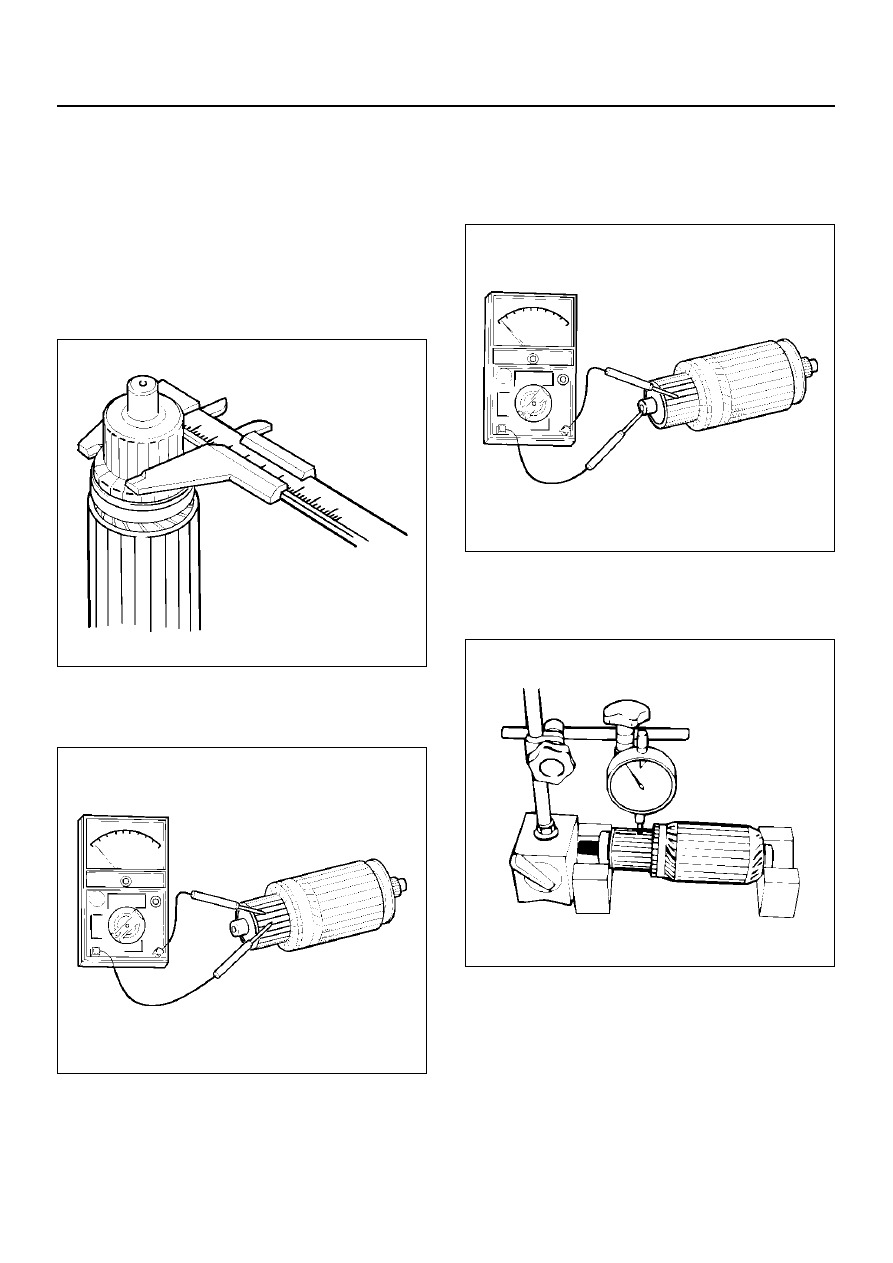

Armature

Measure the outer diameter of commutator, and replace
with a new one if it is out of the limit.

Standard: 30 mm (1.1811 in)

Limit: 29 mm (1.1417 in)

065RS014

Check for continuity between segment and segment on
the commutator. Replace commutator if there is no
continuity (i.e., disconnected).

065RS015

Check for continuity between commutator and shaft.
Also, check for continuity between commutator and
armature core, armature core and shaft. Replace
commutator if there is continuity (i.e., internally
grounded).

065RS016

Measure runout of the commutator with a dial gauge.
Repair or replace, if it exceeds the limit.

Limit: 0.4 mm (0.0157 in)

065RY00061

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

6D3–11

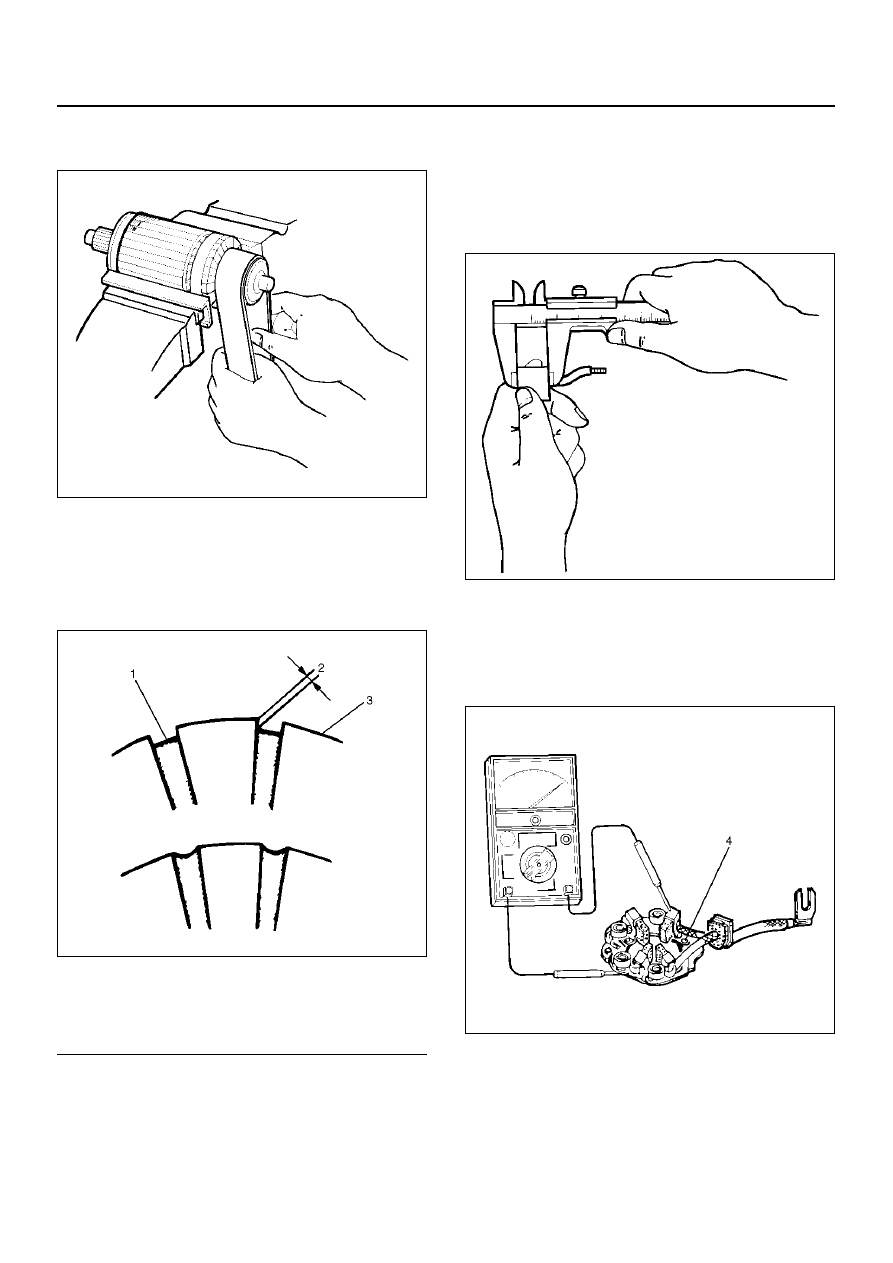

Polish the commutator surface with sandpaper #500 to
#600 if it is rough.

065RW012

Measure the depth of insulator in commutator. Replace,
if it is below the limit.

Standard: 0.45 mm to 0.75 mm (0.0177 in to

0.0295 in)

Limit: 0.2 mm (0.008 in)

065RY00070

EndOFCallout

Brush

Measure the length of brush.
Replace with a new one, if it is below the limit.

Standard: 15 mm (0.5906 in)

Limit: 11 mm (0.43 in)

065RW014

Brush Holder

Check for continuity between brush holder (+) (4) and
base (–). Replace, if there is continuity (i.e., insulation is
broken).

065RW015

Legend

(1) Insulator
(2) Depth of Insulator
(3) Commutator Segments
