ENGINE SPEED CONTROL SYSTEM (Y22SE 2.2L)

6H–1

RODEO

ENGINE

ENGINE SPEED CONTROL SYSTEM (Y22SE 2.2L)

CONTENTS

Service Precaution

6H–1

. . . . . . . . . . . . . . . . . . . . . .

Accelerator Pedal Control Cable

6H–2

. . . . . . . . . .

Removal

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustment

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Accelerator Pedal

6H–3

. . . . . . . . . . . . . . . . . . . . . . .

Accelerator Pedal and Associated Parts

6H–3

. .

Removal

6H–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6H–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

6H–2

ENGINE SPEED CONTROL SYSTEM (Y22SE 2.2L)

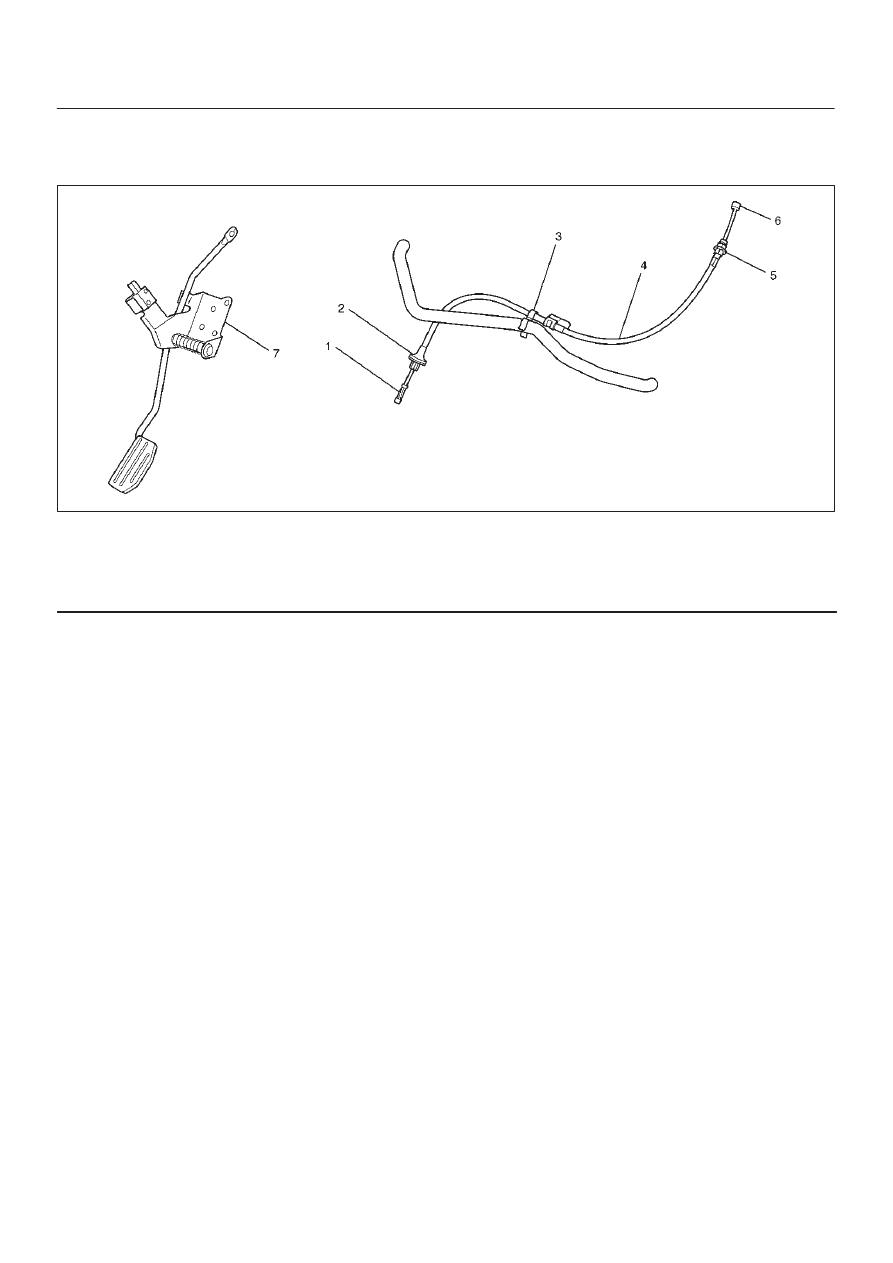

Accelerator Pedal Control Cable

035RX004

Legend

(1) Accelerator Pedal (AP) Control Inner Cable
(2) Grommet
(3) Clip

(4) AP Control Cable
(5) Adjusting Nut
(6) AP Control Inner Cable (Throttle Valve Side)
(7) Accelerator Pedal (AP) Assembly

Removal

1. Loosen the nut(5) on the cable bracket mounted.
2. Remove cable clip(3).
3. Disconnect accelerator pedal (AP) control cable(6).

(on throttle valve side)

4. Disconnect AP control cable(1). (on AP pedal(7) side)
5. Remove grommet(2).
6. Remove AP control cable(4).

Inspection

Check the following items, and replace the control cable if
any abnormality is found:

D

The control cable should move smoothly.

D

The control cable should not be bent or kinked.

D

The control cable should be free of damage and
corrosion.

Installation

1. Install AP control cable(4).
2. Install grommet(2).
3. Connect AP control inner cable(1). (on AP pedal(7)

side)

4. Connect AP control inner cable(6). (on throttle valve

side)

5. Install cable clip(3).
6. Install adjusting nut(5).

Adjustment

Adjust the AP free play by the adjusting nut (5).
AP free play 5 mm (0.2 in) on tip of accelerator pedal.

ENGINE SPEED CONTROL SYSTEM (Y22SE 2.2L)

6H–3

Accelerator Pedal

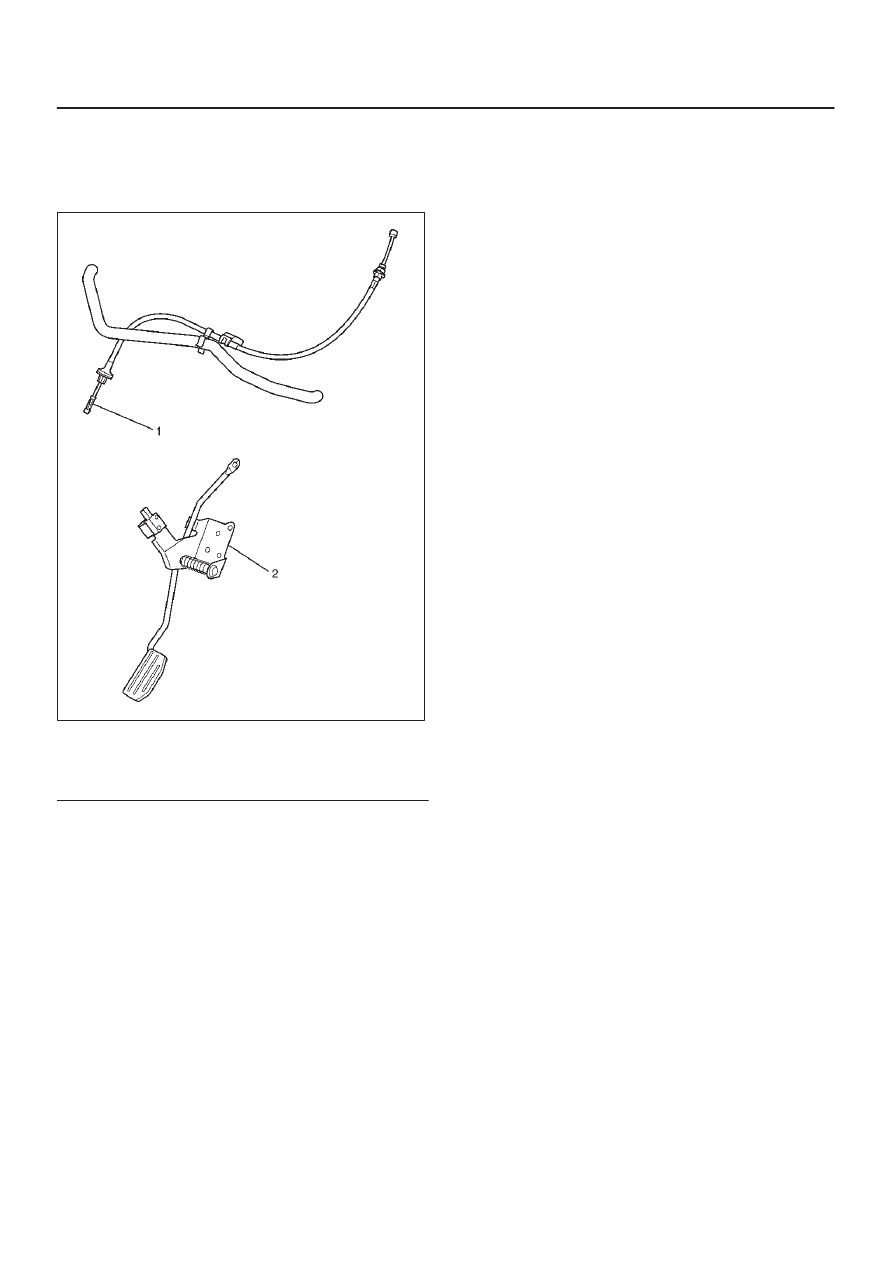

Accelerator Pedal and Associated
Parts

035RX002

Legend

(1) Accelerator Pedal Control Cable
(2) Accelerator Pedal Assembly

Removal

1. Accelerator pedal control cable(1).
2. Accelerator pedal assembly(2).

Installation

1. Accelerator pedal assembly (2).
2. Accelerator pedal control cable (1).
3. Adjust the accelerator pedal free play, refer to the AP

control cable in this manual.

6J–1

INDUCTION (Y22SE 2.2L)

RODEO

ENGINE

INDUCTION (Y22SE 2.2L)

CONTENTS

Service Precaution

6J–1

. . . . . . . . . . . . . . . . . . . . . .

Air Cleaner Filter

6J–2

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
