6E1–272

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DTC P0456 EVAP Control System Very Small Leak Detected

  (Cont'd)

Step

No

Yes

Value(s)

Action

11

Replace the EVAP vent solenoid. Refer to Diagnostic
Aids

Is the action complete?

—

Go to Step

14

—

12

1. Visually/physically check for the following

conditions:

D

Malfunctioning fuel cap.

D

Leaking fuel tank vapor line.

D

Damaged EVAP purge line.

2. If a problem is found, repair as necessary

Was a repair necessary?

—

Go to Step

14

Go to Step

13

13

1. Using the Tech 2, command the EVAP vent solenoid

ON (closed).

2. With the EVAP pressure/purge cart J41413

connected to the EVAP system by leaving the cart
control knob in the pressurized position.

3. Using the ultrasonic leak detector J41416, locate

and repair the leak in the EVAP system (it may be
necessary to partially lower the fuel tank to examine
the top tank connections).

Is the action complete?

—

Go to Step

14

—

14

IMPORTANT: Review the temperature variation
instructions included with the J41413 before
performing this step.

1. Turn the ignition switch ON, with engine OFF.
2. Using the Tech 2, command the EVAP vent solenoid

ON (closed).

3. Pressurize the EVAP system to the specified value

using the EVAP pressure/purge cart J41413
(monitor the pressure using the gauge on the cart).

4. Switch the rotary switch on the cart to HOLD and

observe the EVAP pressure gauge.

Does the pressure decrease to less than the specified
value within 2 minutes?

2.14V

System OK

Go to Step  3

6E1–273

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

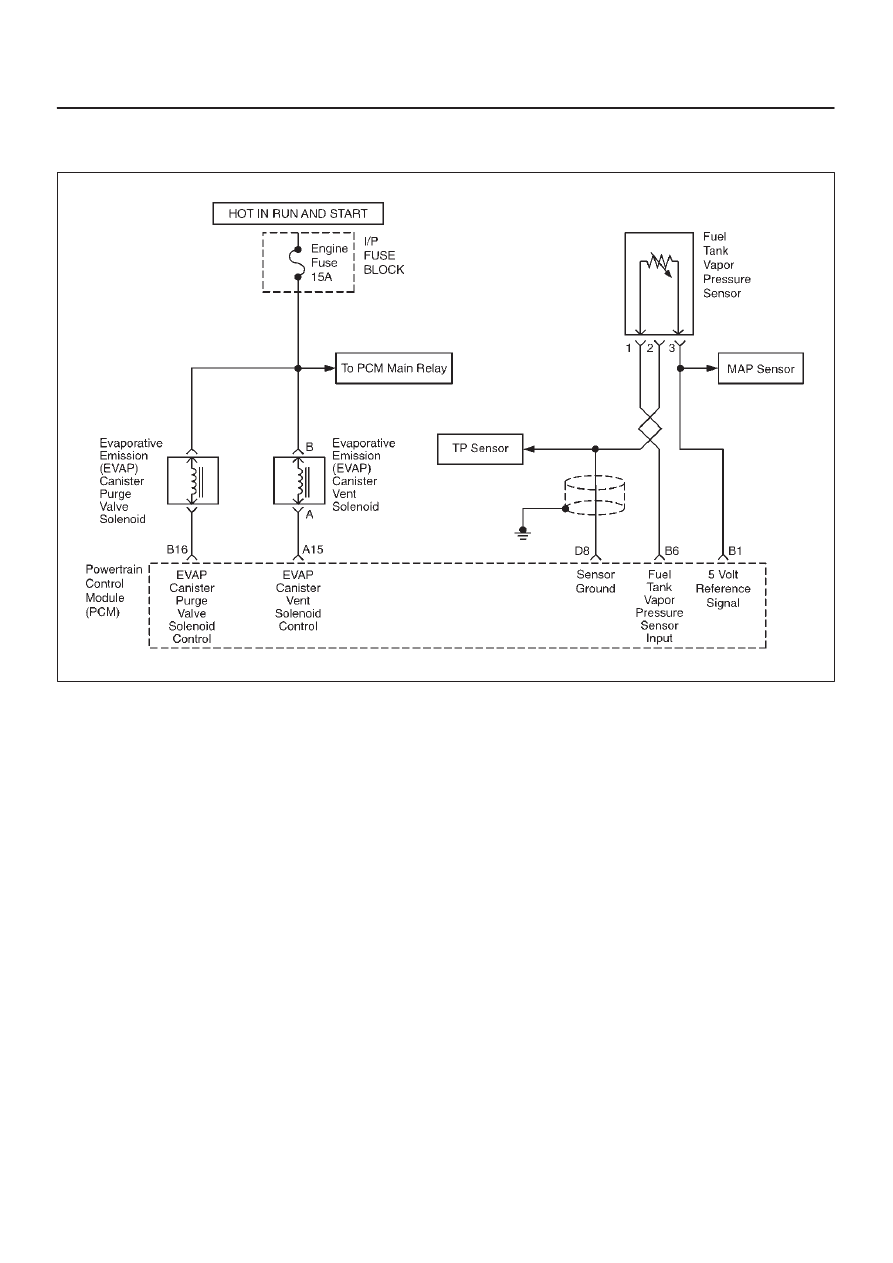

DIAGNOSTIC TROUBLE CODE (DTC) P0443  EVAPORATIVE EMISSION (EVAP)

CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT MALFUNCTION

060R100040

Circuit Description

The Powertrain Control Module (PCM) controls the
Evaporative Emission (EVAP) Canister Purge Solenoid
Valve through the use of a control (ground) circuit. If the
PCM commands the Purge solenoid to maximum duty
cycle (100%) but the voltage remains High (12 Volts); or, if
the PCM commands the Purge solenoid to minimum duty
cycle (0%) but the voltage remains Low (0 volts), then
DTC P0443 will set. DTC P0443 is a type A code.

Conditions for Setting the DTC

D

Ignition voltage is greater than 10 volts

D

Engine run time is greater than 32 seconds

The above conditions are met for 20 test failures within 40
test samples while 12.5 msec.

D

PCM senses voltage is High with the EVAP Canister
Purge Solenoid commanded ON.

D

PCM senses voltage is Low with the EVAP Canister
Purge Solenoid commanded OFF.

Action Taken When the DTC Sets

D

The PCM will illuminate the Malfunction Indicator Lamp
(MIL) the first time the fault is detected.

D

The PCM will store the conditions that were present
when the DTC was set as Freeze Frame and in Failure
Records.

Conditions for Clearing the MIL/DTC

D

The PCM will turn OFF the MIL after three consecutive
trips without a reported failure.

D

A History DTC will clear after 40 consecutive trips
without a reported failure.

D

The DTC can be cleared using the Scan Tool’s ”Clear
Info” function.

Diagnostic Aids

D

Poor connections , or a damaged harness – Inspect the
harness connectors for: backed–out terminals,
improper mating or damaged terminals. Also check for
open circuits, shorts to ground, and shorts to voltage.

D

The Fuel Pressure Sensor shares a 5 Volt reference
with the MAP sensor.
If these codes are also set, it could indicate a
problem with the 5 Volt reference circuit or
components itself.

D

The Fuel Pressure Sensor share a ground with the
ECT sensor, the TP sensor the CMP, the CKP, and
automatic transmission temperature sensor.

6E1–274

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DTC P0443  EVAP Control System Purge Control Valve Circuit Malfunction



Step

Action

Value(s)

Yes

No

1

Was the ”On–Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to OBD

System

Check

2

1. Ignition ON, Engine OFF.
2. Review and record Tech 2 Failure Records data,

then clear the DTC’s.

3. Operate the vehicle within the Failure Records

conditions as noted.

4. Using the Tech 2, monitor ”DTC” info for DTC

P0443.

Does the Tech 2 indicate DTC P0443 ”Ran and
Passed?”

—

Refer to

Diagnostic

Aids

Go to Step 3

3

1. Ignition OFF.
2. Disconnect the EVAP Canister Purge Solenoid from

the wiring harness connector from the EVAP
Canister Purge Solenoid.

3. Ignition ON, Engine OFF.
4. Using a Digital Voltmeter (DVM), check for voltage

on the ”Engine IG.” Fuse pin of the EVAP Canister
Purge Solenoid wiring harness connector.

Does the DVM read the following value?

12 Volts

Go to Step 5

Go to Step 4

4

Check the suspect circuit between the EVAP Canister
Purge Solenoid connector and the ”Engine IG.” Fuse
for the following conditions:

D

A short to ground

D

An open circuit

D

A short to voltage

Was the problem found?

—

Verify repair

—

5

Using a DVM, check the resistance of the EVAP
Canister Purge Solenoid.

Does the DVM read the following value?

less than 5

W

Go to Step 6

Go to Step 7

6

1. Ignition OFF.
2. Disconnect the Powertrain Control Module (PCM)

connectors from the PCM.

3. Check the EVAP Canister Purge Solenoid control

circuit between the PCM and EVAP Canister Purge
Solenoid for the following conditions:

D

A short to ground

D

An open circuit

D

A short to voltage

Was the problem found?

—

Verify repair

Go to Step 8

6E1–275

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DTC P0443  EVAP Control System Purge Control Valve Circuit Malfunction

  (Cont'd)

Step

No

Yes

Value(s)

Action

7

Replace the EVAP Canister Purge Solenoid.
Verify Repair.

—

—

—

8

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed. Refer to On–Vehicle Service in
Powertrain Control Module and Sensors for
procedures.

And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Verify repair.

—

—

—
