BRAKE CONTROL SYSTEM

5A–57

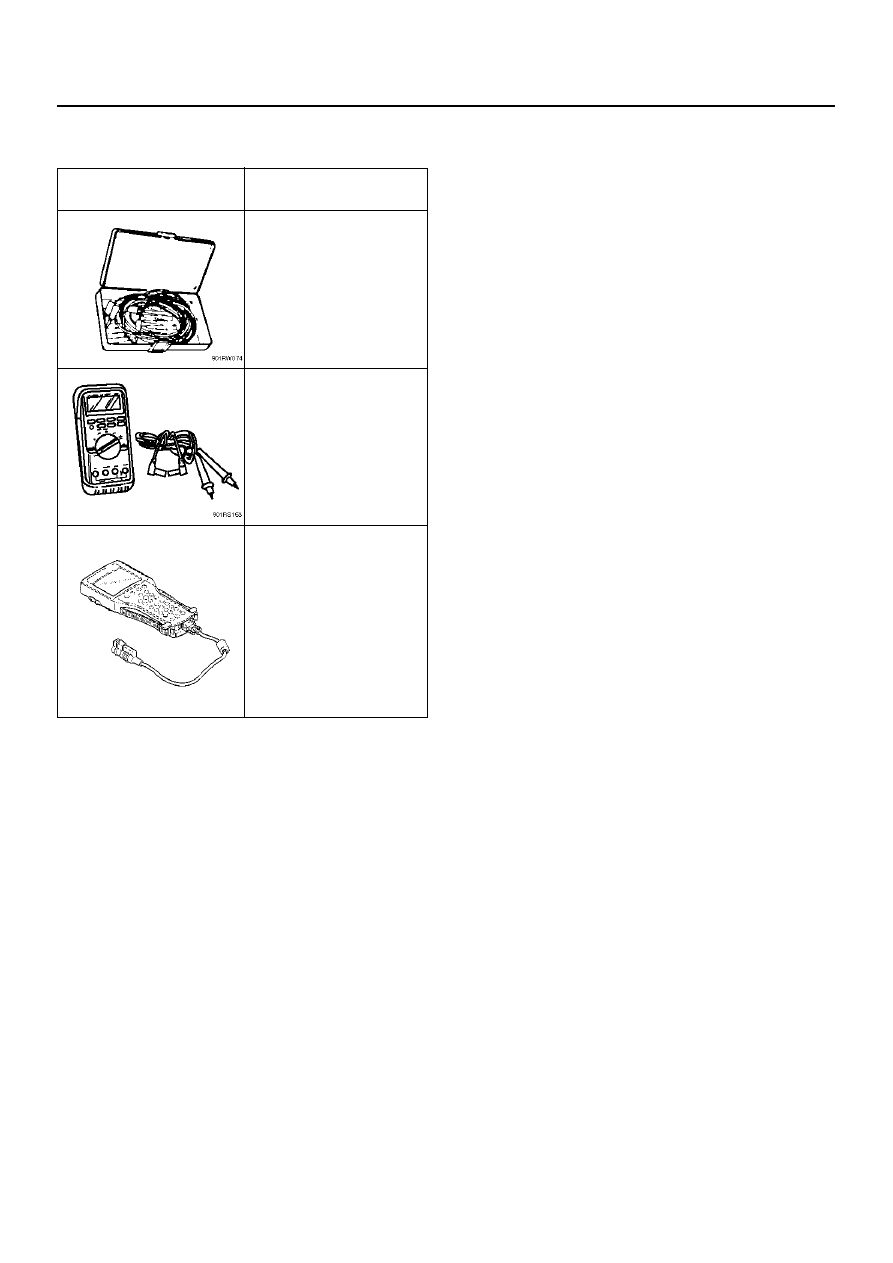

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–35616

Connector test adapter kit

J–39200

High impedance

multimeter

7000086–ISU

Tech 2 Set

(1) PCMCIA Card

(2) SAE 16/19 Adapter

(3) DLC Cable

(4) Tech 2

ANTI-LOCK BRAKE SYSTEM

5B–1

RODEO

BRAKES

CONTENTS

ANTI-LOCK BRAKE SYSTEM

Service Precaution. . . . . . . . . . . . . . . . . . . . .

5B–1

Electronic Hydraulic Control Unit . . . . . . . . . .

5B–2

Electronic Hydraulic Control Unit and

Associated Parts  . . . . . . . . . . . . . . . . . . . .

5B–2

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .

5B–2

Disassembled View  . . . . . . . . . . . . . . . . . .

5B–3

Disassembly . . . . . . . . . . . . . . . . . . . . . . . .

5B–3

Reassembly  . . . . . . . . . . . . . . . . . . . . . . . .

5B–3

Installation  . . . . . . . . . . . . . . . . . . . . . . . . .

5B–3

Front Wheel Speed Sensor . . . . . . . . . . . . . .

5B–4

Front Wheel Speed Sensor and

Associated Parts  . . . . . . . . . . . . . . . . . . . .

5B–4

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .

5B–4

Inspection and Repair. . . . . . . . . . . . . . . . .

5B–4

Installation. . . . . . . . . . . . . . . . . . . . . . . . . .

5B–5

Rear Wheel Speed Sensor  . . . . . . . . . . . . . .

5B–5

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .

5B–5

Inspection and Repair. . . . . . . . . . . . . . . . .

5B–5

Installation. . . . . . . . . . . . . . . . . . . . . . . . . .

5B–5

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE

SRS

COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE

SRS SERVICE INFORMATION. FAILURE TO

FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE     UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:   Always use the correct fastener in the
proper location. When you replace a fastener,     use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

SECTION

5B–2

ANTI-LOCK BRAKE SYSTEM

Electronic Hydraulic Control Unit

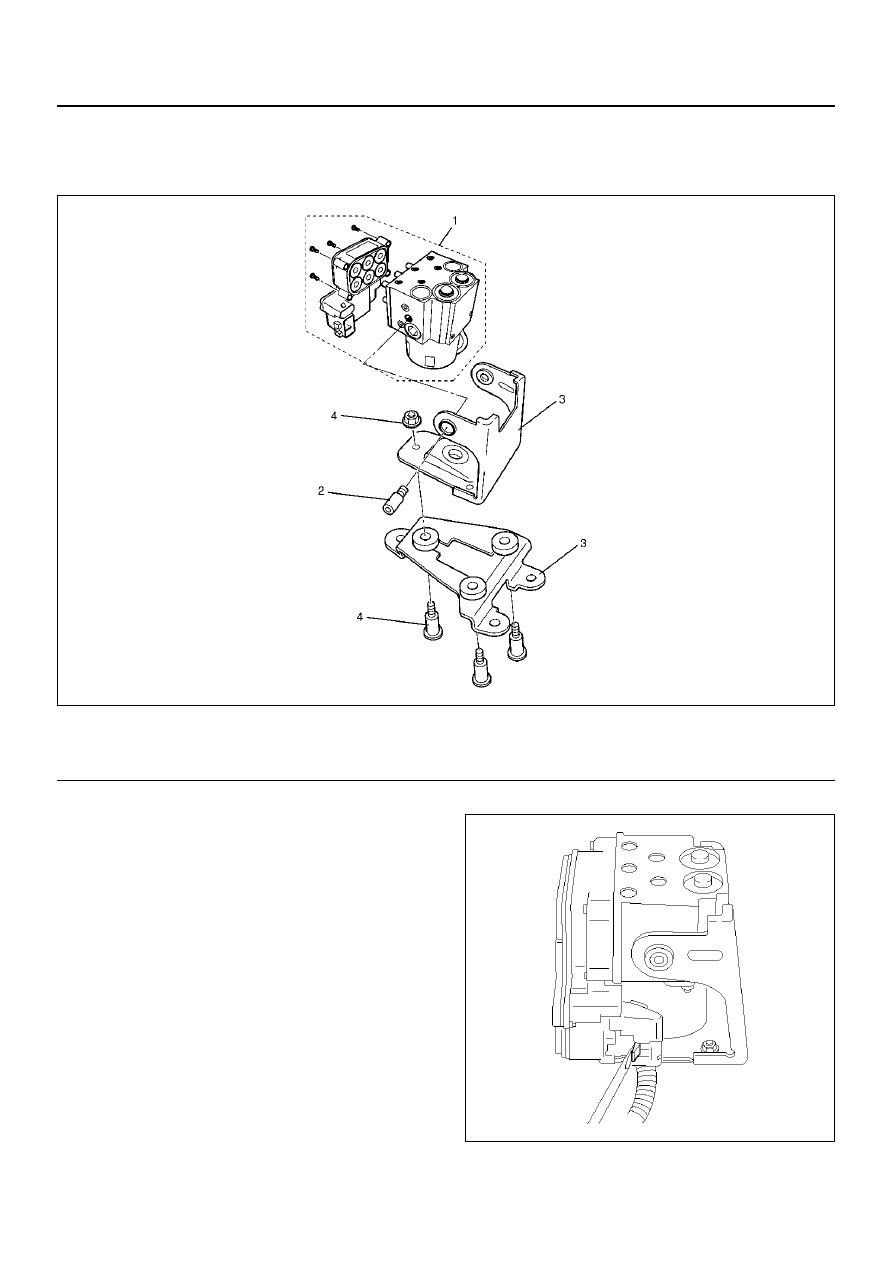

Electronic Hydraulic Control Unit and Associated Parts

350R100003

EndOFCallout

Removal

1. Remove brake pipes.

• After disconnecting brake pipe, cap or tape the

openings of the brake pipe to prevent the entry of
foreign matter.

2. Remove three bracket fixing bolts.

3. Disconnect red clip from harness connector.

350RW018

Legend

(1) EHCU
(2) Bolt

(3) Bracket
(4) Bolt and Nut

ANTI-LOCK BRAKE SYSTEM

5B–3

4. Remove harness connector.

5. Remove EHCU ASM.

6. Remove EHCU.

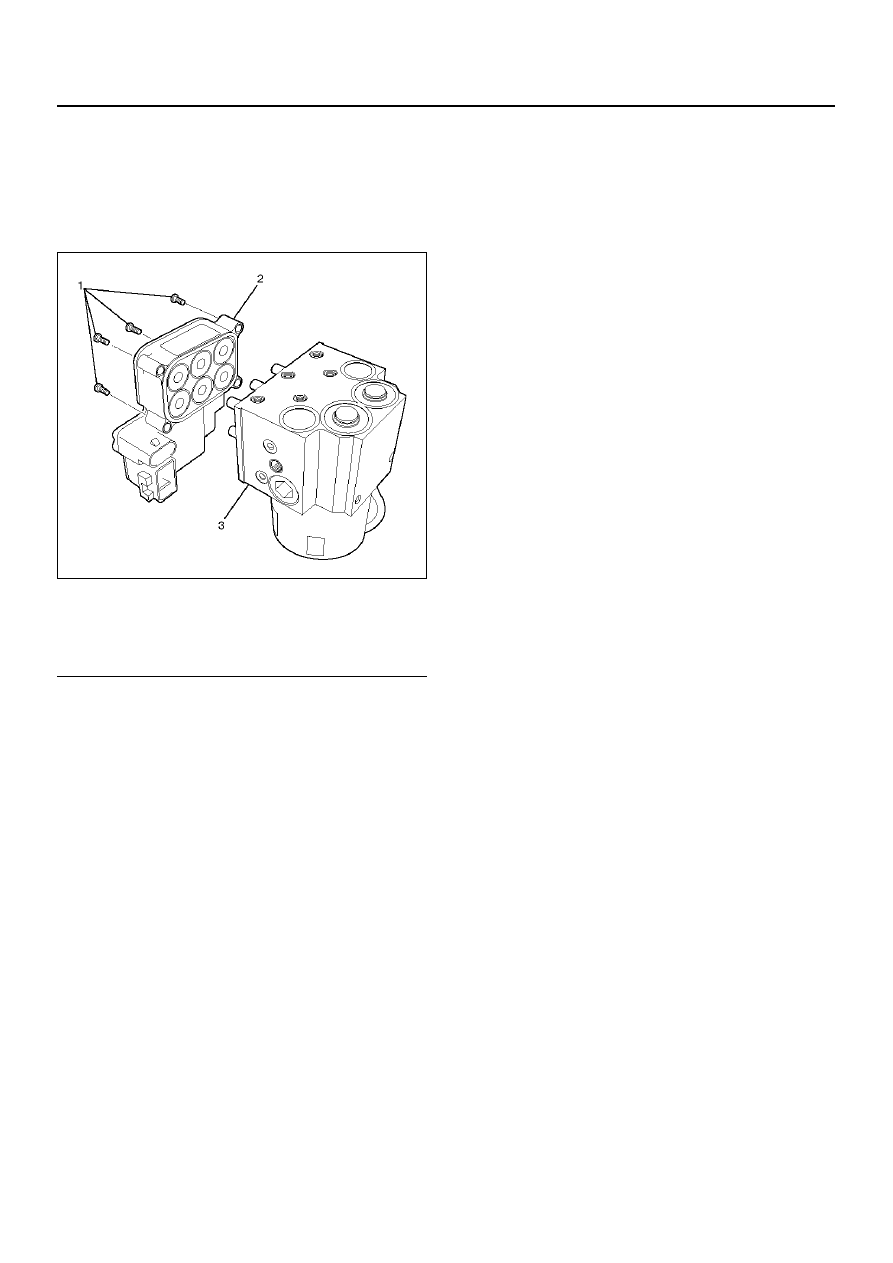

Disassembled View

350RW025

EndOFCallout

Disassembly

1. Remove fixing bolts from EHCU.

2. Remove coil integrated module from hydraulic unit.

Reassembly

To reassembly, follow the disassemble steps in the
reverse order, noting the following points:

Torque

Fixing bolts: 4.4 N·m (39 lb in)

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

Torque

Hydraulic unit fixing nuts : 22 N·m (16 lbft)

Ground cable : 14 N·m (10 lb ft)

Brake pipe (joint bolts) : 16 N·m (12 lb ft)

• After installing the hydraulic unit, bleed brakes

completely. See Section 5A Hydraulic Brakes.

Legend

(1) Fixing Bolts
(2) Coil Integrated Module
(3) Hydraulic Unit (H/U)
