DIFFERENTIAL (FRONT)

Main Data and Specifications

General Specifications

Axle tube Type

It consists of a duct, a cast iron housing and an axle tube.

Gear type

Hypoid

Gear ratio

(to 1)

4.100 (6VD1 with A/T)

4.300 (6VD1 with M/T)

Differential type

Two pinion

Oil capacity

liter (US qt)

1.25 (1.32) (Differential)

0.12 (0.13) (Actuator Housing: Shift on the fly)

Type of lubricant

GL–5 (75W–90)

Axle shaft type

Constant velocity joint (Birfield joint type and double offset

joint)

Hub locking Type

Rigid

DIFFERENTIAL (FRONT)

4A1–23

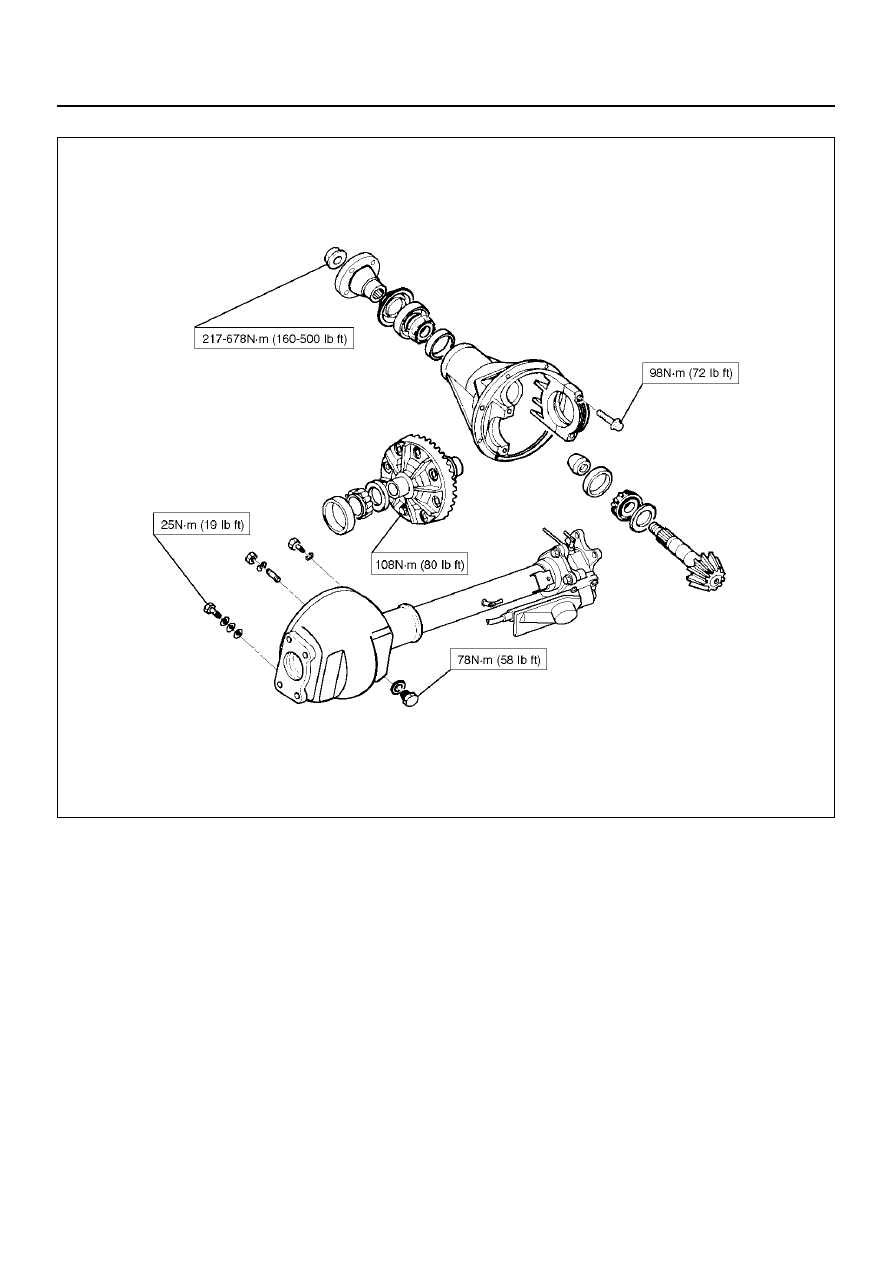

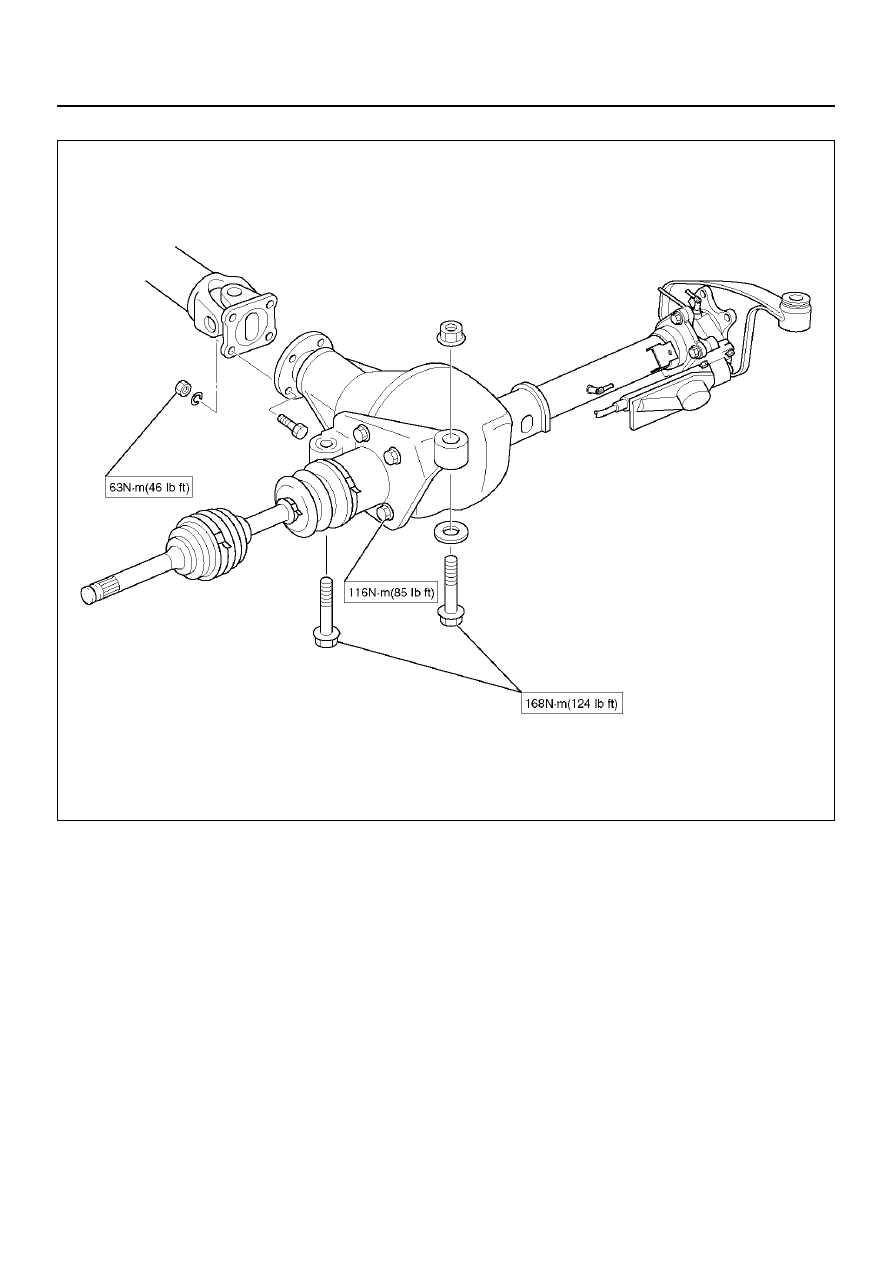

Torque Specifications

412RY00032

4A1–24

DIFFERENTIAL (FRONT)

415RY00009

DIFFERENTIAL (FRONT)

4A1–25

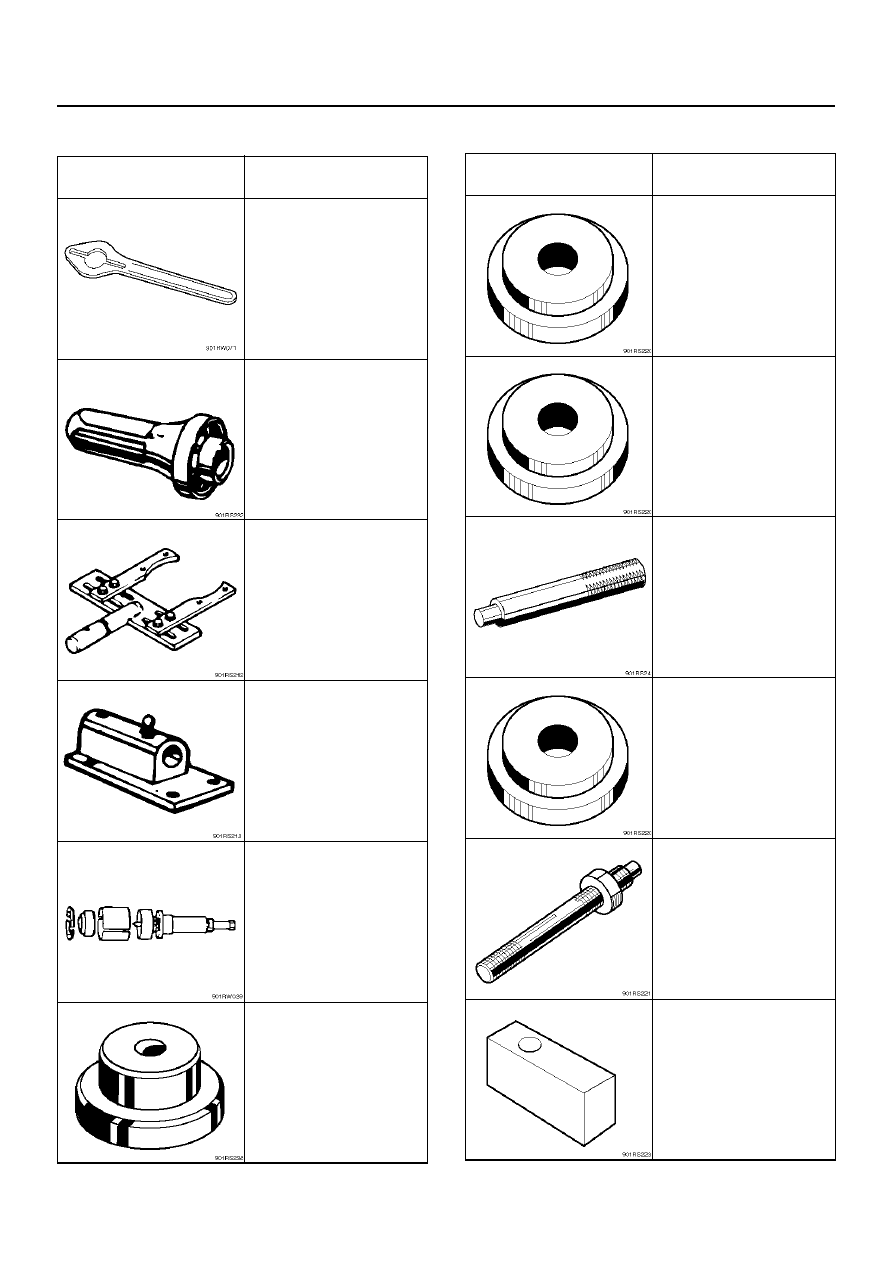

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8614–01

Holder; Pinion flange

J–24250

Installer; Oil seal

J–37264

Differential holding fixture

(Use with J–3289–20

base)

J–3289–20

Holding fixture base

J–42379

Remover; Side/Pinion

bearing

J–8107–2

Adapter; Side bearing

plug

J–7817

Installer; Outer bearing

outer race

J–7818

Installer; Inner bearing

outer race

J–8092

Driver handle

J–21777–42

Pilot

J–21777–43

Nut and stud

J–42479–1

Gauge plate

ILLUSTRATION

TOOL NO.

TOOL NAME
