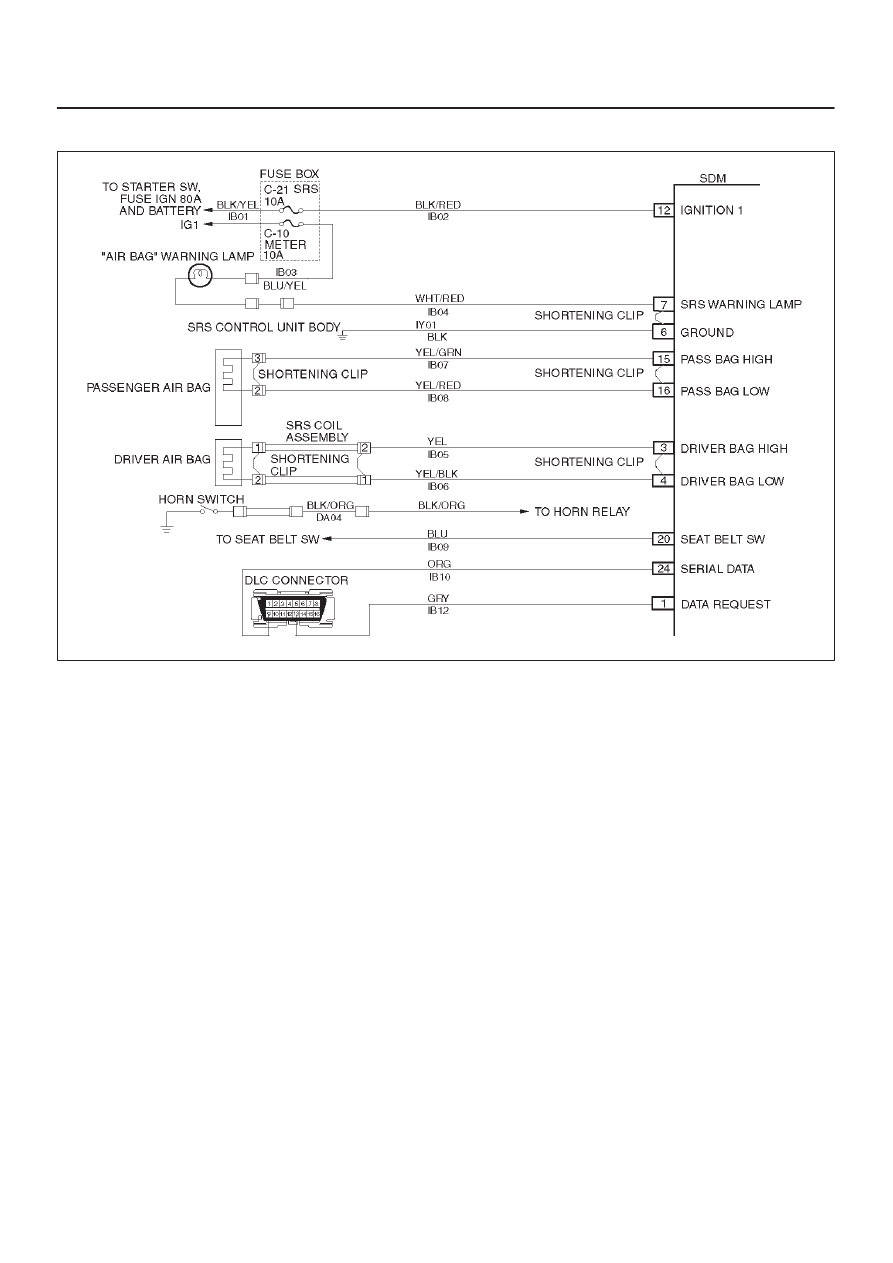

9J1–19 RESTRAINT CONTROL SYSTEM DTC 18 Passenger Deployment Loop Short To Ground D09RW001 Circuit Description: When the ignition switch is turned “ON”, the SDM will DTC Will Set When: Neither of the two air bag assemblies is open. Action Taken: SDM turns “ON” the “AIR BAG” warning lamp and sets a DTC Will Clear When: This malfunction is no longer occurring and the ignition DTC Chart Test Description: Number(s) below refer to circled number(s) on the malfunctioning. 3. This test isolates the malfunction to one side of the passenger air bag assembly yellow 2–pin connector 4. This test determines whether the malfunction is in CKT IB07–YEL/GRN. 5. This test determines whether the malfunction is in CKT IB08–YEL/RED. Diagnostic Aids: An intermittent condition is likely to be caused by a short |
